ARC3000H-GW2868

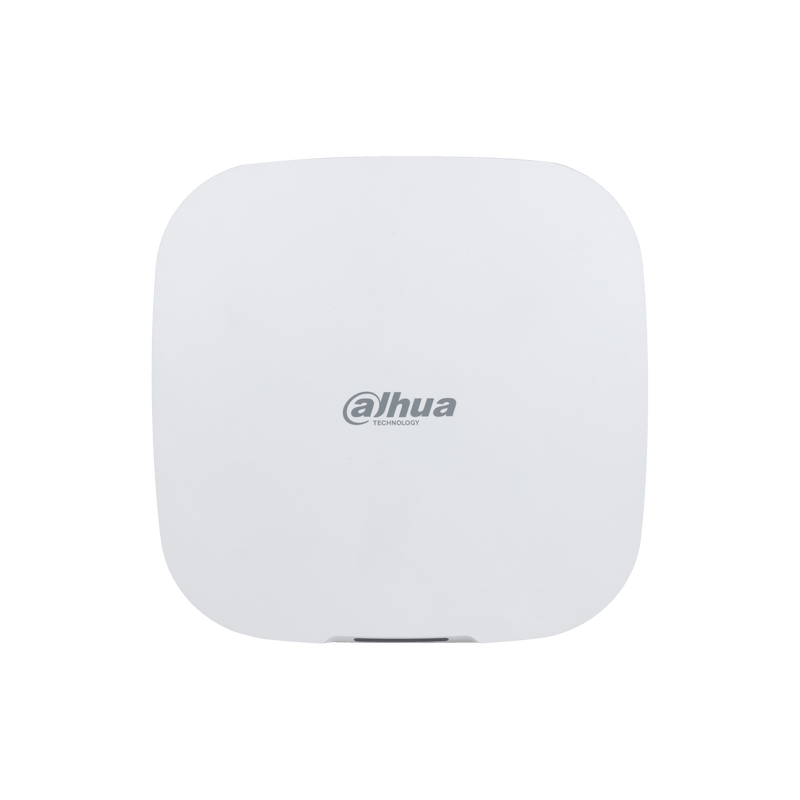

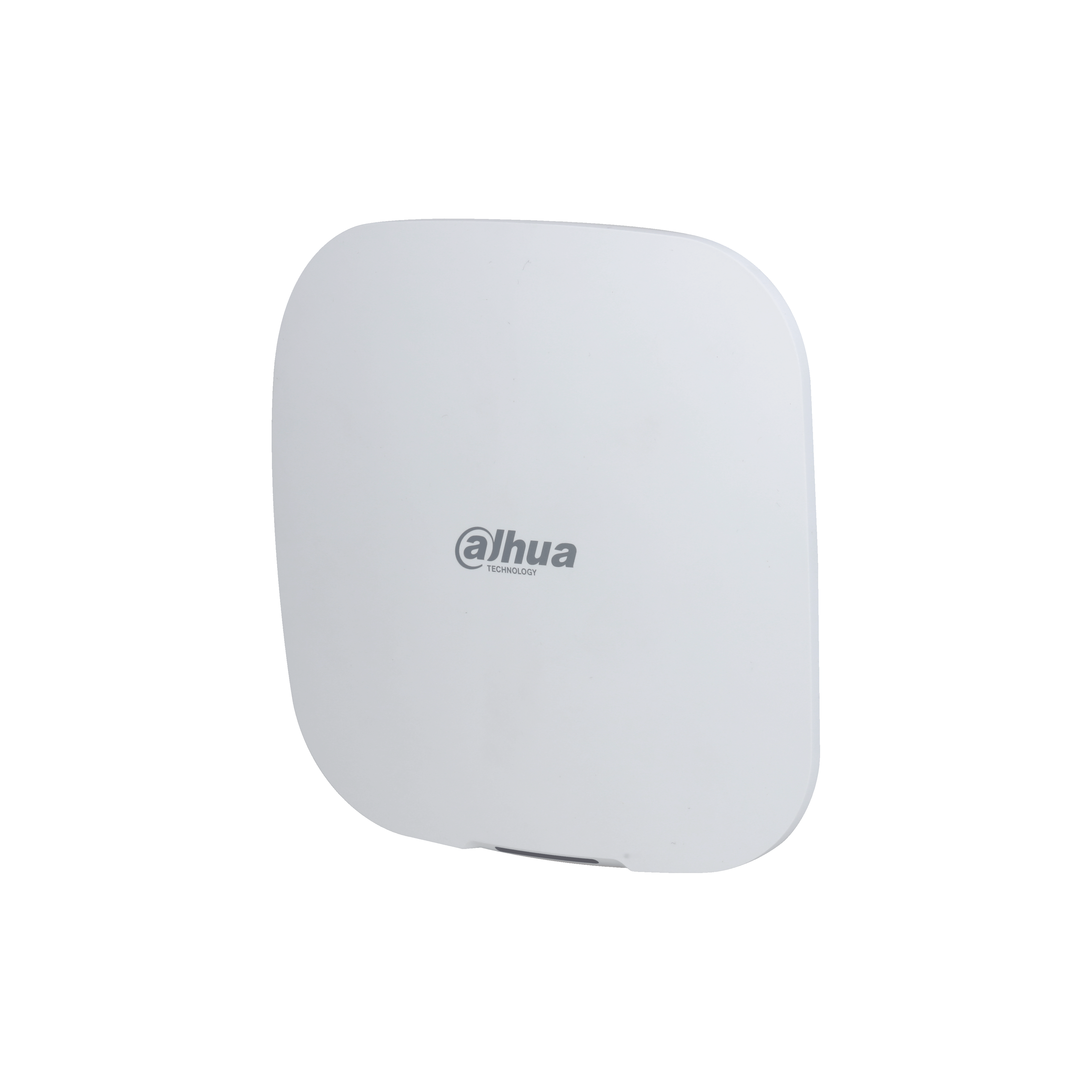

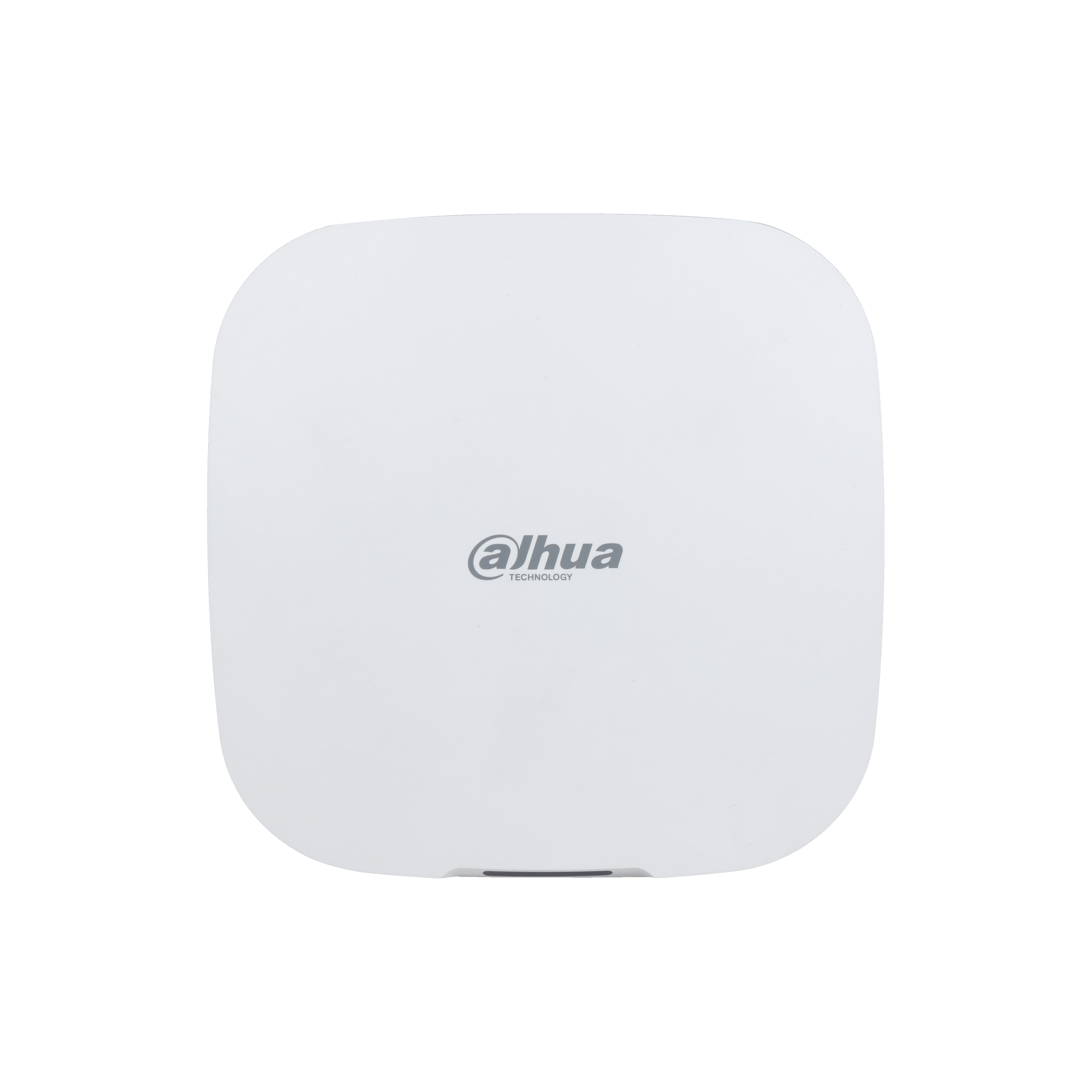

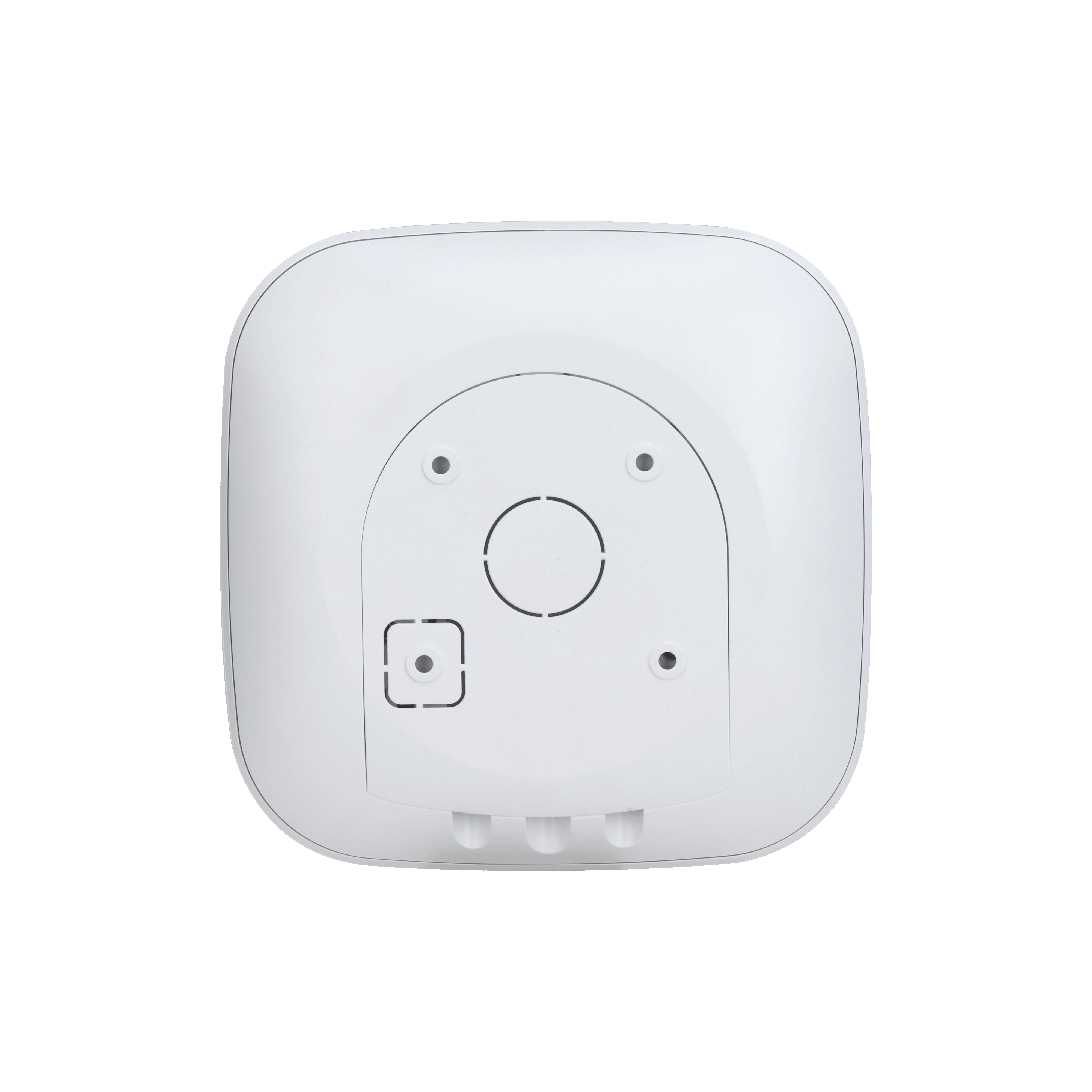

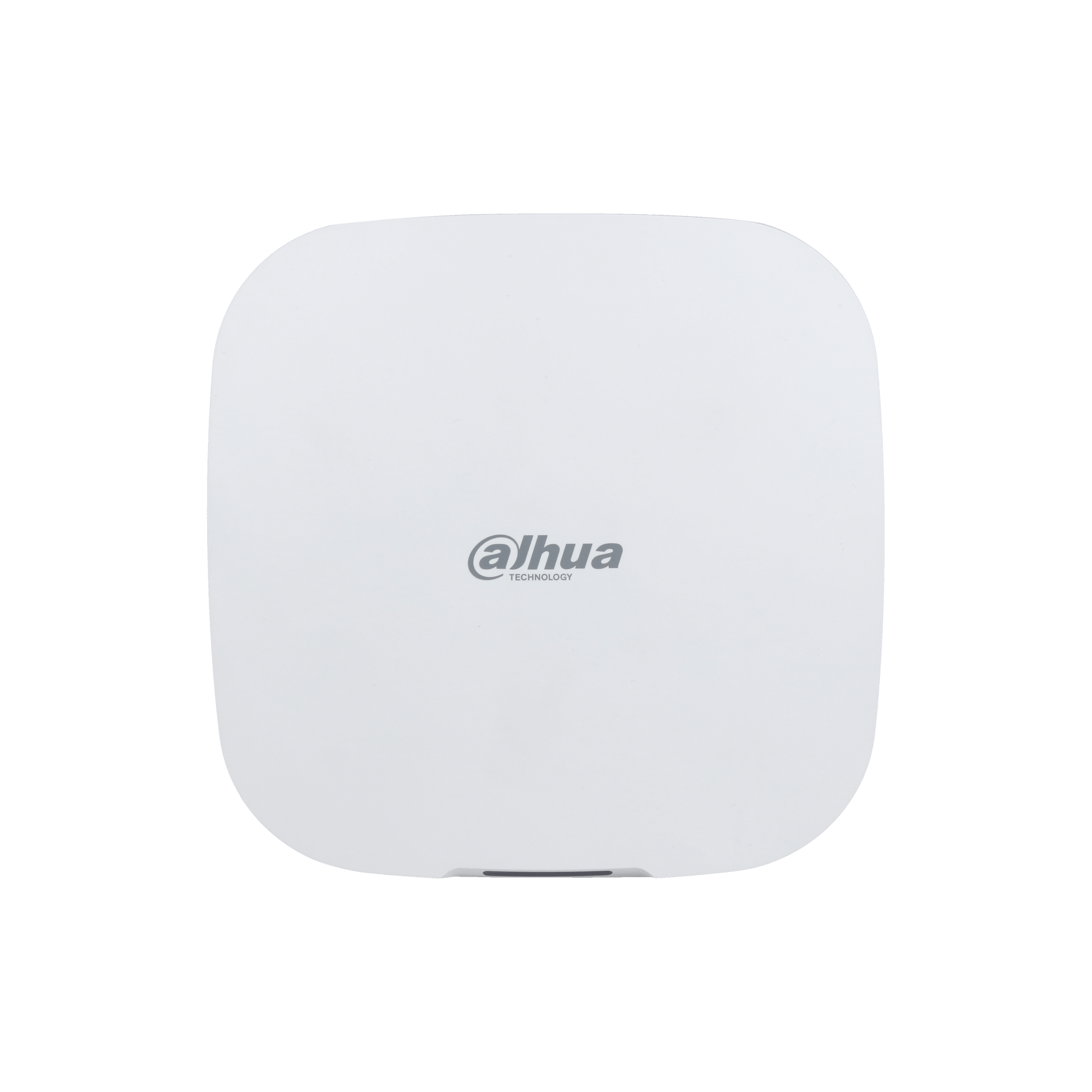

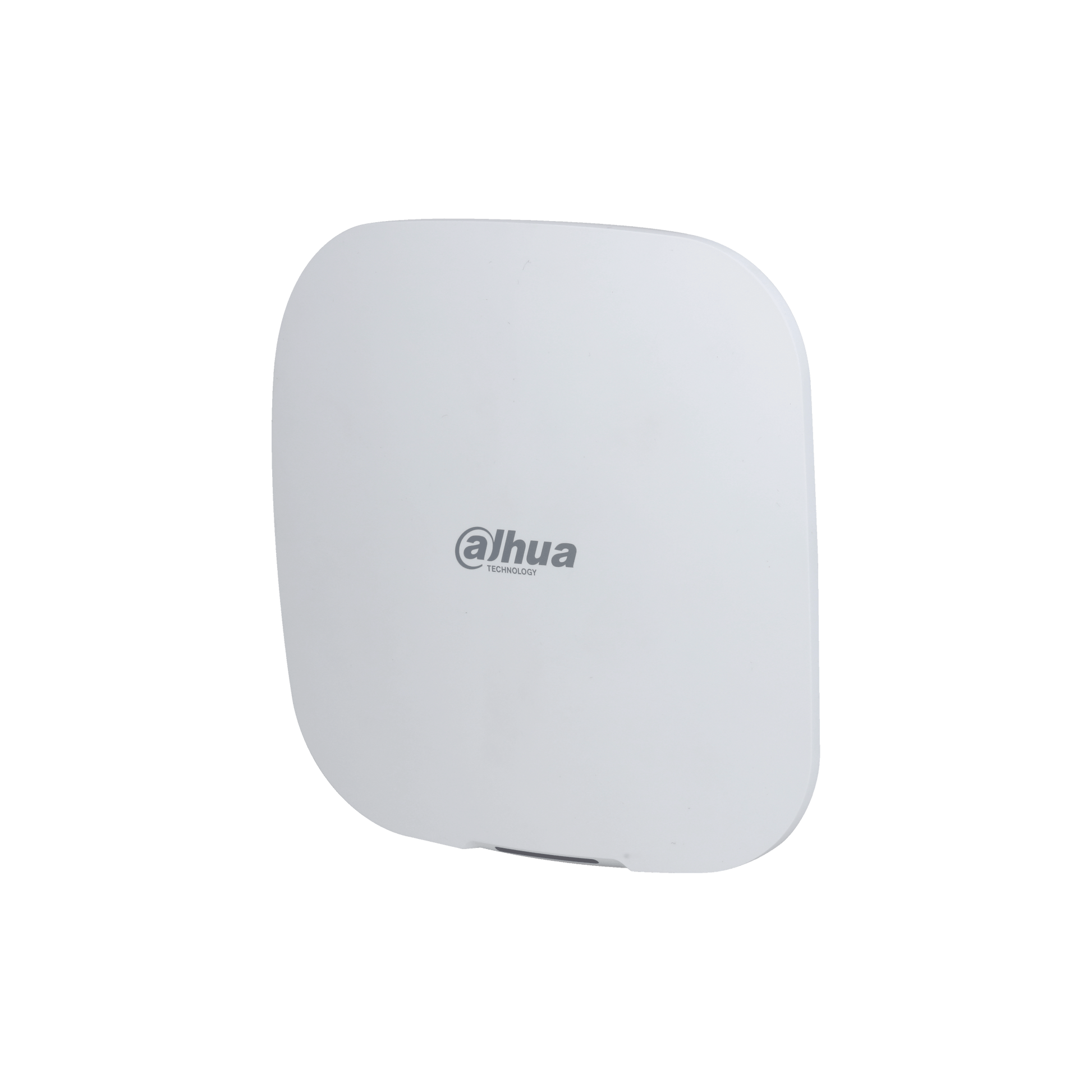

ARC3000H-GW2(868) უსადენო სიგნალიზაციის მართვის ჰაბი (Hub), Wi-Fi, GPRS, SMS, თეთრი #583003
- Regular price
- 379 ₾
- Sale price
- 379 ₾
- Regular price
-
Alarm hub
მახასიათებლები / Specifications
| Audio and Video | |
|---|---|
| Video Input | 4-channel IPC |
| Input/Output | |
| Wireless Zone | Supports 150 wireless peripherals (6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR-Cameras) |
| Port | |
| Network Port | 1 × RJ-45 10 M/100 M Ethernet port |
| Network Mode | Ethernet, Wi-Fi and Cellular network (Supports installation of dual SIM cards. Only one card can be enabled at a time) |
| Storage Battery | Built-in lithium battery |
| Indicator Light | 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction) |
| Button | 1 × reset, 1 × power, 1 × AP |
| Buzzer | Built-in |
| Function | |
| Tamper Alarm | Yes |
| SMS | Yes (up to 5 phone numbers) |
| Calling Alarm | Yes (up to 5 phone numbers) |
| Video Linkage | Yes |
| Network Protocol | TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP |
| Remote Upgrade | Cloud update |
| Arm and Disarm | App; keyfob; schedule |
| Power Failure Protection for Configured Parameters | Yes |
| User Management | Share function for App users |
| Area | 32 areas (rooms) |
| Cache | Max. 50 entries (ANR) |
| Low Battery Alarm | Yes |
| Search | Search for push messages, device status, and program version, and detect signal strength |
| Event Logs | Max. 5000 |
| Wireless | |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | Limit 25 mW |
| Communication Distance | Up to 2,000 m (6,561.68 ft) in an open space |
| Communication Mechanism | Two-way |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
| Wi-Fi | |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Wi-Fi Frequency Range | 2400-2483.5 MHz |
| Wi-Fi Power Transmission | ≤20 dBm@2400-2483.5 MHz |
| Cellular Network | |
| Cellular Network Standard | GSM |
| Frequency Range | GSM: B1/B3/B8/B5 (1,900/1,800/900/850 MHz) |
| Transmitter Power (EIRP) | Power class0: 30 dBm ± 2 dB (GSM 1,800/1,900) Power class5: 33 dBm ± 2 dB (GSM 850/900) |
| General | |
| Power Supply | 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) |
| Operating Temperature | –10 °C to +50 °C (+14 °F to +122 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26") (L × W × H) |
| Packaging Dimensions | 219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58") (L × W × H) |
| Installation | Wall mount; Desktop |
| Net Weight | 0.38 kg (0.84 lb) |
| Gross Weight | 0.8 kg (1.76 lb) |
| Certifications | CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-3:2009 EN 50131-6:2017 EN 50131-5-3:2017 EN 50131-10: 2014 EN 50136-2: 2013 Security Grade 2 Environmental Class II ATS category: SP2/DP2 |
| Casing | PC + ABS |
| Battery Life | Storage battery standby for 12 hours |
