HY-1330

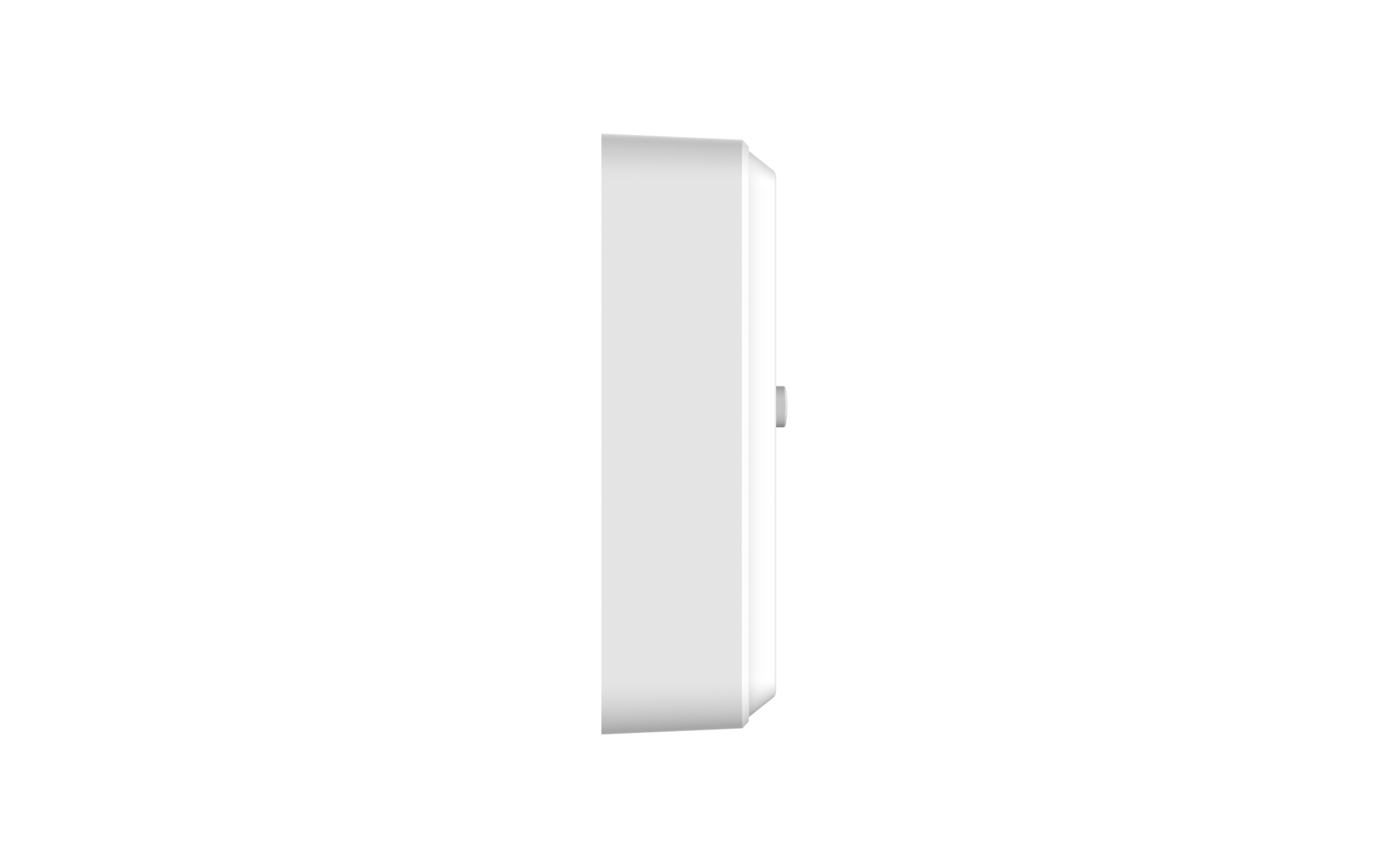

HY-1330 სამისამართო გამმეორებელი პანელი. 24VDC. LCD (64X128). 75-115დბ(ა) (1მ). #581701
- Regular price
- 104 ₾
- Sale price
- 104 ₾
- Regular price
-

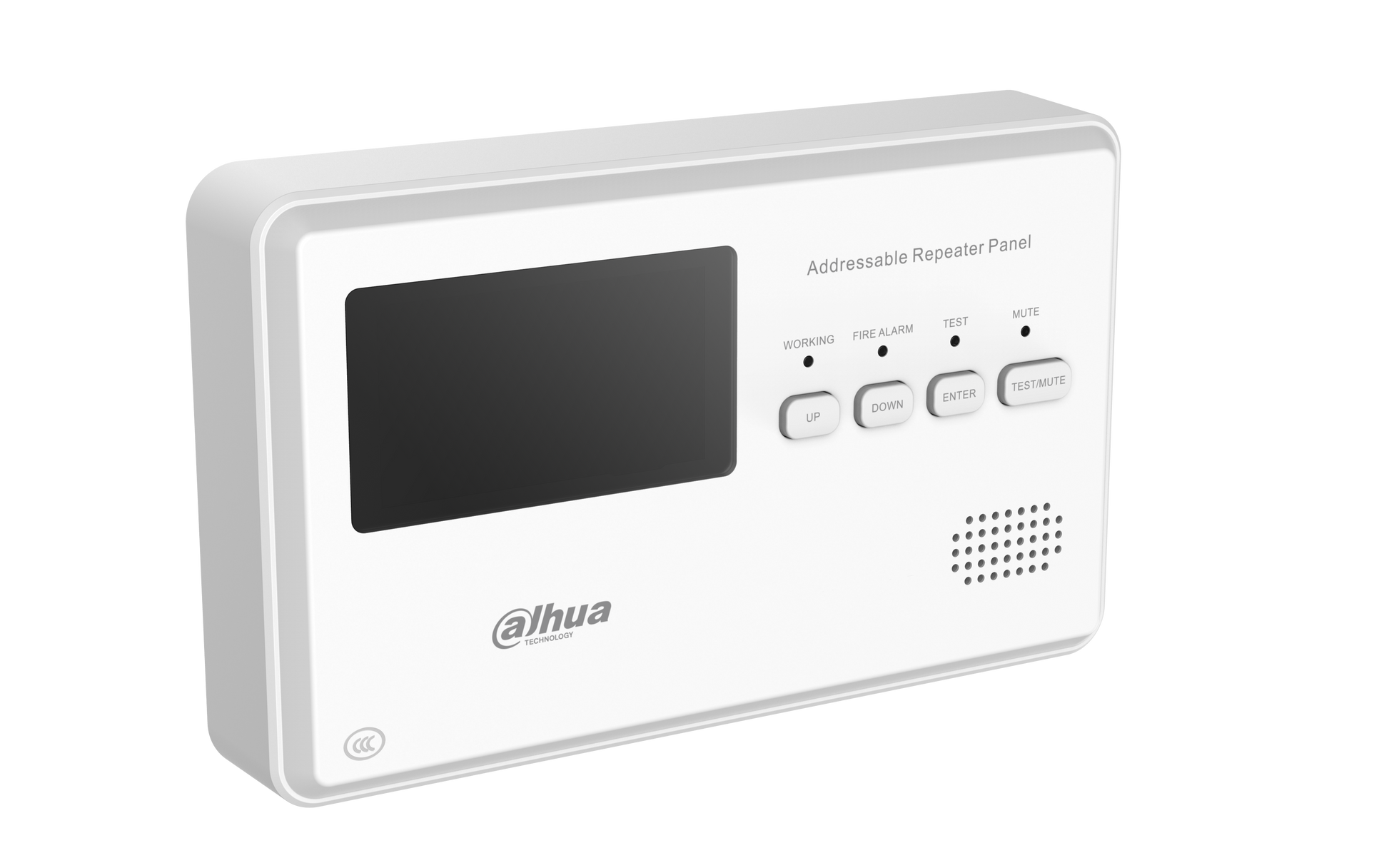

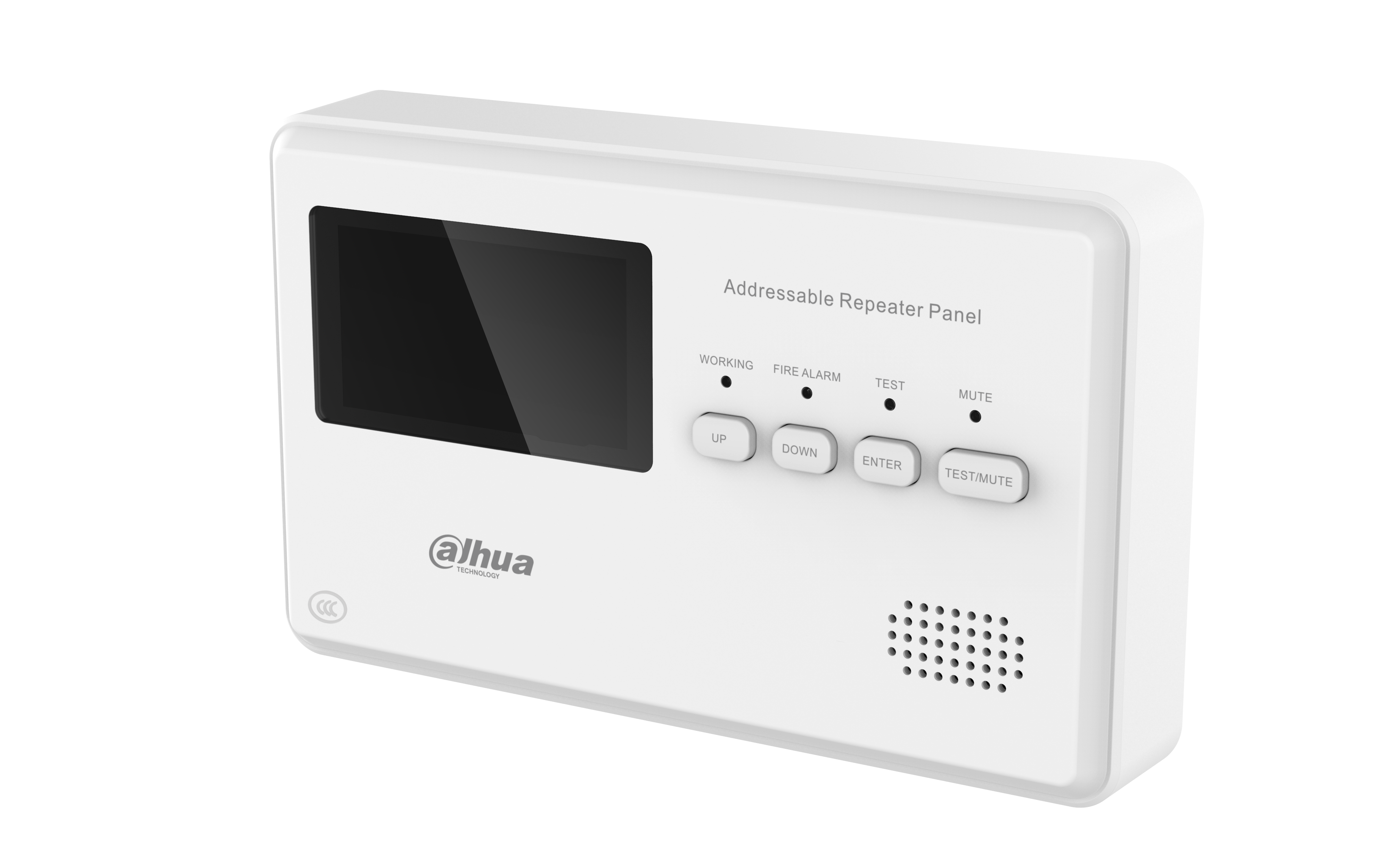

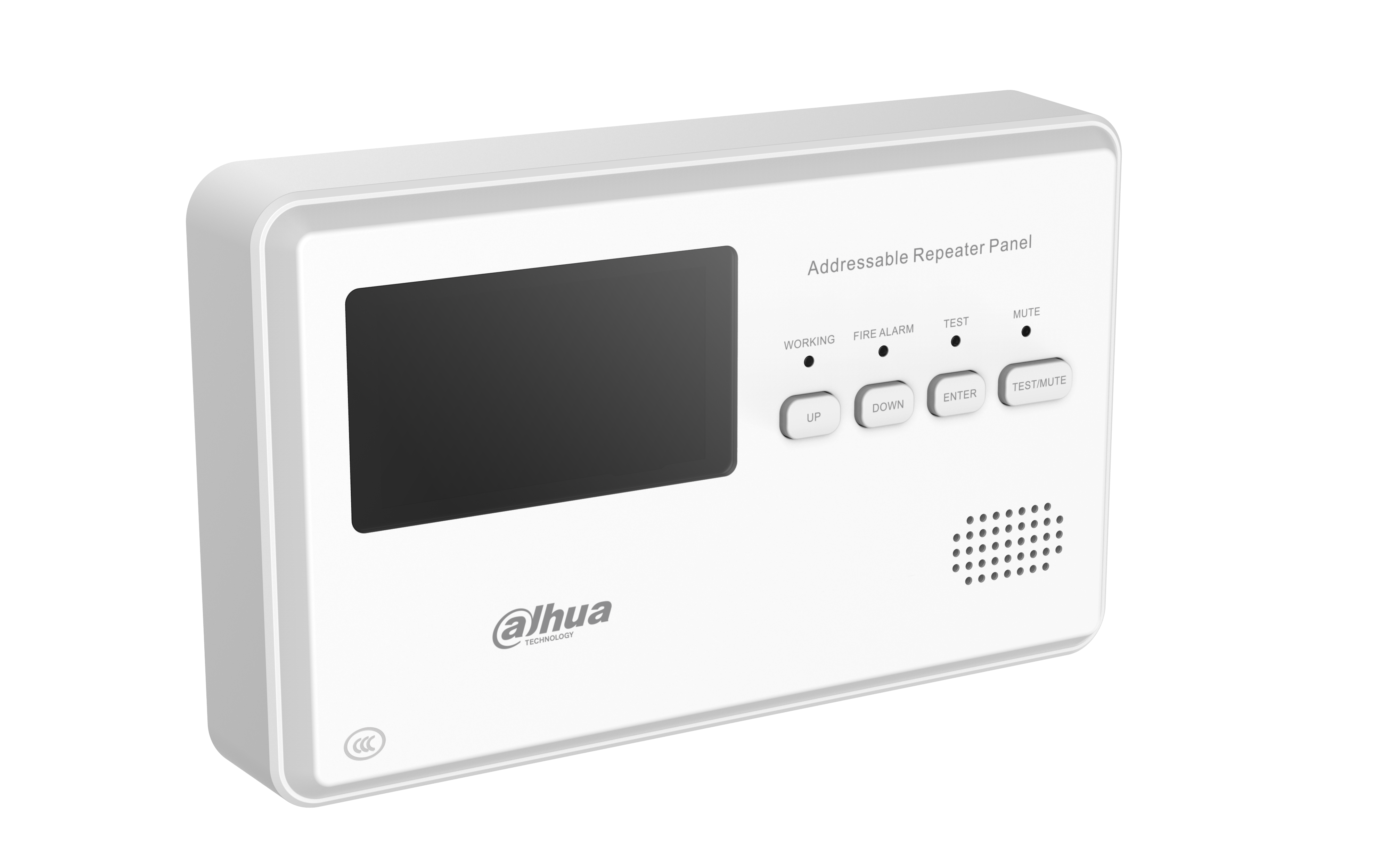

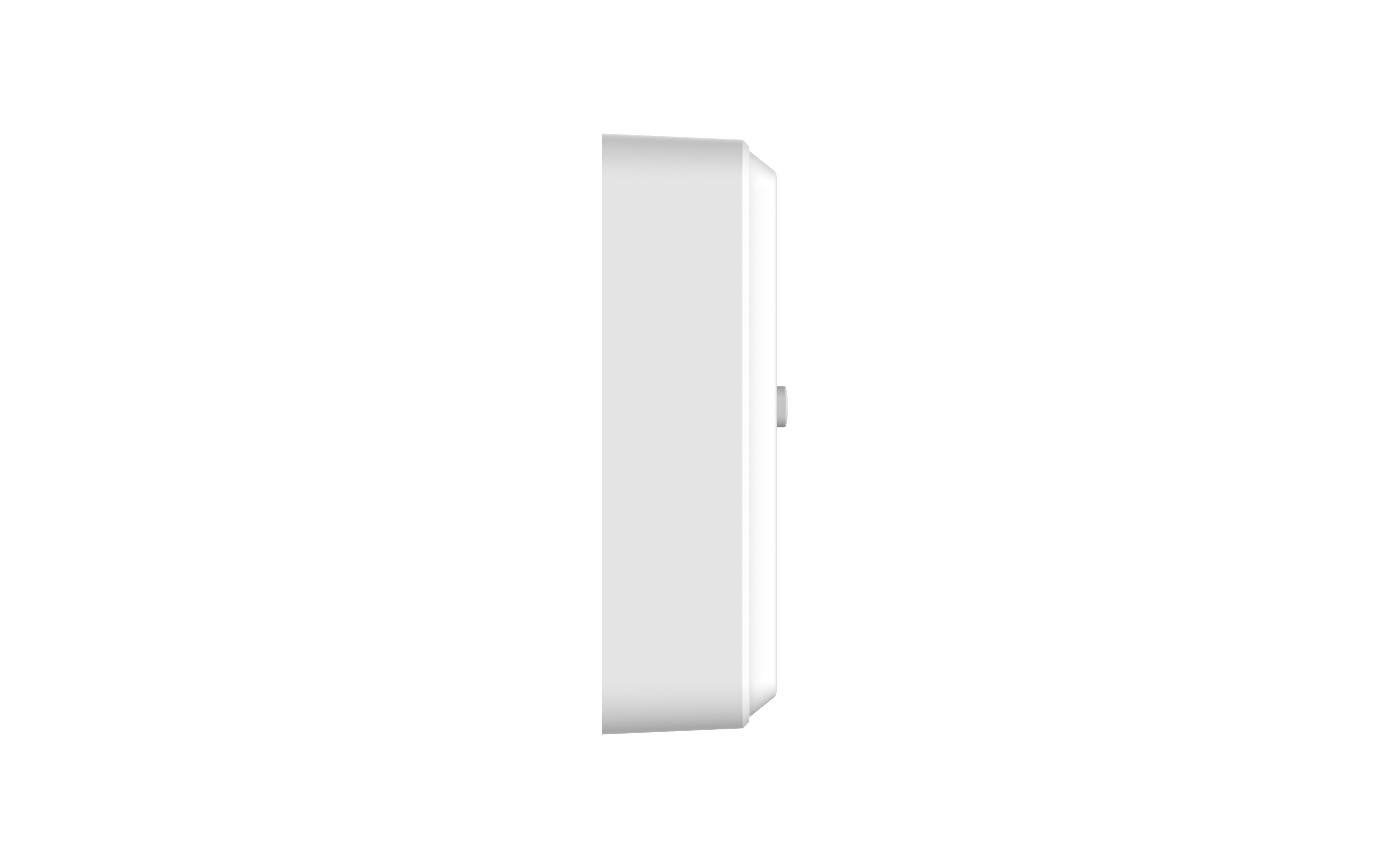

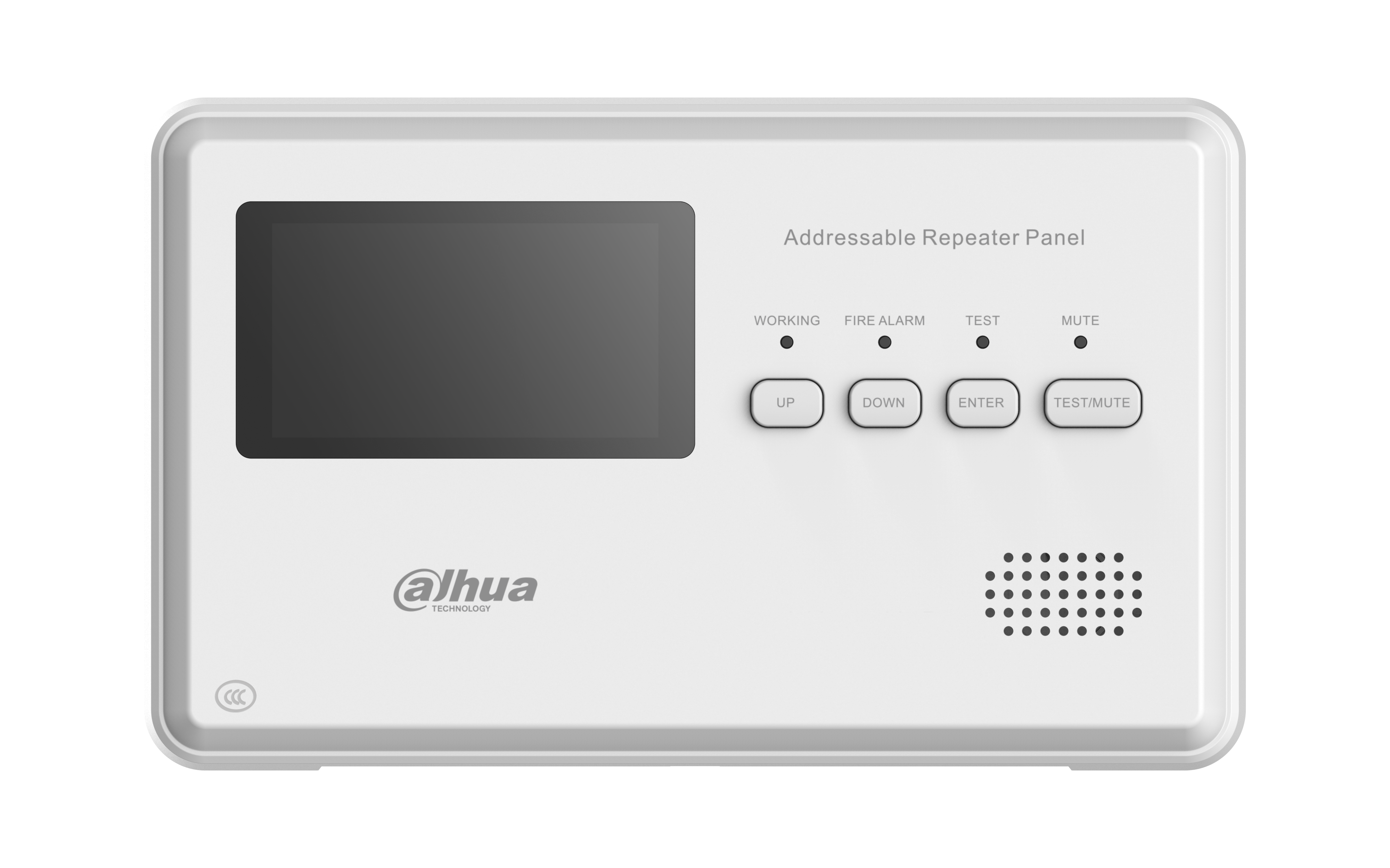

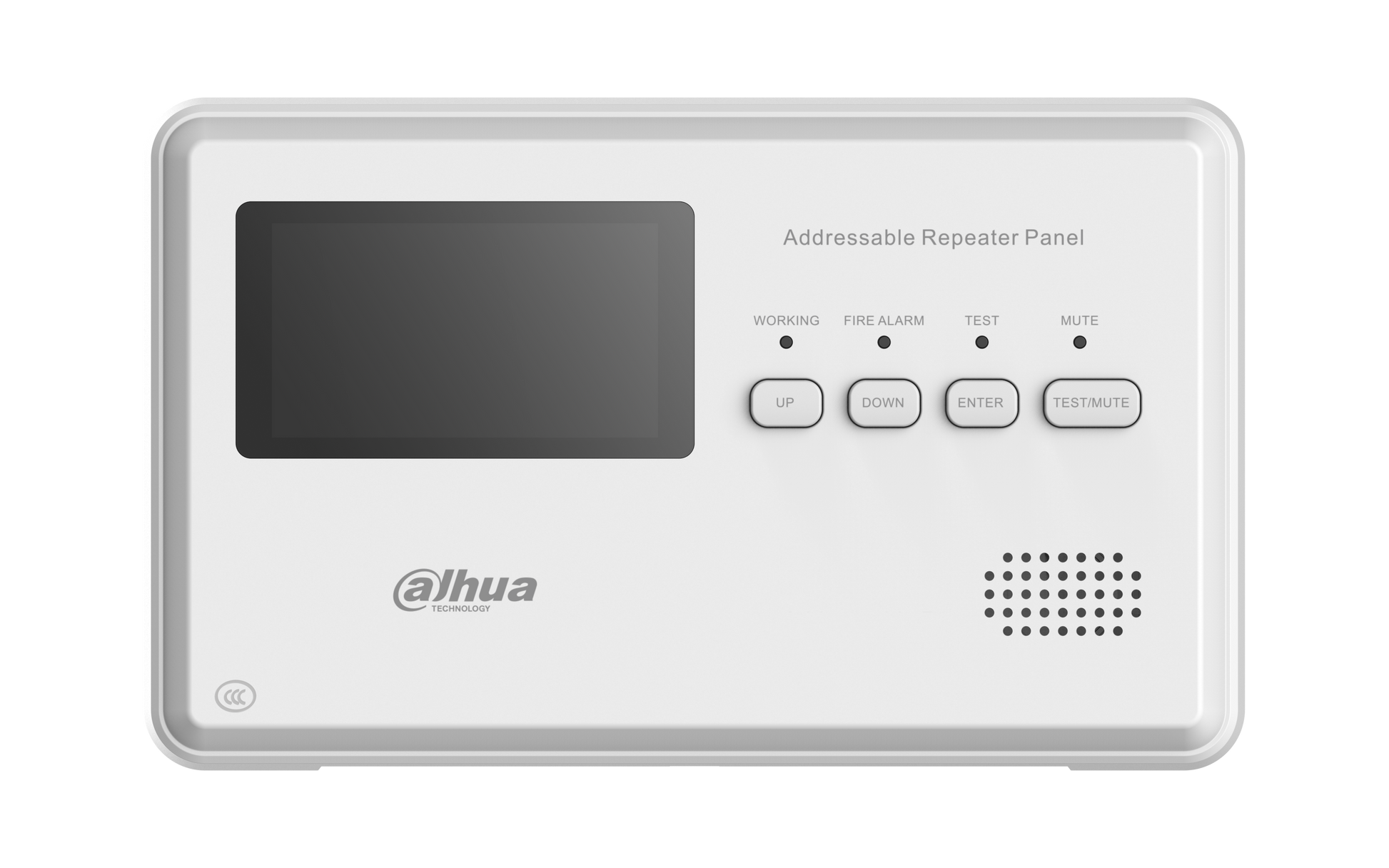

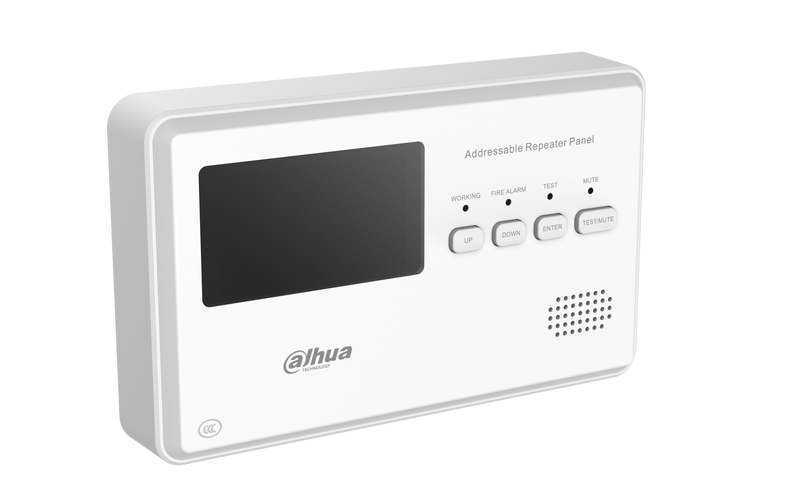

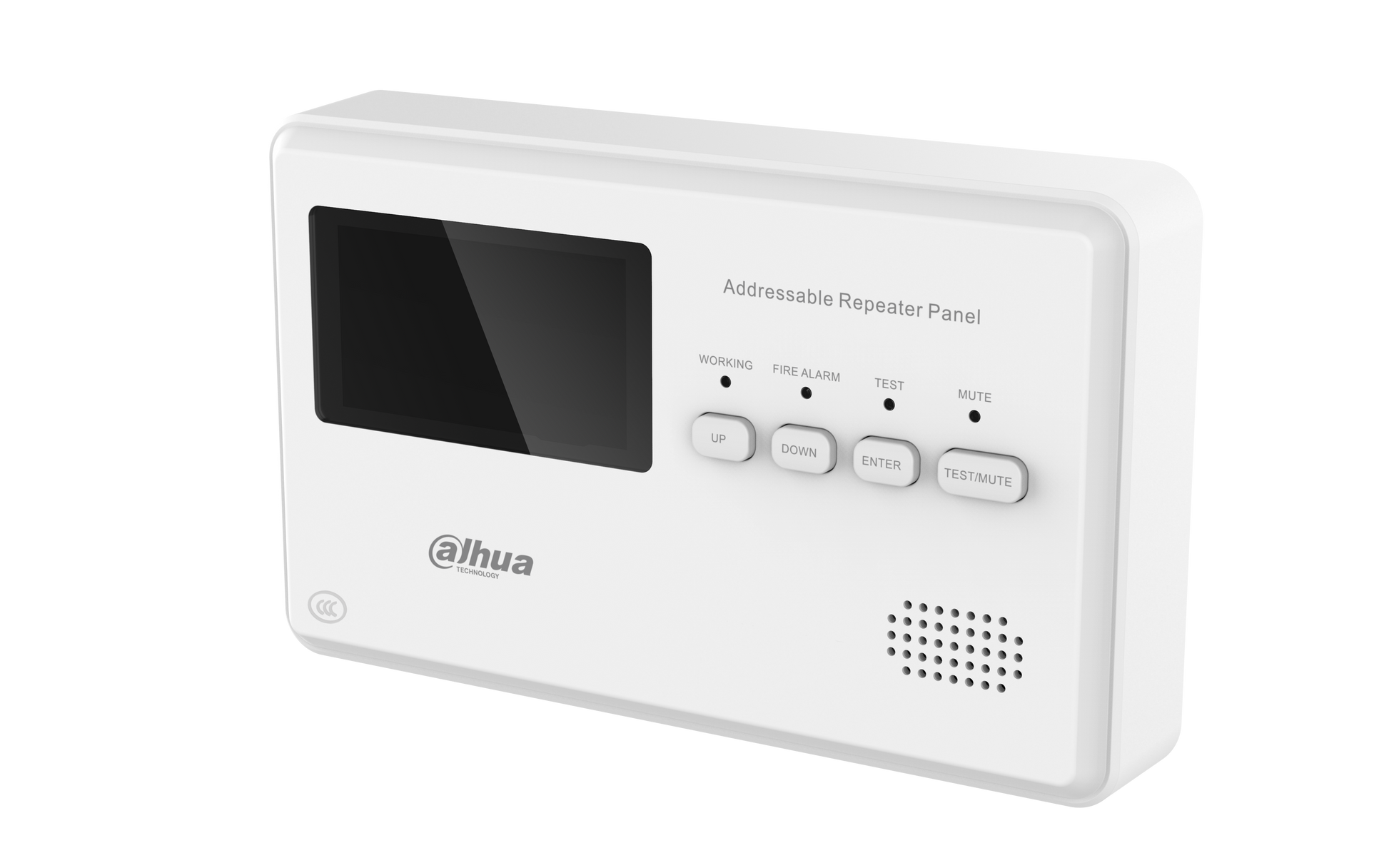

Addressable Repeater Panel
მახასიათებლები / Specifications
| Technical Specification | |
|---|---|
| Working Voltage | DC24V |
| Current | Monitoring current: ≤ 2mA Maximum operating current: ≤ 10mA |
| Indicator | Working: Green indicator flashes every 6 s during polling, flashes quickly during malfunctioned Alarm: Red indicator remains lit during alarm Self-test: Yellow indicator remains lit during self-testMute: Yellow indicator remains lit when Test/Mute Button is pressed |
| Display Capacity | 999 pieces of alarm information |
| Display | 64×128 LCD screen |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Electrical encoder |
| Address Range | 1–254 |
| Communication Distance | 1500 m (4921.26 ft) |
| Alarm Sound Pressure | 65dB–115dB (A) @ 1m |
| Operating Temperature | –10°C to +40°C (+14°F to +104°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Color | White |
| Dimensions (with base) | 180.0 mm × 110.0 mm × 32.0 mm (7.09" × 4.33" × 1.26") |
| Weight (with base) | 270 g (0.60 lb) |
| Compliance Standard | EN54-2 |
