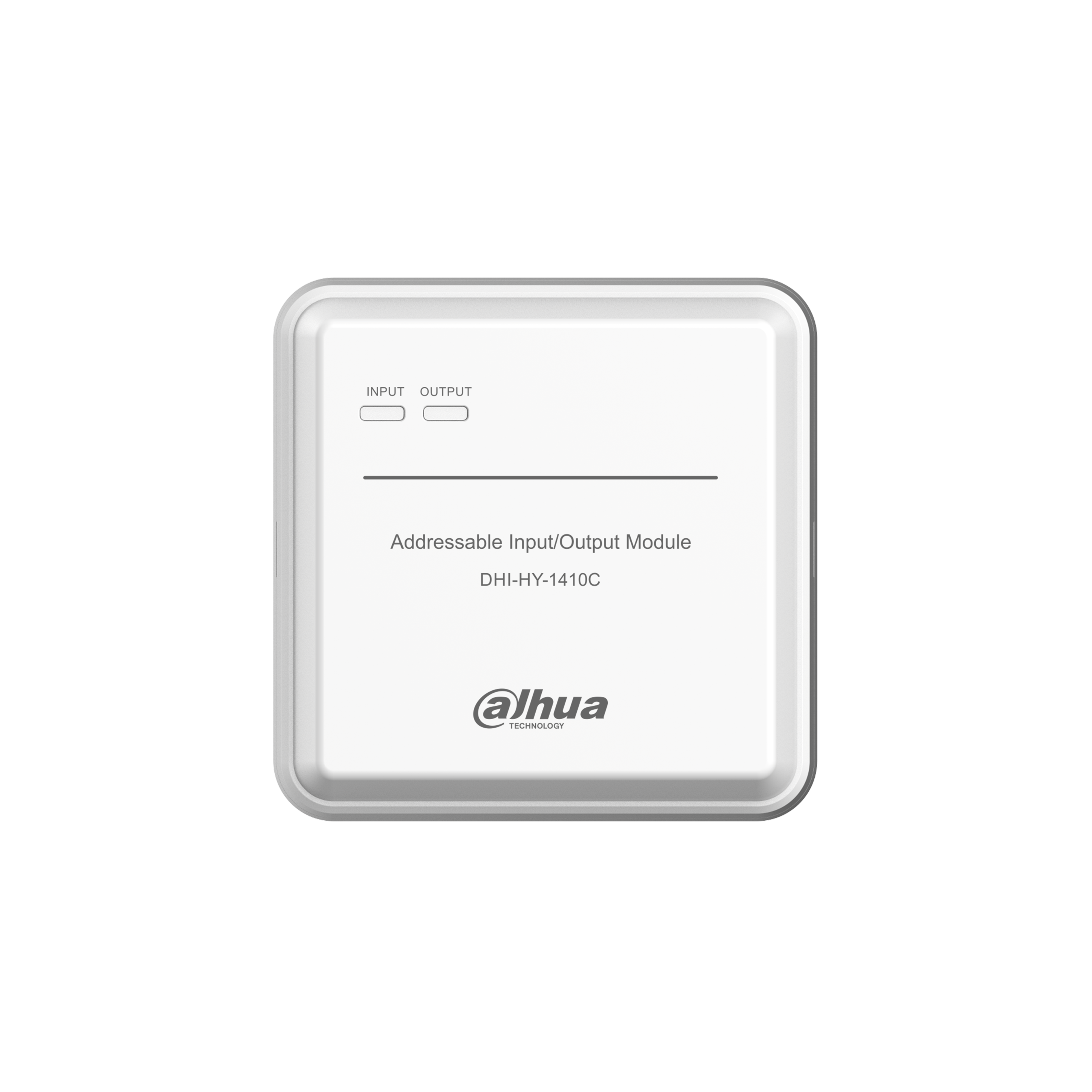

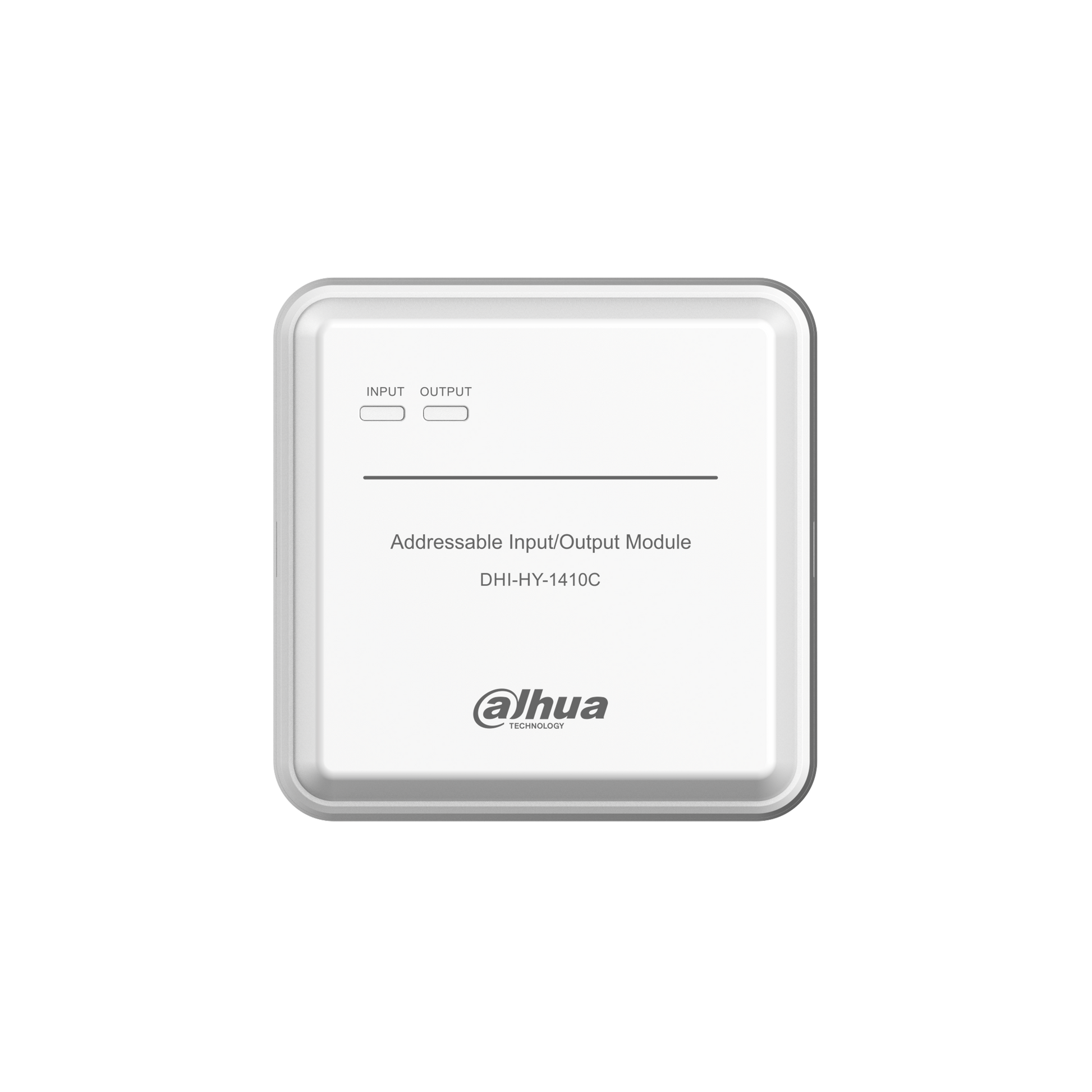

HY-1410C

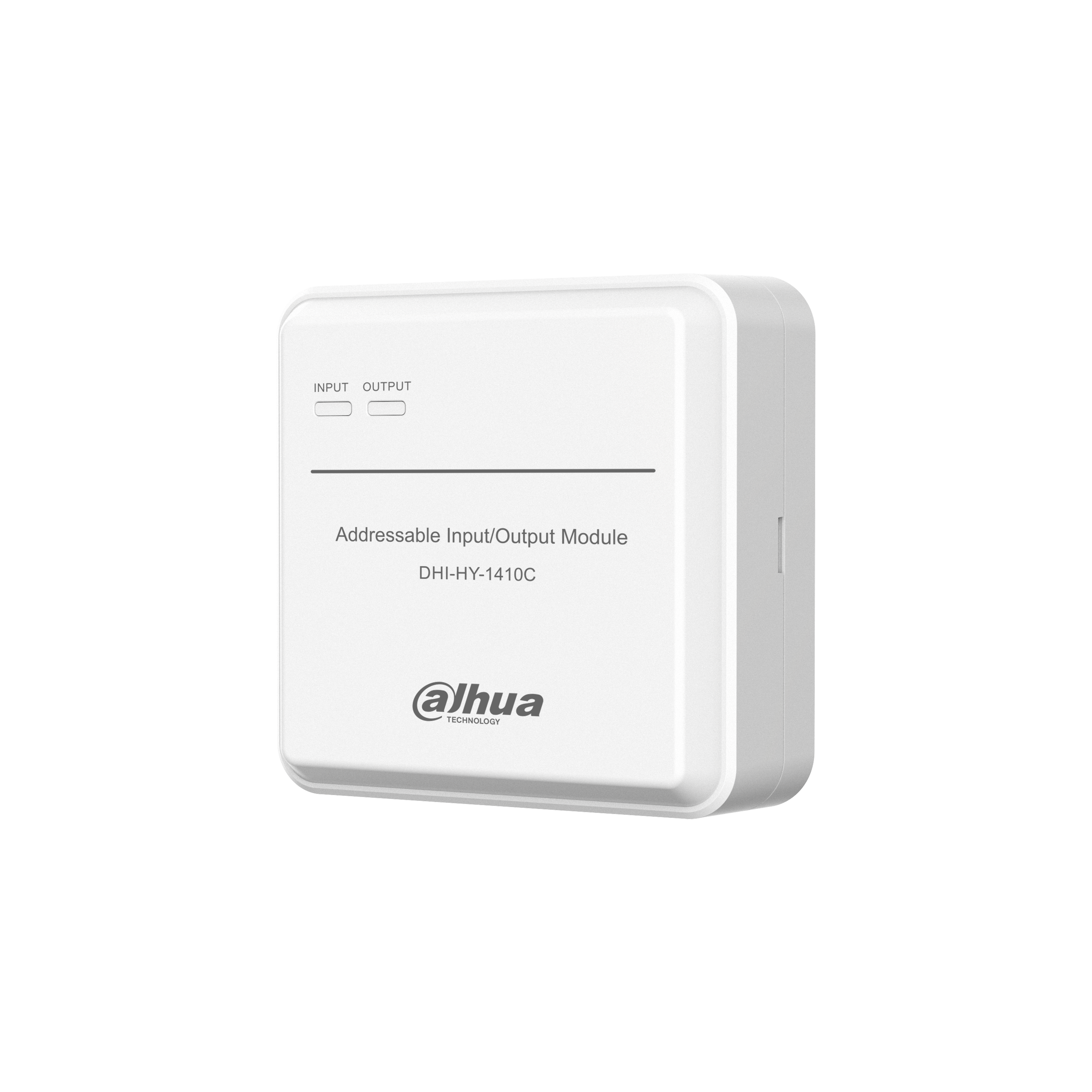

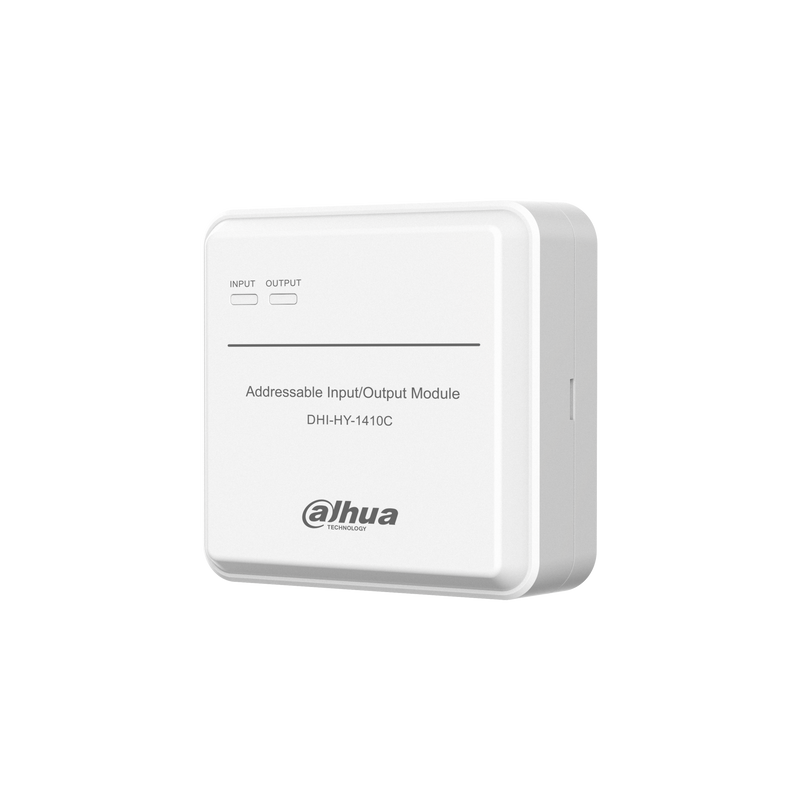

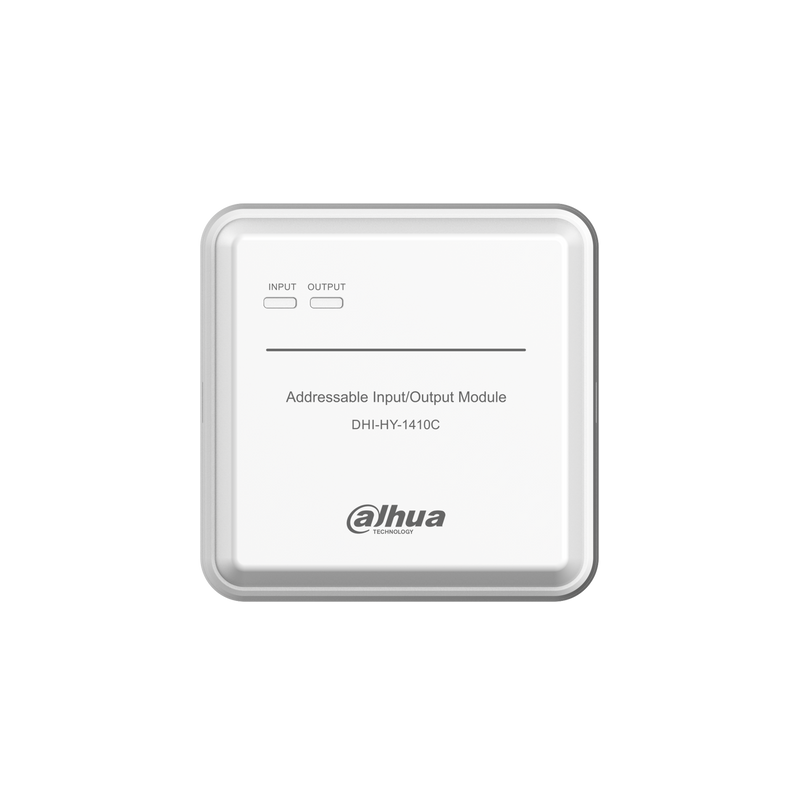

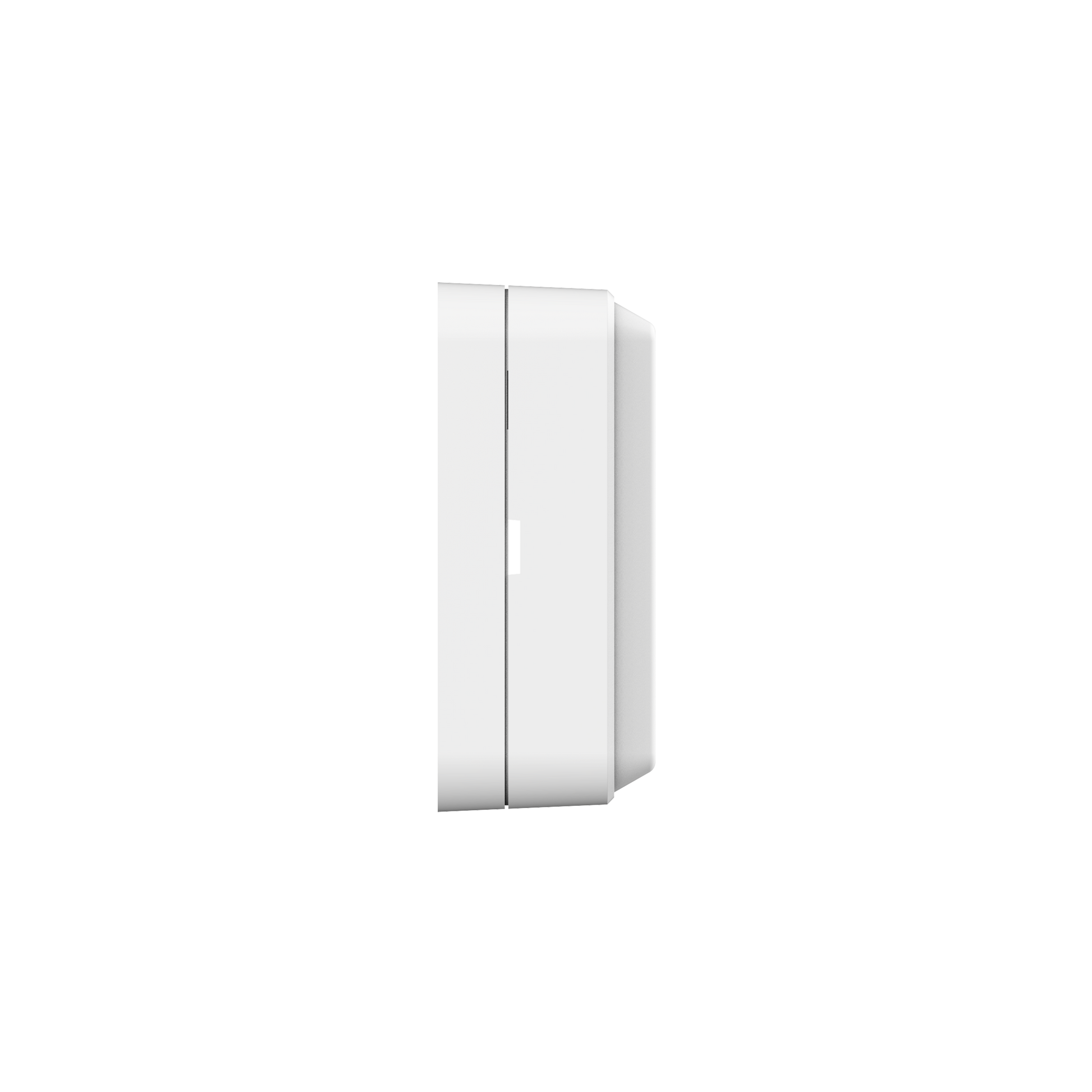

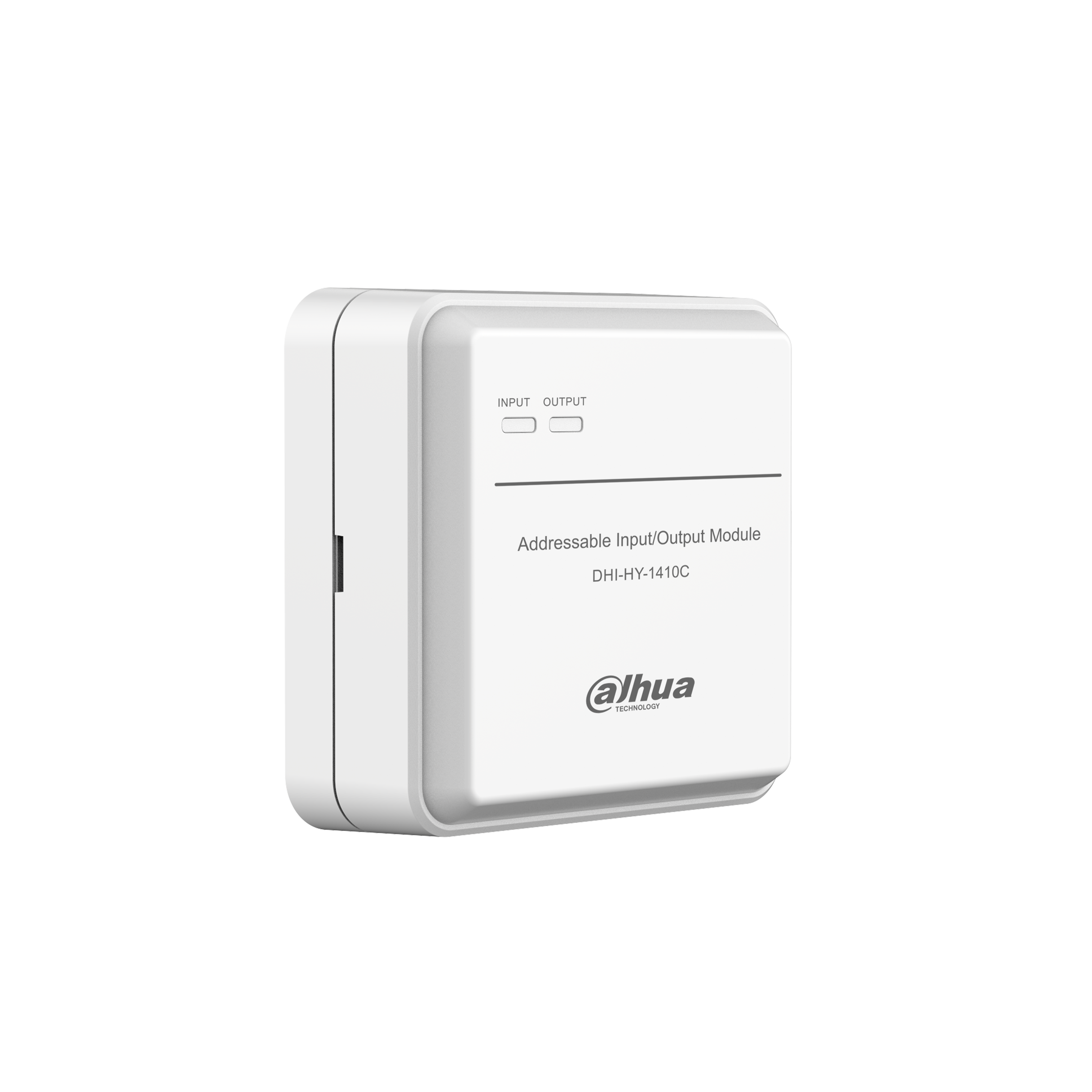

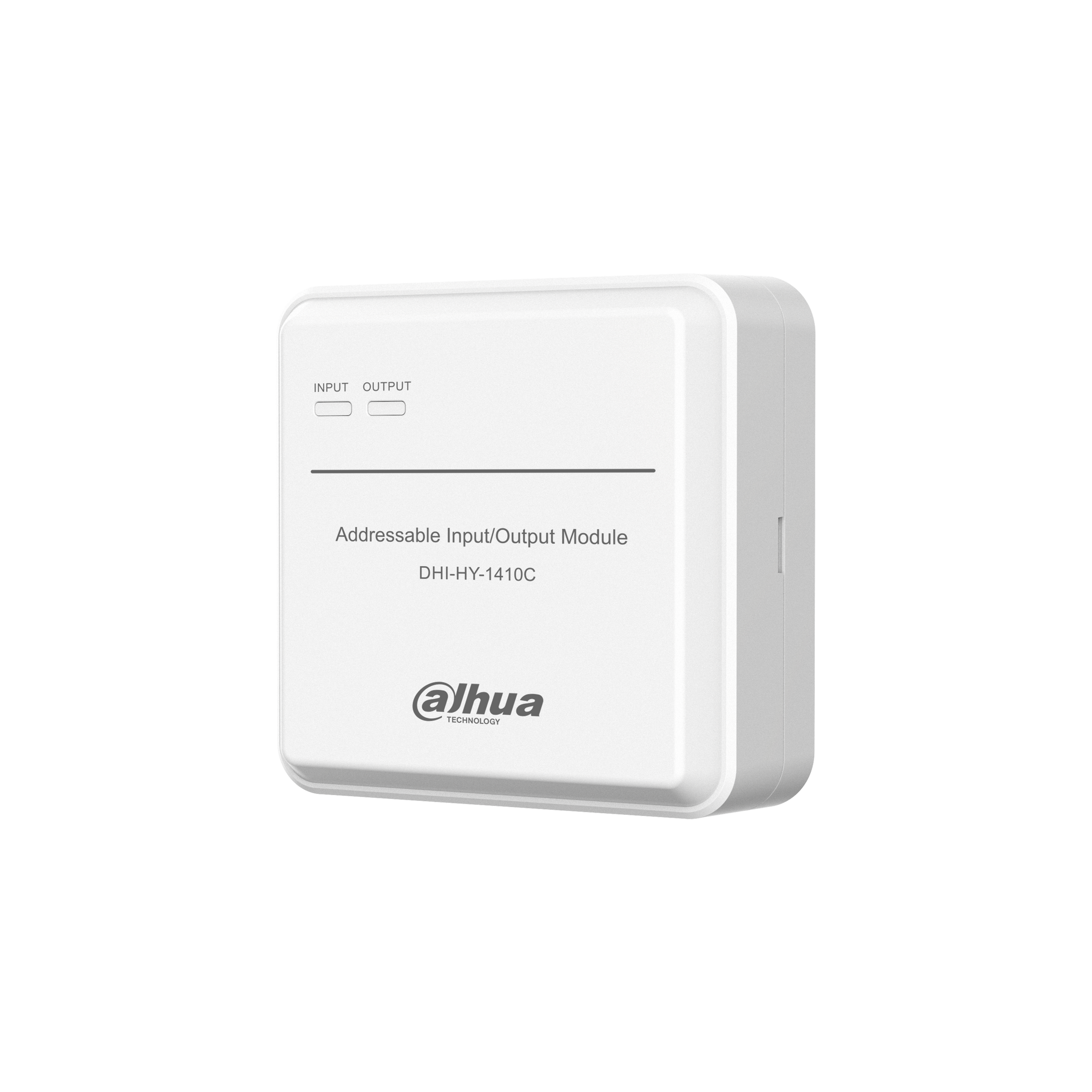

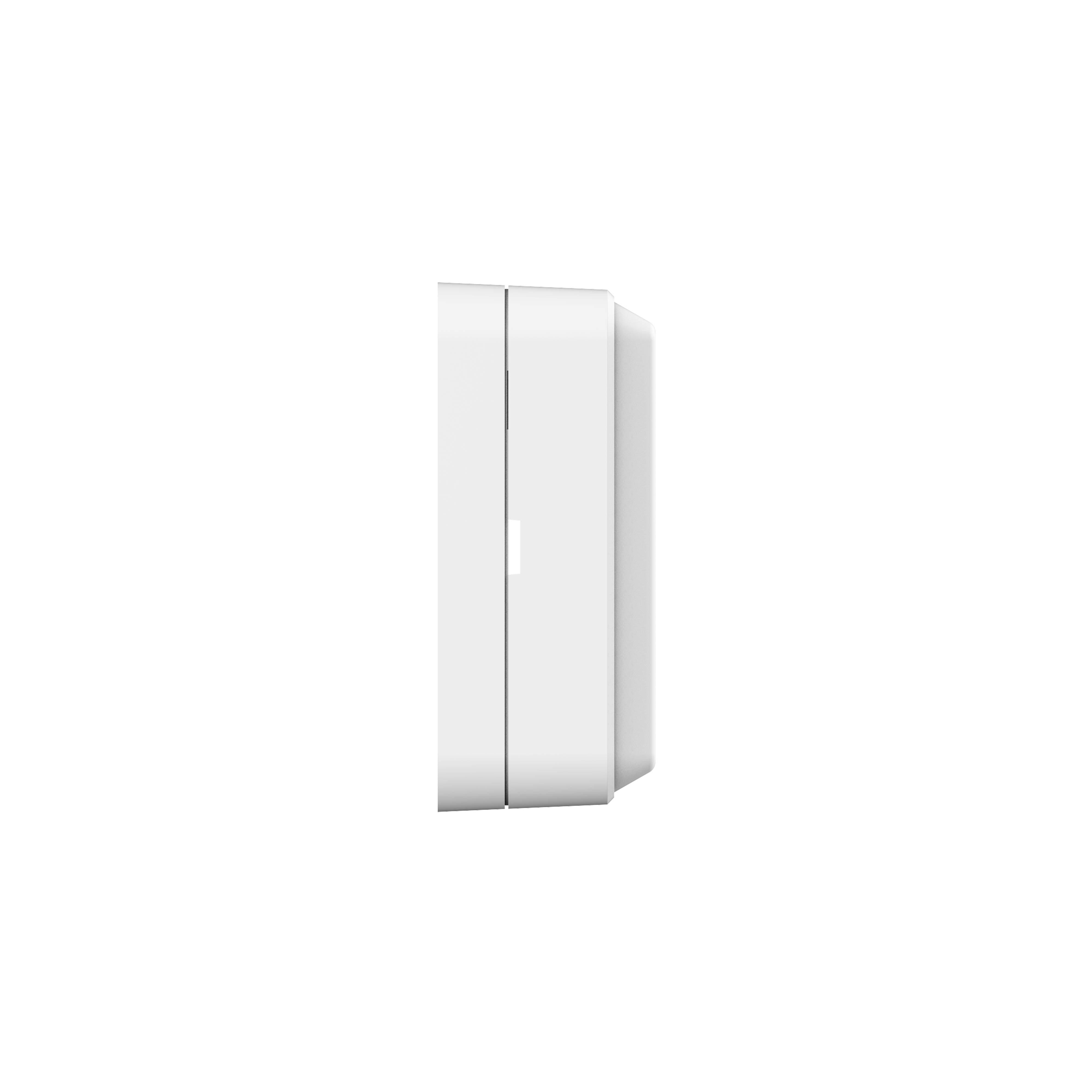

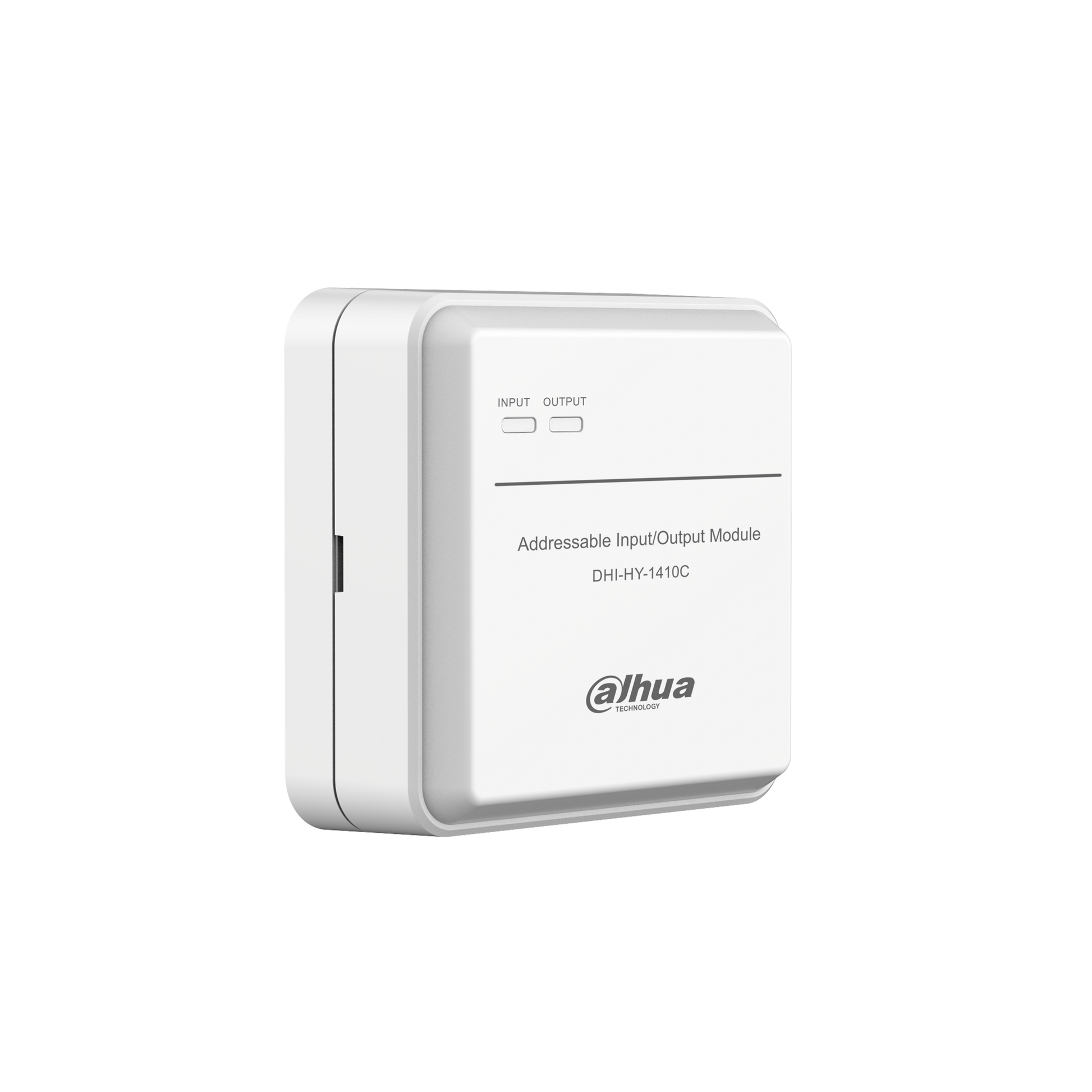

HY-1410C სამისამართო 1ფIN/OUT მოდული, იმპულსური OUT, ბაზით. 24VDC. LED ინდიკატორით #581703
- Regular price
- 56 ₾
- Sale price
- 56 ₾
- Regular price
-
Addressable Input / Output Module
მახასიათებლები / Specifications
| Technical Specification | |
|---|---|
| Working Voltage | 24V DC |
| Current | Monitoring current: ≤ 300μA Operating current: ≤ 4.5mA |
| Capacity of the Output Contact | 24V/2A/25ms |
| Indicator | •Input indicator: Red LED flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned, remains lit after receiving feedback •Output indicator: Red LED is constantly off when works normally, and flashes once every 2 seconds when malfunctioned, remains lit after receiving start signal |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Electrical encoder |
| Address Range | 1–254 |
| Communication Distance | ≤ 1500 m |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Color | White |
| Dimensions (with base) | 90 mm × 90 mm × 37 mm (3.54" × 3.54" × 1.46") |
| Weight (with base) | 127 g (0.28 lb) |
| Certifications | CE |
