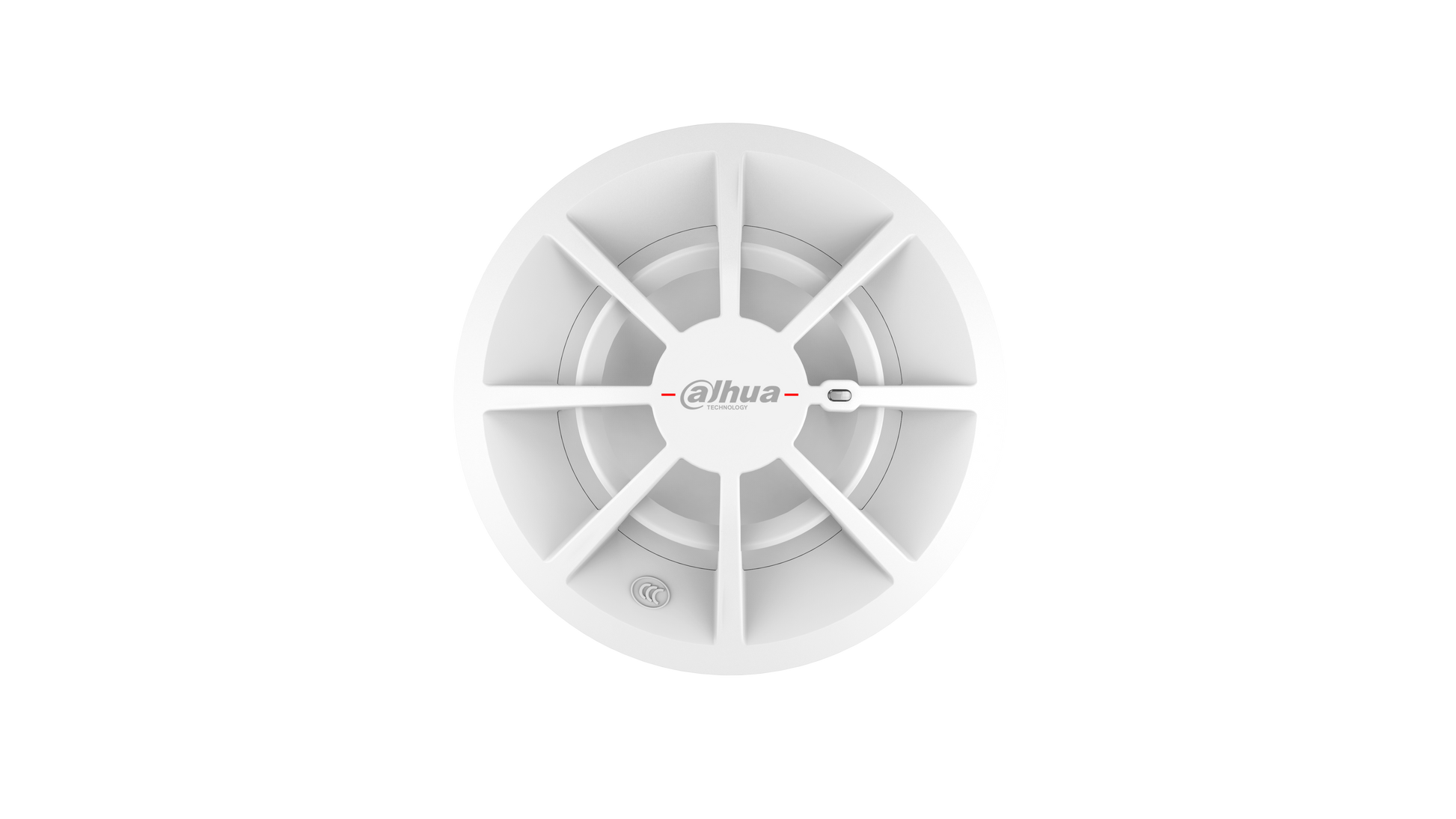

HY-C132
HY-C132 არასამისამართო თბური დეტექტორი, 2-წვერზე (ბაზით) #581741
- Regular price
- 30 ₾
- Sale price
- 30 ₾
- Regular price
-
Conventional Heat Detector
მახასიათებლები / Specifications
| Technical Specification | |
|---|---|
| Working Voltage | DC9V-DC30V |
| Rated Power | 3.408mW |
| Current | Standby current: ≤ 45μA Alarm current: ≤ 24mA |
| Sensor Class | A2R |
| Fixed Detection Threshold | 62°C ± 3°C (144°F ± 37.4°F) |
| Dynamic Detection | 1 to 30 K min -1 |
| Alarm Mode | Visual alarm |
| Coverage Area | H ≤ 4 m (13.12 ft): 50 m 2 4 m(13.12 ft) ≤ H ≤ 12 m(39.37 ft): 30 m 2 |
| Operating Temperature | –10°C to +50°C (+14°F to +122°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Dimensions (with base) | Φ100 mm × 50 mm (Φ 3.00" × 2.13") |
| Weight (with base) | 81 g (0.18 lb) |
| Installation | Ceiling Mount |
| Compliance Standard | EN 54-5 |
| Response Time Limits | |
| Rate of Rise of Air Temperature | Lower Limit of Response Time Upper Limit of Response Time |
| K min -1 | min s min s |
| 1 | 29 0 46 0 |
| 3 | 7 13 16 0 |
| 5 | 4 9 10 0 |
| 10 | 2 0 5 30 |
| 20 | 1 0 3 13 |
| 30 | 40 2 25 |
