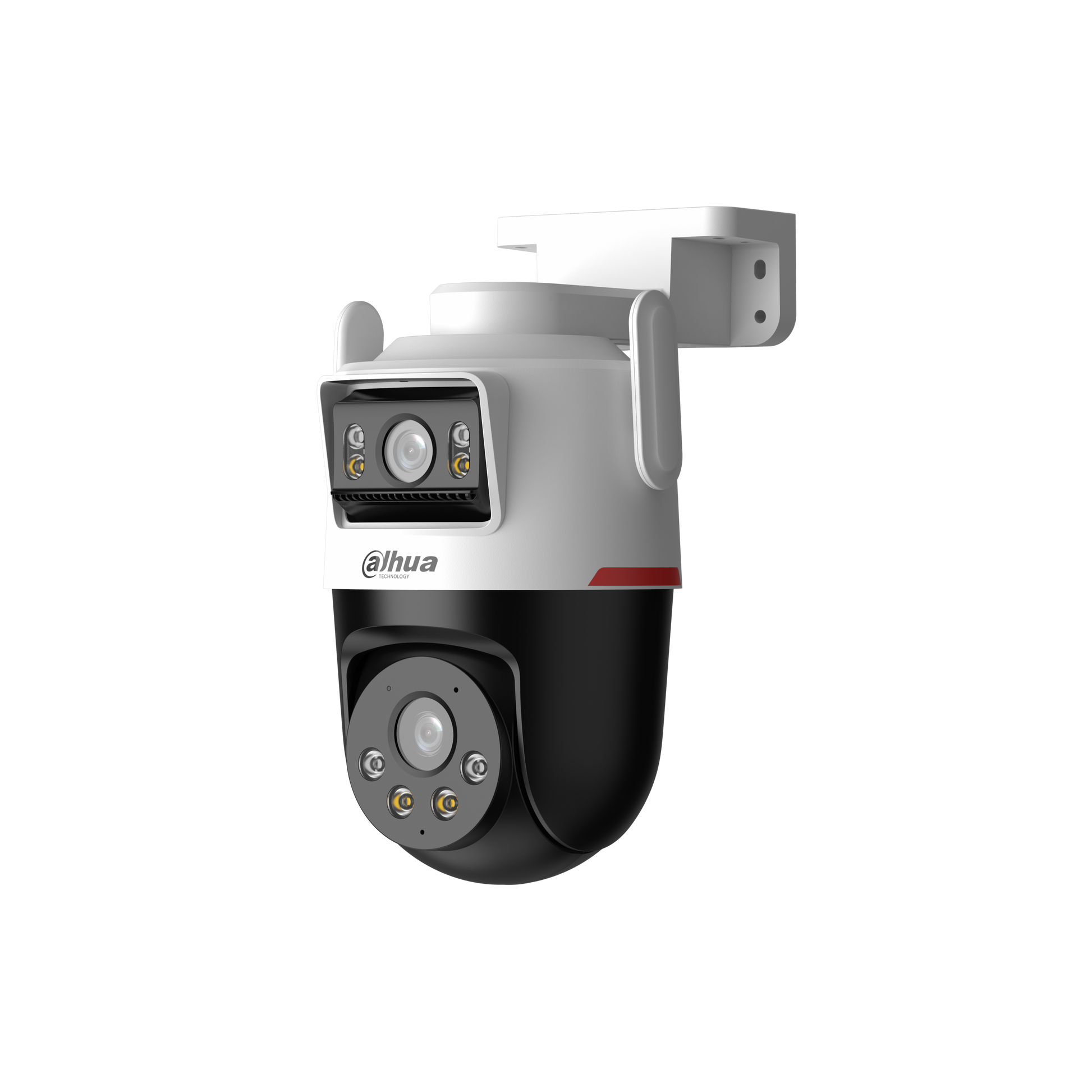

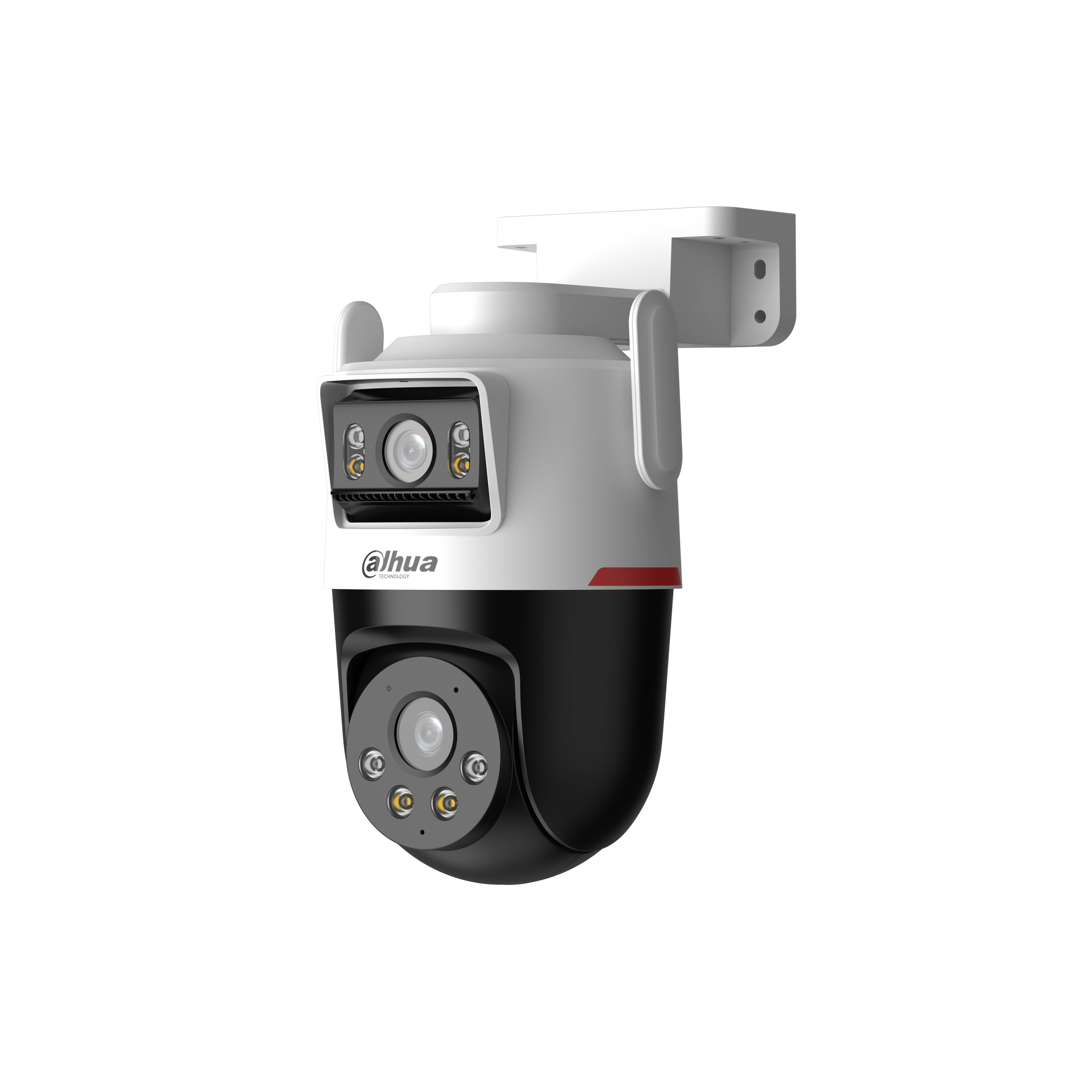

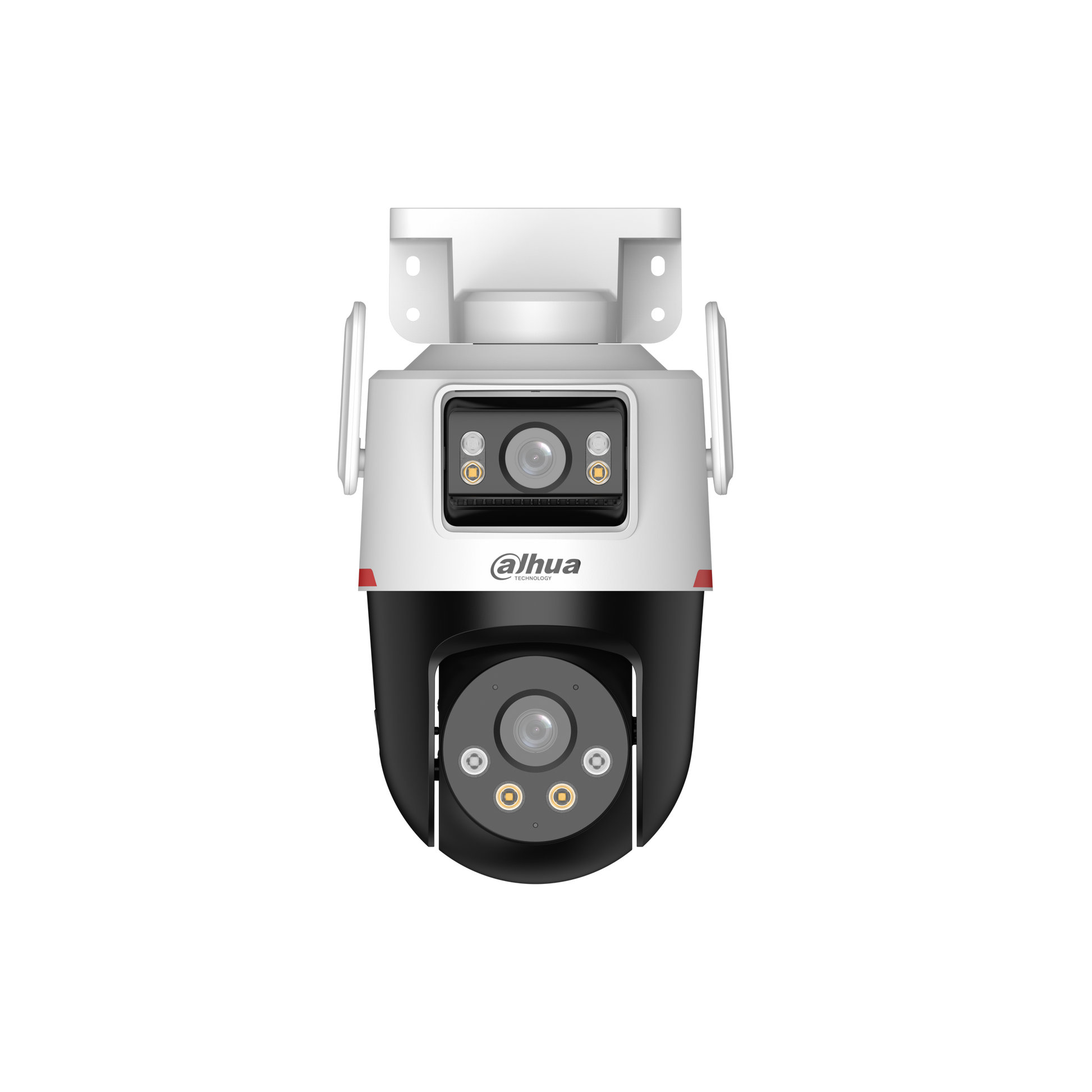

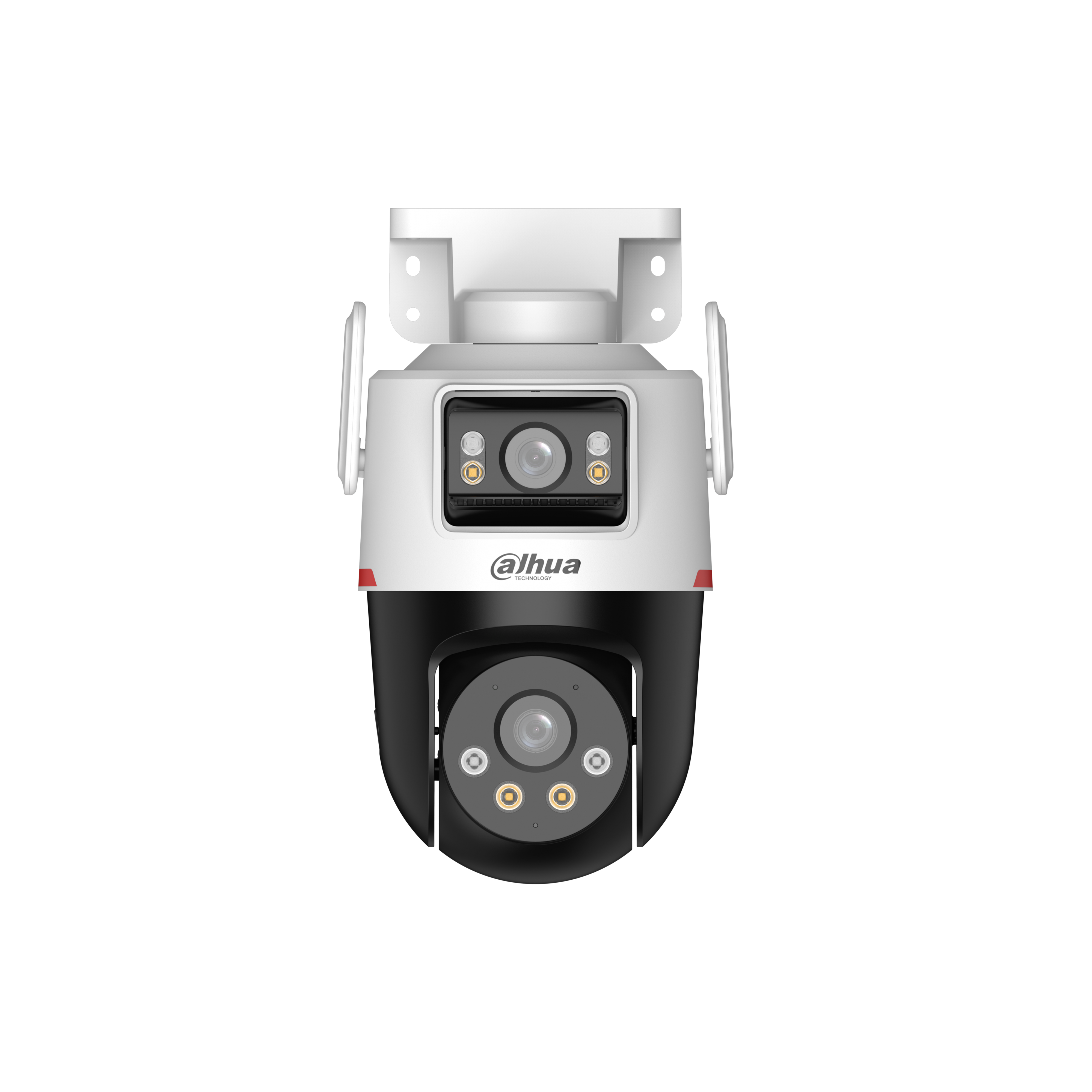

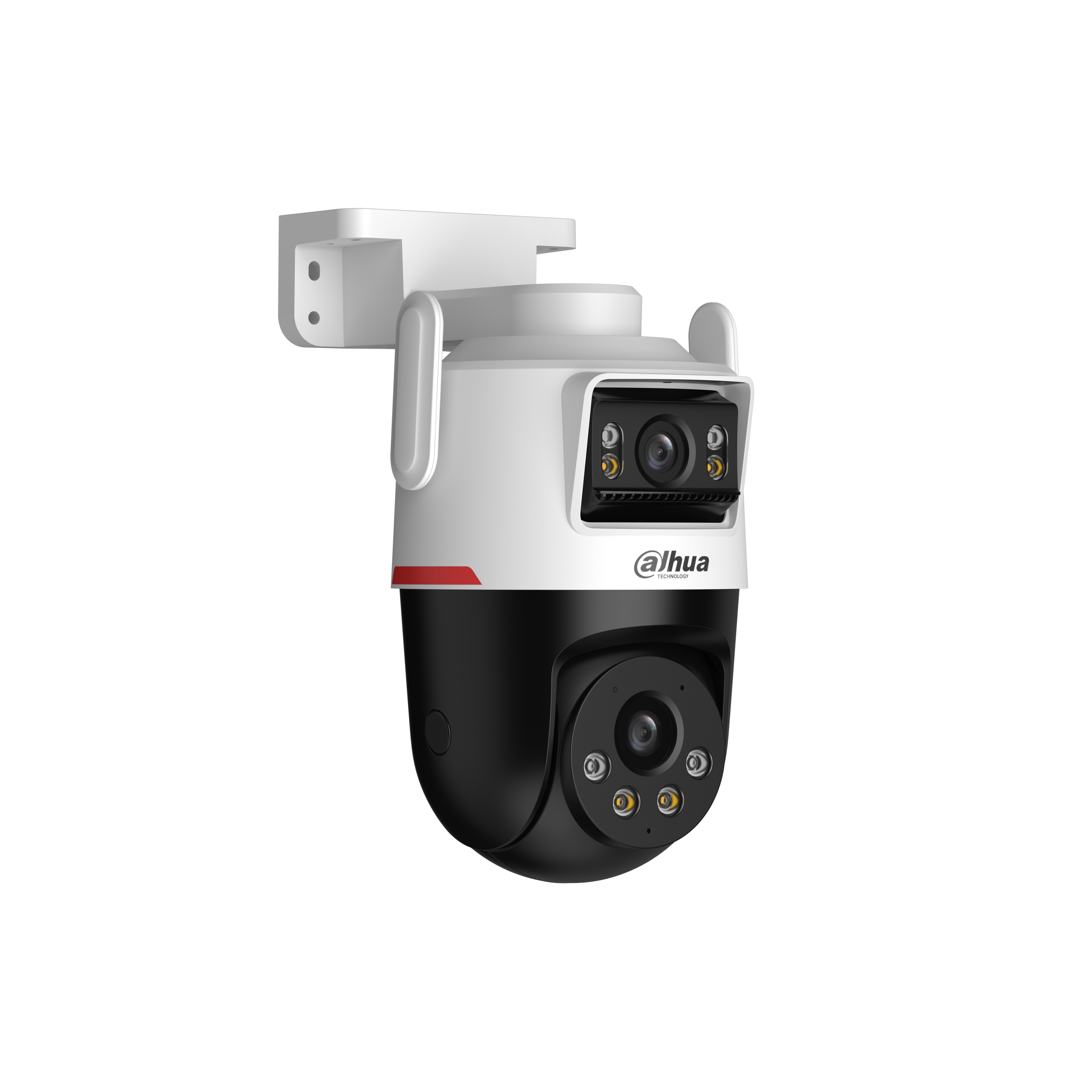

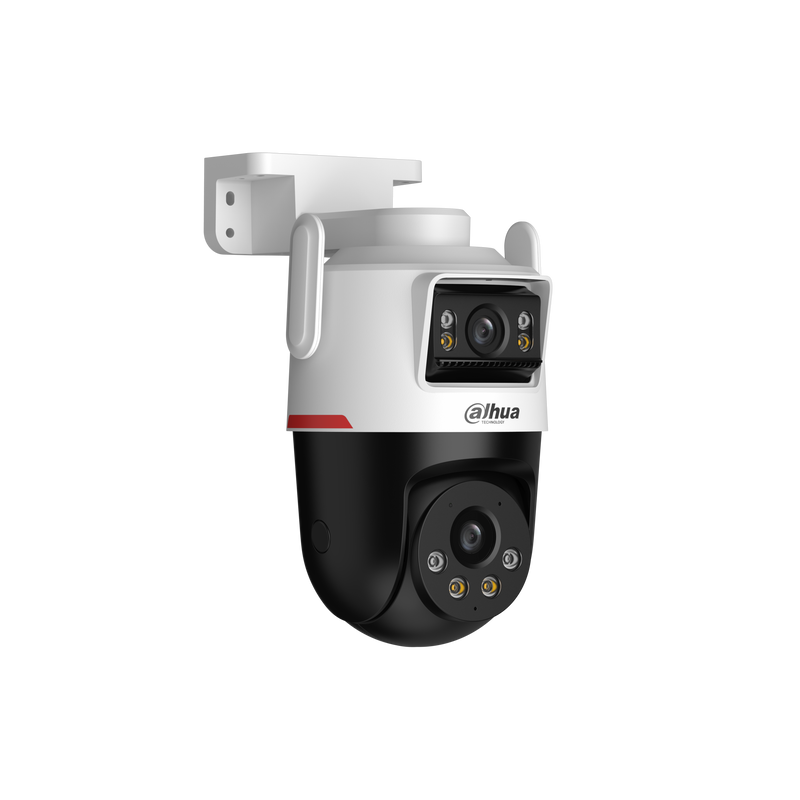

P3D-3F-PV-P 3+3 MP 2.8/6mm გარე ქსელ. კამერა ორი ობიექტივით, Wi-Fi Pan&Tilt, Picoo სერია IP66#581895
- Regular price
- 451 ₾
- Sale price
- 451 ₾
- Regular price
-
3+3MP Outdoor WizColor Wi-Fi Dual-Lens Pan & Tilt Camera
მახასიათებლები / Specifications
| Camera | |
|---|---|
| Image Sensor | Channel 1 (PT Lens): 1/2.9" CMOS Channel 2 (Fixed Lens): 1/2.9" CMOS |
| Max. Resolution | Channel 1-2: 2304 (H) × 1296 (V) |
| Illumination Distance | Up to 40 m (131.23 ft) (Warm light) |
| Illuminator Number | 4 (Warm light) |
| Angle Adjustment | Pan: 0° to 352° Tilt: 0° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | Channel 1 (PT Lens): 6 mm Channel 2 (Fixed Lens): 2.8 mm |
| Max. Aperture | F1.0 |
| Field of View | Channel 1 (PT Lens): H: 52°; V: 29°; D: 60° Channel 2 (Fixed Lens): H: 89°; V: 48°; D: 105° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio and Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| Video Frame Rate | Main stream: 2304 × 1296@(1–20 fps) sub stream: 640 × 360@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.265: 512 kbps–4096 kbps |
| Day/Night | Color/B/W |
| WDR | 120 dB |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n 2.4 G, EIRP≤20 dBm@2400–2483.5 MHz (CE) |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android;iOS |
| Function | |
| Abnormal Sound Alarm | Yes |
| General | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 2.3 W (12 VDC); 3.1 W (PoE); Max.: 9.8 W (12 VDC); 11.1W (PoE) (intelligence on + WDR + illuminator on + PT rotation + speaker on) |
| Operating Temperature | –30 °C to +50 °C (–22 °F to +122 °F) |
| Operating Humidity | ≤95% |
| Protection | IP66 |
| Camera Button | Reset button |
| Casing Material | Plastic |
| Product Dimensions | 159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27") (L × W × H) |
| Net Weight | 585 g (1.29 lb) |
| Camera | |
| Image Sensor : | Channel 1 (PT Lens): 1/2.9" CMOS Channel 2 (Fixed Lens): 1/2.9" CMOS |
| Max Resolution : | Channel 1-2: 2304 (H) × 1296 (V) |
| Megapixels : | 3 MP |
| Lens | |
| Lens Type : | Fixed-focal |
| Focal Length : | Channel 1 (PT Lens): 6 mm Channel 2 (Fixed Lens): 2.8 mm |
| Aperture : | F1.0 |
| Field of View : | Channel 1 (PT Lens): H: 52°; V: 29°; D: 60° Channel 2 (Fixed Lens): H: 89°; V: 48°; D: 105° |
| Image & Video | |
| IR Range : | 40m |
| Day / Night : | Color/B/W |
| WDR: | 120 dB |
| Frame Rate : | 20 fps |
| Compression : | H.265; H.264; H.264H |
| Audio | |
| Audio : | G.711a; G.711Mu; PCM; G.726 |
| Network | |
| Network Interface : | RJ-45 (10/100 Base-T) |
| Storage : | Micro SD card (support max. 256 GB) |
| Power & Protection | |
| Power Supply : | 12 VDC (±30%); PoE (802.3af) |
| IP / IK Rating : | IP66 |
