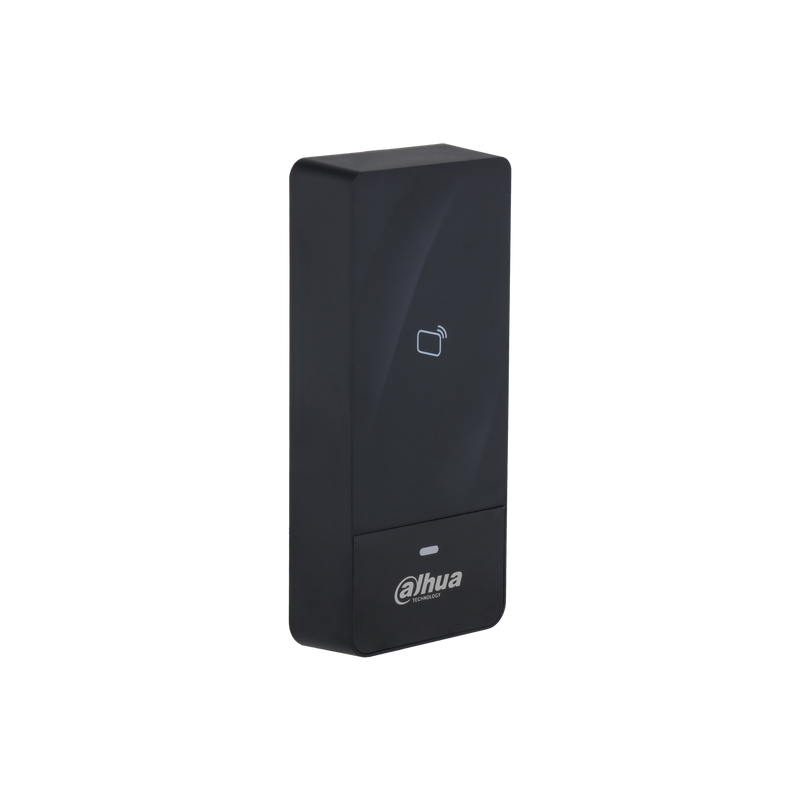

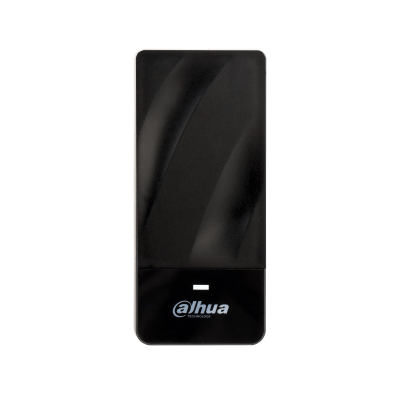

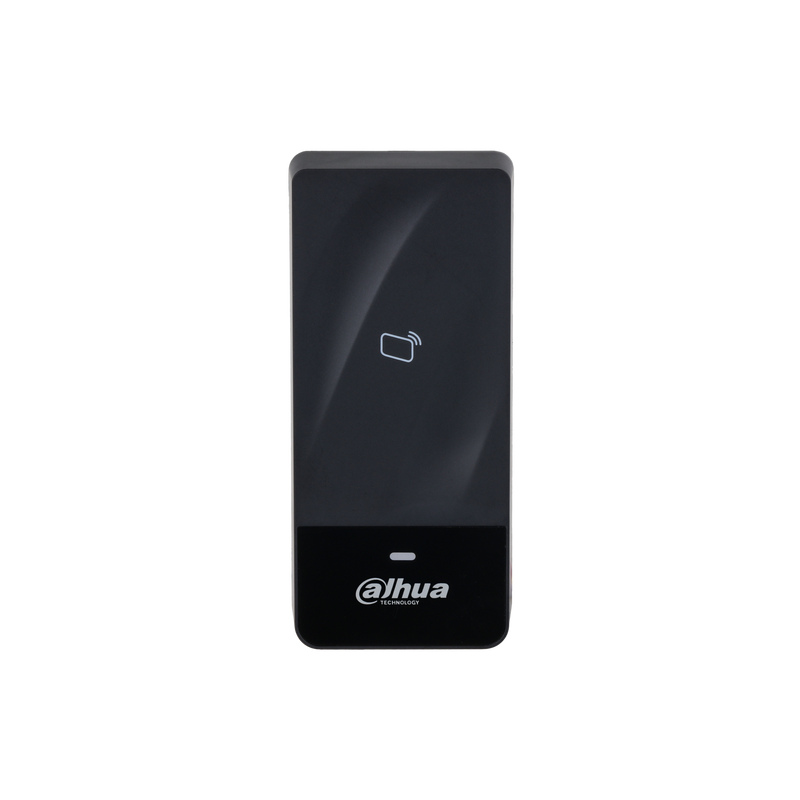

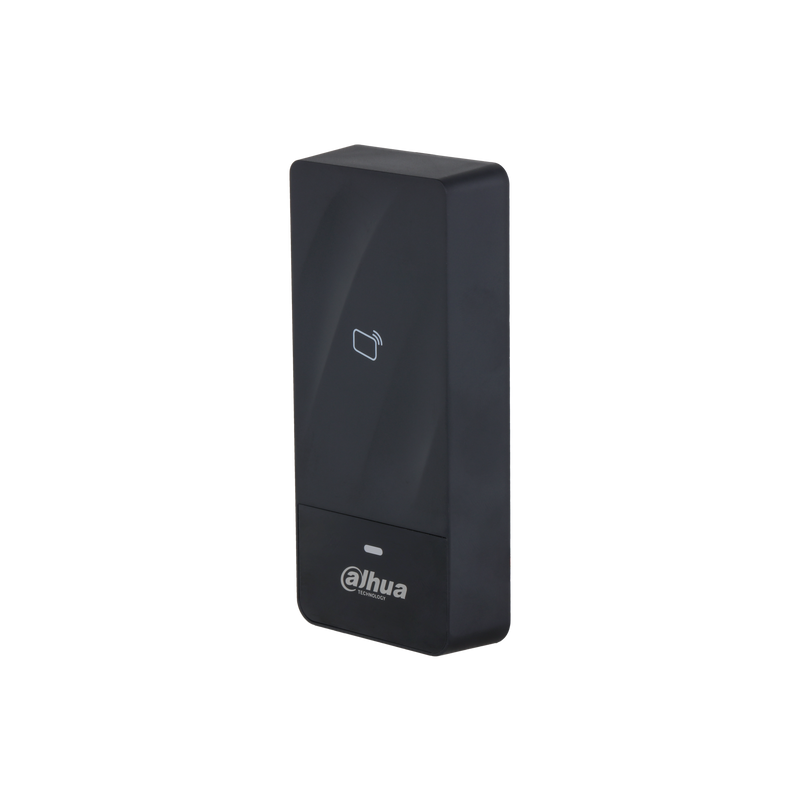

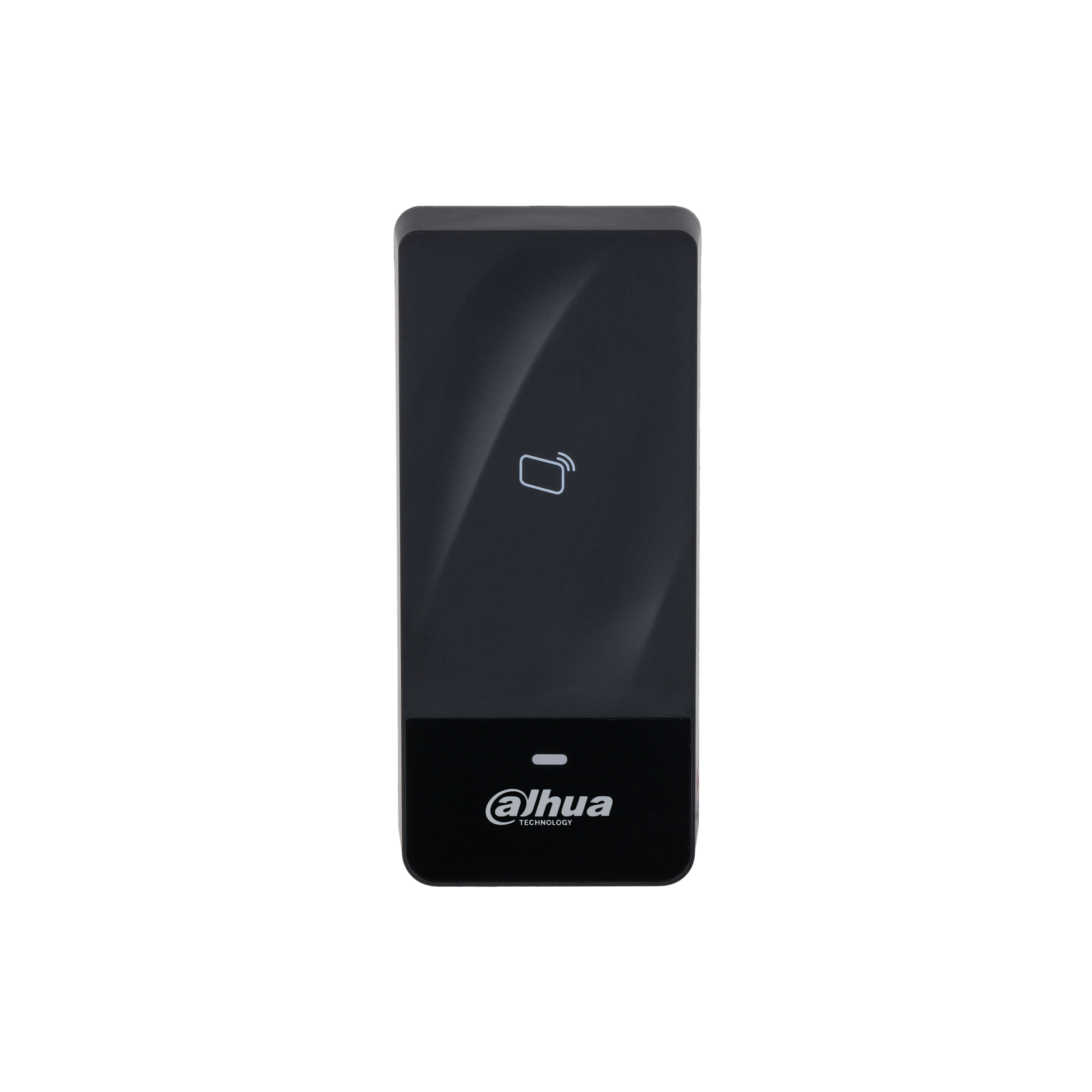

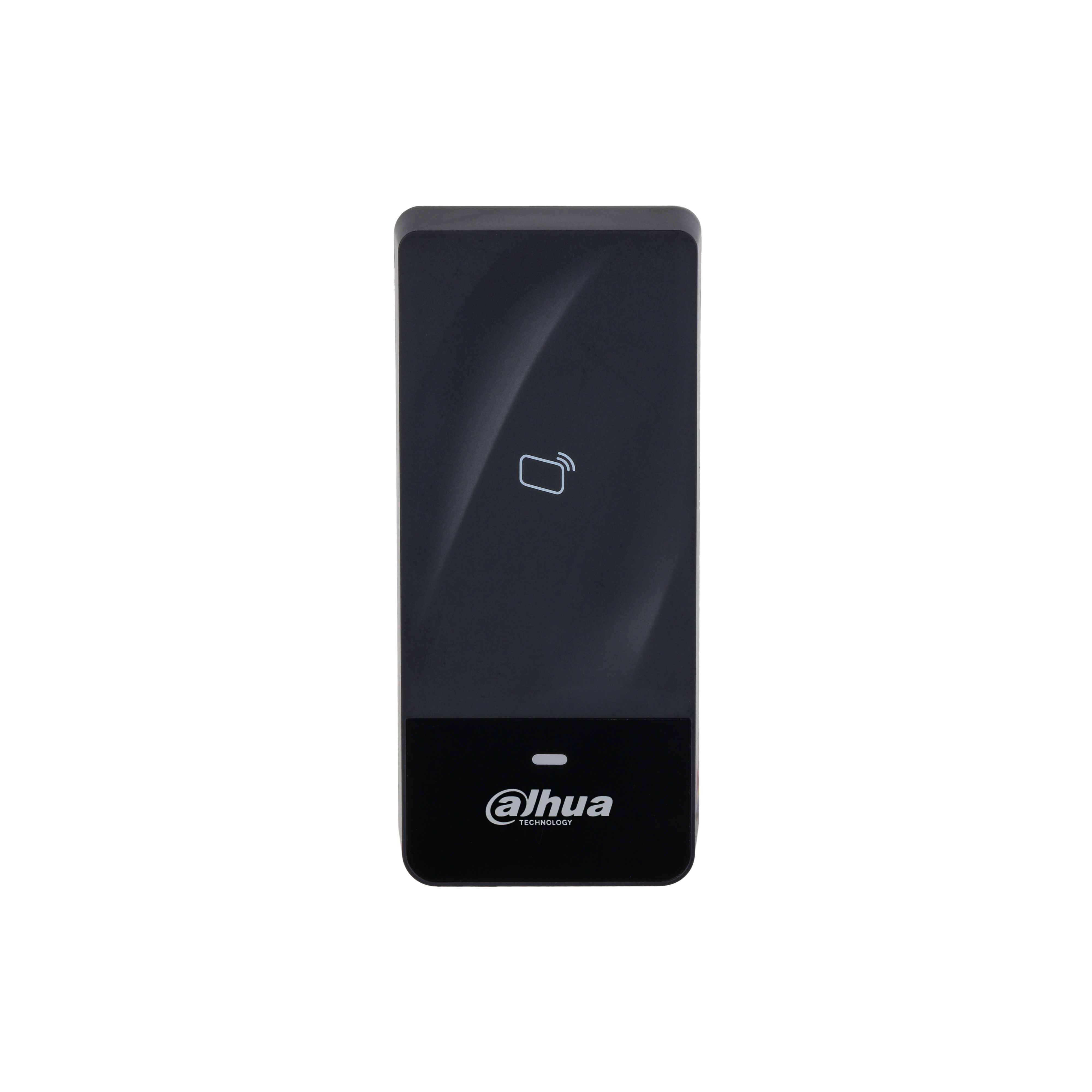

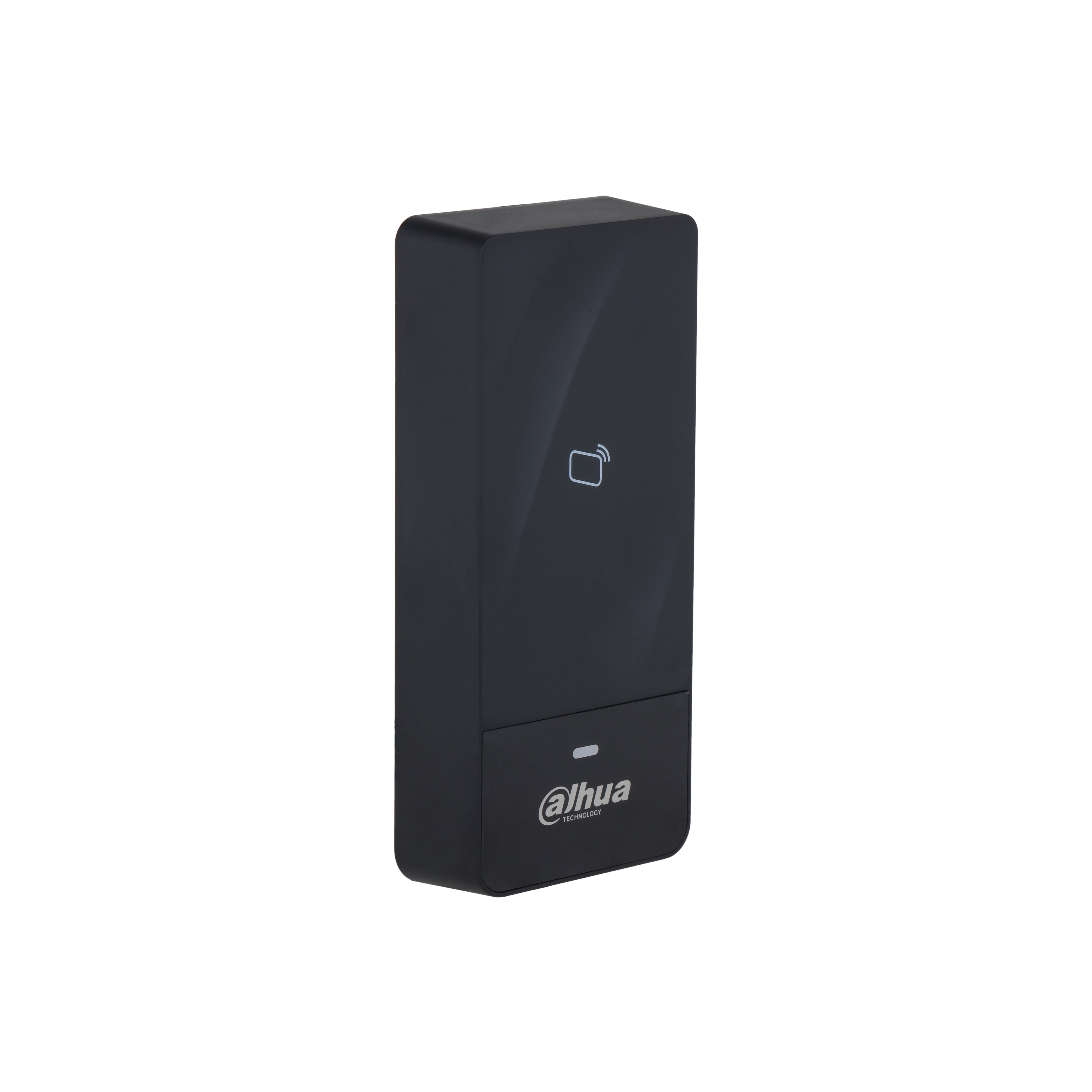

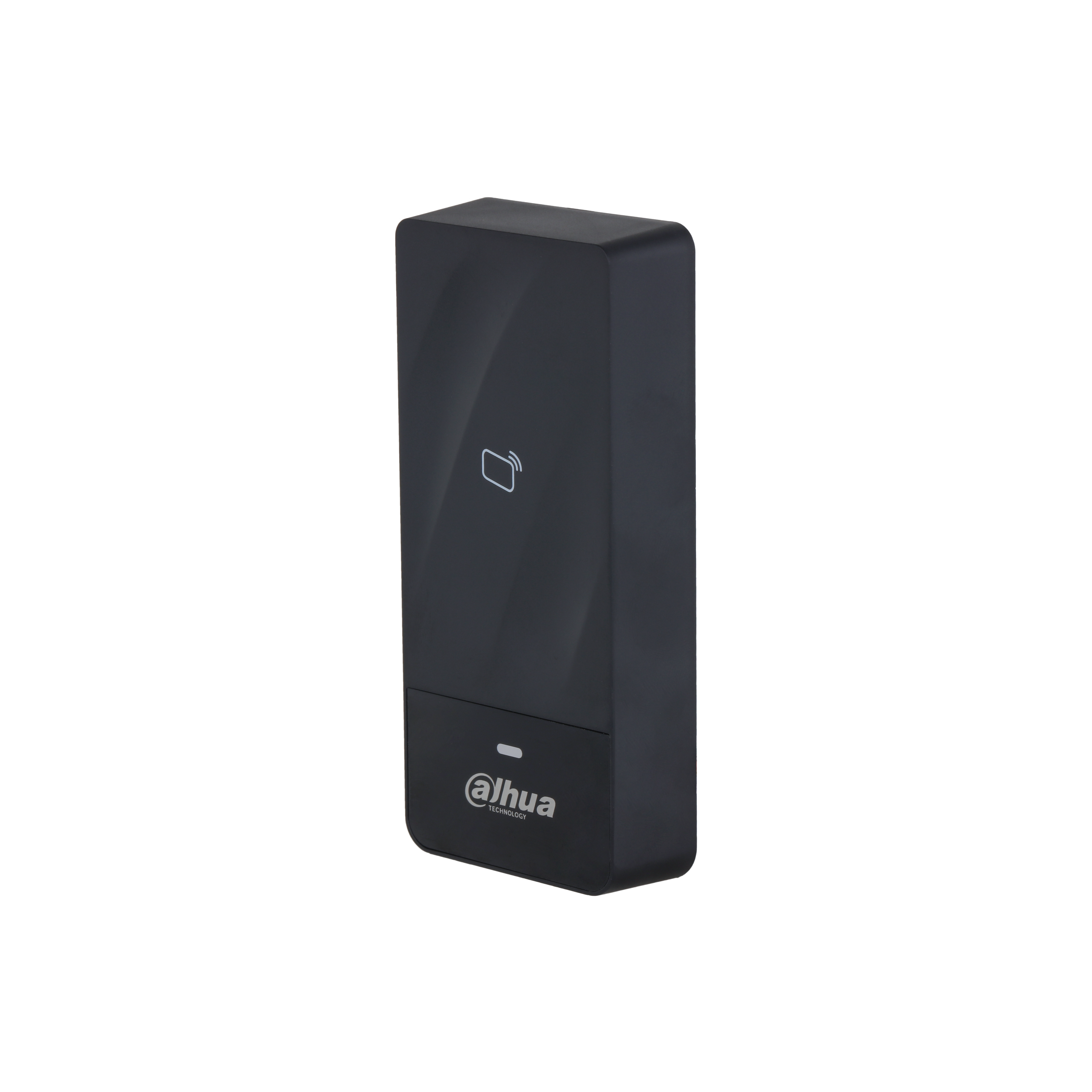

ASR1200E-D
ASR1200E-D ბარათების წამკითხველი, ID ბარათი (EM 125 kHz), RS-485/Wiegand34, IP66 #581979
- Regular price
- 55 ₾
- Sale price
- 55 ₾
- Regular price
-
Dahua ID Card Water proof Access Reader
მახასიათებლები / Specifications
| System | |
|---|---|
| OSDP Protocol | Yes |
| Basic | |
| Product Type | Card reader |
| Buzzer | Yes |
| Casing Material | ABS |
| Function | |
| Unlock Mode | Supports card swiping |
| Card Type | ID card |
| Modulation Type | AM |
| Frequency Range | 125 kHz |
| Max Transmission Power | 66 dBuA/m @10 m |
| Performance | |
| Response Time | 0.1 sec |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 |
| General | |
| Power Supply | 12 VDC, 0.5 A |
| Protection | IP66 rated |
| Power Consumption | 0.6 W |
| Product Dimensions | 97.0 mm × 44.0 mm × 17.0 mm (3.82" × 1.73" × 0.67") |
| Packaging Dimensions | 122.0 mm × 92.5 mm × 58.0 mm (4.80" × 3.64" × 2.28") |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Operating Environment | Outdoor |
| Gross Weight | 0.11 kg (0.25 lb) |
| Installation | Surface Mount |
| Certifications | CE; FCC |
