IPC-HFW1539DTK1-SW-PV-2.8-2
IPC-HFW1539DTK1-SW-PV 2.8mm 5მპ Bullet Wi-Fi კამერა, Mic/Speaker, IP67, IR/Warm light 30მ #581876
- Regular price
- 231 ₾
- Sale price
- 231 ₾
- Regular price
-

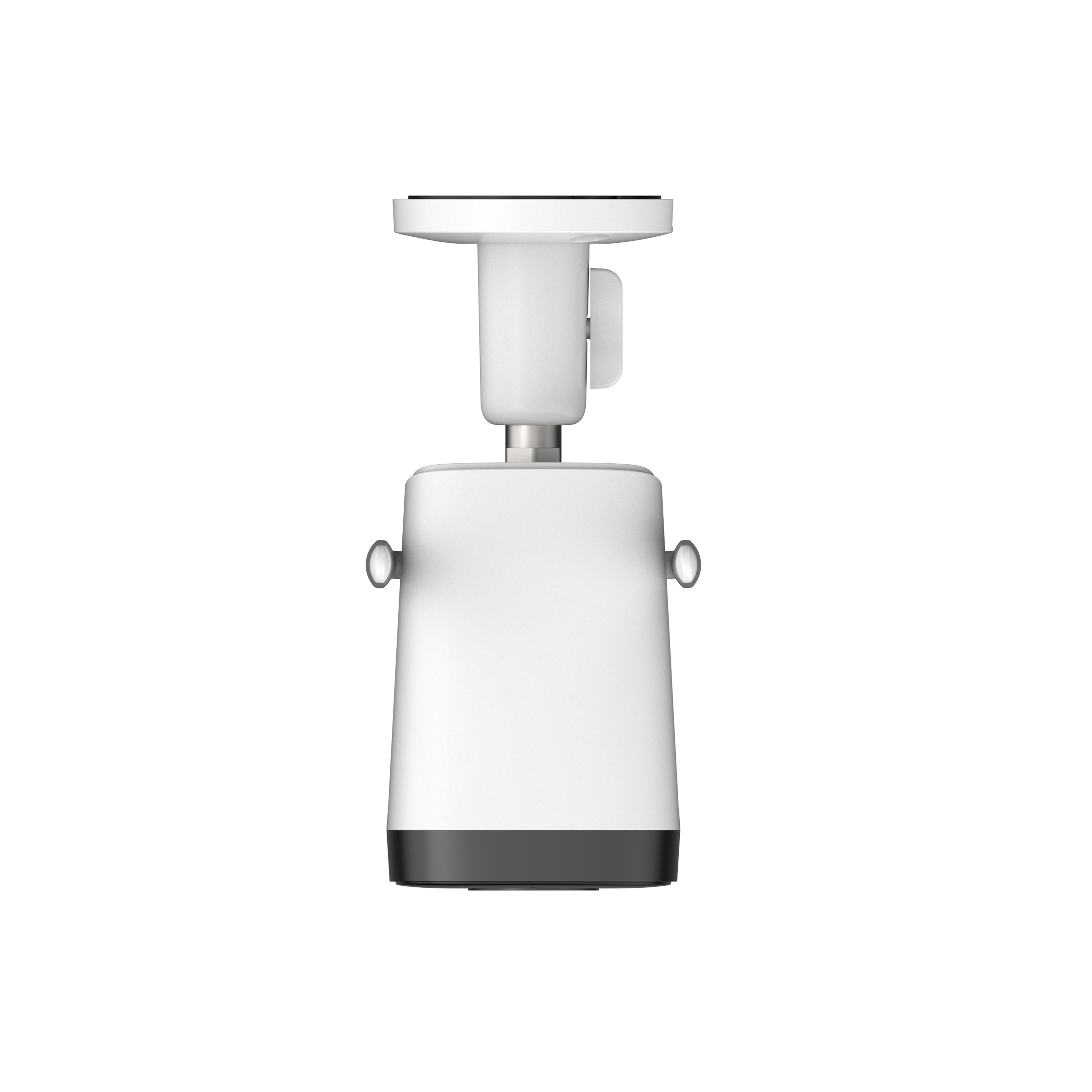

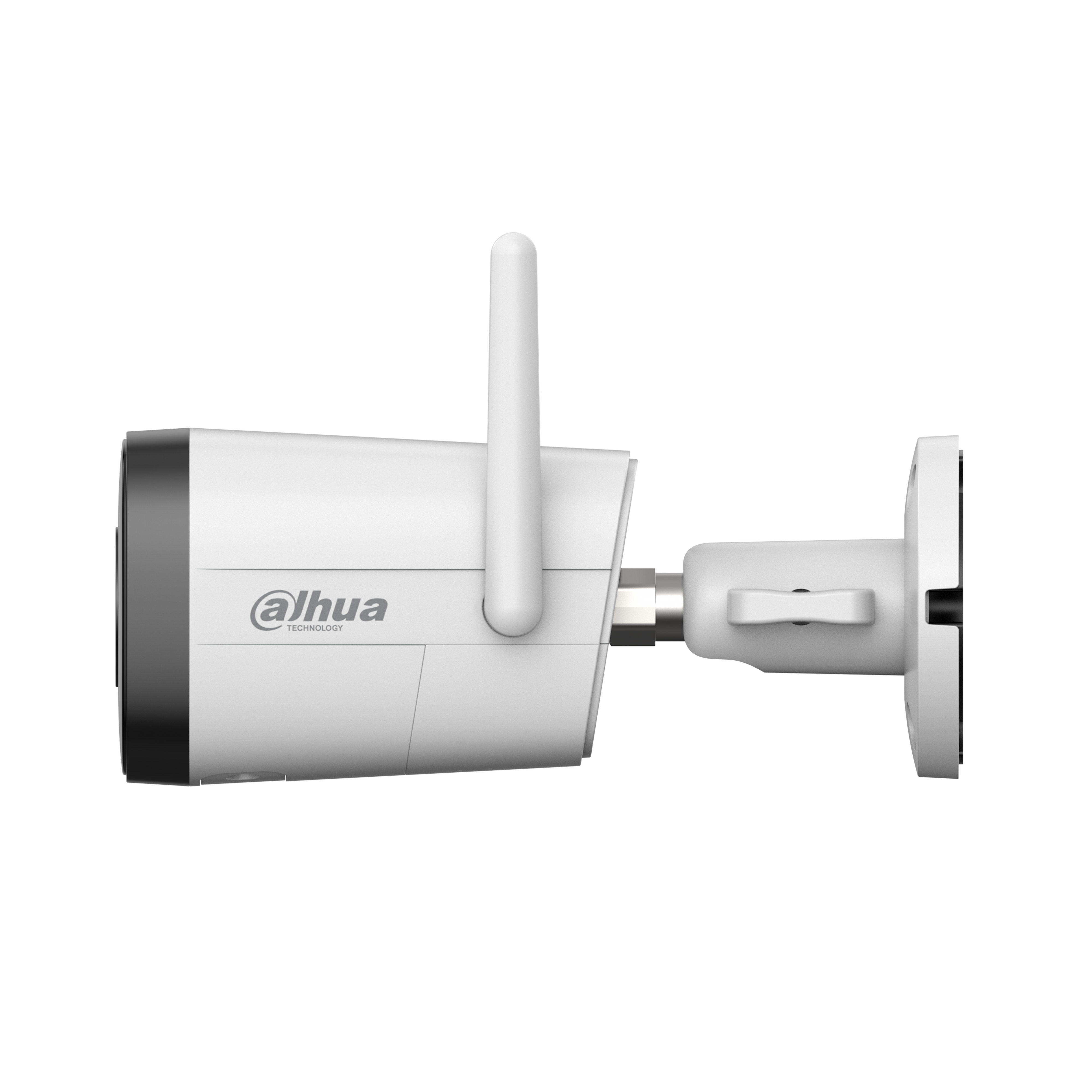

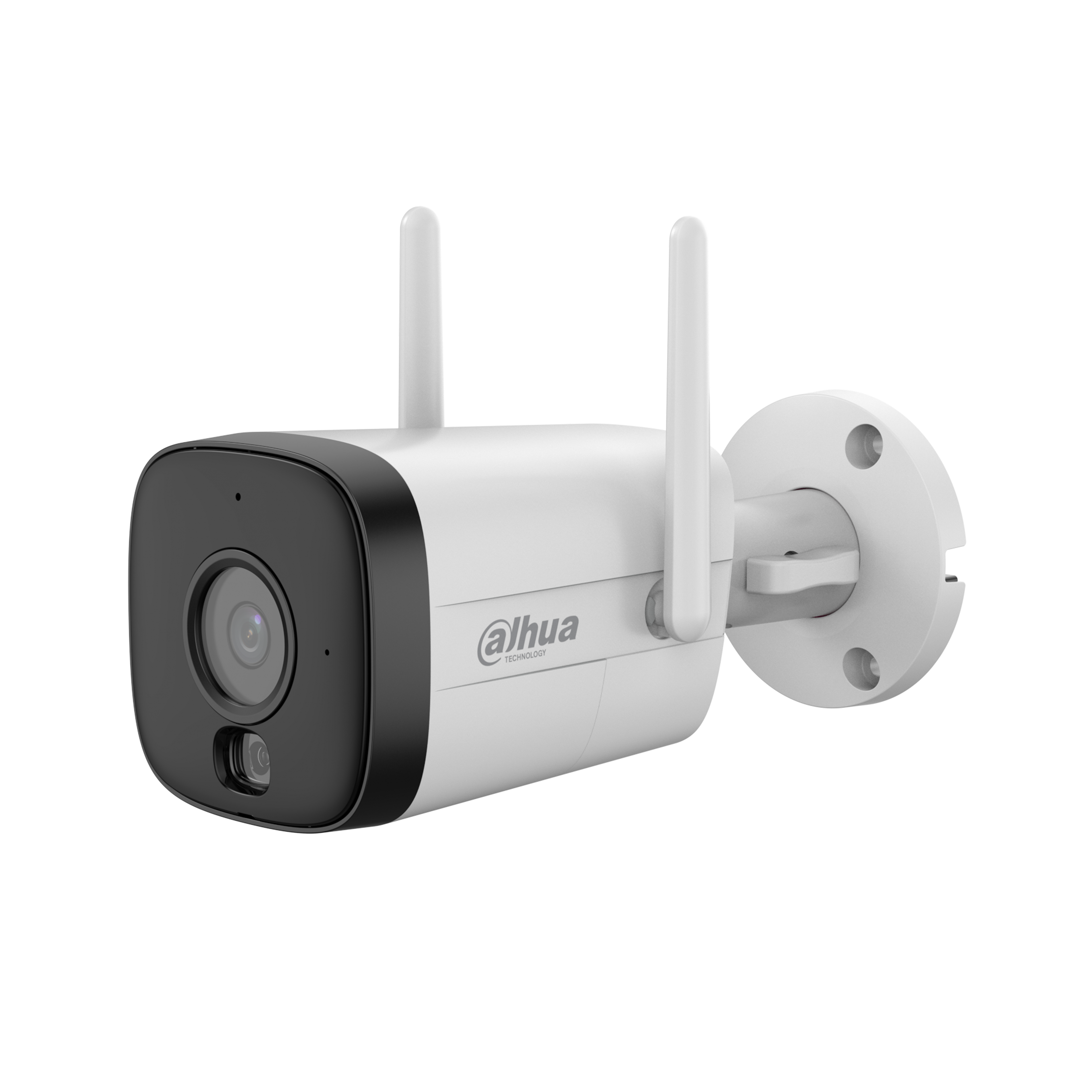

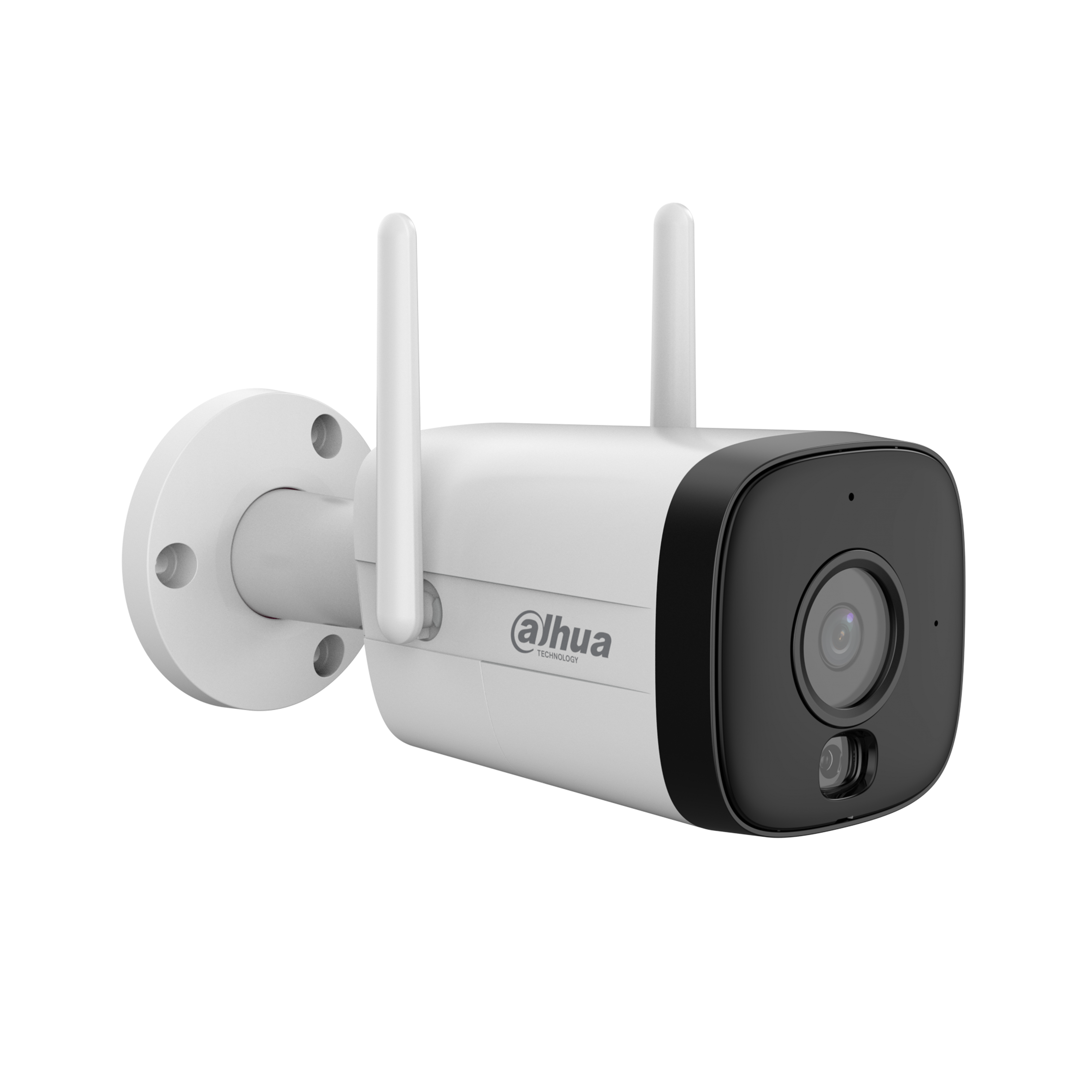

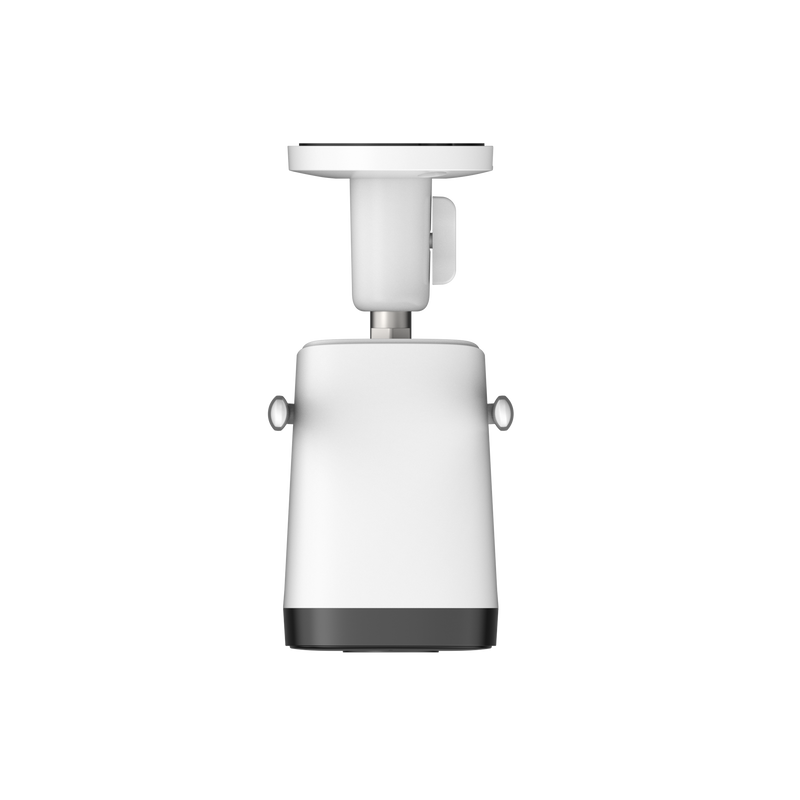

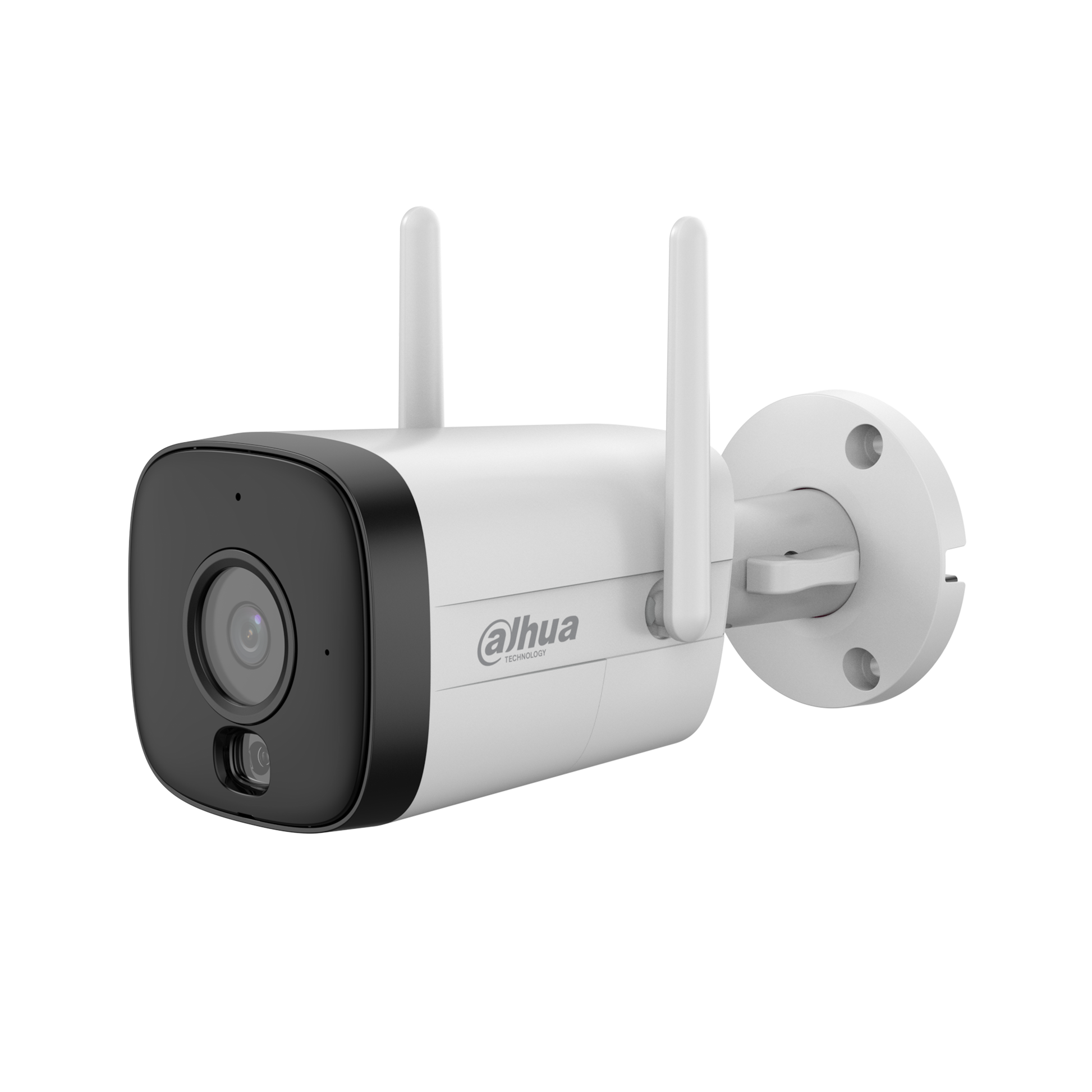

5MP Fixed-focal WiFi Bullet Network Camera
მახასიათებლები / Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Min. Illumination | 0.007 lux@F1.6 (Color, 30 IRE) 0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Number | 1 (Multi-core (IR + warm) light) |
| Angle Adjustment | Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 104°; V: 56°; D: 124° 3.6 mm: H: 89°; V: 48°; D: 104° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio and Video | |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Video Frame Rate | Main stream: 2880 × 1620@(1–25/30 fps) sub stream: 640 × 360@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 32 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm |
| Wi-Fi Pairing | Bluetooth pairing |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android;iOS |
| General | |
| Certifications | CE |
| Power Supply | 12 VDC |
| Power Consumption | Basic: 2.4 W (12 VDC); Max.: 6.9 W (12 VDC) |
| Operating Temperature | –30 °C to +50 °C (–22 °F to +122 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Camera Button | Reset button |
| Casing Material | Metal + plastic |
| Product Dimensions | 172.4 mm × 83.3 mm × 75.0 mm (6.79" × 3.28" × 2.95") (L × W × H) |
| Net Weight | 0.3 kg (0.66 lb) |
| Camera | |
| Image Sensor : | 1/2.7" CMOS |
| Max Resolution : | 2880 (H) × 1620 (V) |
| Megapixels : | 5 MP |
| Form Factor : | Bullet |
| Lens | |
| Lens Type : | Fixed-focal |
| Focal Length : |
2.8 mm 3.6 mm |
| Aperture : | F1.6 |
| Field of View : | 2.8 mm: H: 104°; V: 56°; D: 124° 3.6 mm: H: 89°; V: 48°; D: 104° |
| Image & Video | |
| Min. Illumination : | 0.007 lux@F1.6 (Color, 30 IRE) 0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| IR Range : | 30m |
| Day / Night : | Auto(ICR)/Color/B/W |
| WDR: | DWDR |
| Frame Rate : | 25/30 fps |
| Compression : | H.264B; H.264; H.264H |
| Audio | |
| Audio : | G.711a; G.711Mu; PCM |
| Network | |
| Network Interface : | RJ-45 (10/100 Base-T) |
| Storage : | Micro SD card (support max. 256 GB) |
| Power & Protection | |
| Power Supply : | 12 VDC |
| IP / IK Rating : | IP67 |
