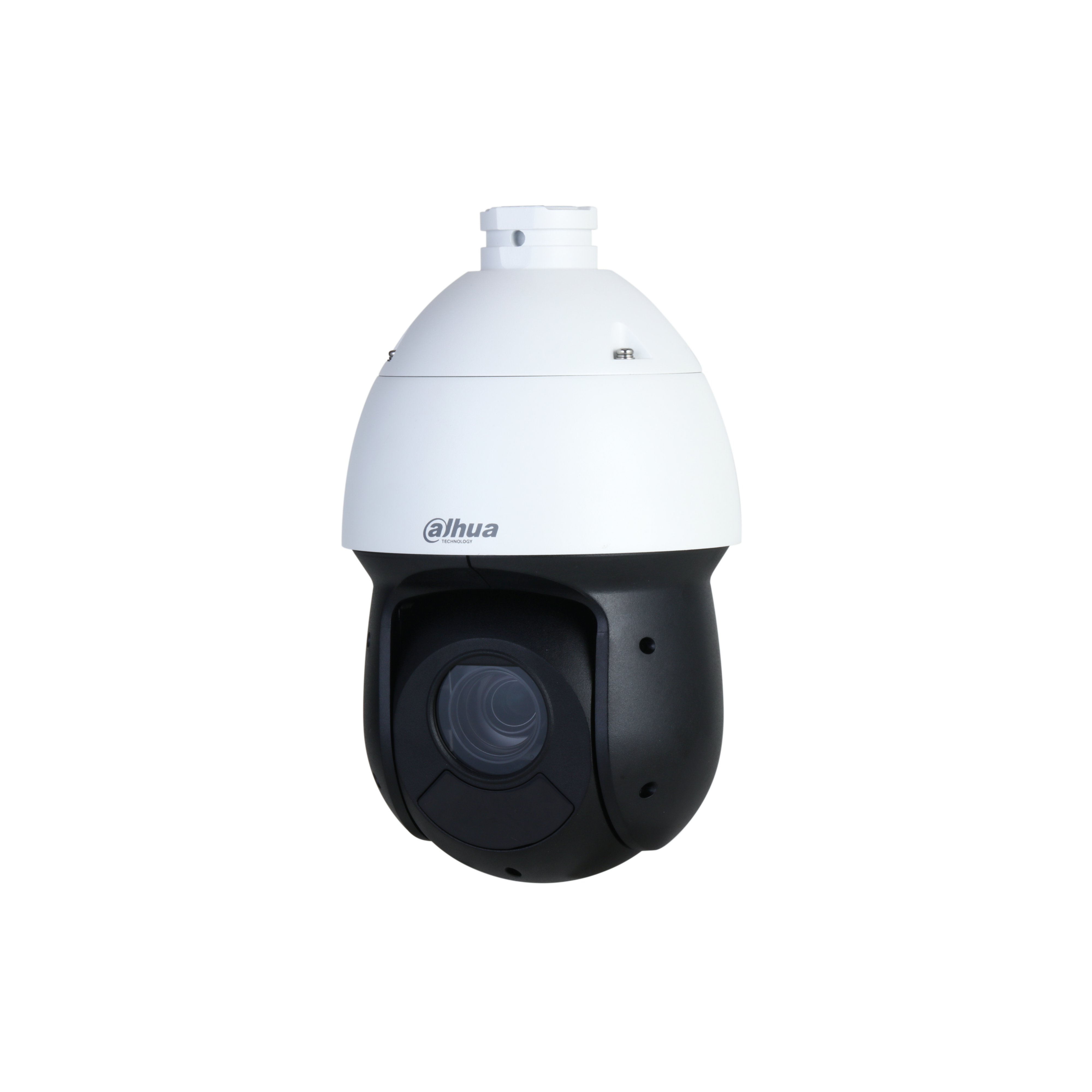

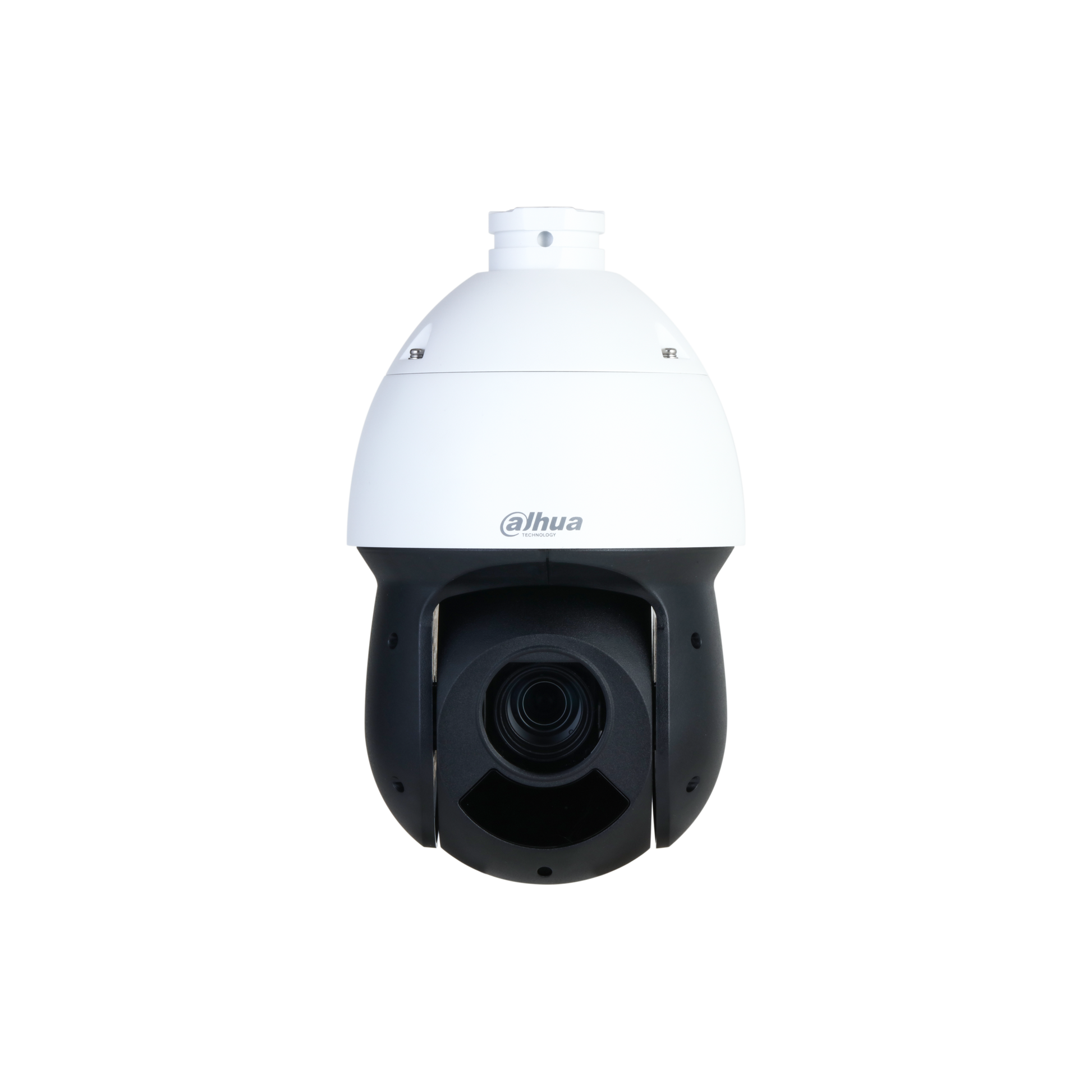

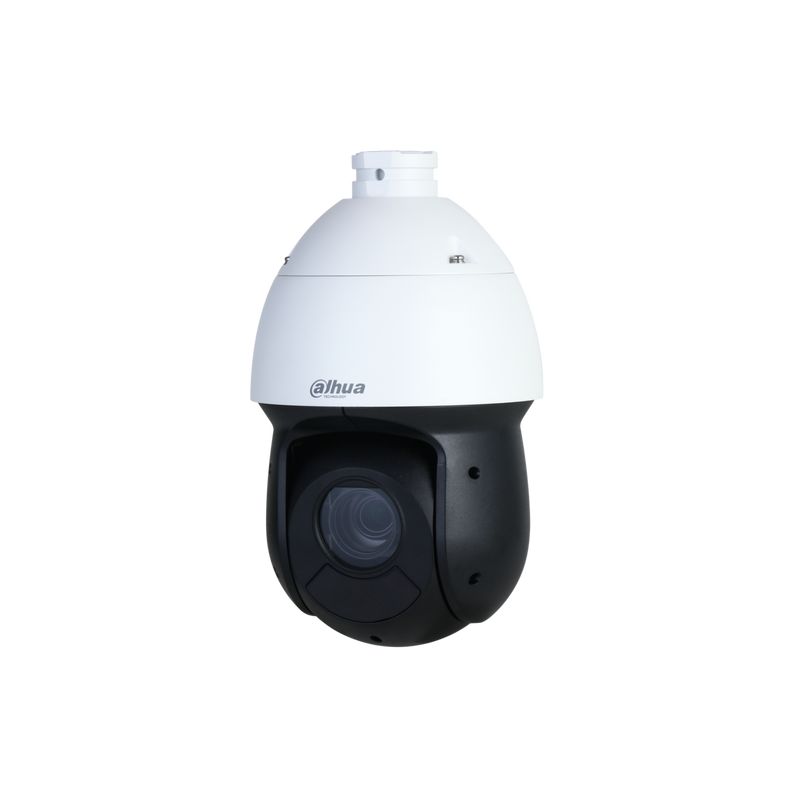

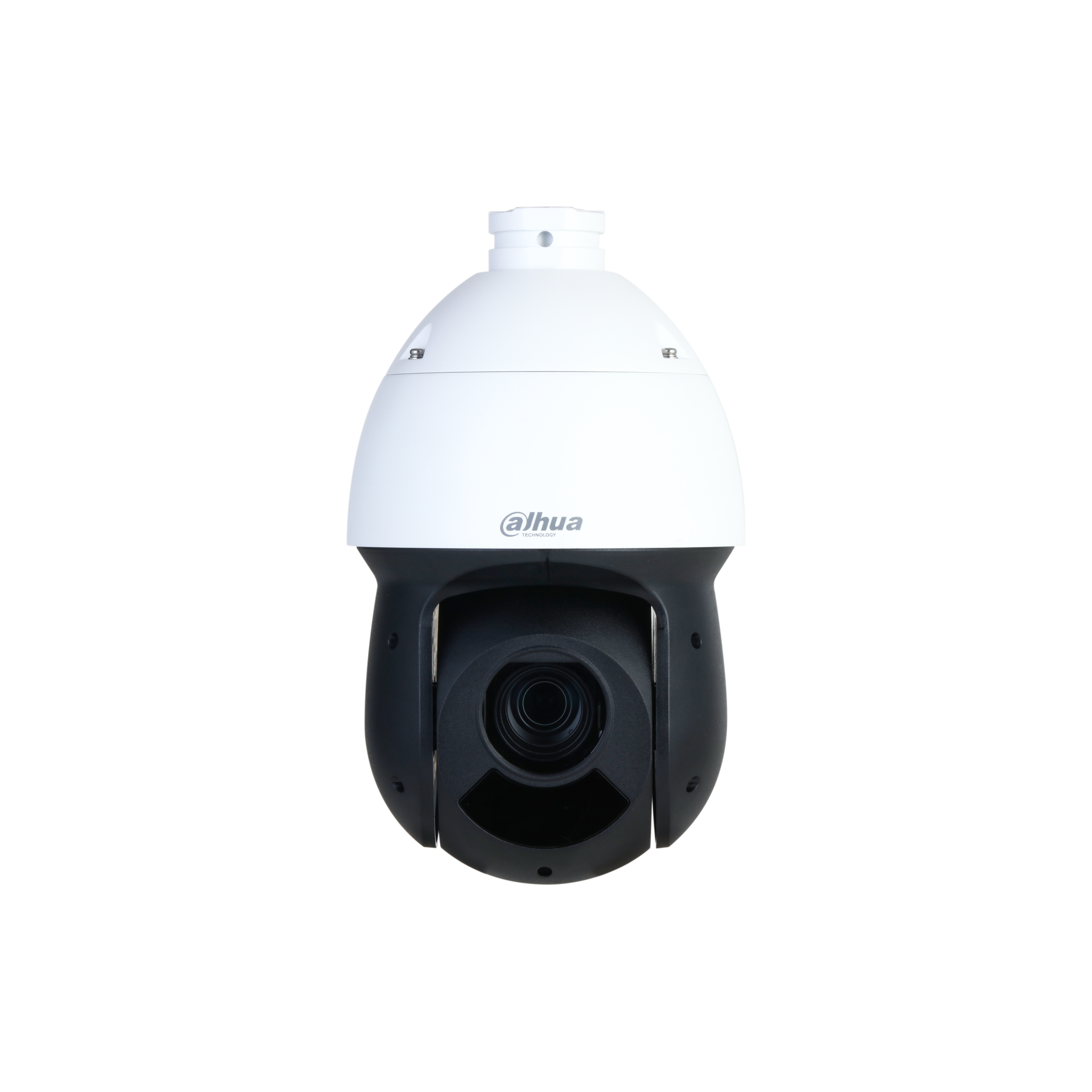

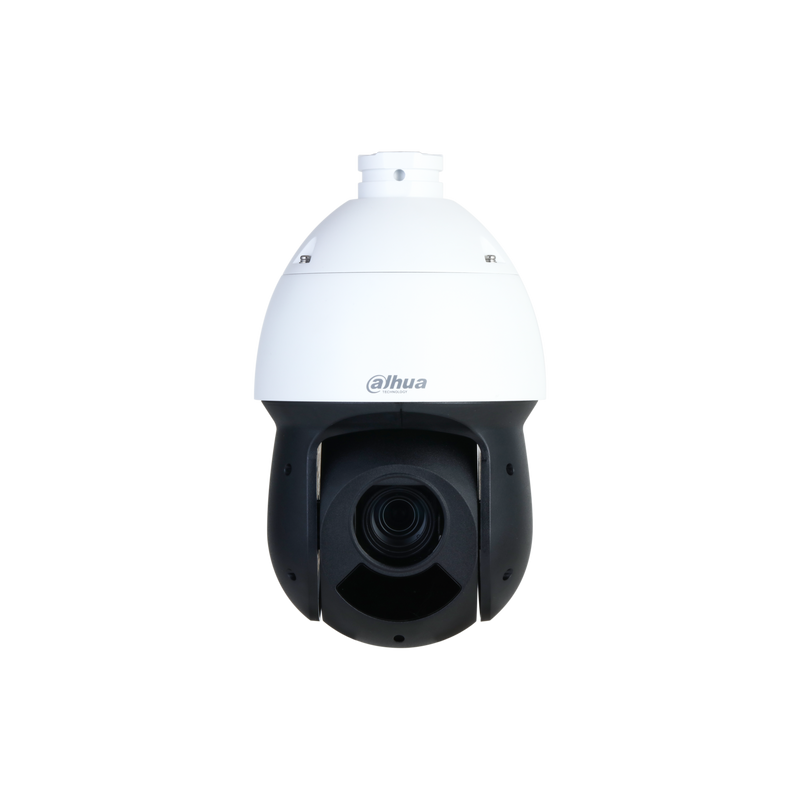

SD49425DB-HNY
SD49425DB-HNY 4მპ PTZ ქსელური მართვადი კამერა, 25x ოპტ. გადიდება, IP66, IR 100მ-მდე #581890
- Regular price
- 1,499 ₾
- Sale price
- 1,499 ₾
- Regular price
-
4MP 25x Starlight IR Network PTZ Camera
მახასიათებლები / Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (illuminator on) |
| Illumination Distance | 100 m (328.08 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off |
| Illuminator Number | 3 (IR) |
| Lens | |
| Focal Length | 5 mm–125 mm |
| Max. Aperture | F1.6–F3.6 |
| Field of View | H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Optical Zoom | 25× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–0.5 m (0.33 ft–1.64 ft) |
| Iris Control | Auto; manual |
| DORI Distance | Detect Observe Recognize Identify |
| 2500 m (8208.10 ft) | 987.5 m (3239.83 ft) 500 m (1640.42 ft) 250 m (820.21 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–80°/s Tilt: 0.1°/s–80°/s |
| Preset Speed | Pan: 80°/s; Tilt: 80°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Supports face detection, capturing snapshots, and enhancing face images. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing and quality first |
| SMD | SMD 3.0 |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets |
| Video | |
| Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480)/CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/CIF/VGA@(1–25/30 fps) Sub stream 2: 720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 96 kbps–14848 kbps H.265: 38 kbps–8960 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM; G.711A; G.711MU; G.726; AAC; MPEG2-Layer2; G.722.1 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE; NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP; NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP; Qos;RTSP;ARP |
| Interoperability | ONVIF(Profile S&G&T);CGI;SDK |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP/SFTP; Micro SD card (512 GB); NAS |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DSS; NVR; Smart PSS;IVSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4- 2014 |
| Port | |
| Audio Input | 1 channel |
| Audio Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; pattern; tour; alarm digital input |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 12 VDC, 3 A ± 10% POE+ (802.3at) |
| Power Consumption | Basic: 8 W Max: 21 W (illuminator + heater + PTZ) |
| Environment | |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Operating Humidity | ≤95% |
| Protection | IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 270.4 mm × Φ160 mm (10.65" × Φ6.30") |
| Net Weight | 2.4 kg (5.29 lb) |
| Gross Weight | 3.3 kg (7.28 lb) |
| Camera | |
| Image Sensor : | 1/2.8" CMOS |
| Max Resolution : | 2560 (H) × 1440 (V) |
| Megapixels : | 4 MP |
| Form Factor : | PTZ |
| Lens | |
| Focal Length : | 5 mm–125 mm |
| Aperture : | F1.6–F3.6 |
| Field of View : | H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Image & Video | |
| Min. Illumination : | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (illuminator on) |
| IR Range : | 100m |
| Day / Night : | Auto (ICR)/Color/B/W |
| WDR: | 120 dB |
| Frame Rate : | 25/30 fps |
| Compression : | H.264H; H.264B; Smart H.265+ |
| Audio | |
| Audio : | PCM; G.711A; G.711MU; G.726; AAC; MPEG2-Layer2; G.722.1 |
| Network | |
| Network Interface : | RJ-45 (10/100 Base-T) |
| Storage : | FTP/SFTP; Micro SD card (512 GB); NAS |
| Power & Protection | |
| Power Supply : | 12 VDC, 3 A ± 10% POE+ (802.3at) |
| IP / IK Rating : | IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection |
