ASC4201B-D
ASC4201B-D แแแแขแ แแแแ แ, 1 แแแแแกแแกแแแแแ, 2 แฌแแแแแแฎแแแแ, Single Door two-way, 12 VDC, PoE,RJ-45 #581880
- Regular price
- 311 โพ
- Sale price
- 311 โพ
- Regular price
-
แจแแแแแแแ

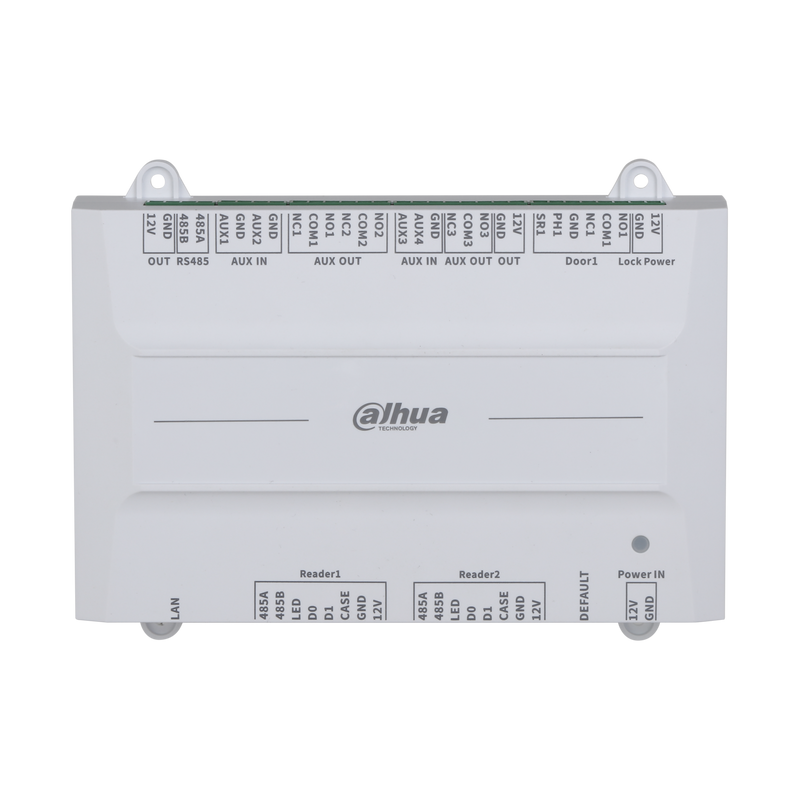

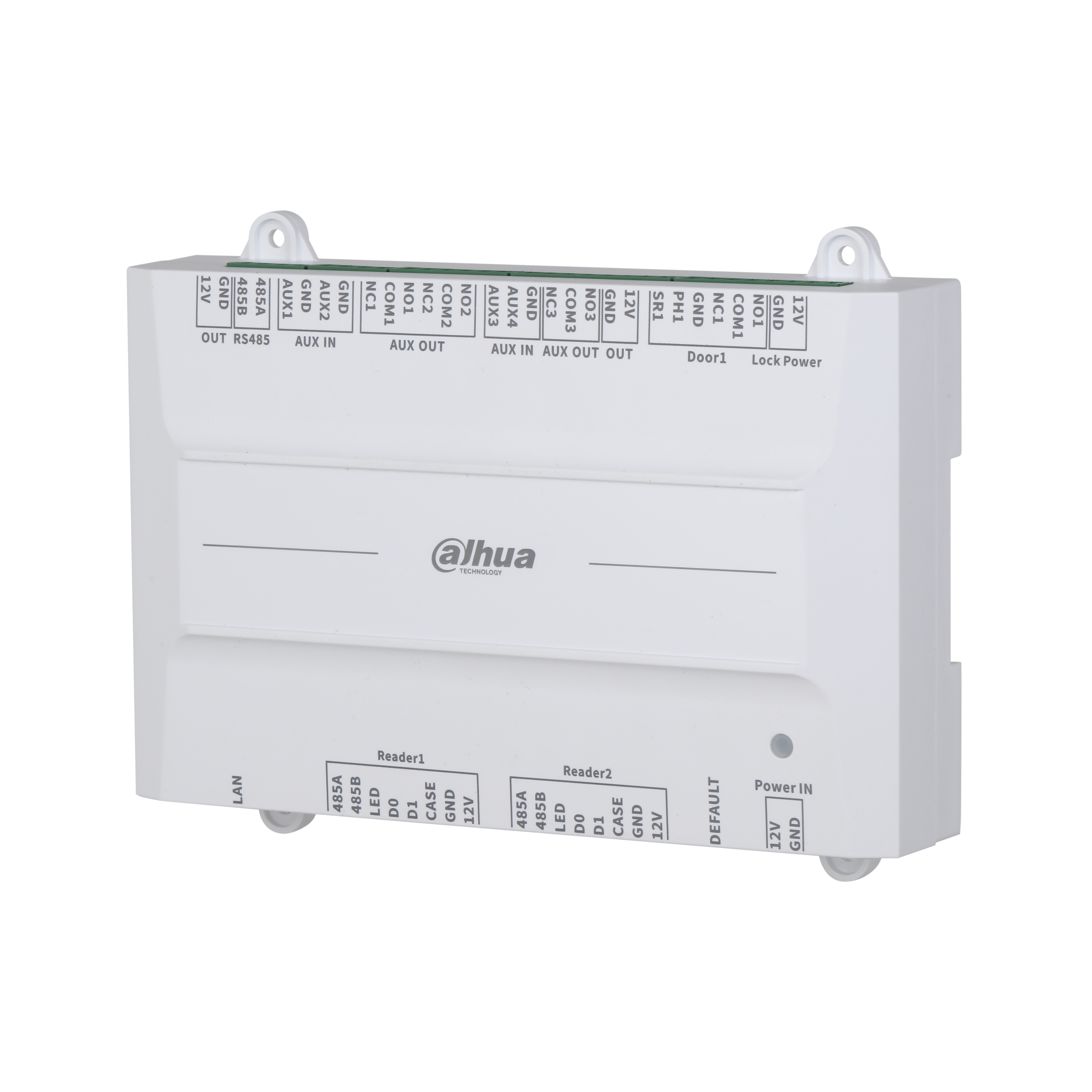

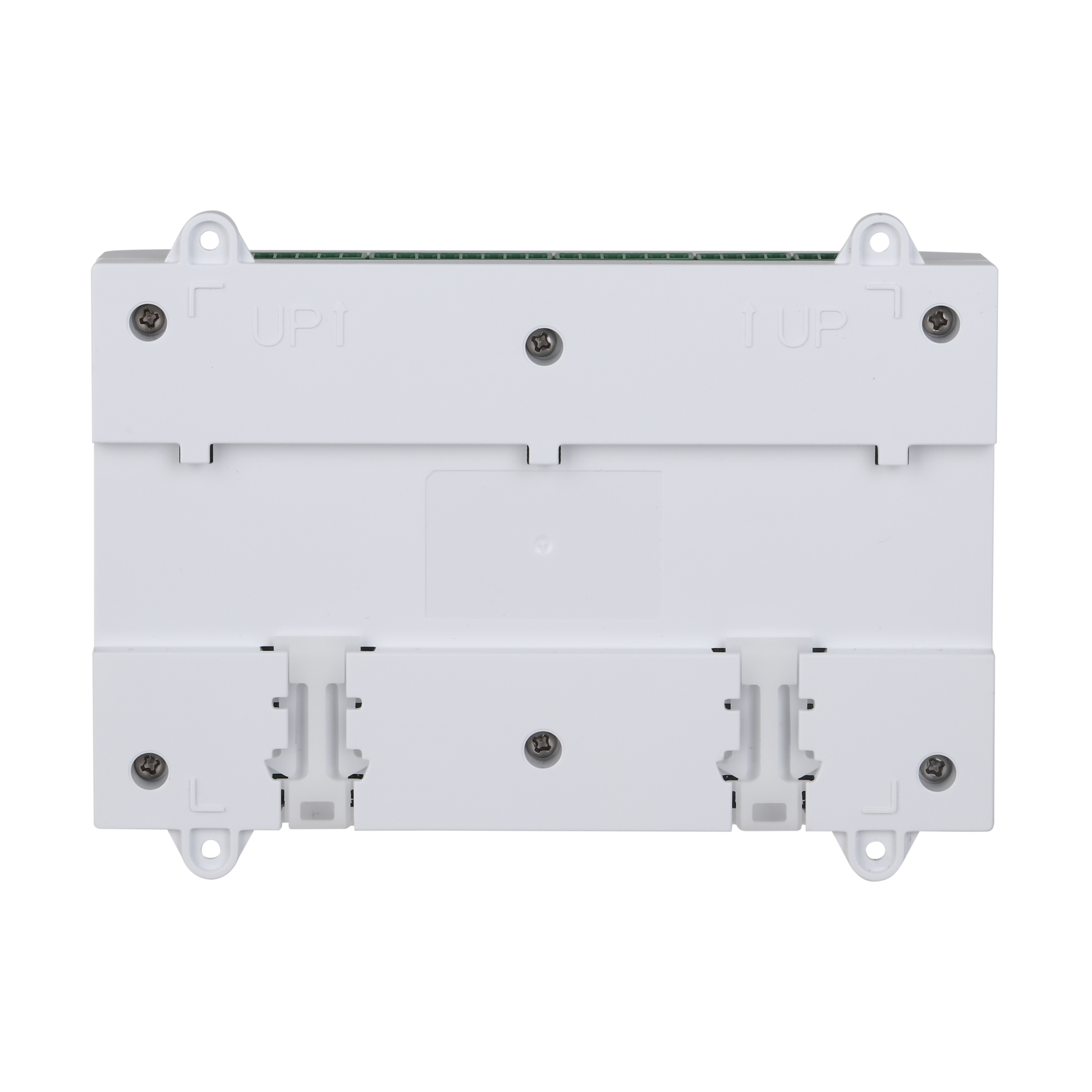

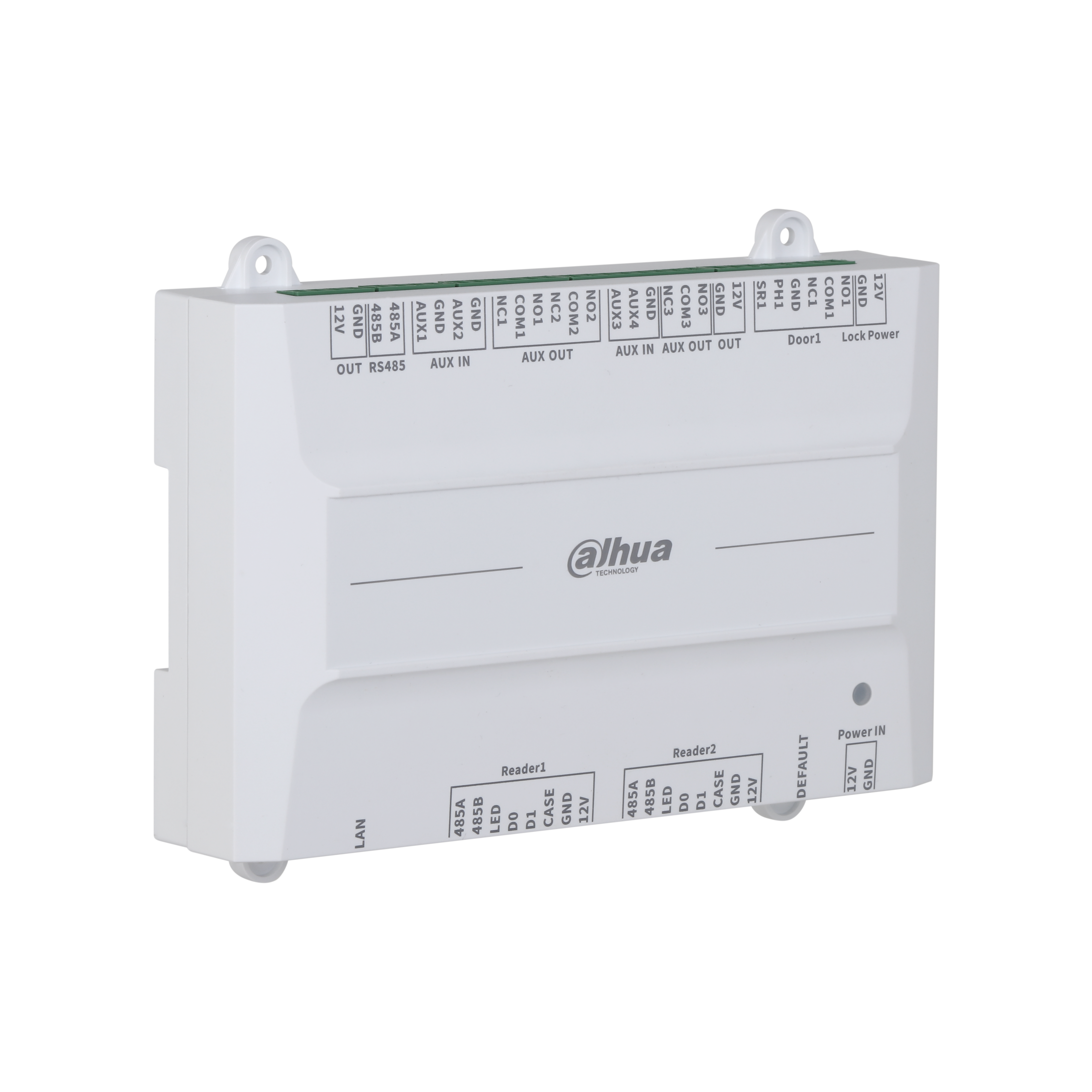

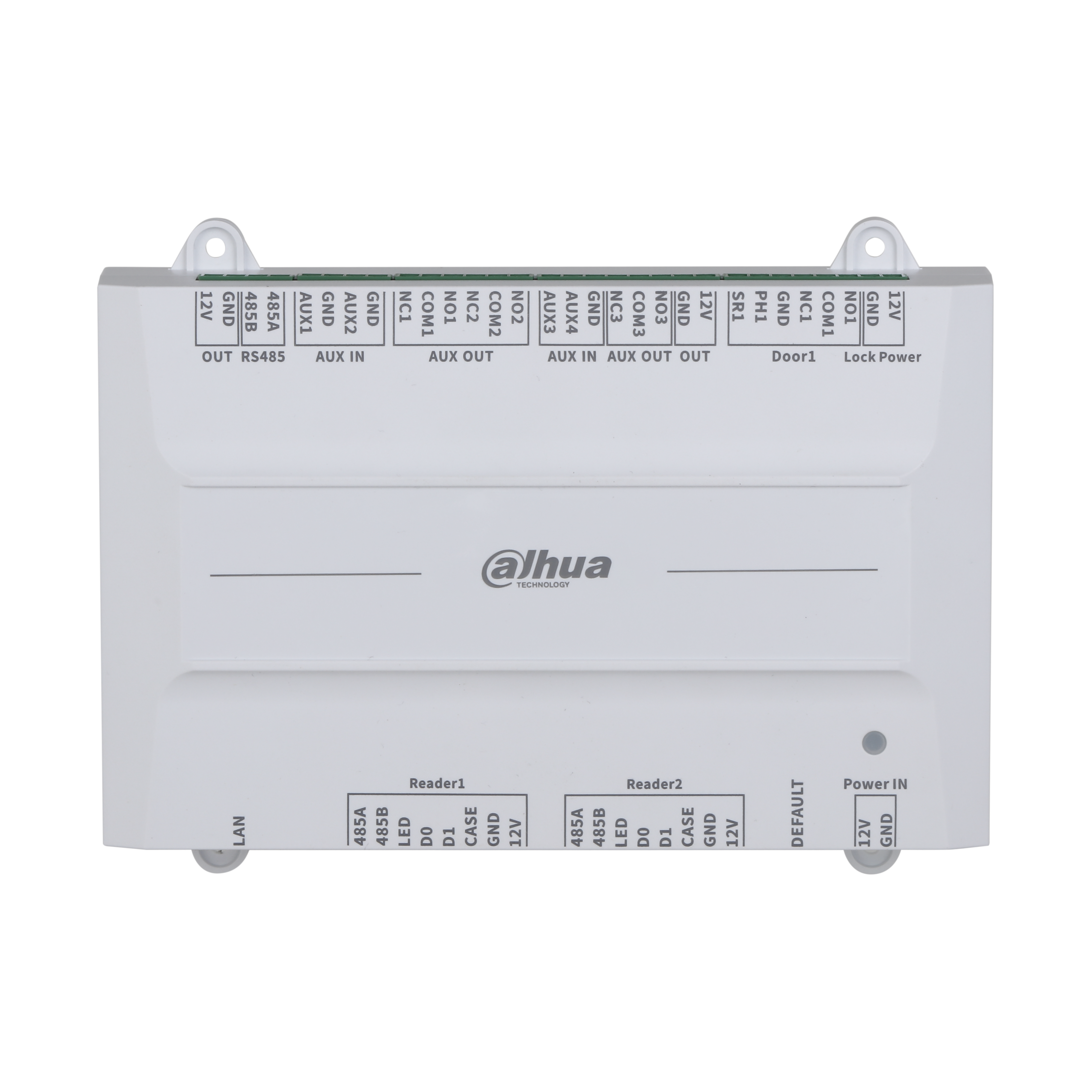

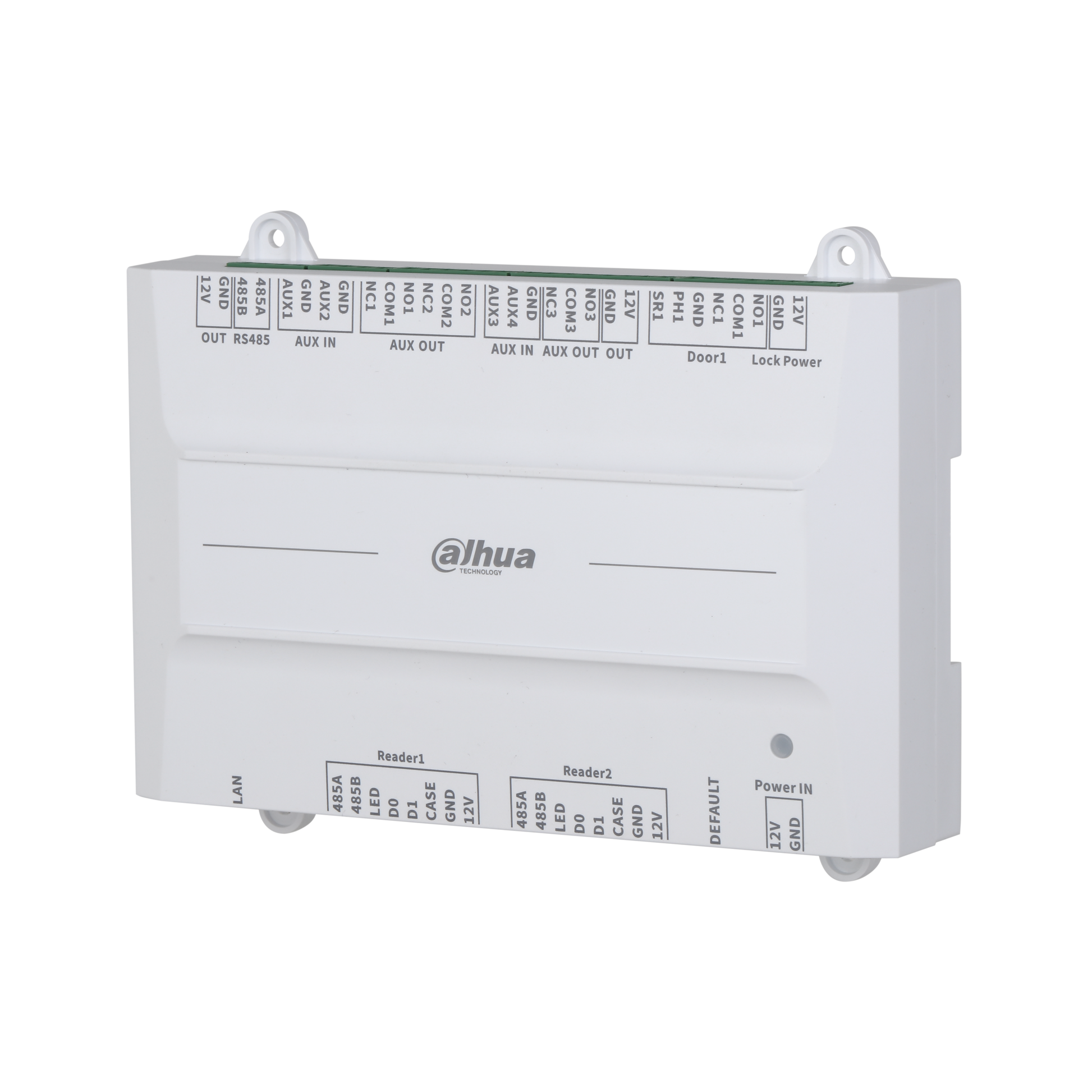

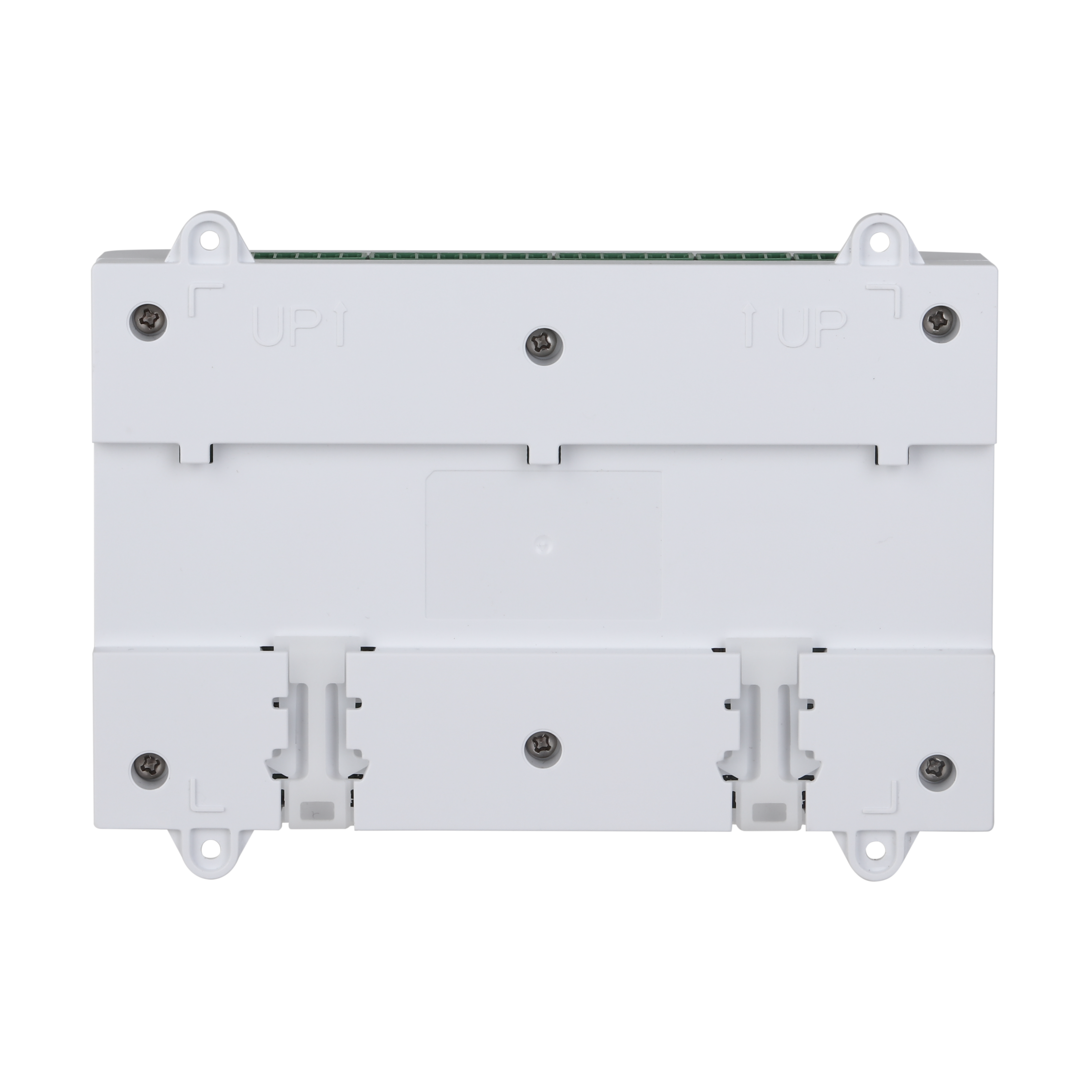

Dahua Single Door two-way Access Controller
แแแฎแแกแแแแแแแแแ / Specifications
| General | |
|---|---|
| Main Processor | Embedded Processor |
| Network Protocol | IPv4;UDP;P2P;IPv6;TCP |
| OSDP Protocol | Yes |
| Interoperability | ONVIF PROFILE C |
| SDK | Yes |
| API | Yes |
| Product Type | Controller |
| Buzzer | Yes |
| Casing Material | PC+ABS |
| Verification Method | Card;Password;Fingerprint;Remote;QR Code |
| Period List | 128 groups |
| Holiday Period | 128 groups |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Peripheral Card Reader | Supports 2-channel RS-485 card readers and 2-channel Wiegand card readers. |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Multi-factor Authentication | Yes |
| Web Configuration | Yes |
| Unidirectional or Bidirectional | Bidirectional |
| User (Card) Type | General user, VIP user, patrol user, guest user, blocklist user, other users, custom user 1 and custom user 2 |
| User Capacity | 100,000 |
| Fingerprint Capacity | 10,000 |
| Card Capacity | 100,000 |
| Record Capacity | 500,000 |
| RS-485 | 3 ports. 2 for card readers, and the remaining 1 is for the extension port. |
| Wiegand | 2-channel input |
| Network Port | 1 RJ-45, 10 Mbps/100 Mbps self-adaptive |
| Alarm Input | 4 channels; expandable to 8 channels when connected to an external alarm module. |
| Alarm Output | 3 channels; expandable to 8 channels when connected to an external alarm module. |
| Alarm Linkage | Yes |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1 channel |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Duress Fingerprint | Yes |
| Power Supply | Standard PoE; 12 VDC 1A ๏ผno peripheral devices๏ผ |
| Power Consumption | โค 3 W; it might alter if other devices are connected |
| Product Dimensions | 155.6mm ร 106.0mm ร 34.1mm (6.13" ร 4.17" ร 1.34") (L ร W ร H) |
| Packaging Dimensions | 255mm ร 166mm ร 87mm (10.04" ร 6.54" ร 3.43") (L ร W ร H, 1 in inner carton) 512mm ร 269mm ร 196mm (20.16" ร 10.59" ร 7.72") (L ร W ร H, carton) |
| Operating Temperature | โ30 ยฐC to +60 ยฐC (โ22 ยฐF to +140 ยฐF) |
| Operating Humidity | 5%โ95% (RH), non-condensing |
| Operating Environment | Indoor |
| Gross Weight | 0.46 kg (1.01 lb) |
| Installation | Surface Mount;Guide Rail Mount |
