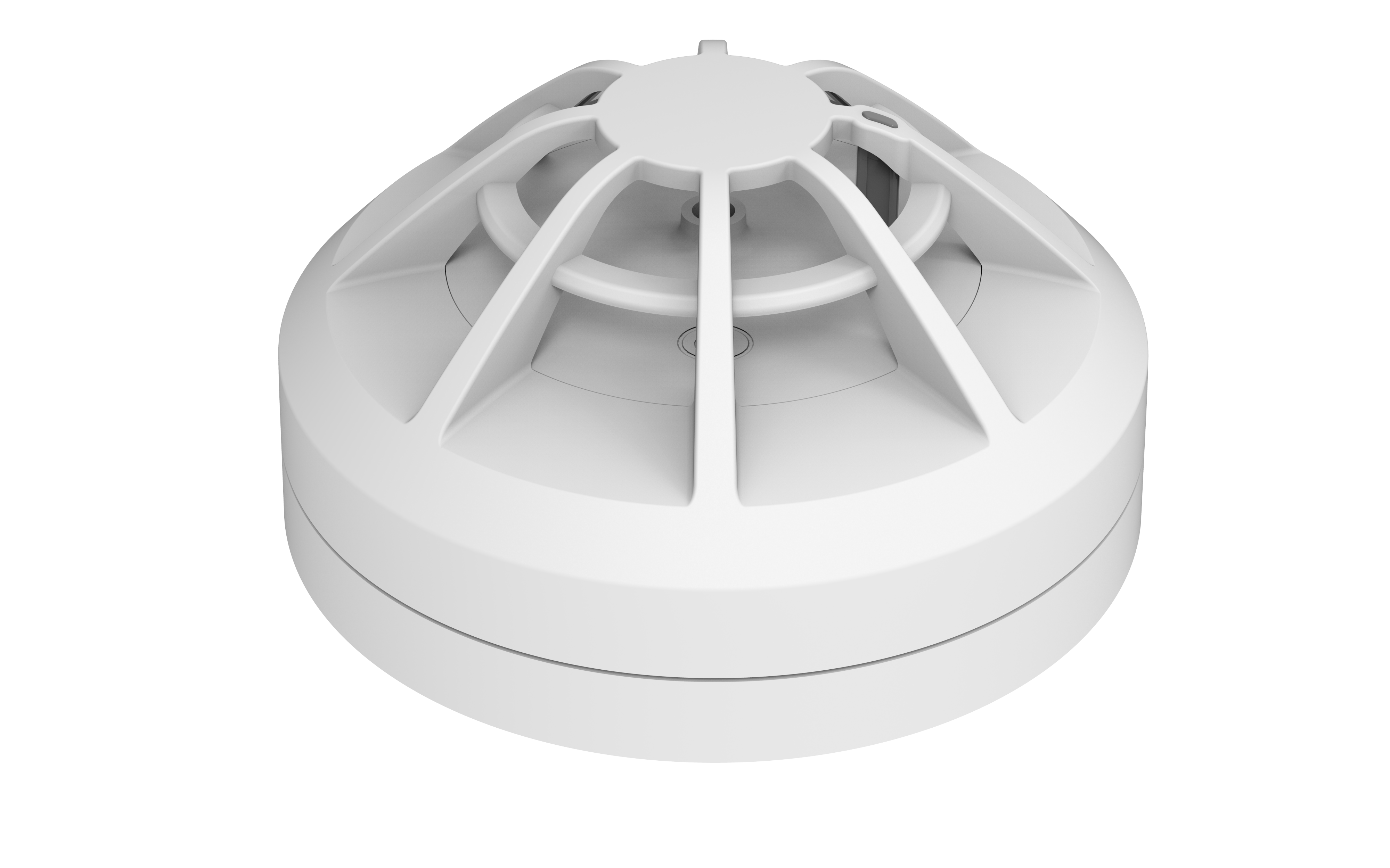

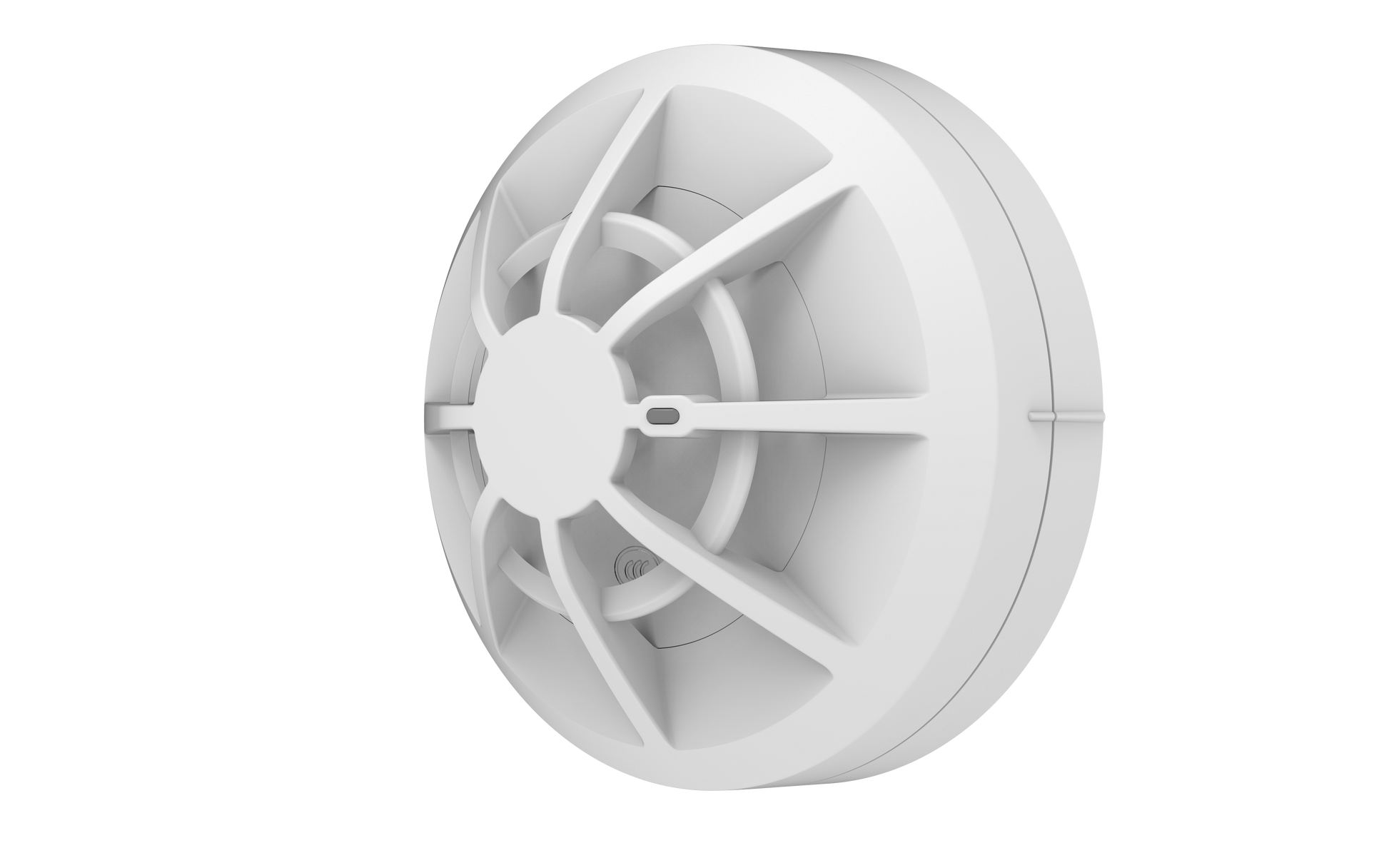

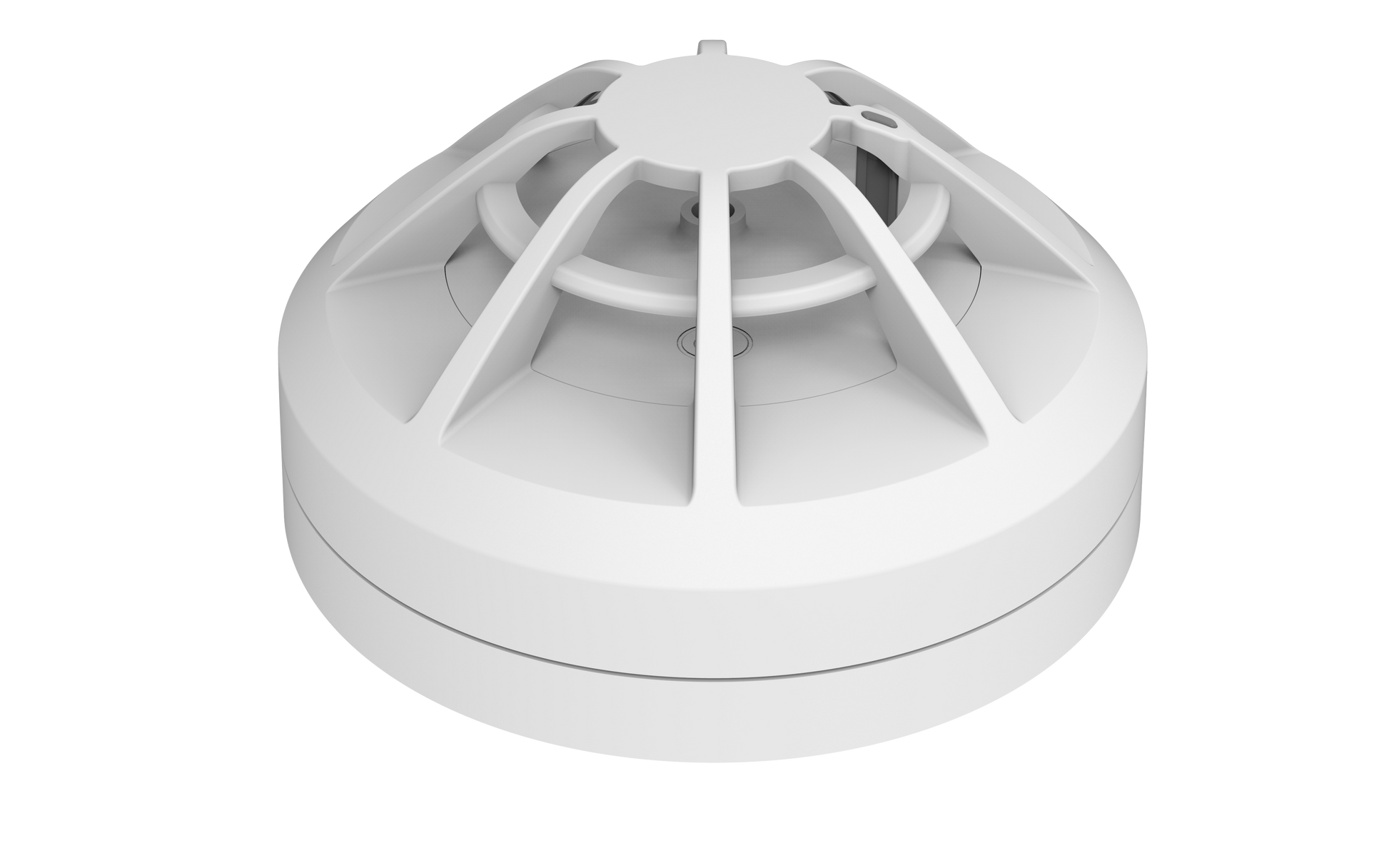

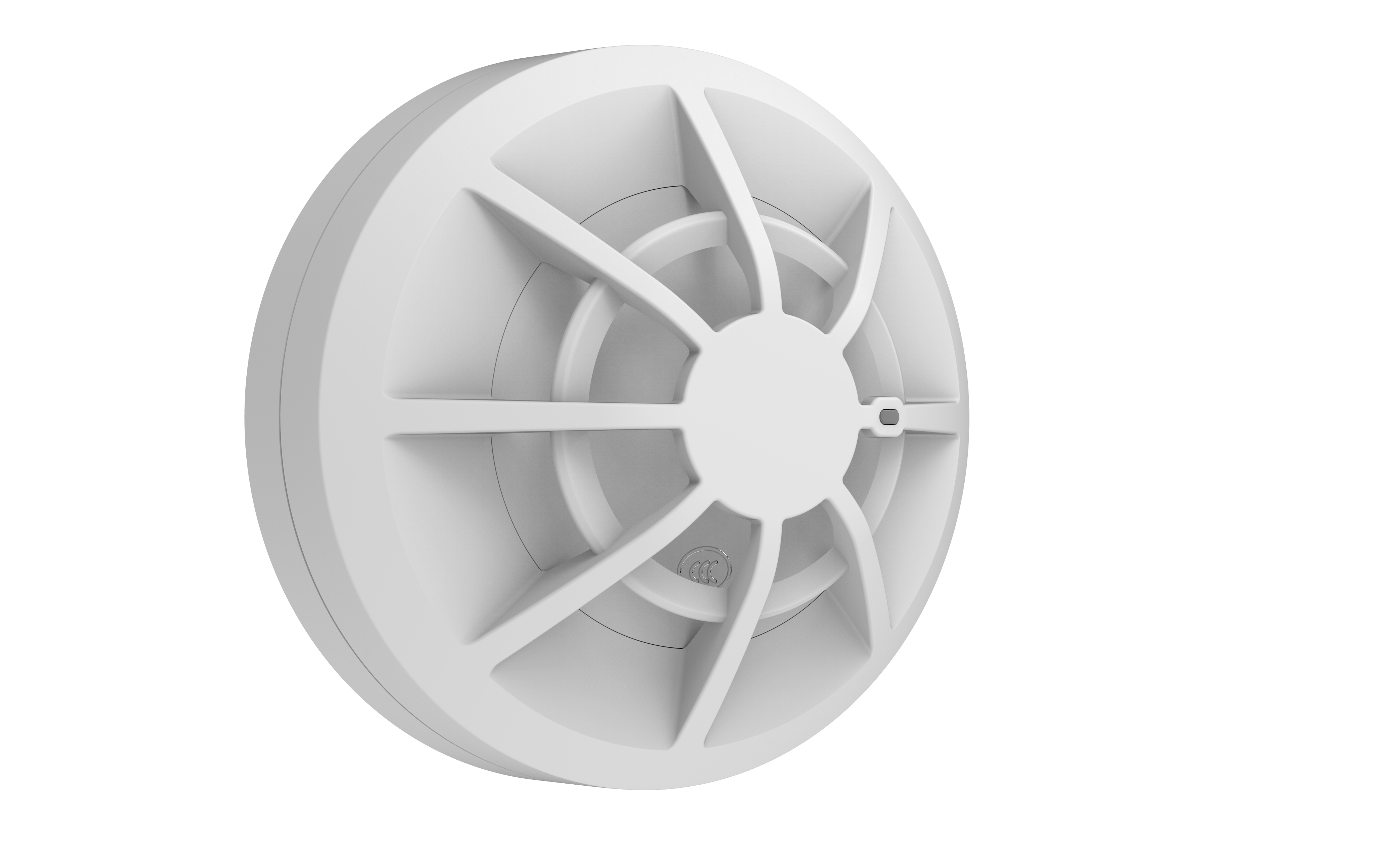

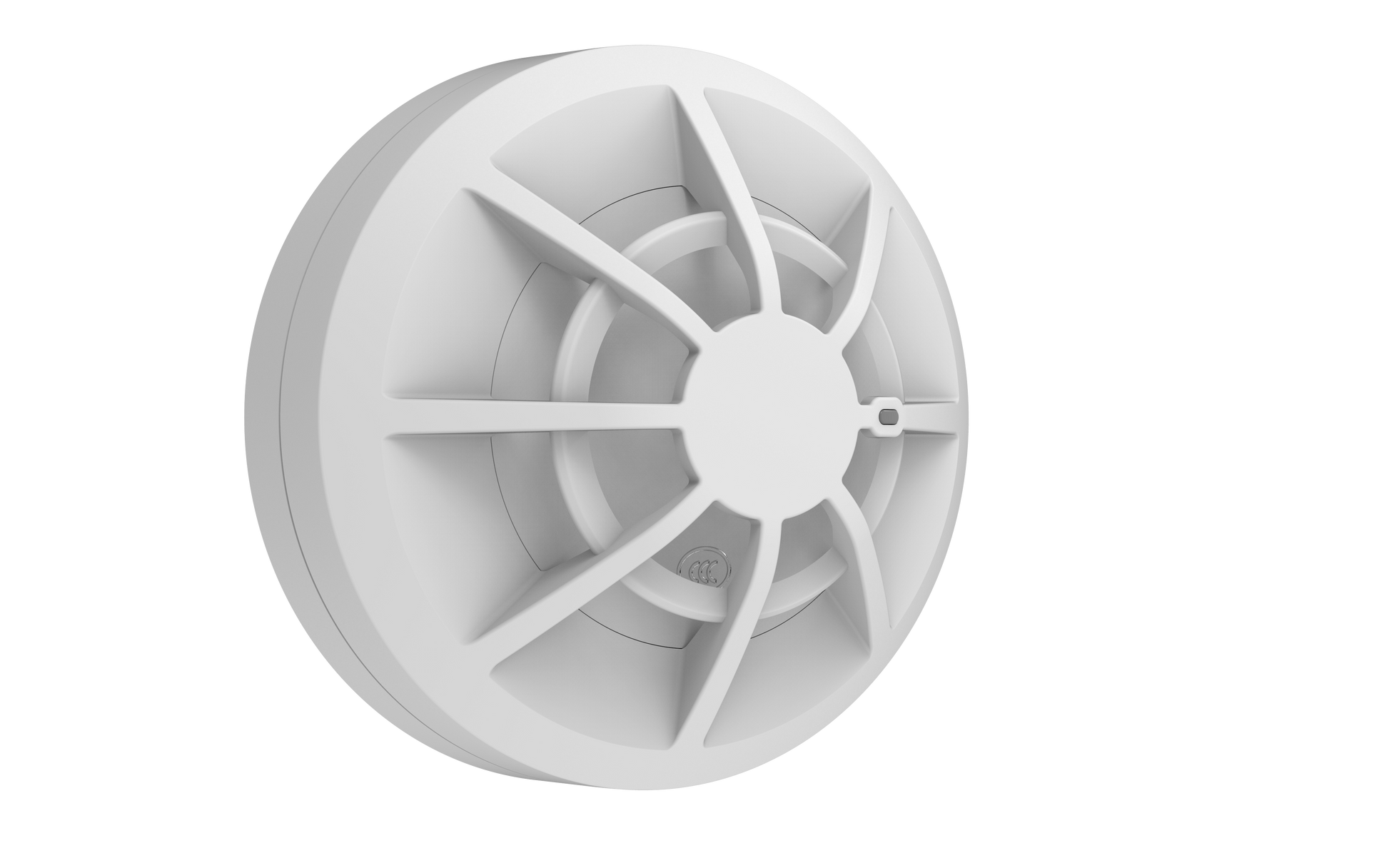

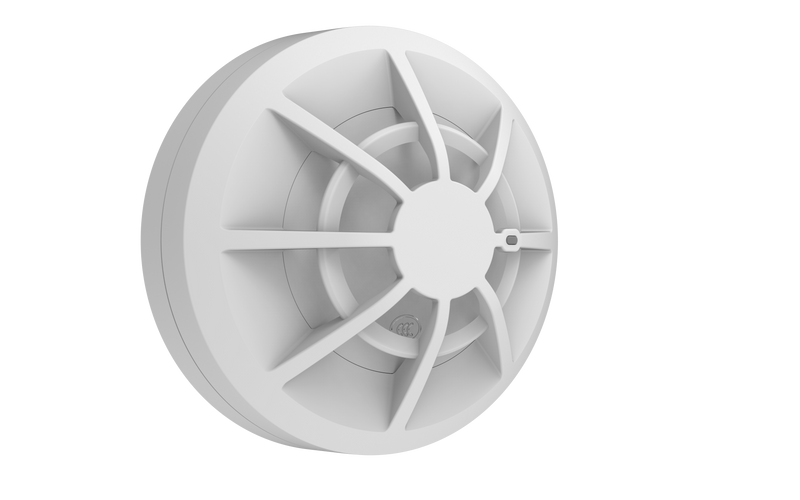

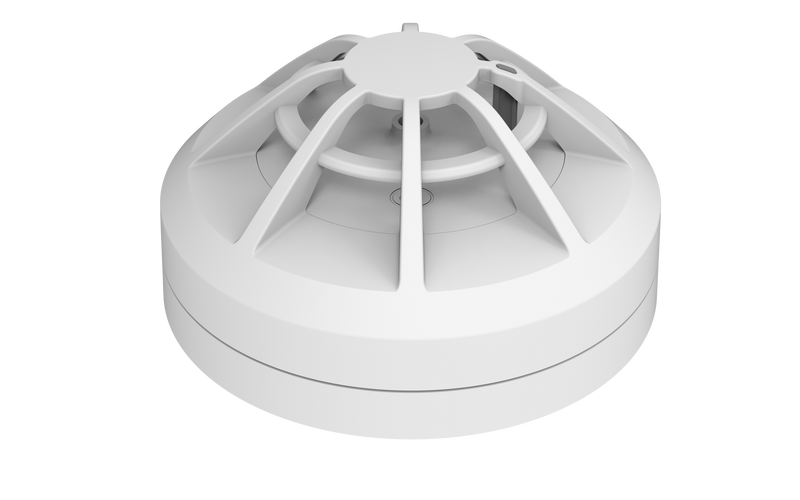

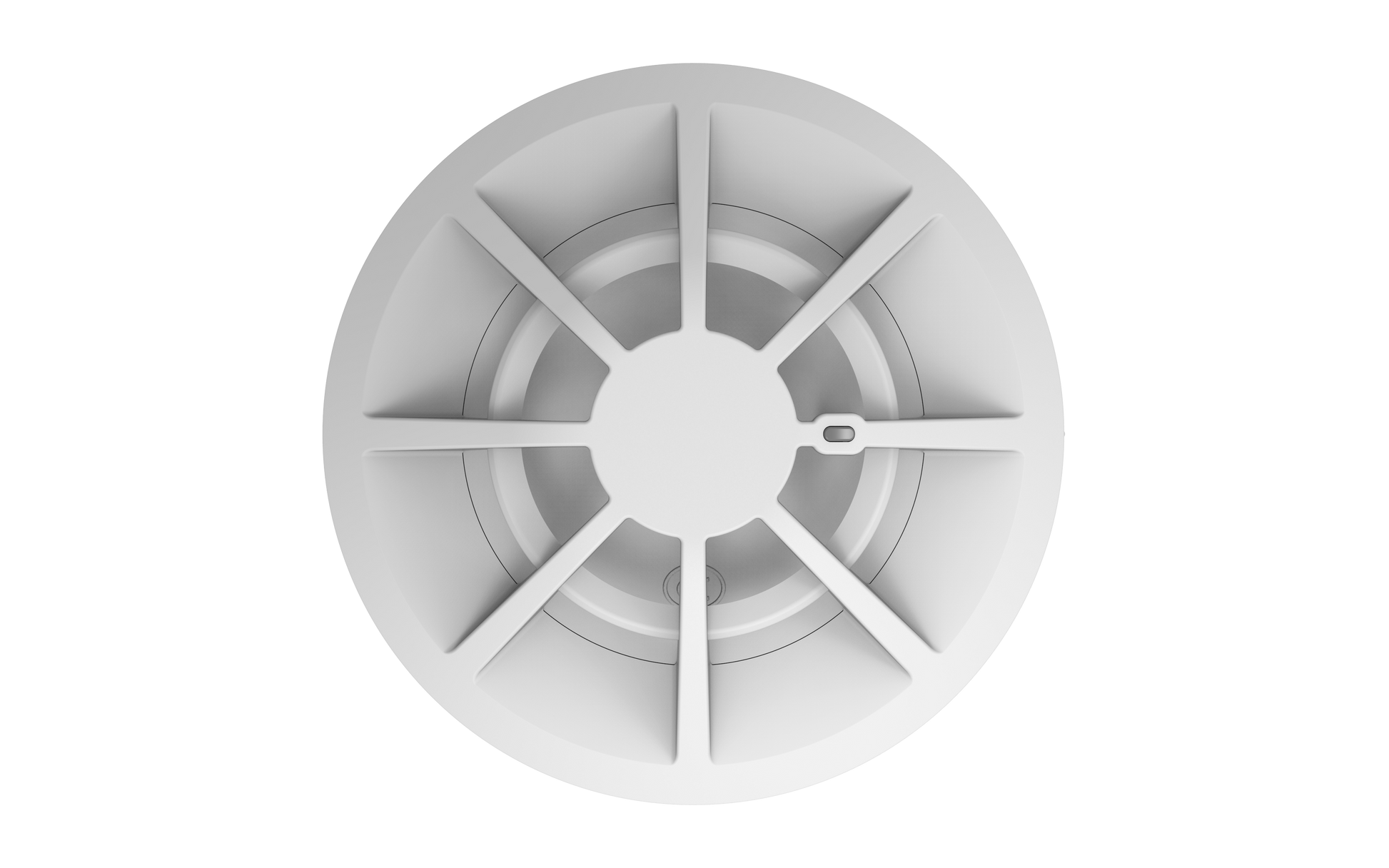

HY-1310
HY-1310 სამისამართო თბური დეტექტორი, ბაზით. 24VDC. LED ინდიკატორით. #581721
- Regular price
- 36 ₾
- Sale price
- 36 ₾
- Regular price
-
Addressable Heat Detector
მახასიათებლები / Specifications
| Technical Specification | |
|---|---|
| Power | 24V DC |
| Current | Monitoring current: ≤ 120μA Maximum operating current: ≤ 170μA |
| Indicator | Red Polling: Flash 6 seconds Alarm: Remain lit Fault: Flash 2 seconds |
| Product Type | A2R |
| Alarm Threshold | 54°C to 62°C (129°F to 144°F) |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Electrical encoder |
| Address Range | 1–254 |
| Communication Distance | ≤ 1500 m (4921.26 ft) |
| Operating Temperature | –10°C to +50°C (+14°F to +122°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Color | White |
| Dimensions (with base) | Φ 100 mm × 50 mm (Φ 3.00" × 1.50") |
| Weight (with base) | 81 g (0.18 lb) |
| Compliance Standard | EN54-5 |
