PFM920I-5EUN-01
PFM920I-5EUN ქსელური კაბელი UTP Cat5e, PVC გარსი, 0.45±0.01mm, Oxygen free copper 99.97% #581735
- Regular price
- 1 ₾
- Sale price
- 1 ₾
- Regular price
-

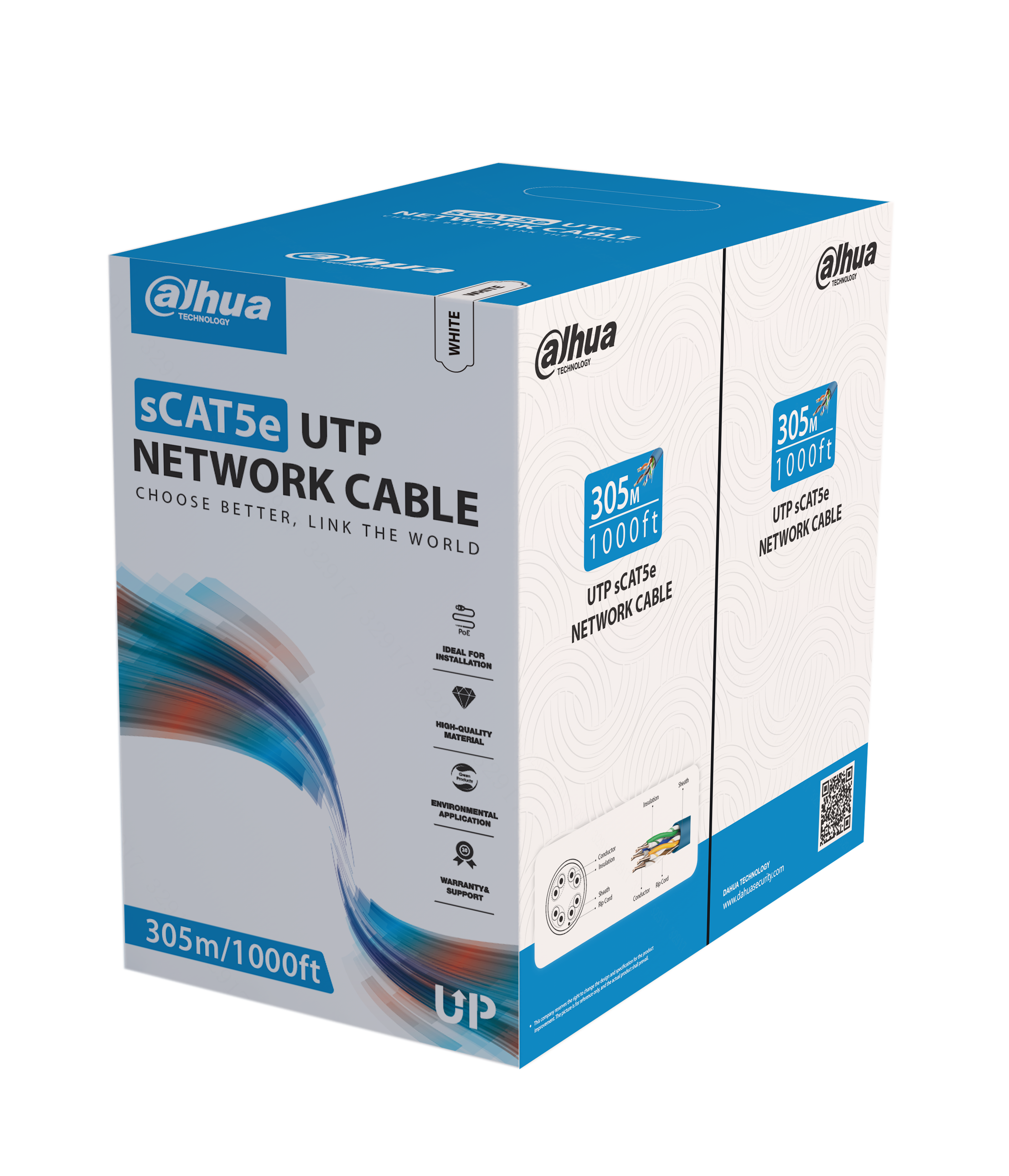

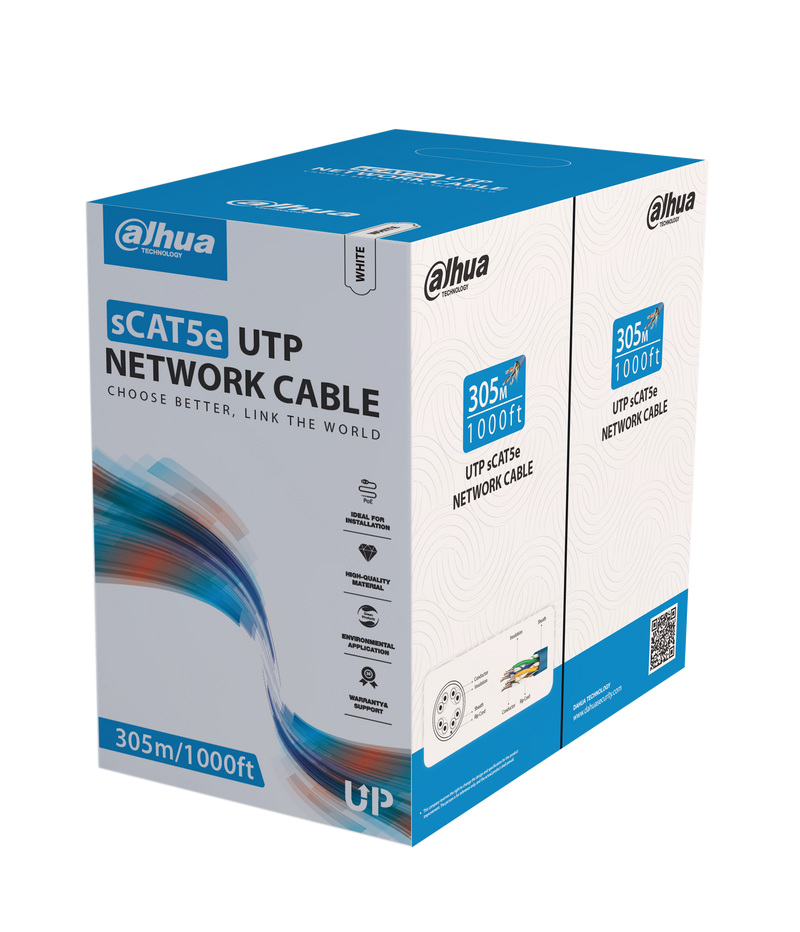

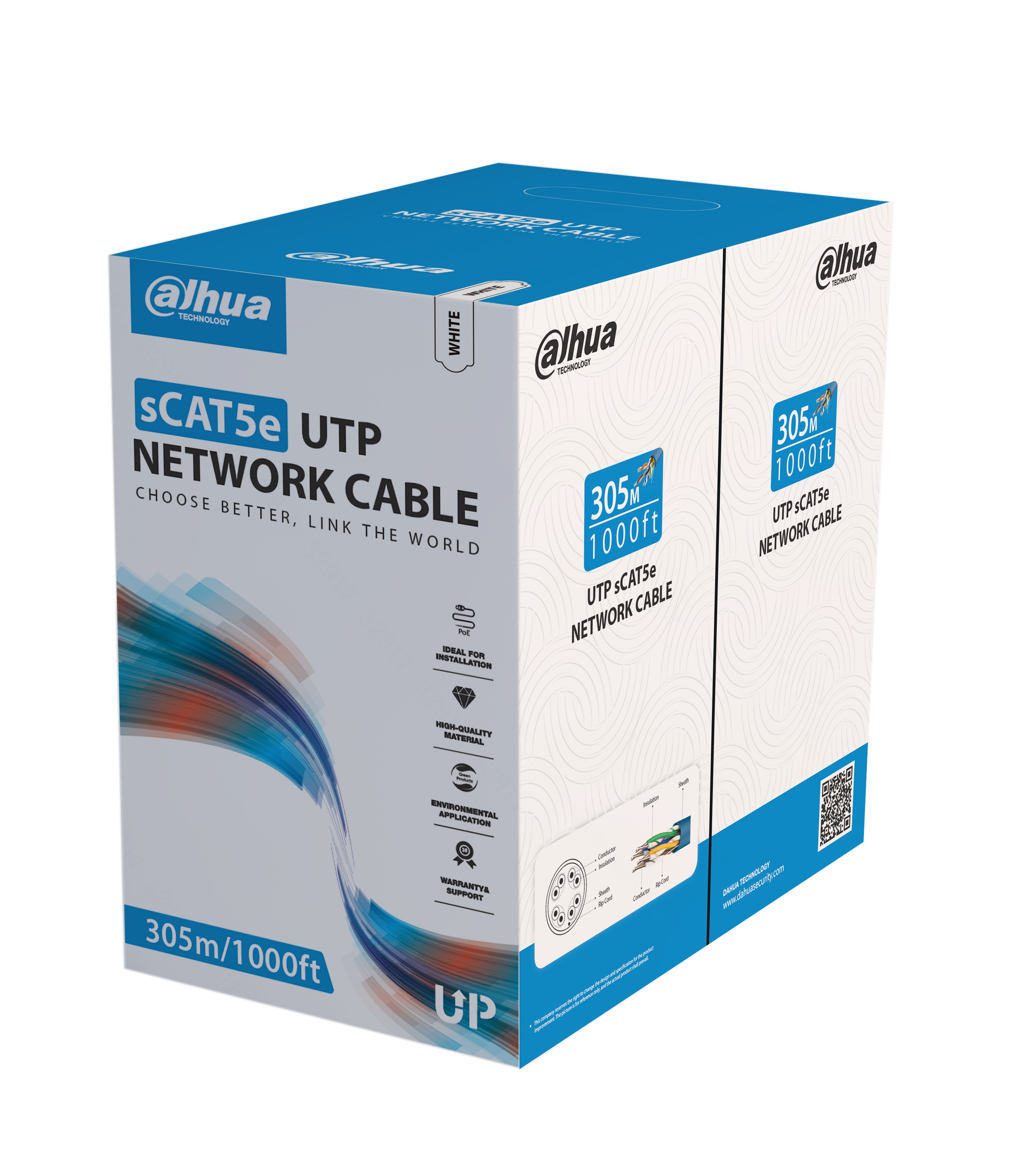

305m U/UTP sCAT5E Network cable (White, CPR Eca)
მახასიათებლები / Specifications
| General | |
|---|---|
| Material | Polyester |
| Conductor Structure | 0.45 mm ± 0.01 mm (0.02" ± 0.0004") |
| American Wire Gauge | 25AWG |
| Insulating Material | HDPE |
| Min. Average Thickness | 0.5 mm (0.02") |
| Insulation Diameter | 0.81 mm ± 0.06 mm (0.03" ± 0.0024") |
| Insulation Color | 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown |
| Specification | 500D |
| Sheath Material | PVC |
| Sheath Diameter | 4.7 mm ± 0.4 mm (0.19" ± 0.02") |
| Sheath Color | White |
| Max. DC Resistance of a Single Conductor | 12 Ω/100 m |
| Min. Insulation Resistance | 5000 MΩ·km |
| Max. DC Resistance Unbalance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥35.3 dB/100 m@100 MHz |
| Max. Attenuation | 24.2 dB/100 m@100 MHz |
| Return Loss | ≥20.1 dB/100 m@100 MHz |
| Tensile Strength | Sheath≥13.5 MPa, insulation≥16 Mpa |
| Elongation at Break | Sheath≥150%, insulation≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at Break | ≥10% |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance of Insulation | No migration |
| Sheath Tensile Strength and Elongation at Break after Aging | ≥12.5 MPa, ≥100% |
| Low Temperature Bending Test | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Vertical Flame Test | Comply with IEC 60332-1-2 |
| Cable Length | 305.0 m± 2 m (1,000.66 ft ± 6.56 ft) |
| Packaging Method | 305 m (1,000 ft) a carton, one carton with 2 inner cartons |
| Packaging Dimensions | 364.0 mm × 364.0 mm × 216.0 mm (14.37" × 14.37" × 8.50") (L × W × H) |
| Transport Package Dimensions | 447.0 mm × 386.0 mm × 382.0 mm (17.60" × 15.20" × 15.04") (L × W × H) |
| Net Weight | 8 kg ± 0.6 kg (17.64 lb ± 1.32 lb) |
| Gross Weight | 8.5 kg ± 0.6 kg (18.73 lb ± 1.32 lb) |
| Compliance Standard | EN50575 |
| Certifications | CPR Eca |
