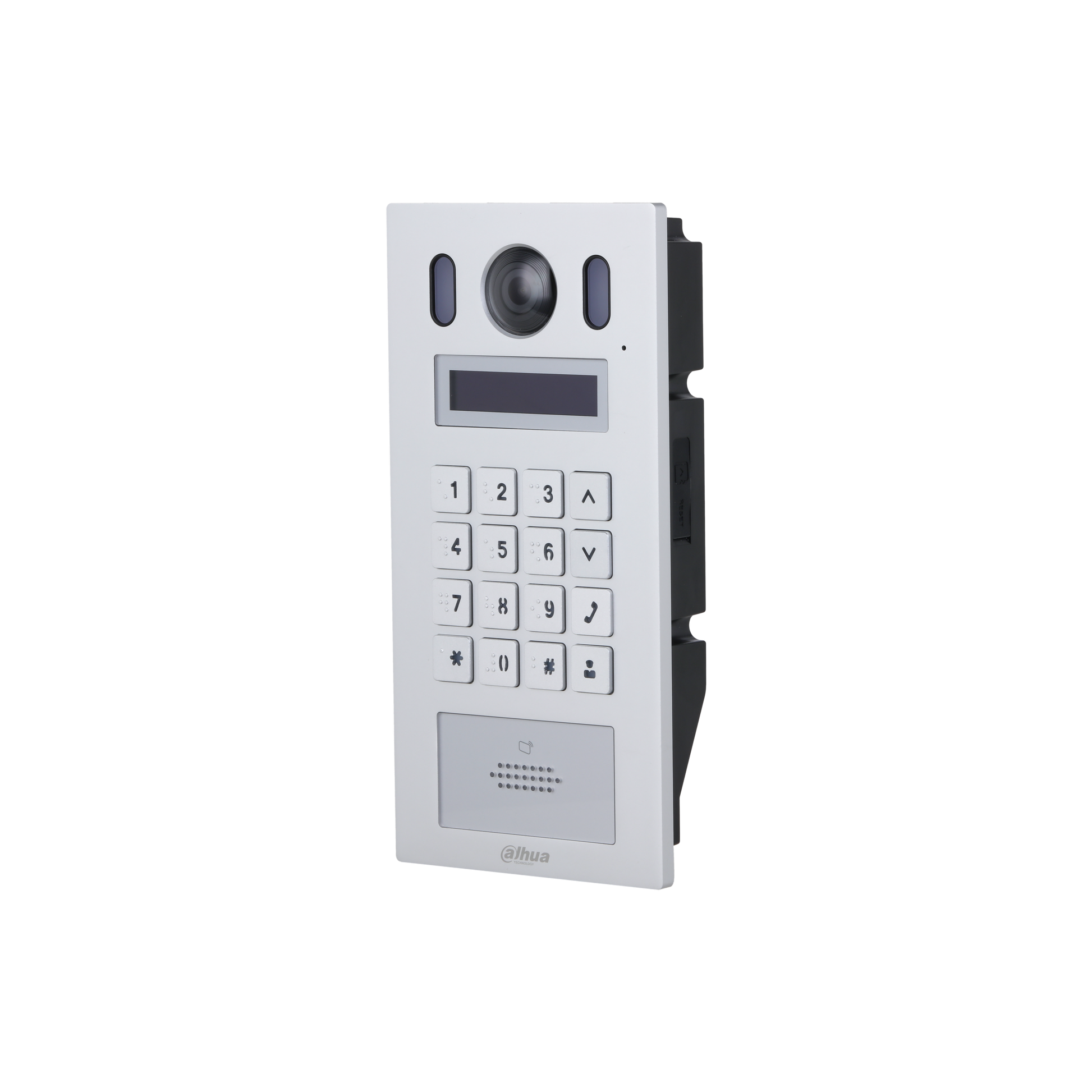

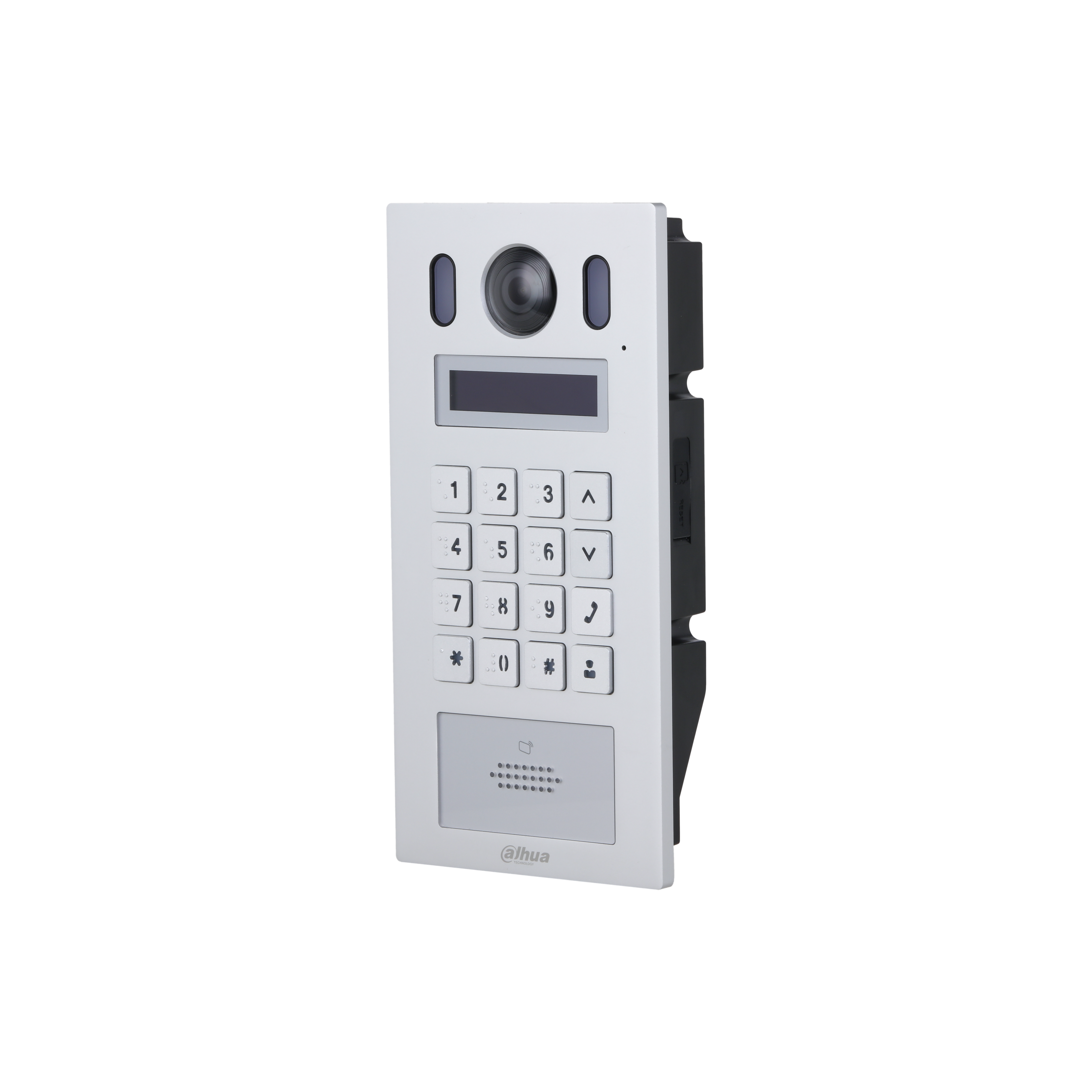

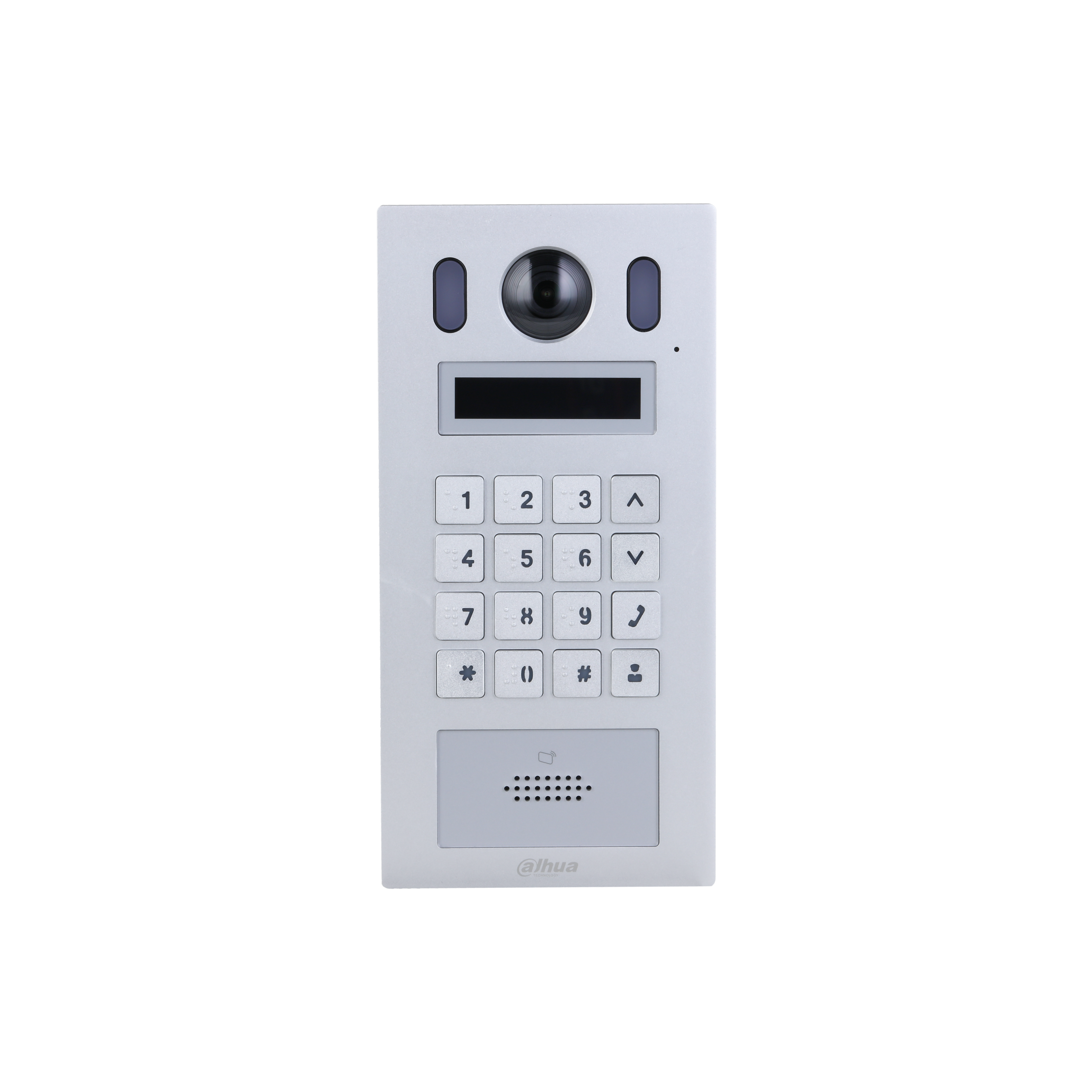

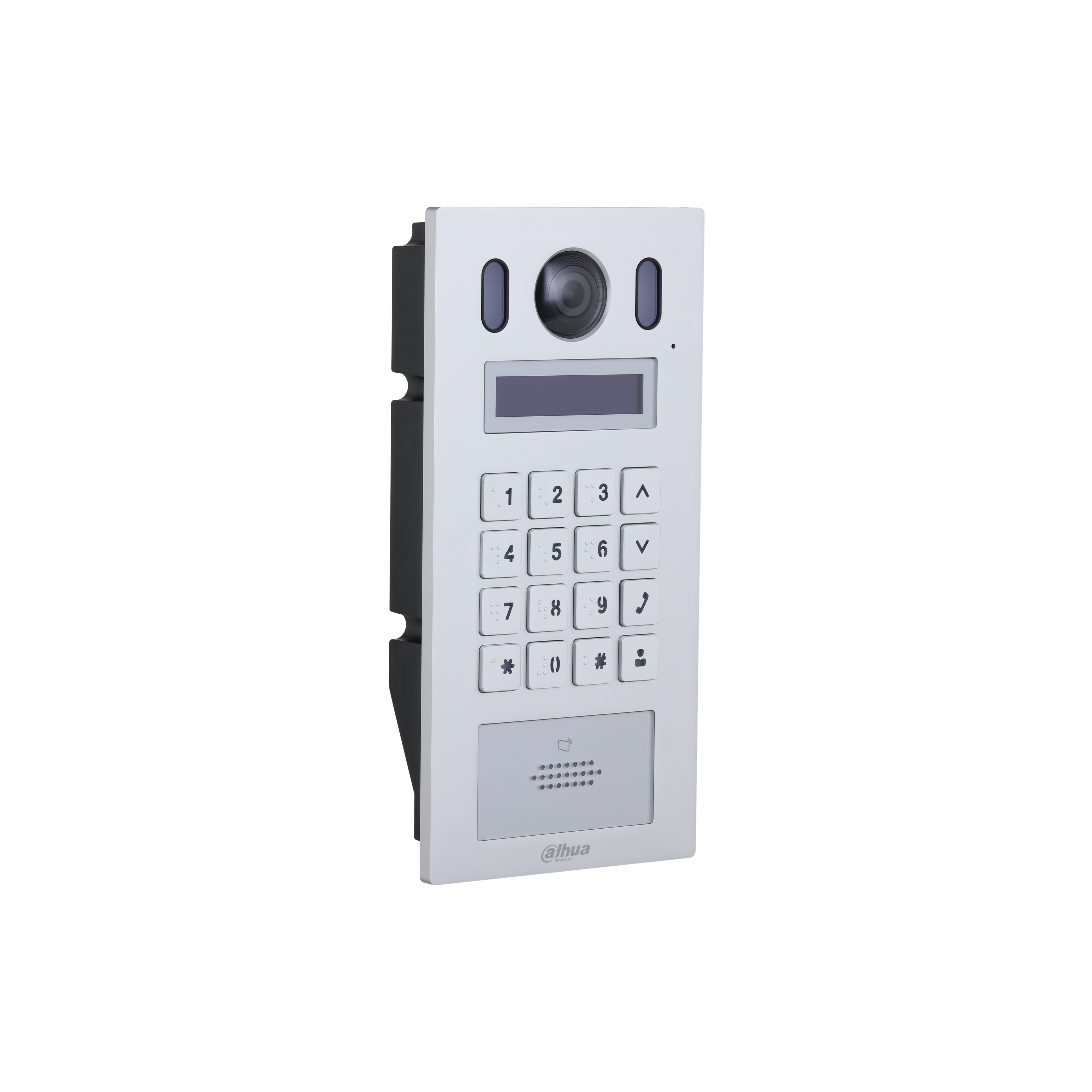

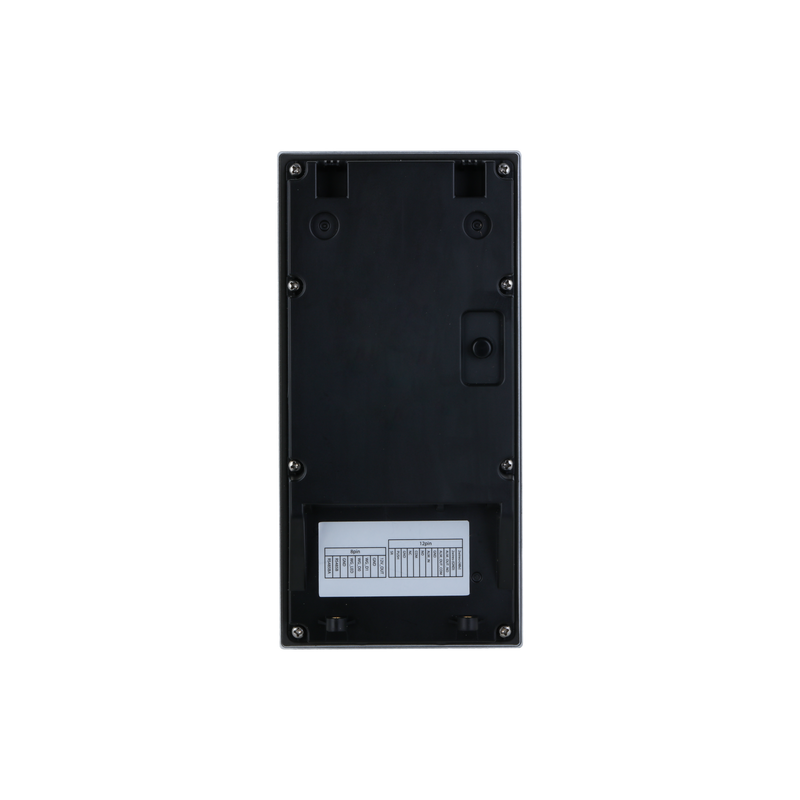

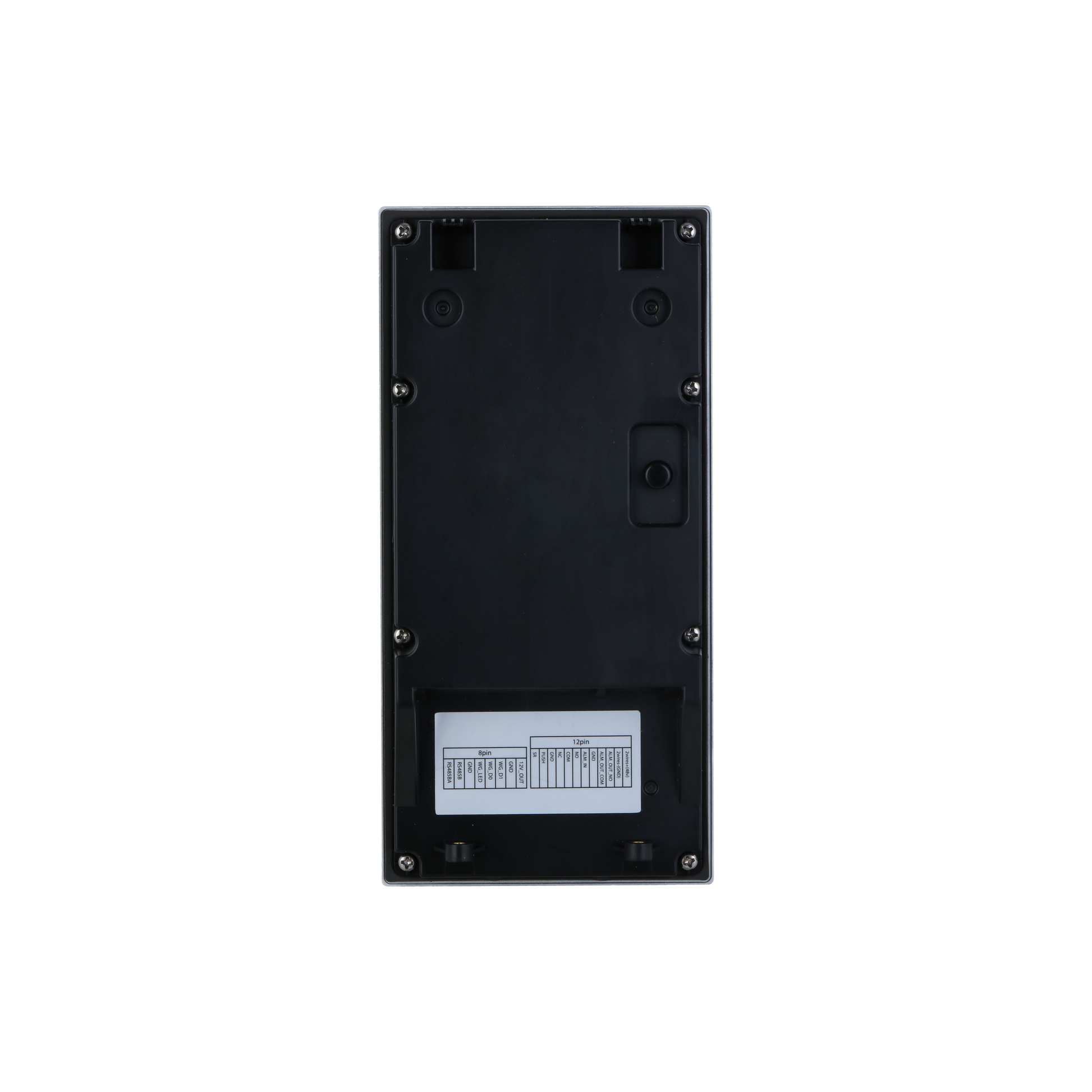

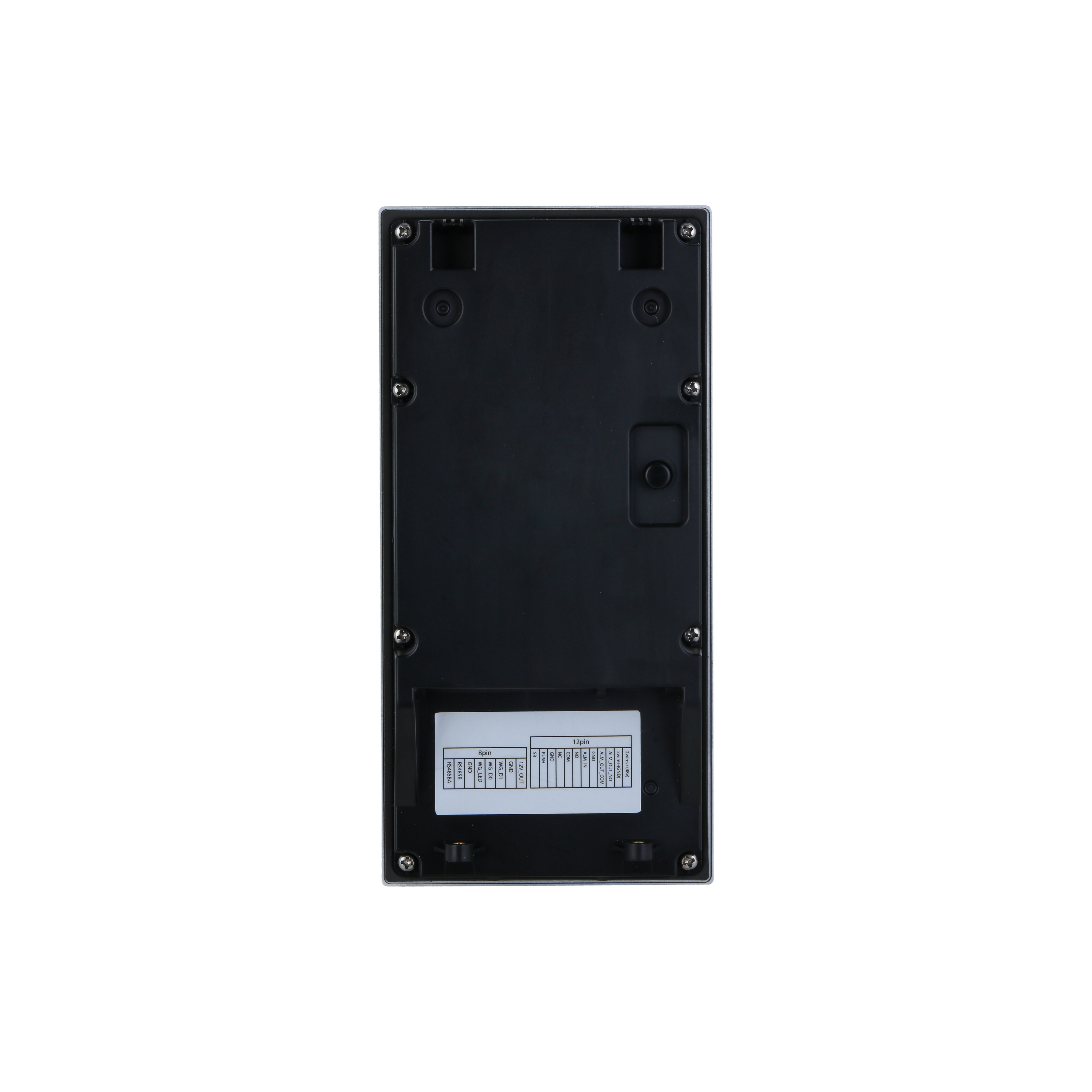

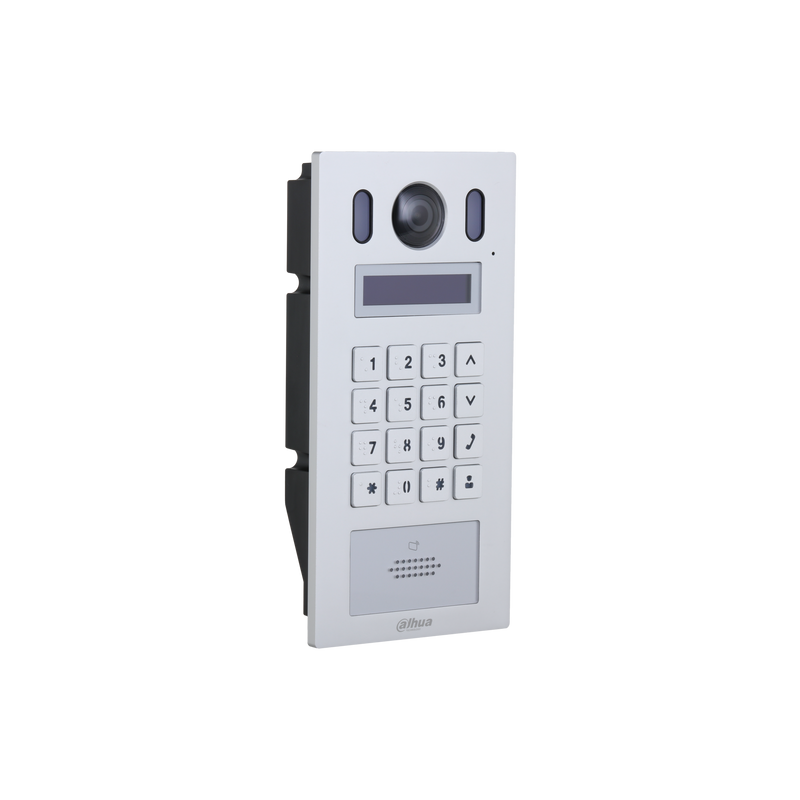

VTO6222E-P

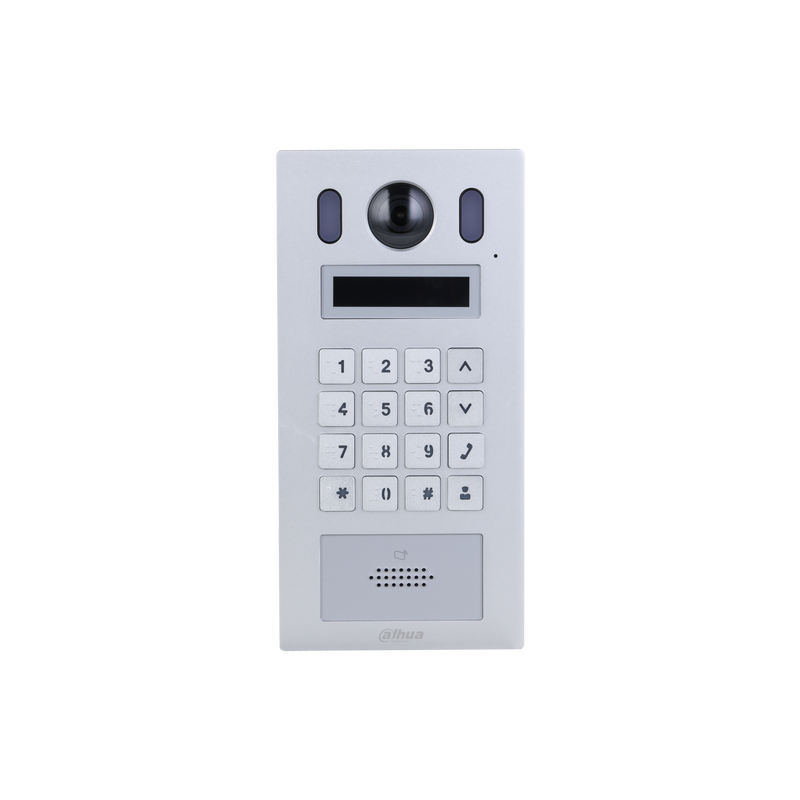

VTO6222E-P ქსელური ვიდეო დომოფონის გამოსაძახებელი, მრავალაბონენტიანი, 48VDC, PoE(802.3af/at) #581874
- Regular price
- 759 ₾
- Sale price
- 759 ₾
- Regular price
-
2-wire IP Apartment Door Station
მახასიათებლები / Specifications
| General | |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Button Type | Mechanical |
| Number of Buttons | 16 |
| Screen Type | Non-touchscreen |
| Display Screen | 2.3-inch display screen |
| Camera | 1/2.9" 2 MP CMOS |
| Field of View | H:140°,V:80°, D:160° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H264，H265 |
| Video Resolution | Main stream: 720p,WVGA, D1, CIF Sub stream: 1080p,WVGA, D1, QVGA, CIF |
| Video Frame Rate | 25 fps |
| Light Compensation | Auto white light |
| Day/Night | Color/B/W |
| Audio Compression | G.711a, G.711u, PCM |
| Audio Input | 1 |
| Audio Output | Built-in Speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 bit |
| Communication Mode | Digital 2-wire |
| Verification Method | Card;Password;Remote |
| Card Type | IC card |
| Auto Snapshot | Yes (SD card is inserted in the indoor monitor or door station) |
| Leave Videos | NA;Yes (SD card is inserted in the indoor monitor or door station) |
| Storage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| Modulation Type | ASK |
| Frequency Range | 13.56 MHz |
| Max. Transmission Power | 42dBuA/m @10m |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
| Casing Material | Aluminum |
| Card Capacity | 10,000 |
| RS-485 | 1 |
| Wiegand | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Power Output | 1 port,12 V/600 mA |
| Door Bell | 1 |
| Exit Button | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 port，10Mbps/100Mbps network port |
| Tamper Alarm | Yes |
| Appearance Color | Silver |
| Power Supply | 48 VDC, 0.4 A, PoE (802.3af/at) |
| Power Adapter | Optional |
| Installation | Flush Mount;Surface Mount |
| Certifications | CE |
| Accessory | Flush mount box (optional); Surface mount box (optional) |
| Product Dimensions | 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39") (H × W × D) |
| Protection | IK08, IP65 (silicone sealant is needed, see the quick start guide) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Environment | Outdoor |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Power Consumption | ≤ 5 W (standby), ≤ 7 W (working) |
| Gross Weight | 0.657 kg (1.45 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75%(RH) |
