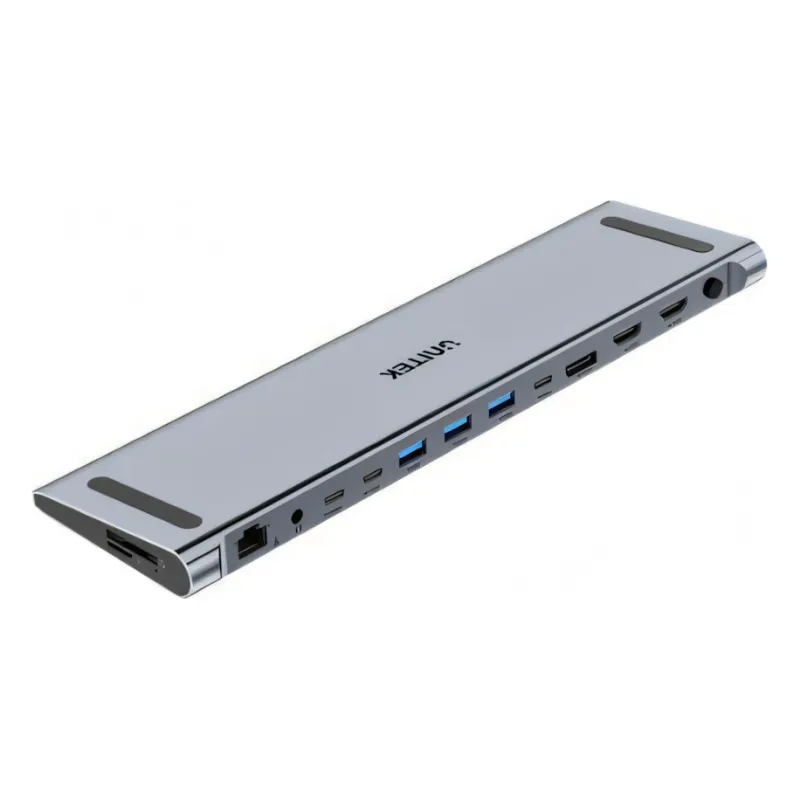

D1106A, UNITEK, Docking Station, 13-in 2 KVM (2*HDMI+DP+USB+2*USB 10Gb+USB-C 10Gbp+SD/Micro+Audio+1GB LAN+PD 100W+DC5V)+HDMI

The UNITEK D1106A (model D1106AGY01) is a 13-in 2 KVM docking station that connects to a host through USB-C. It adds 2 HDMI outputs, 1 DisplayPort output, USB-A and USB-C ports, SD and microSD card slots, a 3.5mm audio jack and a Gigabit Ethernet port. The housing is Aluminum Alloy in Space Grey and measures 290.0mm x 80.0mm x 17.6mm.

The dock supports single or dual displays up to 4K@60Hz, and triple display output with 2 screens at 4K@60Hz and 1 at 4K@30Hz. It is powered through USB-C (5V3A) and supports USB-C PD 100W. It works with Windows 7/8/10/11 (32/64bit), Linux kernel 3.x and Mac OS 10.6 or above.

Key features:

• Video outputs: 2 HDMI and 1 DisplayPort, with up to 4K@60Hz on single or dual display and 4K@60Hz x 2 plus 4K@30Hz x 1 on triple display
• USB-A ports: 2 x 5Gbps and 1 x 10Gbps
• USB-C ports: 3 x 10Gbps (2 of them host), 1 x PD 100W and 1 x DC5V
• Ethernet: 1 RJ45 port at 1000Mbps (10/100/1000 Mbps)
• Card slots: 1 SD and 1 microSD
• Audio: 1 x 3.5mm Aux jack (Audio In/Out)
• Includes KVM support and USB-C to USB-C cables in 1M and 60CM lengths
