Product code: #ALL-003428
Wintop · WTPD-G39-05D
550მ დუპლექსი 1.25გბ 1310 ნმ 1.25G
- Port SpeedGigabit (10/100/1000 Mbps)
- Data Rate1.25 Gbps
- Fiber TypeMulti-mode
- Max Distance0.55 km
33.30 ₾
VAT included
- Out of stock
This model is not in stock at any branch right now.
Similar, in stock
From the same category, closest in specs and price
Wintop WTPS-G35-40D
- Fiber Type Single-mode, instead of Multi-mode
- Better: Max Distance 40 km, instead of 0.55 km
- 6 more differences →
35.87 ₾2.57 ₾ more expensive
10 in stock
Wintop WTPS-G53-20D
- Fiber Type Single-mode, instead of Multi-mode
- Better: Max Distance 20 km, instead of 0.55 km
- 5 more differences →
38.26 ₾4.96 ₾ more expensive
50 in stock
12-month warranty
Official warranty
Delivery: 1-3 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Related products
Wintop
20კმ სიმპლექსი 1.25გბ 1310/1550 ნმ
38.26 ₾In stock . Kutaisi: Out of stock. Tbilisi: Out of stock. Batumi: Out of stock
Wintop
40კმ სიმპლექსი 1.25გბ 1550/1310 ნმ
40.64 ₾In stock . Kutaisi: Out of stock. Tbilisi: Out of stock. Batumi: Out of stock
Wintop
3კმ სიმპლექსი 1.25გბ 1550/1310 ნმ
28.72 ₾In stock . Kutaisi: Out of stock. Tbilisi: Out of stock. Batumi: Out of stock
Wintop
3კმ სიმპლექსი 1.25გბ 1310/1550 ნმ
28.72 ₾In stock . Kutaisi: Out of stock. Tbilisi: Out of stock. Batumi: Out of stock
Wintop
1.25 გბ/წმ SFP-დან 1გბ/წმ Rj45-ზე გადამყვანი მოდული
43.10 ₾In stock . Kutaisi: Out of stock. Tbilisi: Out of stock. Batumi: Out of stock
TP-Link
TP-Link, TL-SM311LM, Gigabit SFP module, Multi-mode, MiniGBIC, LC interface, Up to 550/275m distance
75 ₾In stock . Kutaisi: Out of stock. Tbilisi: Out of stock. Batumi: Out of stock
MikroTik
1.25 გბ/წმ SFP მოდული, მრავალ მოდიანი, LC დუპლექსი
59.26 ₾In stock . Kutaisi: Out of stock. Tbilisi: Out of stock. Batumi: Out of stock
Wintop
120კმ სიმპლექსი 1.25გბ 1550/1490 ნმ
303.95 ₾In stock . Kutaisi: Out of stock. Tbilisi: Out of stock. Batumi: Out of stock
- SFP Modules
Wintop
TP-Link
MikroTikDescription

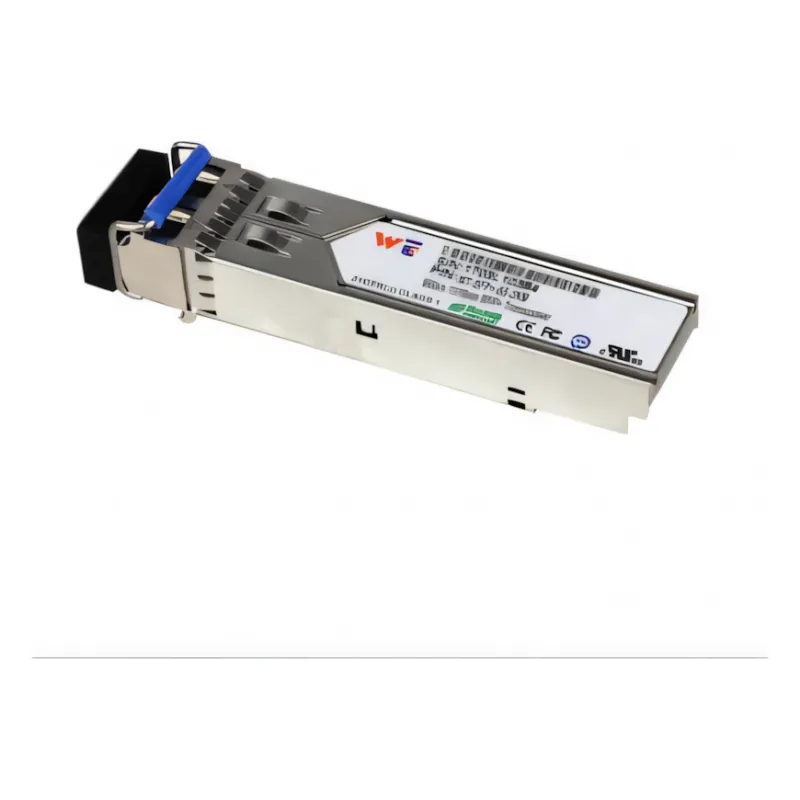

The Wintop WTPD-G39-05D is an SFP optical transceiver module for duplex fiber links. It transmits at 1310 nm with an FP laser and carries data at 1.25 Gbps over multimode fiber with an LC connector.
The module supports a maximum distance of 0.55 km on 50/125μm fiber. It runs on 3.3V, uses 1 W, and supports DDM / DOM for monitoring.
Key features:
- Form factor: SFP, with LC connector
- Data rate: 1.25 Gbps, with Gigabit (10/100/1000 Mbps) port speed
- Wavelength (TX): 1310 nm, with FP laser type
- Fiber: multimode, 50/125μm core, maximum distance 0.55 km
- Optical power: TX -9 … -3 dBm, RX sensitivity -22 dBm
- Power: 3.3V supply voltage, 1 W power consumption
- DDM / DOM supported; operating temperature 0 … +70 °C (32 … 158 °F)
Specifications 15
Open the spec sheet PDF(opens in a new tab)Power & Protection
- Supply Voltage
- 3.3V
Ports & PoE
- Port Speed
- Gigabit (10/100/1000 Mbps)
Performance
- Data Rate
- 1.25 Gbps
Interface & Form Factor
- Module Form Factor
- SFP
Optical
- Connector Type
- LC
- Fiber Type
- Multi-mode
- Wavelength TX
- 1310 nm
- Max Distance
- 0.55 km
- Fiber Core
- 50/125μm
- Laser Type
- FP
Optical Power
- TX Power
- -9 … -3 dBm
- RX Sensitivity
- -22 dBm
- DDM / DOM
- Yes
Physical
- Operating Temperature
- 0 … +70 °C (32 … 158 °F)
