Product code: #ALL-005073

ARK30C-RW2(868) wireless control LCD panel with buttons, arm/disarm by card/password, white

Dahua · ARK30C-RW2868

ARK30C-RW2(868) wireless control LCD panel with buttons, arm/disarm by card/password, white

303.45 ₾

VAT included

  • In stock
303.45 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

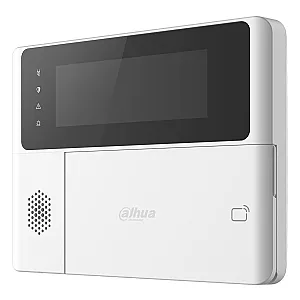

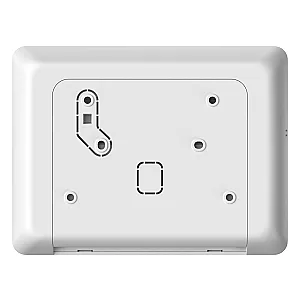

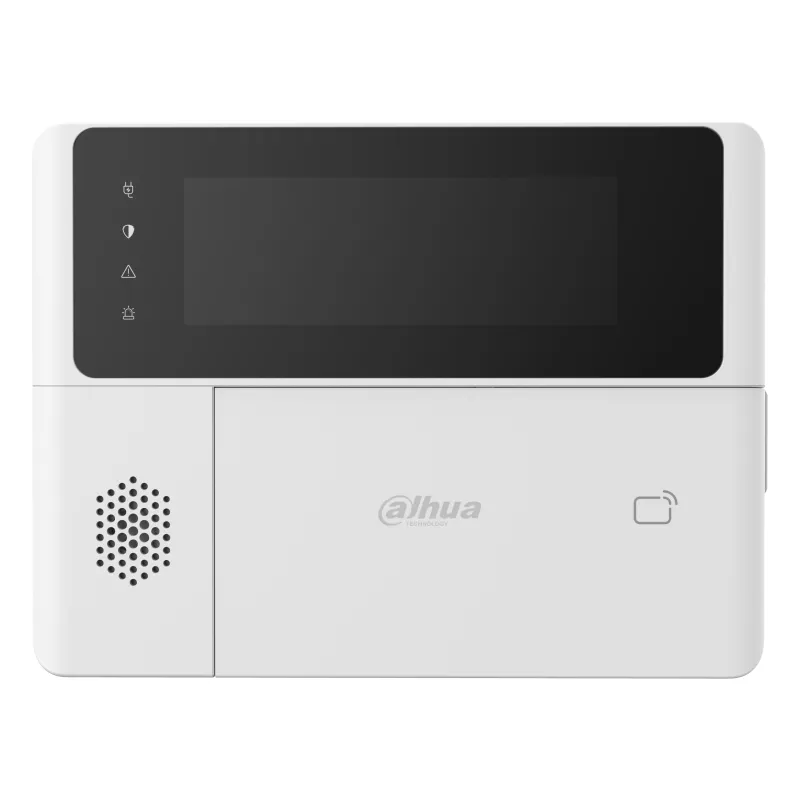

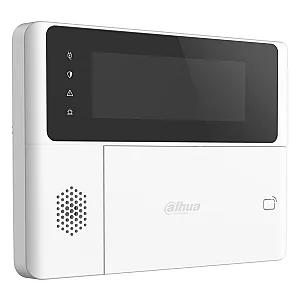

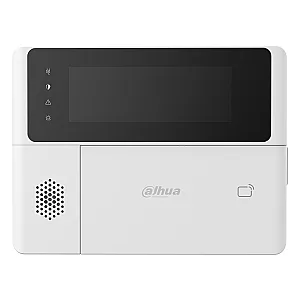

The Dahua ARK30C-RW2868 (ARK30C-RW2(868)) is a white wireless control panel with an LCD and buttons. It arms and disarms using a card or a password, and it mounts on a wall bracket.

The panel communicates wirelessly on the 868.0 MHz–868.6 MHz band with AES128 encryption, at a wireless range of 1600 m (5249.3 ft). It can run from 12 VDC or from 4 × CR123A batteries, and it carries CE certification.

Key features:

  • Arming and disarming by card or password
  • LCD panel with buttons for control
  • Radio frequency of 868.0 MHz–868.6 MHz with AES128 encryption
  • Wireless range of 1600 m (5249.3 ft)
  • Power from 12 VDC or 4 × CR123A batteries, with a battery life of 3 years
  • Siren sound level of 95 dB(A) and tamper protection
  • Wall bracket mounting, 170 × 129 × 31.2 mm (6.69 × 5.08 × 1.23 in), 390 g (13.76 oz)

Specifications 13

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Supply
12 VDC/4 × CR123A battery
Current Draw
Battery 3 V: max. 1.6 A, standby 20 µA;
12 VDC: max. 0.77 A, standby 1.6 mA

Overview

Radio Frequency
868.0 MHz–868.6 MHz
Wireless Range
1600 m (5249.3 ft)
Encryption
AES128

Siren & Notification

Sound Level
95 dB(A)

Compliance

Certifications
CE

Battery

Battery
CR123A
Battery Life
3 years

Physical

Mounting
Wall mount
Dimensions
170 × 129 × 31.2 mm (6.69 × 5.08 × 1.23 in)
Weight
390 g (13.76 oz)
Tamper Alarm
Yes
