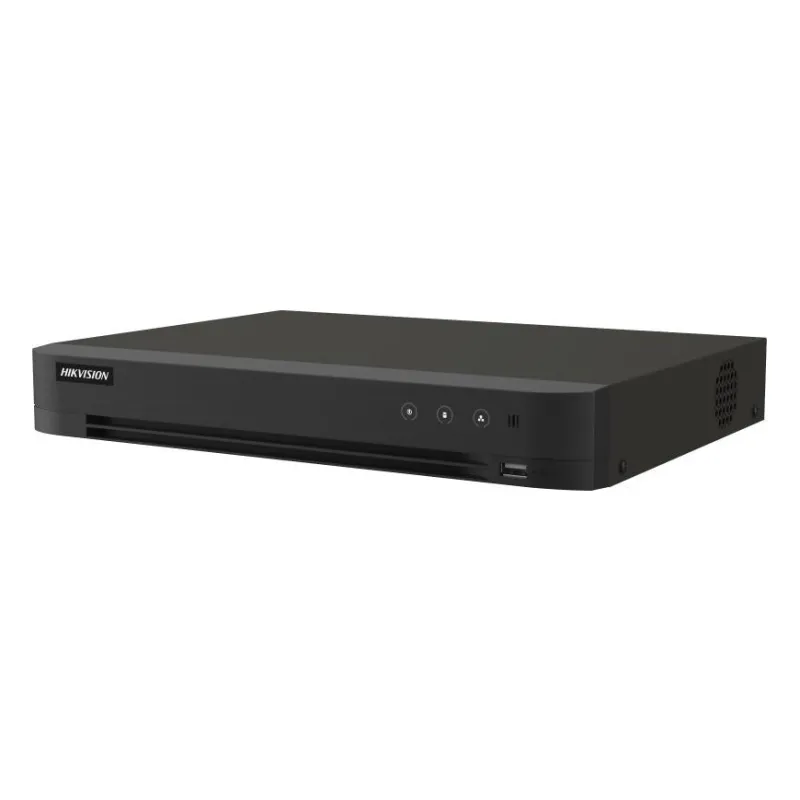

Recorder iDS-7208HUHI-M1/X(STD)

The Hikvision iDS-7208HUHI-M1/X is a DVR that records video from 8 analog channels and can also take in 16 IP channels. It accepts HDCVI, AHD, TVI, CVBS and IP signals and records at a resolution of up to 8 MP (4K).

The recorder has 1 HDD slot that takes a disk of up to 12 TB. It outputs video over HDMI and VGA, and it works with the Hik-Connect and iVMS-4200 applications. Its dimensions are 319 × 48 × 240 mm (12.56 × 1.89 × 9.45 in) and it weighs 2 kg (4.41 lb).

Key features:

• 8 analog channels and 16 IP channels, with ONVIF support
• Signal support: HDCVI, AHD, TVI, CVBS, IP
• Recording resolution of 8 MP (4K) with H.265 Pro, H.265, H.264+ and H.264 compression
• Decoding capability of up to 24 × 1080P@30fps, with playback of up to 8 channels
• 1 HDD slot, up to 12 TB per disk
• Audio input via 1 × RCA (2.0 Vp-p, 1 kΩ) and 8 × BNC (coaxial audio); audio output via 1 RCA channel (linear, 1 kΩ)
• Face detection AI function, 1 × RJ-45 10/100/1000 Mbps network interface, 12 VDC, 2 A power input, 10 W power consumption, operating temperature -10 … +55 °C (14 … 131 °F)
