Product code: #ALL-001790

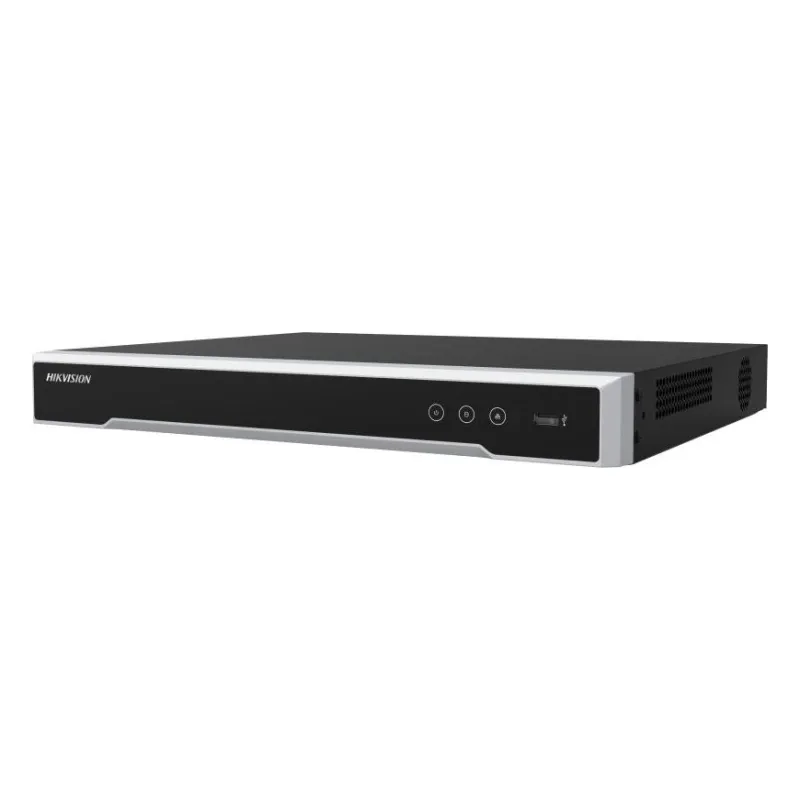

Recorder NVR, Hikvision, DS-7608NI-M2/8P, 2sata, 8ch, poe

Hikvision

Recorder NVR, Hikvision, DS-7608NI-M2/8P, 2sata, 8ch, poe

1 760 ₾

VAT included

  • In stock
1 760 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 8 cameras, 30 days: 11.2 TB · 1 × 12 TB

Calculate exactly

Compare with similar

Full comparison

Description

The Hikvision DS-7608NI-M2/8P is an 8-channel network video recorder (NVR) for IP cameras. It has 8 built-in PoE ports, so compatible cameras can be connected and powered through the recorder, and it has 2 SATA HDD slots for storage of up to 16 TB per disk, 32 TB in total.

The recorder supports H.265+, H.265, H.264+ and H.264 compression and recording resolutions from 1 MP (720p) up to 32 MP. It works with ONVIF (Version 2.2) and can be managed with the Hik-Connect and iVMS-4200 applications. Video output is provided through independent HDMI and VGA outputs.

Key features:

  • 8 IP channels with 8 PoE ports (IEEE 802.3 af/at, up to 120 W PoE power)
  • 2 SATA HDD slots, up to 16 TB per disk and 32 TB in total
  • Incoming bandwidth of 128 Mbps and outgoing bandwidth of 256 Mbps, with an RJ45 10/100/1000M network interface
  • HDMI output up to 8K (7680 × 4320)/30Hz and VGA output up to 1920 × 1080/60Hz, with HDMI/VGA independent output
  • Decoding of 8-ch@8 MP (30 fps) or 2-ch@32 MP (30 fps), with playback of up to 8 channels
  • 4 alarm inputs, 1 alarm output, 1-channel RCA audio output and 1-channel two-way audio
  • Cybersecurity support including Secure Boot, signed firmware, HTTPS, AES128 stream encryption, IEEE 802.1X (EAP-TLS) and brute-force protection with delay

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 2 accessories

Kit · 4 062.20 ₾4 276.20 ₾

Kit −214 ₾

Specifications 54

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
RJ45 10/100/1000M
Incoming Bandwidth
128 Mbps
Outgoing Bandwidth
256 Mbps
ONVIF
Yes

Power & Protection

Power Input
100–240 VAC, 50–60 Hz
Power Consumption
15 W

Recording

Recorder Type
NVR
Channels
8
IP Channels
8
Recording Resolution
1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K), 12 MP, 24 MP, 32 MP
Signal Support
IP
Recorder Compression
H.265+, H.265, H.264+, H.264
Playback
Up to 8 channels

Storage

HDD Bays
2
Max. Capacity per Disk
16 TB per bay · 32 TB total

Outputs & Audio

Video Output
HDMI + VGA
Audio Output
1 channel RCA (line level, 1 kΩ)

Smart & Features

Alarm Input
4 channels
Alarm Output
1 channel

Ports & PoE

PoE Ports
8

Connectivity

Compatible software
Hik-Connect, iVMS-4200
USB Port
Front: 1 × USB 2.0;
rear: 1 × USB 3.0

System Capacity

Max Users
128

Compliance

Certifications
CE, FCC

Physical

Operating humidity
10 … 90 %
Operating Temperature
-10 … +55 °C (14 … 131 °F)
Dimensions
385 × 52 × 315 mm (15.16 × 2.05 × 12.4 in)
Weight
3 kg (6.61 lb)

Full specification

Manufacturer data, 26 parameters

Video and Audio

HDMI Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
VGA Output
1920 × 1080/60Hz
Video Output Mode
HDMI/VGA independent output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Two-way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Dual-Stream Recording
Support
Decoding Format
H.265+/H.265/H.264+/H.264
Decoding Capability
2-ch@32 MP (30 fps);
3-ch@24 MP (30 fps);
5-ch@16MP (30 fps);
6-ch@12MP (30 fps);8-ch@8 MP (30 fps);
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

PoE

Power
≤ 120 W
Standard
IEEE 802.3 af/at

Cyber Security

EN 303645
Support
Secure Boot
Support
Secure Component Verification (SVC)
Support
Password Protection
Support
IP & MAC Address Filtering
Support
HTTPS Encryption
Support
Live View & Playback Stream Encryption
Support : AES128
IEEE 802.1X (EAP-TLS) Network Access Control
Support
Signed Firmware
Support
Digest authentication
Support
User access log
Support
Centralized certificate management
Support
Brute force delay protection
Support
