Product code: #ALL-001845

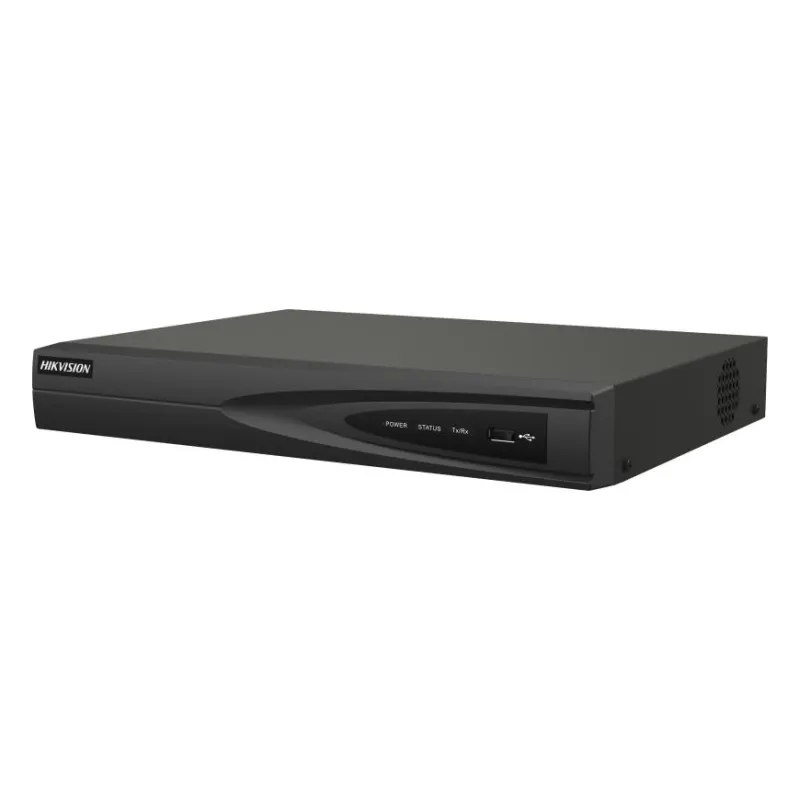

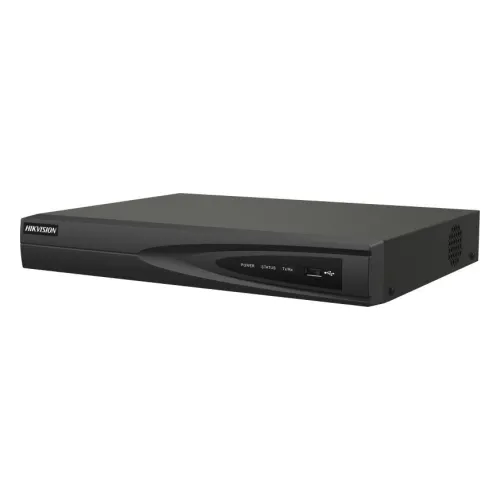

ჩამწერი, NVR Hikvision, DS-7608NI-Q1/8P (D), 1sata, 8ch, Poe

Hikvision

ჩამწერი, NVR Hikvision, DS-7608NI-Q1/8P (D), 1sata, 8ch, Poe

699 ₾

VAT included

699 ₾

VAT included

Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 8 cameras, 30 days: 11.2 TB

Calculate exactly

Compare with similar

Full comparison

Description

The Hikvision DS-7608NI-Q1/8P(D) is an 8-channel network video recorder (NVR) for IP camera systems. It has 8 built-in PoE ports, so compatible IP cameras connect to the recorder directly over network cables, and it records video from 8 IP channels to one hard disk drive.

The recorder supports recording resolutions from 1 MP (720p) up to 8 MP (4K) and the H.265+, H.265, H.264+ and H.264 compression formats. Video output is through HDMI and VGA, and the recorder works with the Hik-Connect and iVMS-4200 applications.

Key features:

  • 8 channels and 8 IP channels, with 8 PoE ports
  • Recording resolutions: 1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP and 8 MP (4K)
  • Compression: H.265+, H.265, H.264+ and H.264
  • Decoding: 1 × 8 MP (30 fps), 3 × 4 MP (30 fps) or 6 × 1080p (30 fps); playback of up to 8 channels
  • 1 HDD slot, supporting disks of up to 8 TB; 80 Mbps incoming and 80 Mbps outgoing throughput
  • HDMI and VGA video outputs, 1 RCA audio output (line level, 1 kΩ), 2 × USB 2.0 ports and an RJ45 10/100M network interface
  • Up to 32 users; CE and FCC certified; operating temperature -10 … +55 °C (14 … 131 °F), 48 VDC, 1.88 A power input, 10 W power consumption, dimensions 320 × 48 × 240 mm and weight 1 kg (2.2 lb)

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 2 accessories

Kit · 1 286 ₾1 354 ₾

Kit −68 ₾

Specifications 28

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
RJ45 10/100M
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps

Power & Protection

Power Input
48 VDC, 1.88 A
Power Consumption
10 W

Recording

Decoding capability
1 × 8 MP (30 fps) / 3 × 4 MP (30 fps) / 6 × 1080p (30 fps)
Recorder Type
NVR
Channels
8
IP Channels
8
Recording Resolution
1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K)
Signal Support
IP
Recorder Compression
H.265+, H.265, H.264+, H.264
Playback
Up to 8 channels

Storage

HDD Bays
1
Max. Capacity per Disk
up to 8 TB

Outputs & Audio

Video Output
HDMI + VGA
Audio Output
1 channel RCA (line level, 1 kΩ)

Smart & Features

Alarm Input
No
Alarm Output
No

Ports & PoE

PoE Ports
8

Connectivity

Compatible software
Hik-Connect, iVMS-4200
USB Port
2 × USB 2.0

System Capacity

Max Users
32

Compliance

Certifications
CE, FCC

Physical

Operating humidity
10 … 90 %
Operating Temperature
-10 … +55 °C (14 … 131 °F)
Dimensions
320 × 48 × 240 mm (12.6 × 1.89 × 9.45 in)
Weight
1 kg (2.2 lb)
