Product code: #ALL-001857

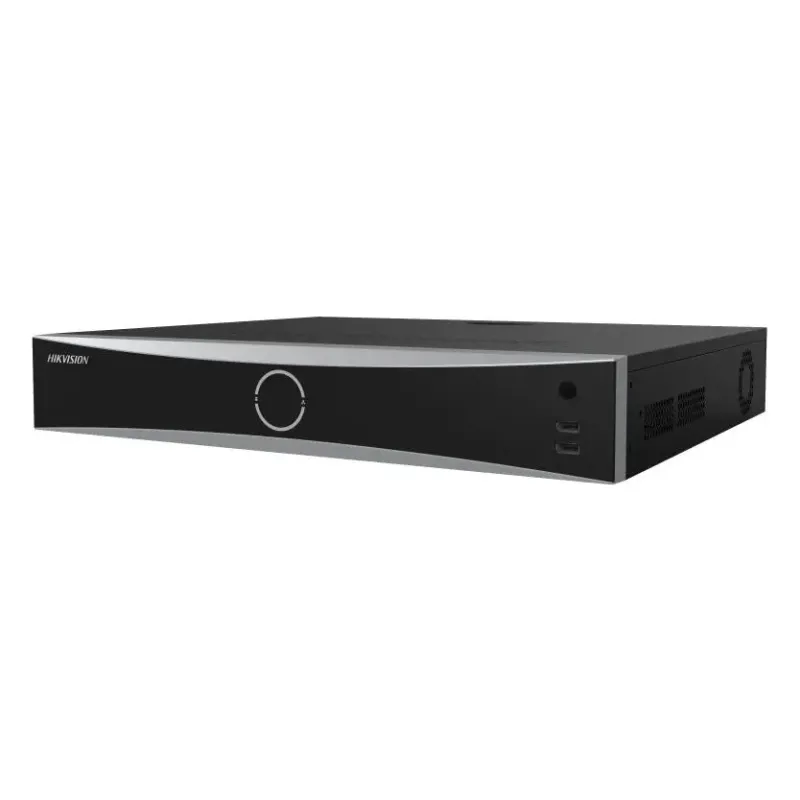

Recorder, NVR Hikvision, DS-7716NXI-K4/16P, 4sata, 16ch, Poe

Hikvision

Recorder, NVR Hikvision, DS-7716NXI-K4/16P, 4sata, 16ch, Poe

2 123 ₾

VAT included

  • In stock
2 123 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 16 cameras, 30 days: 22.4 TB · 3 × 8 TB

Calculate exactly

Compare with similar

Full comparison

Description

The Hikvision DS-7716NXI-K4/16P is a 16-channel NVR (network video recorder) for IP camera systems. It has 16 built-in PoE ports and records from 16 IP channels, with 4 SATA HDD slots for storage.

The recorder supports H.265+, H.265, H.264+ and H.264 compression and recording resolutions from 1 MP (720p) up to 12 MP. It includes face detection as an AI function and works with ONVIF, Hik-Connect and iVMS-4200.

Key features:

  • 16 IP channels and 16 PoE ports, with playback of up to 16 channels
  • Recording resolutions of 1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K) and 12 MP, with H.265+, H.265, H.264+ and H.264 compression
  • 4 HDD slots, up to 10 TB per disk and 40 TB in total
  • 160 Mbps incoming and 160 Mbps outgoing bandwidth, with an RJ45 10/100/1000M network interface and ONVIF support
  • HDMI and VGA video outputs, plus 1 RCA audio output (line level, 1 kΩ)
  • 16 alarm inputs and 4 alarm outputs, with face detection
  • 2 front USB 2.0 ports, 1 rear USB 3.0 port and up to 128 users

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 2 accessories

Kit · 4 069 ₾4 284 ₾

Kit −215 ₾

Specifications 29

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
RJ45 10/100/1000M
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
160 Mbps
ONVIF
Yes

Power & Protection

Power Input
100-240V AC
Power Consumption
20 W

Recording

Recorder Type
NVR
Channels
16
IP Channels
16
Recording Resolution
1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K), 12 MP
Signal Support
IP
Recorder Compression
H.265+, H.265, H.264+, H.264
Playback
Up to 16 channels

Storage

HDD Bays
4
Max. Capacity per Disk
10 TB per bay · 40 TB total

Outputs & Audio

Video Output
HDMI + VGA
Audio Output
1 channel RCA (line level, 1 kΩ)

Smart & Features

AI Features
Face Detection
Alarm Input
16 channels
Alarm Output
4 channels

Ports & PoE

PoE Ports
16

Connectivity

Compatible software
Hik-Connect, iVMS-4200
USB Port
Front: 2 × USB 2.0;
rear: 1 × USB 3.0

System Capacity

Max Users
128

Compliance

Certifications
CE, FCC, UL, UKCA

Physical

Operating humidity
10 … 90 %
Operating Temperature
-10 … +55 °C (14 … 131 °F)
Dimensions
445 × 75 × 400 mm (17.52 × 2.95 × 15.75 in)
Weight
5 kg (11.02 lb)
