Product code: #ALL-003749

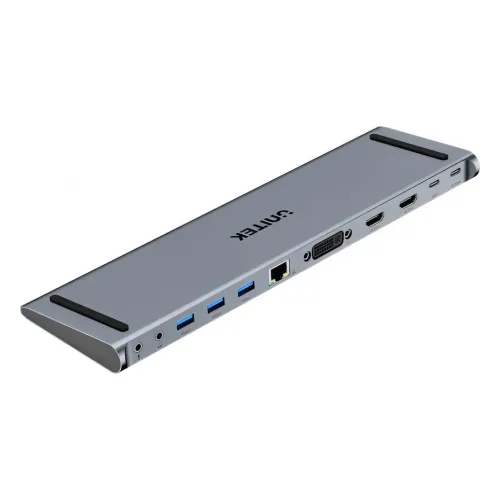

D1147A, UNITEK, Docking Station, 9-in-1 USB-C 5Gbps Universal Docking Station

UNITEK · D1147AGY01

D1147A, UNITEK, Docking Station, 9-in-1 USB-C 5Gbps Universal Docking Station

  • Port SpeedGigabit (10/100/1000 Mbps)
  • Length0.6 m
262.90 ₾

VAT included

  • In stock
262.90 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The UNITEK D1147A (model D1147AGY01) is a 9-in-1 USB-C docking station with a 5Gbps USB-C connection to the host. It adds video outputs, USB ports, Gigabit Ethernet and a 3.5mm audio jack to a device with a USB-C port. The housing is finished in Space Grey, and the connector is made of Aluminum Alloy.

The dock connects to the host through a 0.6 m (1.97 ft) USB-C/A to USB-C cable. It is powered through USB-C at 20V5A and passes USB-C PD 100W to the host. It works with Linux kernel 3.x, Mac OS 10.6 or above, and Windows 10/11 (32/64bit).

Key features:

  • Video outputs: 2 HDMI, 1 DVI and 1 VGA, with a maximum resolution of 4K@30Hz
  • USB ports: 3 USB-A at 5Gbps, 1 USB-C host port and 1 USB-C PD 100W port
  • Power Delivery: USB-C PD 100W for the host, with 20V5A power input via USB-C
  • Ethernet: 1 RJ45 port with Gigabit speed (10/100/1000 Mbps)
  • Audio: 1 3.5mm Aux jack (Audio In/Out)
  • Dimensions: 280.1mm x 80.0mm x 17.0mm
  • Compatibility: Linux kernel 3.x, Mac OS 10.6 or above, Windows 10/11 (32/64bit)

Specifications 22

Open the spec sheet PDF(opens in a new tab)

Camera

Max Resolution
4K@30Hz

Power & Protection

Power Delivery
100 W

Outputs & Audio

Video Output
HDMI × 2, DVI × 1, VGA × 1

Ports & PoE

Port Speed
Gigabit (10/100/1000 Mbps)

Management

USB Port
USB-A: 3 × 5Gbps;
USB-C: 1 × host, 1 × PD 100W

Format

Length
0.6 m (1.97 ft)
Color
Space Grey

Construction

Body Material
Aluminum Alloy

Compatibility

Compatibility
Linux kernel 3.x, Mac OS 10.6 or above, Windows 10/11 (32/64bit)

Full specification

Manufacturer data, 13 parameters

Specification

Host Port Compatibility
USB-C
Host Power (PD)
USB-C PD 100W
HDMI
2
DVI
1
VGA
1
USB-A
3 x 5Gbps
USB-C
1 x Host, 1 x PD 100W
3.5mm Aux Jack
1 (Audio In/ Out)
Ethernet RJ45 Jack
1000Mbps
Cable Type
USB-C/A to USB-C Cable
Power Supply
20V5A
Power Source
USB-C
Dimensions
280.1mm x 80.0mm x 17.0mm
