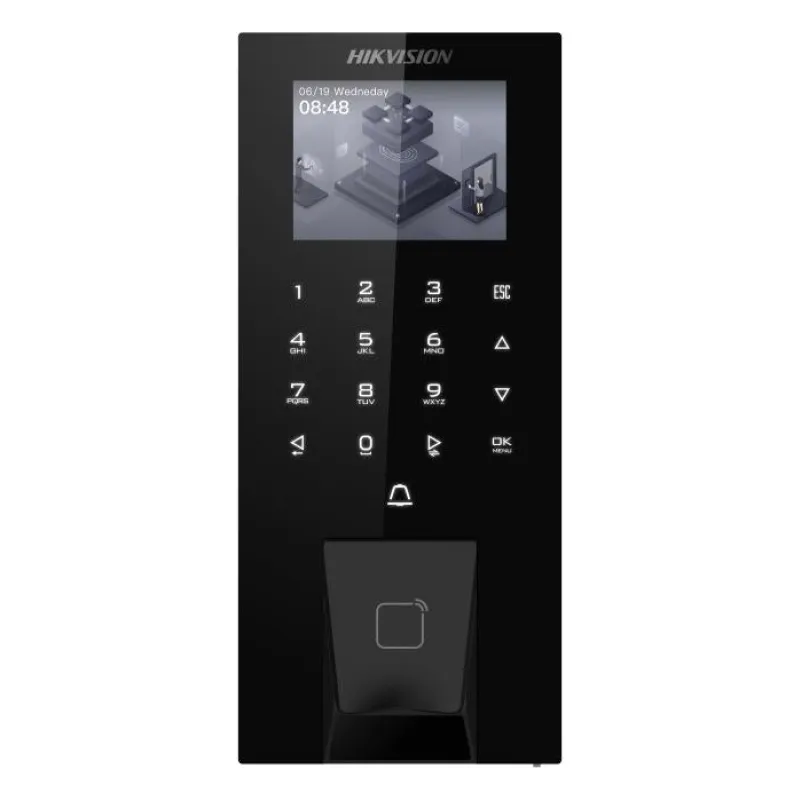

Access control terminal, Hikvision DS-K1T807MBFWX-QRE1

The Hikvision DS-K1T807MBFWX-QRE1 is an access control terminal for a single door. It identifies people by card, PIN code or fingerprint, and it mounts on a wall. It has a 2.4 inch LCD screen with a resolution of 320 × 240 and a keypad for entering codes.

The terminal runs on Linux with 64MB ROM, 64MB RAM and a 640 MHz CPU. It connects over wired network, Wi-Fi (2.4 G, 802.11b/g/n) or Bluetooth, and supports the ISAPI and ISUP 5.0 protocols. It has an IP 65 protection class and works at temperatures from -30 to +60 °C (-22 to 140 °F).

Key features:

• Identification by M1 card, PIN code or fingerprint, with a card read distance of 0 to 5 cm and a card read time under 1s
• Optical fingerprint module with 1:1 and 1:N comparison modes, recognition time under 1s, FAR ≤ 0.001 % and FRR ≤ 0.01 %
• Capacity for 5000 fingerprints and 5000 cards, with a log capacity of 150 000
• Door control with 1 lock control output, an exit button input, a door sensor input, 2 alarm inputs, 1 alarm output and tamper protection
• Connections: 1 RJ-45 (10/100 M self-adaptive), RS-485, Wiegand, 1 USB, audio output and PoE support
• Power supply of 12VDC with power consumption of ≤6W
• Dimensions of 172 × 76 × 27.5 mm (6.77 × 2.99 × 1.08 in) and weight of 377 g (13.3 oz), with a working humidity of 0 to 90% (no condensing)
