Product code: #ALL-000631

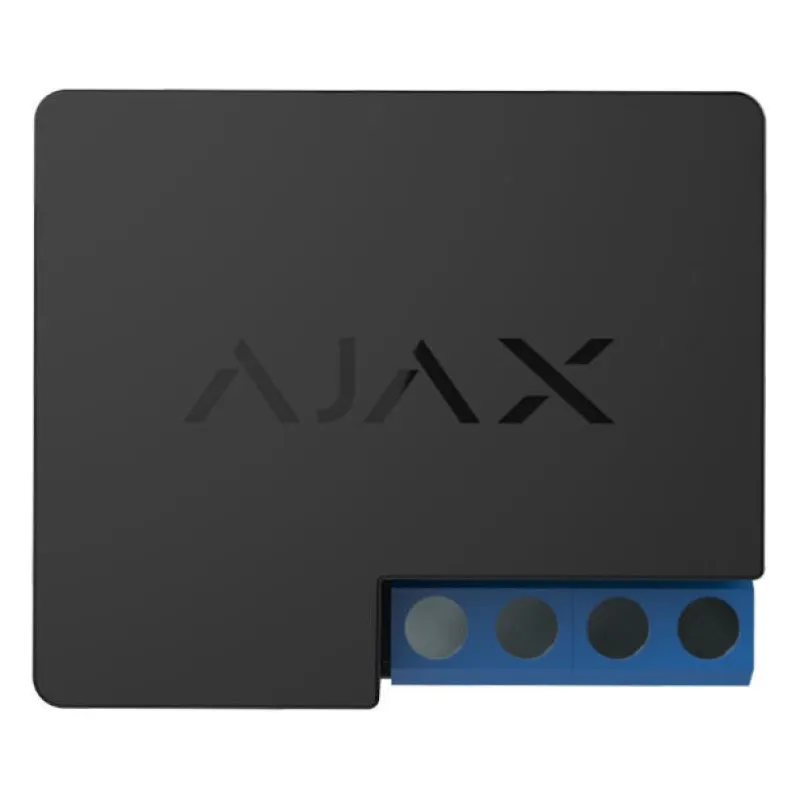

Remote control controller Ajax Relay (8EU) ASP

Ajax

Remote control controller Ajax Relay (8EU) ASP

  • IP / IK RatingIP20
  • Alarm Device TypeRelay (dry contact, pulse/bistable)
111 ₾

VAT included

  • In stock
111 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Ajax Relay (8EU) ASP is a remote control relay with a dry contact output that works in pulse or bistable mode. It connects to an Ajax system over the Jeweller wireless protocol, at a distance of up to 1000 m (3280.8 ft), and is set up and monitored in an Ajax app.

The relay runs on an external 7–24 V⎓ power supply and does not supply additional power to devices connected to it. Its contact can be set to normally open or normally closed, and it can be triggered by automation scenarios. It suits indoor or outdoor use when installed in a hermetically sealed enclosure. Mounting on a DIN rail with the separately sold DIN Holder is recommended.

Key features:

  • Jeweller wireless communication with two-way data exchange, block encryption featuring a dynamic key, and frequency hopping against radio interference and jamming
  • Pulse and bistable modes, with pulse duration adjustable from 0.5 to 255 s
  • Scenarios by arming/disarming, schedule, alarm, temperature, or by touching LightSwitch / pressing Button; humidity and CO₂ concentration scenarios are available when LifeQuality Jeweller is added to the system
  • Maximum resistive load of up to 5 A at 24 V⎓ or up to 13 A at 110–230 V~, and inductive/capacitive load of up to 3 A at 24 V⎓ or up to 8 A at 110–230 V~
  • Voltage protection with automatic shutoff outside 6.5–36.5 V⎓, plus overheat protection, and device authentication against spoofing, with connection loss detected after 36 s
  • IP20 protection, operating temperature of -10 … +64 °C (14 … 147.2 °F) and humidity of up to 75%
  • Black housing of 1.54″ × 1.3″ × 0.71″ weighing 25 g (0.882 oz), supplied with double-sided adhesive tape and a quick start guide

Specifications 34

Open the spec sheet PDF(opens in a new tab)

Power & Protection

IP / IK Rating
IP20
Power Source
External power supply 7–24 V⎓

Overview

Alarm Device Type
Relay (dry contact, pulse/bistable)
Wireless Protocol
Jeweller
Radio Frequency
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz
Wireless Range
1000 m (3280.8 ft)
Encryption
Block encryption featuring a dynamic key

Physical

Operating Temperature
-10 … +64 °C (14 … 147.2 °F)
Dimensions
39 × 33 × 18 mm (1.54 × 1.3 × 0.709 in)
Weight
25 g (0.882 oz)

Full specification

Manufacturer data, 24 parameters

Power Supply

External Power Supply
7–24 V⎓;
The relay does not supply additional power to devices connected to it.
Energy Consumption
up to 1 W;
In standby mode.
Cross-Sectional Area of the Cable
0.75–1.5 mm² (22–14 AWG)
Maximum Resistive Load
up to 5 A at 24 V⎓;
up to 13 A at 110–230 V~
Maximum Inductive/Capacitive Load
up to 3 A at 24 V⎓;
up to 8 A at 110–230 V~
Voltage Protection
minimum — 6.5 V⎓;
maximum — 36.5 V⎓;
Once the supply voltage exceeds the specified levels, the relay turns off automatically.
Temperature Protection
over 149 °F at the installation site;
over 185 °F inside the relay

Communication

Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.;
Key features:;
Two-way communication.;
Advanced anti-sabotage.;
Block encryption featuring a dynamic key.;
Instant notifications.;
Remote control and configuration in Ajax apps.
Maximum effective radiated power (ERP)
up to 25 mW
Radio signal modulation
GFSK
Encrypted Communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency Hopping
To prevent radio interference and jamming.

Key Features

Control via Smartphone
The user can set up the relay configurations and receive notifications in an Ajax app.
Automation scenarios
By arming/disarming;
By schedule;
By alarm;
By temperature;
By humidity 1;
By CO₂ concentration 1;
By touching LightSwitch / pressing Button;
1 Scenarios by humidity and CO 2 concentrations are available when LifeQuality Jeweller is added to the system.
Adjustable Pulse Duration
from 0.5 to 255 s
Operation Modes
pulse;
bistable
Contact State
normally open;
normally closed
Recommendations
Suitable for indoor or outdoor use when installed in a hermetically sealed enclosure. It is recommended to mount Relay Jeweller on a DIN rail using DIN Holder, which is sold separately.

Sabotage Protection

Protection against spoofing
device authentication
Communication loss detection
after 36 s;
Detection time depends on the Jeweller or Jeweller/Fibra settings.

Enclosure

Operating Humidity
up to 75%
Colors
Black

Complete set

Complete set
Relay Jeweller;
Double-sided adhesive tape;
Quick start guide

Additional information

Warranty
24 months
