Product code: #ALL-000662

Expander paradox ZX8

Paradox

Expander paradox ZX8

  • Alarm Device TypeExpander / Module
276 ₾

VAT included

  • In stock
276 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

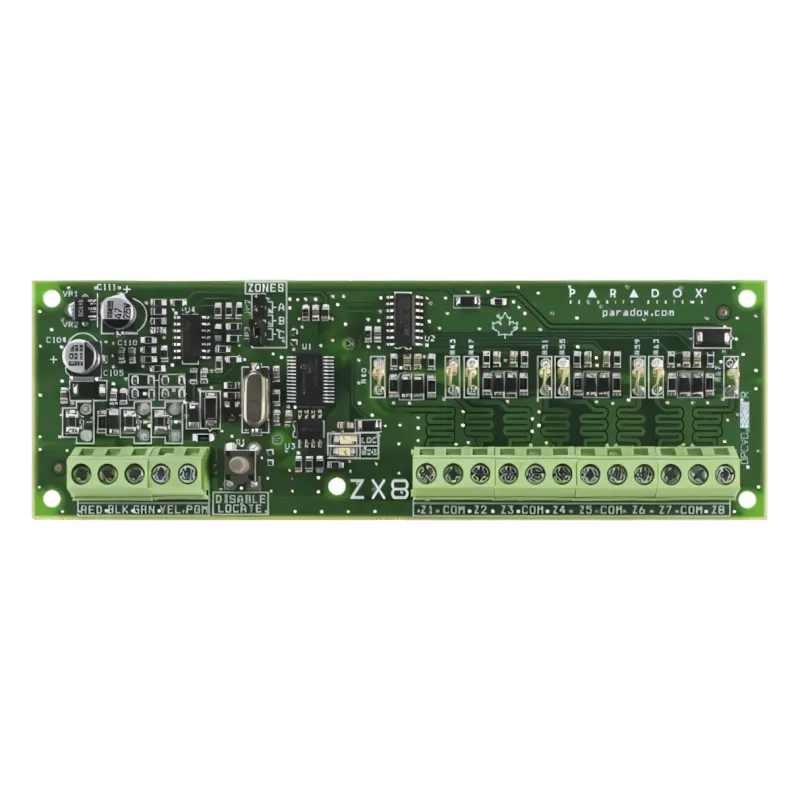

The Paradox ZX8 is a zone expansion module that adds zones to a security system. It supports up to 8 zones and is compatible with all Paradox control panels.

The module is supplied as a PCB measuring 14 cm x 4.5 cm x 1.8 cm (5.5 in x 1.8 in x 0.7 in). It runs on an input voltage of 12 to 16 Vdc and draws 28 mA. It carries CE marking and meets EN 50131 Grade 3.

Key features:

  • Device type: expander / module
  • Number of zones: 8, with a maximum of 8 zones for the system
  • Compatibility: all Paradox control panels
  • Input voltage: 12 to 16 Vdc, with a current draw of 28 mA
  • Tamper protection: yes
  • Operating temperature: -20 … +50 °C (-4 … 122 °F)
  • Certifications: CE, EN 50131 Grade 3

Specifications 10

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Current Draw
28 mA

Overview

Alarm Device Type
Expander / Module

System Capacity

Max Zones
8

Compliance

Certifications
CE, EN 50131 Grade 3

Physical

Operating Temperature
-20 … +50 °C (-4 … 122 °F)
Tamper Alarm
Yes

Full specification

Manufacturer data, 4 parameters

Specifications

Input Voltage
12 to 16 Vdc
Number of zones
8
Dimensions (H × W × D)
PCB:;
14 cm x 4.5 cm x 1.8 cm;
(5.5 in x 1.8 in x 0.7 in)
Compatibility
All Paradox control panels
