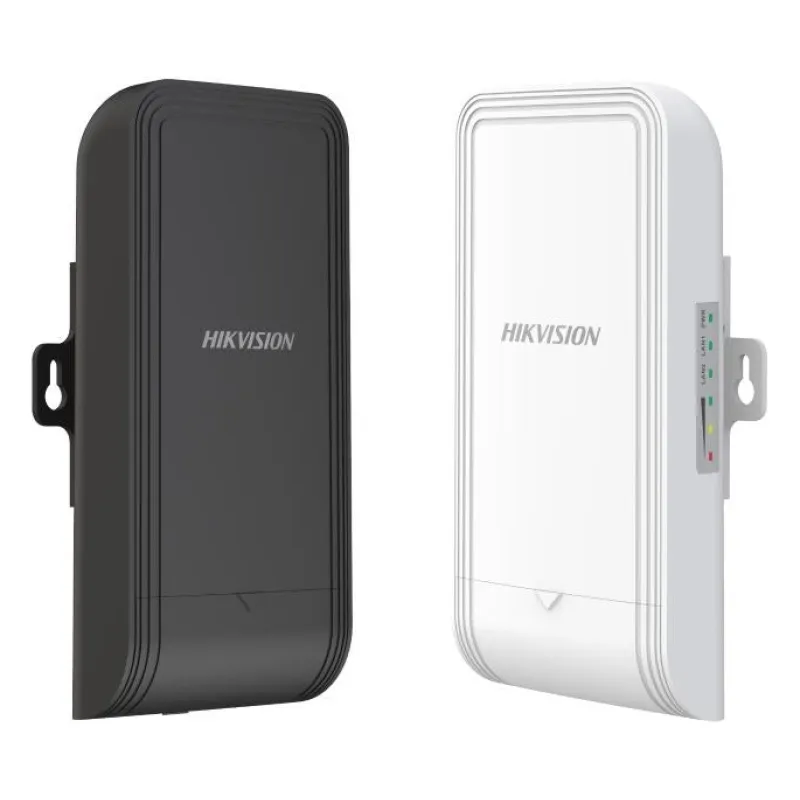

Outdoor Wifi client, Hikvision, DS-3WF0EC-2NT 2.4Ghz 300Mbps 500m Elevator Wireless Bridge

Wi-Fi

Radio Frequency

2400 MHz ~ 2483.5 MHz

Max. Antenna Gain

7 dBi

Transmit Power

23 dBm

Beamwidth

(H) 65°, (V) 65° [3 dB]

Network

Network Interface

2 × 10/100 Mbps RJ45

Power & Protection

Power Input

12-24 VDC Passive PoE

Power Consumption

3.7 W

Ports & PoE

Total Ports

2

Port Speed

10/100 Mbps

PoE Standard

Passive PoE

Features

SSH / Telnet

SSH

Physical

Operating Temperature

-30 … +70 °C (-22 … 158 °F)

Mounting

Pole Mounting

Dimensions

90.8 × 57.87 × 187.87 mm (3.57 × 2.28 × 7.4 in)

Weight

260 g (9.17 oz)

General

Package Dimensions (W × H × D)

256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")

Gross Weight

0.8 kg (1.76 lb)

Packing List

Wireless Bridge × 2,Power Adapter (12 VDC, 1 A) × 2,10/100 Mbps PoE Injector × 2,Binding Tape × 4,Quick Start Guide ×1

Packing Method

Packing in pairs

Working Humidity

5% to 95% (no condensation)

Storage Temperature

-40 °C to 80 °C (-40 °F to 176 °F)

Storage Humidity

5% to 95% (no condensation)

Ingress Protection

IP55

Wireless Parameter

Max. transmission rate of air interface

≤ 300 Mbps

Wireless Standard

IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)

Working Frequency Band

2400 MHz ~ 2483.5 MHz

Antenna angle

(H) Beamwidth [3 dB] 65° , (V) Beamwidth [3 dB] 65°

Receiving Sensitivity

-87±2 dBm @HT40 MCS0

Throughput Rate

PTP: 50 Mbps/0.2 KM(HT40),30 Mbps/0.5 KM(HT40)

Hardware Parameter

LED Indicator

Power indicator,LAN indicator,Signal intensity indicator

Reset

Hardware resetting button

Software Function

Application Function

IFM,IPM

Channel width

10/20/40 MHz

Channel selection

Auto/manual selection

Security Mode

WPA2-PSK

Security Mechanism

Wireless network name hidden

Network Protocol

NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)

Management Method

HCP,Web,iVMS-4200,HPP

System Log

Syslog,Control center information

Upgrade

Web,iVMS-4200,HCP,HPP

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:;
1. Reboot device;
2. Restore device;
3. Display the topology information;
4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate;
5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power;
6. Bridge alignment;
7. Spectrum scanning

Approval

EMC

CE-EMC(EN 55032, EN 50130-4, EN 55035, EN IEC 61000-3-2, EN 61000-3-3)

Safety

CB (IEC 62368-1)

Chemistry

CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Radio

EN 301 489-17,EN 301 489-1, EN 300 328, EN IEC 62311

Physical Interface

PoE/LAN 1

The 10/100 Mbps adaptive RJ45 port, also can be used as a PoE port.

LAN 2

The 10/100 Mbps adaptive RJ45 port.

Reset

Long press for 4 seconds to restore to factory settings.

Network Cable Slot

Reserved for easy placement of the network cables.
