Product code: #ALL-003104

IP camera - 2*2MP, Dome, PTZ, 4x, SD, ANR, IR50, Mic, LightHunter, Uniview

Uniview · IPC9312LFW-AF28-2X4

IP camera - 2*2MP, Dome, PTZ, 4x, SD, ANR, IR50, Mic, LightHunter, Uniview

692.55 ₾

VAT included

  • Out of stock

This model is not in stock at any branch right now.

Similar, in stock

From the same category, closest in specs and price

Compare all four

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 5.6 TB

8 cameras, with margin: 207.4 W

Calculate exactly

Related products

Description

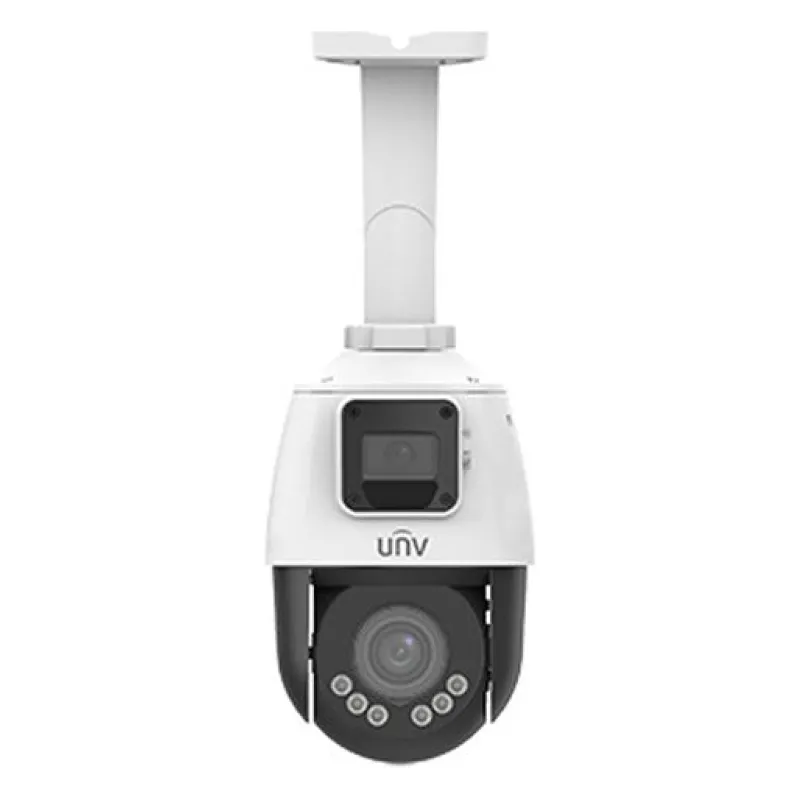

The Uniview IPC9312LFW-AF28-2X4 is an IP PTZ dome camera with a 1/2.8" image sensor and a resolution of 2 MP (1920×1080) at 25 fps. It has a multi-lens design with 4× optical zoom, an F1.6 aperture and a 106° field of view. Pan covers 0° ~ 345° and tilt covers -10° ~ 100°.

For low light and night use, the camera has 850nm IR illumination with a range of 50 m (164 ft), a minimum illumination of 0.002 Lux, auto IR-cut day/night switching and 120 dB WDR. It also includes a built-in microphone and speaker. It has an IP66 rating and runs on DC 12 V or PoE+ (IEEE 802.3at).

Key features:

  • 2 MP resolution (1920×1080) at 25 fps, with a 1/2.8" image sensor and LightHunter
  • 4× optical zoom, 256 PTZ presets and 16 patrol routes with up to 64 presets each
  • 850nm IR night vision up to 50 m (164 ft), 0.002 Lux minimum illumination and 120 dB WDR
  • Ultra 265, H.265, H.264 and MJPEG compression, with 2 streams
  • Built-in microphone and speaker with 2-way audio, G.711U and G.711A audio compression
  • 1 × RJ45 10 M/100 M Base-TX Ethernet port, MicroSD card slot for local storage, ONVIF (Profile S, Profile G), API and SDK integration
  • IP66 protection, 2 kV surge protection, 16 W power consumption, operating temperature -20 … +60 °C (-4 … 140 °F), compatible with Uniview EZView / EZStation

Features in action

1 demos

  • Before
    then
    DarkFighter

    DarkFighter: Low-Light

    Ultra-low-light sensitivity: clear, usable images where a conventional camera sees almost nothing.

Bought together

The kit is ready, adjust it as you need

2 products

Kit · 182.28 ₾

Specifications 71

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.8"
Max Resolution
1920×1080
Megapixels
2 MP
Form Factor
PTZ
Characteristics
Microphone

Lens

View Type
Multi-lens
Optical Zoom
4 ×
PTZ Presets
256
Pan / Tilt Range
Pan: 0° ~ 345°;
tilt: -10° ~ 100°
Aperture
F1.6
Field of View
106°

Image & Video

Min. Illumination
0.002 Lux
IR Range
50 m (164 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Frame Rate
25fps
Compression
Ultra 265, H.265, H.264, MJPEG

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ45 10 M/100 M Base-TX Ethernet
Storage
MicroSD up to 512 GB

Power & Protection

Power Supply
DC 12 V, PoE+ (IEEE 802.3at)
IP / IK Rating
IP66
Power Consumption
16 W
Surge Protection
2 kV

Smart & Features

Features
LightHunter

Connectivity

Compatible software
Uniview EZView / EZStation

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 95 %
Operating Temperature
-20 … +60 °C (-4 … 140 °F)
Weight
1.03 kg (2.27 lb)

Full specification

Manufacturer data, 41 parameters

Video

Frame Rate, Main Stream
1080P (1920 × 1080)@25 fps (default);
1080P (1920 × 1080), max. 25 fps;
720P (1280 × 720), max. 25 fps
Frame Rate, Sub Stream
720P (1280 × 720), max. 25 fps;
D1 (720 × 576), max. 25 fps;
640 × 360, max. 25 fps;
2CIF (704 × 288), max. 25 fps;
CIF (325 × 288), max. 25 fps
Video Bit Rate
128 Kbps~16 Mbps
U-code
Support (Main stream)
ROI
Up to 8 areas
Video Stream
Dual streams
OSD
Up to 4 OSDs
Privacy Mask
24 areas, up to 4 areas per scene

Intelligent

Linkage function
Support. Triggered by fixed lens via smart intrusion prevention function to track target

Illuminator

Light On/Off Control
Auto/Manual
Wavelength
850nm (IR)

Camera

Shutter
Auto/Manual, 1 ~ 1/100000s
S/N
＞52dB


White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction
2D/3D DNR
Flip
Normal/Flip Vertical/Flip Horizontal/180°
HLC
Support
BLC
Support
Defog
Digital defog

Events

Basic Detection
Audio detection
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression
G.711U, G.711A
Audio Bit Rate
64 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
8 kHz

Storage

Edge Storage
Micro SD, up to 256 GB

Network

Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G), API, SDK
User/Host
Up to 32 users. 2 user levels: administrator and common user
Security
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Pan & Tilt

Preset Patrol
16 patrol routes, up to 64 presets for each route
Patrol Stay Time
1000s~1800s
Home Position
Support

Interface

Built-in Speaker
Support

General

Power Interface
Ø 5.5mm coaxial power plug
Dimensions (Ø × H)
Wall Mount: Φ134 x 192 x 302mm (Φ5.3” x 7.6” x 11.9”);
Ceiling Mount: Φ134 x 154 x 363mm (Φ5.3” x 6.1” x 14.3”)
Working Environment
-20℃ ~ 60℃(-4°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment
-30℃ ~ 70℃(-22°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)
Reset Button
Support
