Product code: #ALL-002977

IP camera - 2MP, 2.8mm, Bullet, Eco Series, HiLook

HiLook · IPC-B121H-C

IP camera - 2MP, 2.8mm, Bullet, Eco Series, HiLook

128.87 ₾

VAT included

  • In stock
128.87 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 5.6 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

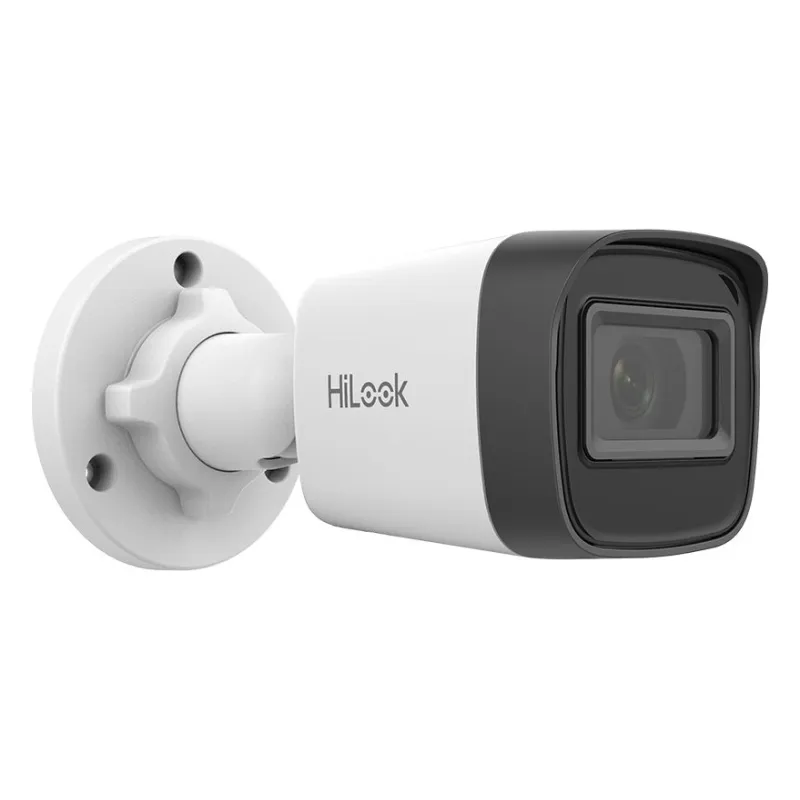

The HiLook IPC-B121H-C is a 2 MP IP camera in a bullet housing with a plastic body. It records at a maximum resolution of 1920 × 1080 using a 1/2.9" image sensor and a fixed 2.8 mm lens with an F2.2 aperture and a 94° field of view. A built-in microphone captures audio.

The camera uses infrared supplementary lighting with a range of 30 m (98.4 ft) and switches between day and night modes with an auto IR-cut filter. It connects through a 1 × RJ-45 10/100 Mbps port and can be powered by 12 VDC or PoE (IEEE 802.3af). With IP67 protection and an operating range of -30 … +60 °C (-22 … 140 °F), it is built for outdoor installation. It works with Hik-Connect and iVMS-4200.

Key features:

  • 2 MP resolution (1920 × 1080) at 25/30 fps, with H.265+, H.265, H.264+ and H.264 compression
  • 2.8 mm fixed lens, F2.2 aperture, 94° field of view, M12 lens mount
  • 30 m (98.4 ft) infrared night vision at 850 nm, minimum illumination of 0.01 lux, with smart supplementary light
  • DWDR, BLC, HLC and 3D DNR image processing
  • Built-in microphone, motion detection and exception events with notification of the surveillance center
  • 12 VDC or PoE (IEEE 802.3af) power, 6.5 W power consumption, 1 × RJ-45 10/100 Mbps port
  • IP67 protection, operating temperature -30 … +60 °C (-22 … 140 °F), humidity ≤ 95 %, CE certified

Bought together

−5%

Tick what you need

IPC-B121H-C

Kit · 128.87 ₾

Tick at least 1 product

Specifications 59

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.9"
Max Resolution
1920 × 1080
Megapixels
2 MP
Form Factor
Bullet
Housing Material
Plastic
Characteristics
Microphone

Lens

Zoom type
Fixed
Focal Length
2.8 mm
Lens
2.8 mm
Aperture
F2.2
Field of View
94°
Lens Mount
M12

Image & Video

Supplement light
Infrared (IR)
Min. Illumination
0.01 lux
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
DWDR
Frame Rate
25/30 fps
Compression
H.265+, H.265, H.264+, H.264

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ-45, 10/100 Mbps

Power & Protection

Power Supply
12 VDC, PoE (IEEE 802.3af)
IP / IK Rating
IP67
Power Consumption
6.5 W

Connectivity

Compatible software
Hik-Connect, iVMS-4200

Compliance

Certifications
CE

Physical

Operating humidity
≤ 95 %
Operating Temperature
-30 … +60 °C (-22 … 140 °F)
Dimensions
138.8 × 60.9 × 57.9 mm (5.46 × 2.4 × 2.28 in)

Full specification

Manufacturer data, 30 parameters

Camera

Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Iris Type
Fixed
DORI
2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m;
4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

Smart Supplement Light
Yes
IR Wavelength
850 nm

Video

Sub-stream
50 Hz: 25 fps (640 × 480, 640 × 360);
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR

Network

Security
Password protection, complicated password, watermark, basic and digest;
authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
User/Host
Up to 32 users;
3 user levels: administrator, operator, and user
Web Browser
Plug-in required live view: IE 10, IE 11,;
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


SNR
≥ 52 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client;
software or web browser

Event

Basic Event
Motion detection, exception
Linkage
Notify surveillance center

General

Package Dimension
163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

CE-RoHS
2011/65/EU,
WEEE
2012/19/EU,
REACH
Regulation (EC) No 1907/2006
