Product code: #ALL-002988

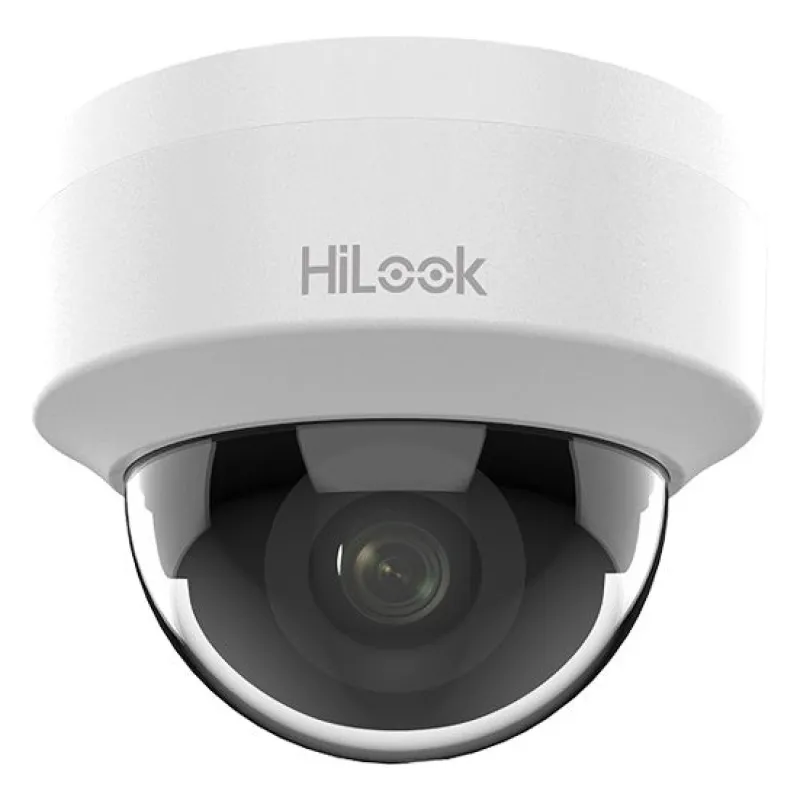

IP camera - 2MP 2.8mm Dome, Eco Series, HiLook

HiLook · IPC-D121H-C

IP camera - 2MP 2.8mm Dome, Eco Series, HiLook

138.51 ₾

VAT included

  • In stock
138.51 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 5.6 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 1 accessory

Kit · 157.86 ₾166.86 ₾

Kit −9 ₾

Specifications 60

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.9" CMOS
Max Resolution
1920 × 1080
Megapixels
2 MP
Form Factor
Dome
Housing Material
Plastic
Characteristics
Microphone

Lens

Zoom type
Fixed
Focal Length
2.8 mm
Lens
2.8 mm
Aperture
F2.2
Field of View
101°
Lens Mount
M12

Image & Video

Supplement light
Infrared (IR)
Min. Illumination
0.01 lux
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
DWDR
Frame Rate
25/30 fps
Compression
H.265+, H.265, H.264+, H.264

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ-45, 10/100 Mbps

Power & Protection

Power Supply
12 VDC, PoE (IEEE 802.3af)
IP / IK Rating
IP67, IK10
Power Consumption
6.5 W

Connectivity

Compatible software
Hik-Connect, iVMS-4200

Compliance

Certifications
CE

Physical

Operating humidity
≤ 95 %
Operating Temperature
-10 … +40 °C (14 … 104 °F)
Dimensions
Ø110.8 × 85.2 mm (Ø4.36 × 3.35 in)

Full specification

Manufacturer data, 31 parameters

Camera

Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°

Lens

Iris Type
Fixed
Depth of Field
2.8 mm: 0.8 m to ∞;
4 mm: 1 m to ∞
DORI
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m;
4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

Smart Supplement Light
Yes
IR Wavelength
850 nm

Video

Sub-stream
50 Hz: 25 fps (640 × 480, 640 × 360);
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR

Network

Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
User/Host
Up to 32 users;
3 user levels: administrator, operator, and user
Web Browser
Plug-in required live view: IE 10, IE 11,;
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


SNR
≥ 52 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Event

Basic Event
Motion detection, exception
Linkage
Notify surveillance center

General

Package Dimension
163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
Storage Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

CE-RoHS
2011/65/EU,
WEEE
2012/19/EU,
REACH
Regulation (EC) No 1907/2006
