Product code: #ALL-003086

IP კამერა - 4მპ, 2.8მმ, Turret, Mic, SD, ANR, Speaker, Uniview

Uniview · IPC3614SB-ADF28KMC-I0

IP კამერა - 4მპ, 2.8მმ, Turret, Mic, SD, ANR, Speaker, Uniview

401.17 ₾

VAT included

  • In stock
401.17 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 11.2 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

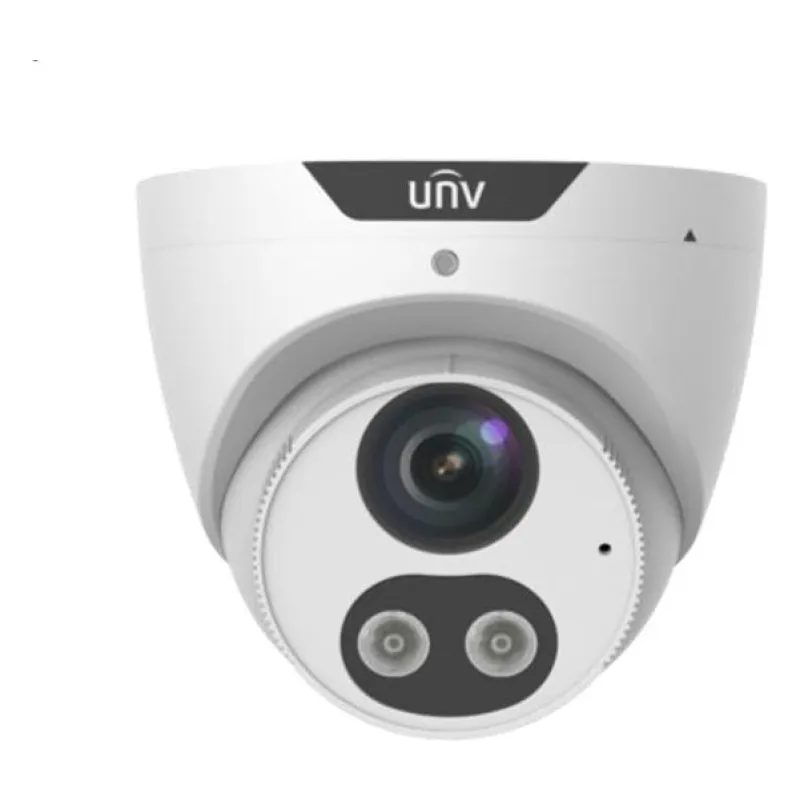

The Uniview IPC3614SB-ADF28KMC-I0 is a 4 MP IP camera in a turret form with a metal housing. It records at a maximum resolution of 2688 × 1520 and 30 fps, using a 1/2.7" image sensor and a 2.8 mm fixed lens with an F1.6 aperture.

The camera has a built-in microphone and speaker for 2-way audio, and it stores footage locally on a MicroSD card. It connects over a 1 × RJ45 10 M/100 M Base-TX Ethernet port and works with the Uniview EZView and EZStation applications. It has no Wi-Fi.

Key features:

  • 4 MP image with 2688 × 1520 maximum resolution, 30 fps, a 101° field of view and 120 dB WDR
  • Dual illumination with 850 nm infrared up to 30 m (98.4 ft), 0.002 Lux minimum illumination and day/night mode with auto IR-cut
  • Ultra 265, H.265, H.264 and MJPEG compression, with a video bitrate of 128 Kbps to 16 Mbps
  • Built-in microphone and speaker with 2-way audio and G.711 audio compression
  • Line crossing, intrusion, enter area and leave area detection, plus face capture, people flow counting and crowd density detection
  • Powered by PoE (IEEE 802.3af) or DC 12 V at 7.5 W, with ONVIF (Profile S, Profile G, Profile T) and API integration
  • IP67 rating, operating temperature of -30 … +60 °C (-22 … 140 °F), dimensions of Ø111 × 95 mm (Ø4.37 × 3.74 in) and weight of 440 g (15.52 oz)

Features in action

1 demos

  • Line Crossing

    Line Crossing Detection

    The camera detects when a person or vehicle crosses a virtual line in the set direction and triggers an instant alert.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 2 accessories

Kit · 543.12 ₾572.12 ₾

Kit −29 ₾

Specifications 74

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.7"
Max Resolution
2688 × 1520
Megapixels
4 MP
Form Factor
Turret
Housing Material
Metal
Characteristics
Two-way Audio, Microphone

Lens

Zoom type
Fixed
Focal Length
2.8 mm
Lens
2.8 mm
Aperture
F1.6
Field of View
101°

Image & Video

Supplement light
Dual light
Min. Illumination
0.002 Lux
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Frame Rate
30 fps
Compression
Ultra 265, H.265, H.264, MJPEG

Audio

Audio
Built-in mic & speaker

Network

Network Interface
1 × RJ45 10 M/100 M Base-TX Ethernet
Storage
MicroSD up to 512 GB

Power & Protection

Power Supply
DC 12 V, PoE (IEEE 802.3af)
IP / IK Rating
IP67
Power Consumption
7.5 W
Surge Protection
4 kV

Smart & Features

Features
Line Crossing

Connectivity

Compatible software
Uniview EZView / EZStation
Wi-Fi
No

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 95 %
Operating Temperature
-30 … +60 °C (-22 … 140 °F)
Dimensions
Ø111 × 95 mm (Ø4.37 × 3.74 in)
Weight
440 g (15.52 oz)

Full specification

Manufacturer data, 41 parameters

Illuminator

Light On/Off Control
Auto/Manual

Intelligent

People Counting
Support people flow counting and crowd density detection
Smart Intrusion Prevention
Cross line, intrusion, enter area, leave area detection;
Face Capture
Support

Features

People Counting
Intelligent people flow counting and crowd density monitoring
Corridor Mode
Supports 9:16 corridor mode

Camera

DORI Distance
2.8;
63.0;
25.2;
12.6;
6.3
Angle of View (H)
101.1°
Angle of View (V)
55.3°
Angle of View (O)
111.1°
Adjustment Angle
Pan: 3° ~ 360°;
Tilt: 0° ~ 80°;
Rotate: 3° ~ 360°
Shutter
Auto/Manual, 1 ~ 1/100000s
S/N
>56dB
Wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog

Video

H.264 Code Profile
Baseline profile, Main profile, High profile
Video Bit Rate
128 Kbps~16 Mbps
9:16 Corridor Mode
Supported
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Motion Detection
Up to 4 areas


White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction
2D/3D DNR
Flip
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC
Supported
BLC
Supported

Audio

Audio Compression
G.711
Two-way Audio
Supported
Suppression
Supported
Sampling Rate
8KHZ

Storage

Edge Storage
Micro SD, up to 256 GB

Events

Basic Detection
Motion detection, tampering alarm, audio detection
General Function
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

Network

Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below;
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Built-in Speaker
Supported

Certifications

UL
UL60950-1

General

Storage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
