Product code: #ALL-003015

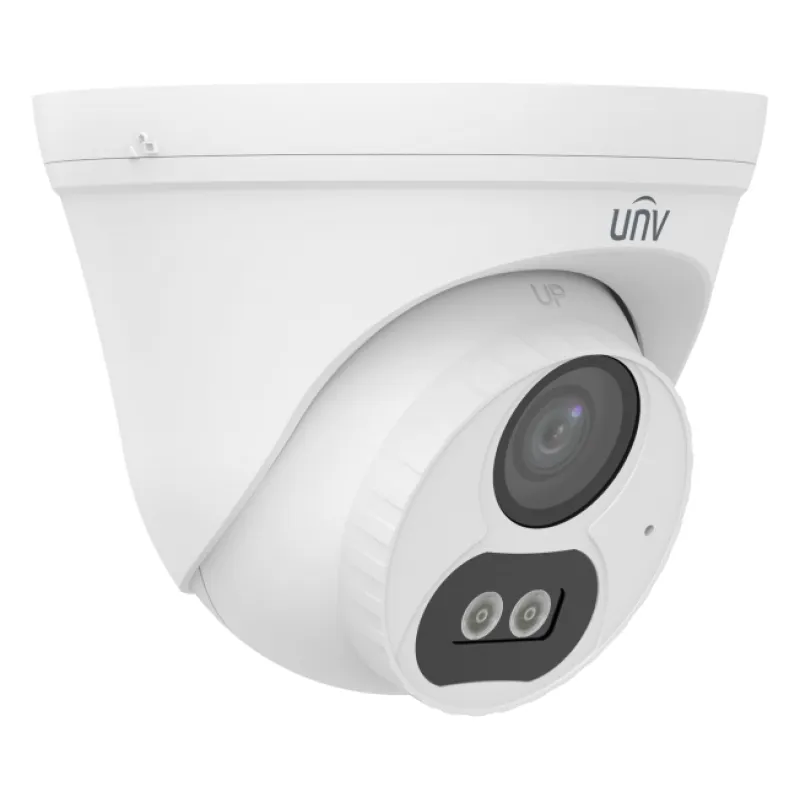

IP კამერა - 4მპ, 2.8მმ, Turret, Mic, SD, UMD, ColorHunter, Uniview

Uniview · IPC3614LB-AF28K-DL2

IP კამერა - 4მპ, 2.8მმ, Turret, Mic, SD, UMD, ColorHunter, Uniview

182.25 ₾

VAT included

  • In stock
182.25 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 11.2 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview IPC3614LB-AF28K-DL2 is a 4 MP IP camera in a turret form with a plastic housing. It records at a maximum resolution of 2560 × 1440 using a 1/3" image sensor and a fixed 2.8 mm lens with an F1.6 aperture and a 93° field of view. A built-in microphone captures audio along with the video.

The camera uses dual illumination with an 850 nm light, giving night vision up to 30 m (98.4 ft), and it offers Full-Color imaging with a minimum illumination of 0.01 Lux. It has IP67 protection, works from -30 to +60 °C (-22 to 140 °F), and can be powered by DC 12 V or PoE (IEEE 802.3af). Video can be stored locally on a MicroSD card up to 512 GB.

Key features:

  • 4 MP resolution (2560 × 1440) at 25 fps, with Ultra 265, H.265 and H.264 compression
  • Fixed 2.8 mm lens, F1.6 aperture, 93° field of view, with WDR, HLC, BLC, 2D/3D DNR and digital defog
  • Day/night mode with auto IR-cut filter and 30 m (98.4 ft) night vision at 850 nm
  • Built-in microphone with G.711U and G.711A audio compression and noise suppression
  • 1 × RJ45 10 M/100 M Base-TX Ethernet port, with DC 12 V or PoE (IEEE 802.3af) power at 4.2 W consumption
  • IP67 protection and 4 kV surge protection, with CE, FCC and UL certificates
  • ONVIF (Profile S, Profile T), API and SDK integration, plus Uniview EZView / EZStation compatibility

Features in action

1 demos

  • Before
    then
    ColorVu

    ColorVu: Color Night Vision

    Full-color night vision: even in darkness the camera captures sharp, full-color images instead of black & white.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 2 accessories

Kit · 335.20 ₾353.20 ₾

Kit −18 ₾

Specifications 73

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/3"
Max Resolution
2560 × 1440
Megapixels
4 MP
Form Factor
Turret
Housing Material
Plastic
Characteristics
Microphone

Lens

Zoom type
Fixed
Focal Length
2.8 mm
Lens
2.8 mm
Aperture
F1.6
Field of View
93°

Image & Video

Supplement light
Dual light
Min. Illumination
0.01 Lux
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
Yes
Frame Rate
25 fps
Compression
Ultra 265, H.265, H.264

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ45 10 M/100 M Base-TX Ethernet
Storage
MicroSD up to 512 GB

Power & Protection

Power Supply
DC 12 V, PoE (IEEE 802.3af)
IP / IK Rating
IP67
Power Consumption
4.2 W
Surge Protection
4 kV

Smart & Features

Features
Full-Color

Connectivity

Compatible software
Uniview EZView / EZStation
Wi-Fi
No

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 95 %
Operating Temperature
-30 … +60 °C (-22 … 140 °F)
Dimensions
Ø117.8 × 100.3 mm (Ø4.64 × 3.95 in)
Weight
260 g (9.17 oz)

Full specification

Manufacturer data, 40 parameters

Features

Ultra Motion Detection
Supports ultra motion detection
Corridor Mode
Supports corridor mode

Camera

Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment Angle
Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N
>52 dB

Lens

Iris Type
Fixed

DORI

DORI Distance (Lens)
2.8mm
DORI Distance (Detect)
63.0 m(206.7 ft)
DORI Distance (Observe)
25.2 m(82.7 ft)
DORI Distance (Recognize)
12.6 m(41.3 ft)
DORI Distance (Identify)
6.3 m(20.7 ft)

Illuminator

Wavelength
850 nm

Video

H.264 Code Profile
Baseline profile, Main profile, High profile
Video Bit Rate
128 Kbps to 6144 Kbps
U-code
Support
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Support
Video Stream
Dual streams


White Balance
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction
2D/3D DNR
Flip
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLC
Support
BLC
Support
Defog
Digital defog

Events

General Function
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression
G.711U, G.711A
Audio Bit Rate
64 Kbps
Suppression
Support
Sampling Rate
8 kHz

Storage

Edge Storage
Micro SD, up to 512 GB

Network

Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SNMP
Compatible Integration
ONVIF (Profile S, Profile T) ,;
API, SDK
User/Host
Up to 32 users. 3 user levels: administrator, common user and operator
Security
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Web Browser
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

General

Power Interface
Ø5.5 mm coaxial power plug
Working Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language
4 Languages: English, Russian, Spanish, Vietnamese
