Product code: #ALL-003144

IP კამერა - 4მპ, 4მმ, Bullet, Thermal & Optical, SD, ANR, Uniview

Uniview · TIC2A32SA-F3-4F4AC-I1

IP კამერა - 4მპ, 4მმ, Bullet, Thermal & Optical, SD, ANR, Uniview

2 077.65 ₾

VAT included

  • In stock
2 077.65 ₾

VAT included

  • In stock
Quantity
1

1 in stock

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 11.2 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

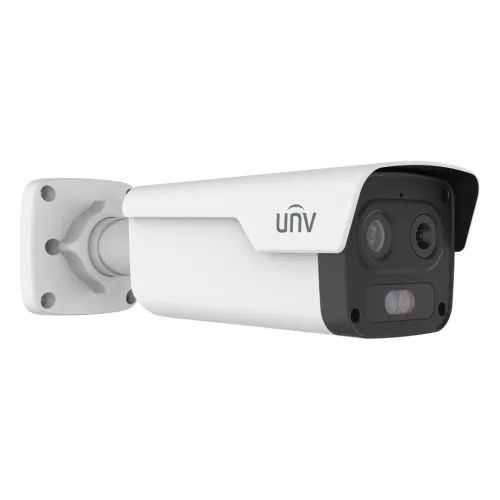

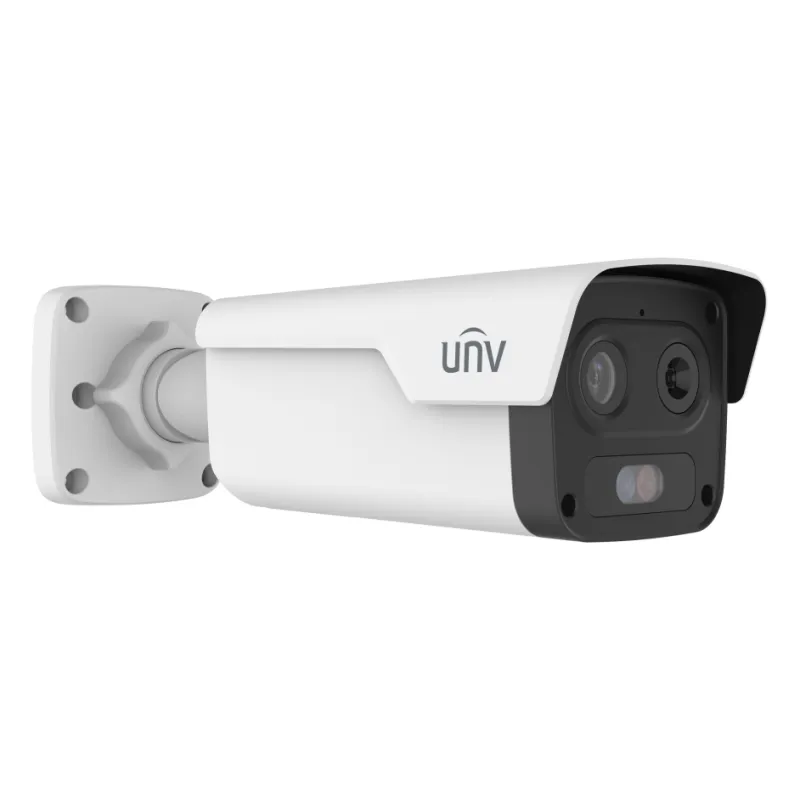

The Uniview TIC2A32SA-F3-4F4AC-I1 is a 4 MP bullet IP camera for outdoor use that combines thermal and optical imaging. It has a 1/2.8" image sensor, a 4 mm fixed lens with an F1.6 aperture and a 74° field of view. It also has a built-in microphone and speaker, and a warning light for active deterrence.

The camera records to a MicroSD card and connects over a 1 × RJ45 10 M/100 M Base-TX Ethernet port. It is compatible with Uniview EZView and EZStation, and with ONVIF (Profile S, Profile G, Profile T), API and SDK integration. It also complies with NDAA and carries CE, FCC and UL certifications.

Key features:

  • Imaging: 4 MP resolution, 120 dB WDR, Full-Color function and IR night vision up to 40 m (131.2 ft).
  • Temperature measurement: selectable range of -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) or 100 ℃ to 550 ℃ (212 ℉ to 1022 ℉), with accuracy of ±8 ℃ (±14.4 ℉) or ±8%, whichever is greater.
  • Detection distance: 60 m for vehicles (4 × 1.4 m) and 30 m for people (1.8 × 0.5 m).
  • Video: Ultra 265, H.265, H.264 and MJPEG compression, 3 video streams, bitrate from 128 Kbps to 16 Mbps, RoI and U-code support.
  • Audio and alarms: 2-way audio with G.711U and G.711A, 2 alarm inputs, 2 alarm outputs, 1 × RS485 serial port and a warning light.
  • Storage and power: MicroSD card up to 512 GB; powered by DC12V (±25%) or PoE (IEEE802.3af), with 12 W power consumption.
  • Build: IP67 protection, 6 kV surge protection, operating temperature of -40 … +70 °C (-40 … 158 °F), dimensions of 95.7 × 85.4 × 269.1 mm (3.77 × 3.36 × 10.59 in) and weight of 950 g (33.51 oz).

Features in action

1 demos

  • Before
    then
    ColorVu

    ColorVu: Color Night Vision

    Full-color night vision: even in darkness the camera captures sharp, full-color images instead of black & white.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 2 accessories

Kit · 2 146.04 ₾2 260.04 ₾

Kit −114 ₾

Specifications 75

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.8"
Megapixels
4 MP
Form Factor
Bullet
Usage
Outdoor
Characteristics
Microphone

Lens

Zoom type
Fixed
Focal Length
4 mm
Lens
4 mm
Aperture
F1.6
Field of View
74°

Image & Video

IR Range
40 m (131.2 ft)
WDR
120 dB
Compression
Ultra 265, H.265, H.264, MJPEG

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ45 10 M/100 M Base-TX Ethernet
Storage
MicroSD up to 512 GB

Power & Protection

Power Supply
DC12V(±25%), PoE(IEEE802.3af)
IP / IK Rating
IP67
Power Consumption
12 W
Surge Protection
6 kV

Outputs & Audio

Audio Input
1
Audio Output
1

Smart & Features

Features
Full-Color
Active Deterrence
Warning Light
Alarm Input
2
Alarm Output
2

Connectivity

Compatible software
Uniview EZView / EZStation

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 95 %
Operating Temperature
-40 … +70 °C (-40 … 158 °F)
Dimensions
95.7 × 85.4 × 269.1 mm (3.77 × 3.36 × 10.59 in)
Weight
950 g (33.51 oz)

Full specification

Manufacturer data, 43 parameters

Camera

NETD
< 50 mk@F1.0@25 ℃
Shutter
Auto/Manual, 1 to 1/100000 s
S/N
>56 dB

General

RTC
Support
Power Interface
Ø5.5 mm coaxial power plug
Working Environment
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Reset Button
Support
Web Client Language
22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

Live View

Maximum bitstream
35
Maximum bandwidth
50 Mbps
OSD Font
Vector
OSD color
Support
OSD character number
40

Other

Corridor Mode
Support
Software Version
Q6202

Compliance

NDAA Compliant
Support

Video

Video Bit Rate
128 Kbps to 16 Mbps
U-code
Support
ROI
Support
Video Stream
Triple streams
OSD
Up to 8 OSDs


Digital Noise Reduction
2D/3D DNR
Flip
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

Temperature measurement

Accuracy
±8 ℃ (±14.4 ℉) or ±8% (whichever is greater)
Temperature range
Selectable between -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) and 100 ℃ to 550 ℃ (212 ℉ to 1022 ℉)
Detection distance for vehicles (4 × 1.4 meters)
60m
Detection distance for personnel (1.8 × 0.5 meters)
30m

Events

General Function
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Audio

Audio Compression
G.711U, G.711A
Audio Bit Rate
128 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
16KHZ

Storage

Edge Storage
MicroSD, up to 512 GB

Network

Protocols
IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host
Up to 32 users. 3 user levels: administrator, common user and operator
Web Browser
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Interface

Built-in Speaker
Support
Audio I/O
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O
2/2
Serial Port
1 × RS485
