Product code: #ALL-003023

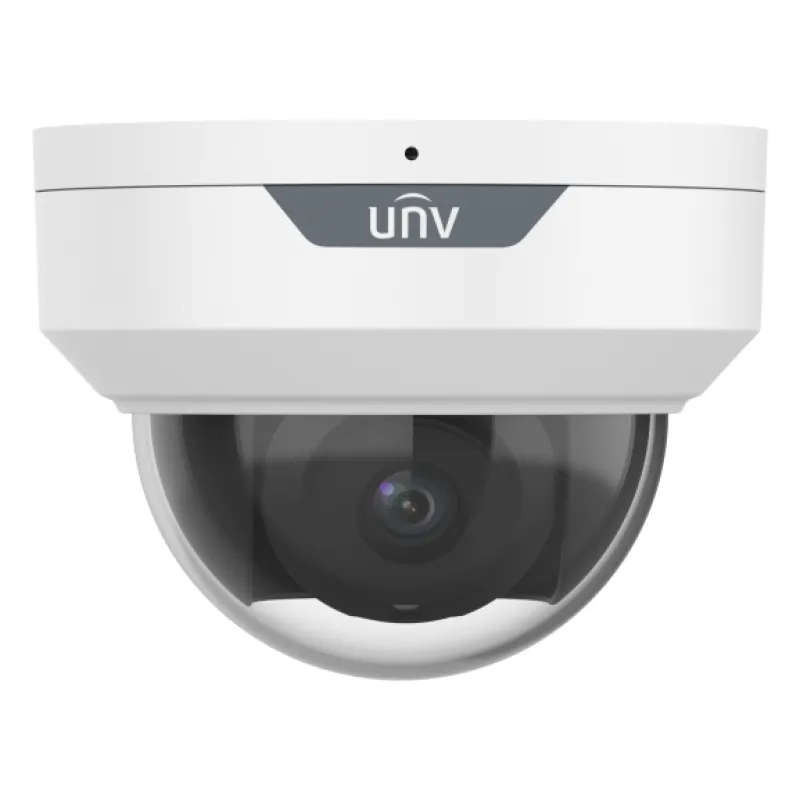

IP კამერა - 5მპ, 2.8მმ, Dome, Mic, IK10, Uniview

Uniview · IPC325LB-AF28-A2

IP კამერა - 5მპ, 2.8მმ, Dome, Mic, IK10, Uniview

211.41 ₾

VAT included

  • In stock
211.41 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 9.5 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview IPC325LB-AF28-A2 is a 5 MP IP dome camera with a 1/3" image sensor and a maximum resolution of 2592 × 1944. It has a fixed 2.8 mm lens with an F2.0 aperture and a 94° field of view, and it records at 20 fps with Ultra 265, H.265 and H.264 compression.

The camera has a metal housing rated IP67 and IK10, and it operates from -30 to +60 °C. Infrared lighting with a 30 m (98.4 ft) range and an automatic IR-cut filter allow day/night operation, and a built-in microphone provides audio.

Key features:

  • 5 MP resolution (2592 × 1944), 1/3" sensor, 20 fps, minimum illumination 0.01 Lux
  • 2.8 mm fixed lens, F2.0, 94° field of view; angle adjustment Pan 3° to 360°, Tilt 0° to 75°
  • Day/night mode with auto IR-cut, 850 nm infrared light with Auto/Manual control, 30 m (98.4 ft) night range, WDR, HLC, BLC and digital defog
  • Metal dome housing with IP67 and IK10 protection and 4 kV surge protection; size Ø111 × 82.5 mm, weight 350 g (12.35 oz)
  • Built-in microphone with G.711U and G.711A audio compression; audio detection, human body detection 2.0 and motion detection
  • Power through DC 12 V (Ø5.5 mm coaxial plug) or PoE (IEEE 802.3af), 3.9 W power consumption; 1 × RJ45 10 M/100 M Base-TX Ethernet port
  • ONVIF (Profile S, Profile T), API and SDK integration; compatible with Uniview EZView and EZStation; HTTPS, TLS 1.2 and user authentication for network security

Features in action

1 demos

  • AcuSense

    AcuSense: Smart Detection

    Smart detection distinguishes people and vehicles from animals and shadows, cutting false alarms and sending instant alerts.

Specifications 71

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/3"
Max Resolution
2592 × 1944
Megapixels
5 MP
Form Factor
Dome
Housing Material
Metal
Characteristics
Microphone

Lens

Zoom type
Fixed
Focal Length
2.8 mm
Lens
2.8 mm
Aperture
F2.0
Field of View
94°

Image & Video

Supplement light
Infrared (IR)
Min. Illumination
0.01 Lux
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
Yes
Frame Rate
20 fps
Compression
Ultra 265, H.265, H.264

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ45 10 M/100 M Base-TX Ethernet

Power & Protection

Power Supply
DC 12 V, PoE (IEEE 802.3af)
IP / IK Rating
IP67, IK10
Power Consumption
3.9 W
Surge Protection
4 kV

Smart & Features

Features
Human Detection

Connectivity

Compatible software
Uniview EZView / EZStation
Wi-Fi
No

Compliance

Certifications
CE, FCC

Physical

Operating humidity
≤ 95 %
Operating Temperature
-30 … +60 °C (-22 … 140 °F)
Dimensions
Ø111 × 82.5 mm (Ø4.37 × 3.25 in)
Weight
350 g (12.35 oz)

Full specification

Manufacturer data, 39 parameters

Camera

Shutter
Auto/Manual, 1 to 1/100000 s
Adjustment Angle
Pan: 3° ~ 360°, Tilt: 0° ~ 75°
S/N
> 52 dB

Lens

Iris Type
Fixed

DORI

DORI Distance (Lens)
2.8 mm
DORI Distance (Detect)
63.0m (206.7 ft)
DORI Distance (Observe)
25.2m (82.7 ft)
DORI Distance (Recognize)
12.6m (41.3 ft)
DORI Distance (Identify)
6.3m (20.7 ft)

Illuminator

Wavelength
850 nm
IR On/Off Control
Auto/Manual

Video

H.264 Code Profile
Baseline profile, Main profile, High profile
Video Bit Rate
128 Kbps to 6144 Kbps
U-code
Support
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Support
Video Stream
Dual streams


White Balance
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction
2D/3D DNR
Flip
Normal, Flip vertical, Flip horizontal, 180°
HLC
Support
BLC
Support
Defog
Digital defog

Events

Basic Detection
Human body detection 2.0, Motion detection, Audio detection
General Function
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression
G.711U, G.711A
Audio Bit Rate
64 Kbps
Suppression
Support
Sampling Rate
8 kHz

Network

Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile T) ,;
API, SDK
User/Host
Up to 32 users. 3 user levels: administrator, common user and operator
Security
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Web Browser
Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+, Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

General

Power Interface
Ø5.5 mm coaxial power plug
Working Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language
4 Languages: English, Russian, Spanish, Vietnamese
