Product code: #ALL-004888

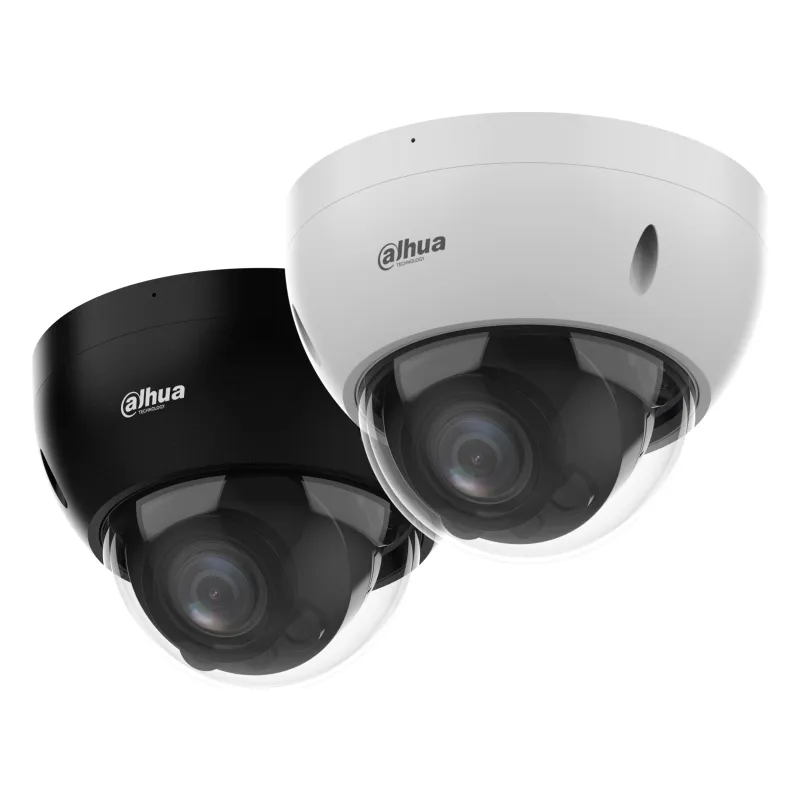

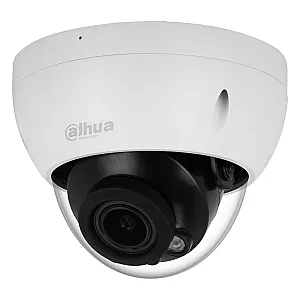

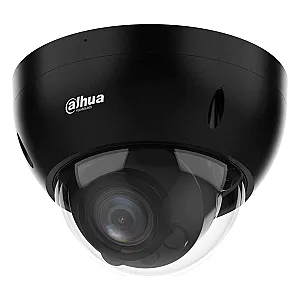

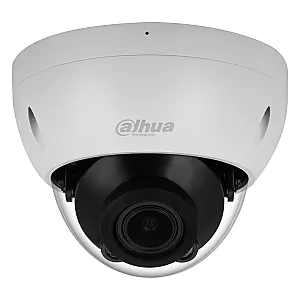

IPC-HDBW2541R-ZAS 2.7-13.5mm 5MP Dome network camera IP67/IK10, Mic, Aud-in, IR up to 40m

Dahua · IPC-HDBW2541R-ZAS-2.713.5

IPC-HDBW2541R-ZAS 2.7-13.5mm 5MP Dome network camera IP67/IK10, Mic, Aud-in, IR up to 40m

591.34 ₾

VAT included

  • In stock
591.34 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Specifications (PDF) (opens in a new tab)

Storage

8 cameras like this, 30 days: 9.5 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

5MP IR Vari-focal Dome WizSense Network Camera

Features in action

1 demos

  • Line Crossing

    Line Crossing Detection

    The camera detects when a person or vehicle crosses a virtual line in the set direction and triggers an instant alert.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 2 accessories

Kit · 716.87 ₾754.87 ₾

Kit −38 ₾

Specifications 36

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.7" CMOS
Max Resolution
2960 (H) × 1668 (V)
Megapixels
5 MP
Form Factor
Dome
Housing Material
Metal
Characteristics
Microphone, microSD

Lens

Zoom type
Motorized
Focal Length
2.7–13.5 mm
Lens
2.7–13.5 mm
Aperture
F1.5
Field of View
H: 113°–31°;
V: 58°–18°;
D: 138°–36°
Lens Mount
φ14

Image & Video

Supplement light
Infrared (IR)
Min. Illumination
0.007 lux@F1.5 (Color);
0.0007 lux@F1.5 (B/W);
0 lux (Illuminator on)
IR Range
40 m (131.2 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Frame Rate
20 fps
Compression
H.265, H.264

Audio

Audio
G.711a;
G.711Mu;
PCM;
G.726

Network

Network Interface
RJ-45 (10/100 Base-T)
Storage
FTP;
SFTP;
Micro SD card (support max. 256 GB);
NAS

Power & Protection

Power Supply
12 VDC/PoE (802.3af)
IP / IK Rating
IP67;
IK10
Power Consumption
7.4 W

Outputs & Audio

Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)

Smart & Features

Features
Line Crossing, Intrusion Detection
Alarm Input
1-channel input: 5mA 3V–5V DC
Alarm Output
1-channel output: 300mA 12V DC

Connectivity

Compatible software
DMSS, SmartPSS Lite

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 95 %
Operating Temperature
-30 … +60 °C (-22 … 140 °F)
Dimensions
Ø122 × 93.4 mm (Ø4.8 × 3.68 in)
Weight
510 g (17.99 oz)
