Product code: #ALL-004906

IPC-HDW2549TM-S-IL 3.6mm 5MP Eyeball network camera metal housing IP67, Mic, IR/Warm light 30m

Dahua · IPC-HDW2549TM-S-IL-3.6

IPC-HDW2549TM-S-IL 3.6mm 5MP Eyeball network camera metal housing IP67, Mic, IR/Warm light 30m

381.26 ₾

VAT included

  • In stock
381.26 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 9.5 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

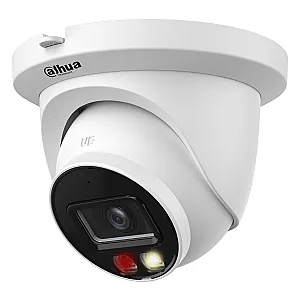

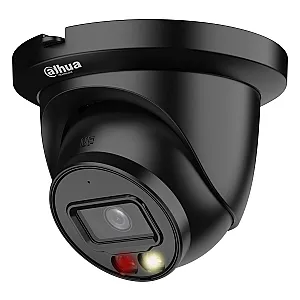

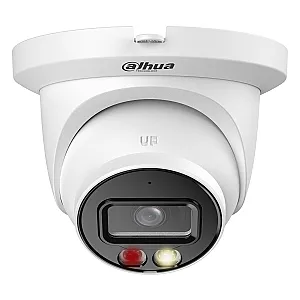

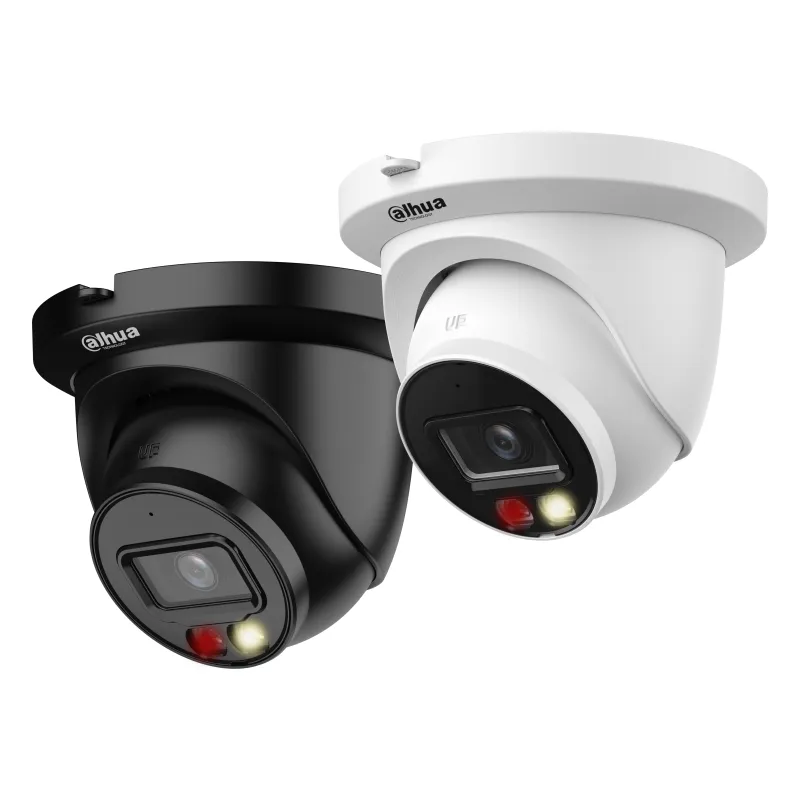

The Dahua IPC-HDW2549TM-S-IL-3.6 is a 5 MP turret network camera with a 1/2.7" CMOS sensor and a fixed 3.6 mm lens. It records at a maximum resolution of 2960 (H) × 1668 (V) at 20 fps and compresses video with H.265 and H.264.

The camera uses dual illumination, combining infrared (IR) and warm light, with a night vision range of 30 m (98.4 ft). It has a built-in microphone and a microSD card slot. The housing has an IP67 rating, and the camera works with the DMSS and SmartPSS Lite applications.

Key features:

  • 5 MP image with a 1/2.7" CMOS sensor, 2960 (H) × 1668 (V) maximum resolution, 20 fps and 120 dB WDR
  • Fixed 3.6 mm lens with F1.6 aperture, M12 lens mount and a field of view of H 92° / V 45° / D 110°
  • IR and warm light with Smart Hybrid Light, auto IR-cut day/night mode, and minimum illumination of 0.007 lux (color), 0.0007 lux (black and white) and 0 lux with the light on
  • Built-in microphone with G.711a, G.711Mu, PCM and G.726 audio
  • Storage on a Micro SD card (up to 256 GB), FTP, SFTP or NAS
  • RJ-45 (10/100 Base-T) interface, 12 VDC or PoE (802.3af) power, 5.4 W power consumption
  • IP67 housing, operating temperature -40 … +60 °C (-40 … 140 °F), humidity up to 95 %, Ø121.9 × 99.1 mm, 480 g (16.93 oz), CE, FCC and UL certificates

Features in action

1 demos

  • Before
    then
    Smart Hybrid Light

    Smart Hybrid Light

    Two lights in one: infrared by default, switching to white light when a person appears for full-color footage.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 1 accessory

Kit · 490.26 ₾516.26 ₾

Kit −26 ₾

Specifications 31

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.7" CMOS
Max Resolution
2960 (H) × 1668 (V)
Megapixels
5 MP
Form Factor
Turret
Characteristics
Microphone, microSD

Lens

Zoom type
Fixed
Focal Length
3.6 mm
Lens
3.6 mm
Aperture
F1.6
Field of View
2.8 mm: H 111° / V 58° / D 132°;
3.6 mm: H 92° / V 45° / D 110°
Lens Mount
M12

Image & Video

Supplement light
Infrared (IR), Warm light, Dual light
Min. Illumination
0.007 lux@F1.6 (Color);
0.0007 lux@F1.6 (B/W);
0 lux (Illuminator on)
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Frame Rate
20 fps
Compression
H.265, H.264

Audio

Audio
G.711a;
G.711Mu;
PCM;
G.726

Network

Network Interface
RJ-45 (10/100 Base-T)
Storage
FTP;
SFTP;
Micro SD card (support max. 256 GB);
NAS

Power & Protection

Power Supply
12 VDC/PoE (802.3af)
IP / IK Rating
IP67
Power Consumption
5.4 W

Smart & Features

Features
Smart Hybrid Light

Connectivity

Compatible software
DMSS, SmartPSS Lite

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 95 %
Operating Temperature
-40 … +60 °C (-40 … 140 °F)
Dimensions
Ø121.9 × 99.1 mm (Ø4.8 × 3.9 in)
Weight
480 g (16.93 oz)
