Product code: #ALL-004932

IPC-HFW2549S-S-IL 3.6mm 5MP Bullet network camera metal housing IP67, Mic, IR/Warm light 30m

Dahua · IPC-HFW2549S-S-IL-3.6

IPC-HFW2549S-S-IL 3.6mm 5MP Bullet network camera metal housing IP67, Mic, IR/Warm light 30m

352.73 ₾

VAT included

352.73 ₾

VAT included

Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 9.5 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

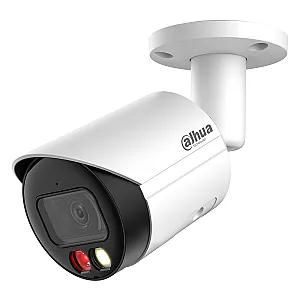

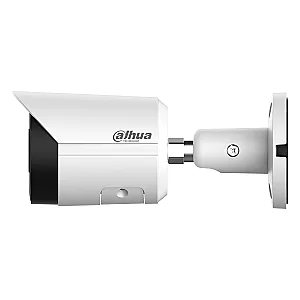

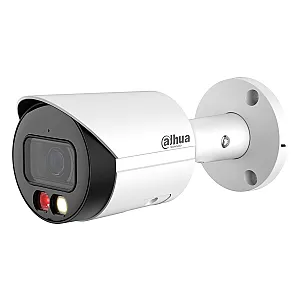

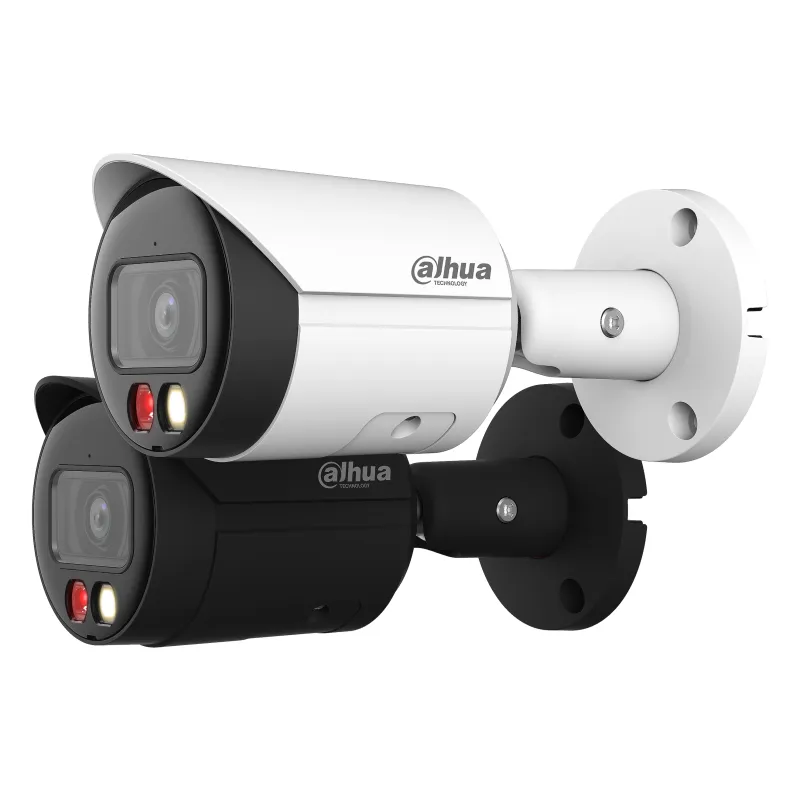

The Dahua IPC-HFW2549S-S-IL-3.6 is a 5 MP network bullet camera in a metal housing. It uses a 1/2.7" CMOS sensor with a maximum resolution of 2960 (H) × 1668 (V) and a fixed 3.6 mm lens with an F1.6 aperture and an M12 lens mount.

The camera has a built-in microphone and a microSD card slot. It offers dual illumination with infrared (IR) and warm light, supported by the Smart Hybrid Light function. It is protected to IP67 and powered by 12 VDC or PoE (802.3af).

Key features:

  • 5 MP resolution, 20 fps frame rate, H.265 and H.264 compression
  • 3.6 mm fixed lens with F1.6 aperture and a field of view of H 92° / V 45° / D 110°
  • Dual illumination (IR and warm light) with 30 m (98.4 ft) IR night vision, and a minimum illumination of 0.007 lux (color), 0.0007 lux (black and white) and 0 lux with the light on
  • Day/night mode with auto IR-cut and 120 dB WDR
  • Built-in microphone with G.711a, G.711Mu, PCM and G.726 audio
  • Storage on a Micro SD card (up to 256 GB), FTP, SFTP or NAS, with an RJ-45 (10/100 Base-T) network interface
  • IP67 protection, operating range of -40 … +60 °C (-40 … 140 °F) and humidity up to 95 %, with CE, FCC and UL certificates

Features in action

1 demos

  • Before
    then
    Smart Hybrid Light

    Smart Hybrid Light

    Two lights in one: infrared by default, switching to white light when a person appears for full-color footage.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 2 accessories

Kit · 485.07 ₾511.07 ₾

Kit −26 ₾

Specifications 32

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.7" CMOS
Max Resolution
2960 (H) × 1668 (V)
Megapixels
5 MP
Form Factor
Bullet
Housing Material
Metal
Characteristics
Microphone, microSD

Lens

Zoom type
Fixed
Focal Length
3.6 mm
Lens
3.6 mm
Aperture
F1.6
Field of View
2.8 mm: H 111° / V 58° / D 132°;
3.6 mm: H 92° / V 45° / D 110°
Lens Mount
M12

Image & Video

Supplement light
Infrared (IR), Warm light, Dual light
Min. Illumination
0.007 lux@F1.6 (Color);
0.0007 lux@F1.6 (B/W);
0 lux (Illuminator on)
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Frame Rate
20 fps
Compression
H.265, H.264

Audio

Audio
G.711a;
G.711Mu;
PCM;
G.726

Network

Network Interface
RJ-45 (10/100 Base-T)
Storage
FTP;
SFTP;
Micro SD card (support max. 256 GB);
NAS

Power & Protection

Power Supply
12 VDC/PoE (802.3af)
IP / IK Rating
IP67
Power Consumption
5.5 W

Smart & Features

Features
Smart Hybrid Light

Connectivity

Compatible software
DMSS, SmartPSS Lite

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 95 %
Operating Temperature
-40 … +60 °C (-40 … 140 °F)
Dimensions
70 × 70 × 166.2 mm (2.76 × 2.76 × 6.54 in)
Weight
470 g (16.58 oz)
