Product code: #ALL-001404

Analog camera AE-VC253T-IT_2.1mm, for vehicle systems

Hikvision

Analog camera AE-VC253T-IT_2.1mm, for vehicle systems

202 ₾

VAT included

  • In stock
202 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

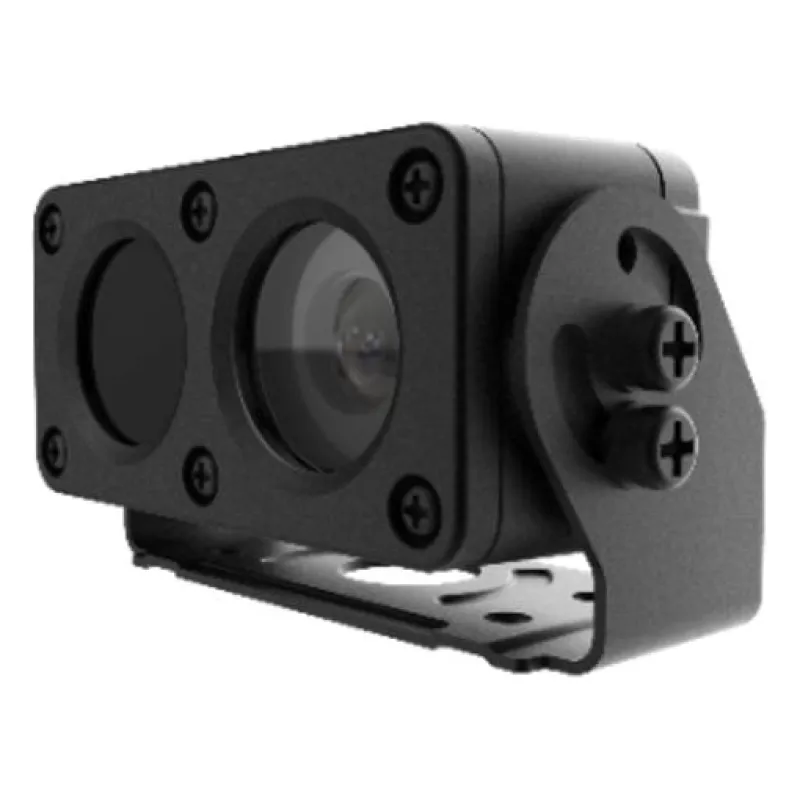

The Hikvision AE-VC253T-IT is an analog square camera for vehicle systems. It uses a Progressive Scan CMOS sensor with a maximum resolution of 1920 × 1080 and a fixed 2.1 mm lens with a 40° angle of view.

The camera has a metal housing and an IP68 protection class. It connects through an aviation plug with a TVI video output and runs on 9 to 16 V DC.

Key features:

  • Maximum resolution of 1920 × 1080 at 25 fps, with a Progressive Scan CMOS sensor
  • Fixed 2.1 mm focal length, 40° angle of view and M12 lens mount
  • Minimum illumination of 0.1 lux, IR night vision up to 15 m (49.2 ft) and electronic day/night switching
  • 85 dB WDR, 42 dB signal-to-noise ratio and shutter speed from 1/25 s to 1/50,000 s
  • TVI video output and 1 Vpp composite output through an aviation plug (pin 1: video, pin 2: empty, pin 3: power, pin 4: ground); default format PAL, switchable to NTSC
  • IP68 metal body measuring 83.2 mm × 46 mm × 41.6 mm (3.28" × 1.81" × 1.64"), with operating conditions of -40 °C to 75 °C (-40 °F to 167 °F), 90%
  • Power consumption of max. 2.5 W; compatible with Hik-Connect and iVMS-4200

Specifications 27

Open the spec sheet PDF(opens in a new tab)

Camera

Max Resolution
1920 × 1080

Lens

Zoom type
Fixed
Focal Length
2.1 mm
Field of View
40°
Lens Mount
M12

Image & Video

Min. Illumination
0.1 lux
IR Range
15 m (49.2 ft)
WDR
85 dB
Frame Rate
25 fps

Audio

Audio
Built-in mic & speaker

Connectivity

Compatible software
Hik-Connect, iVMS-4200

Full specification

Manufacturer data, 16 parameters

Selection Parameter

Protection Level
IP68
Case Type
Square camera
Sensor
Progressive Scan CMOS

Camera

Shutter Speed
1/25 s to 1/50,000 s
P/N
P (Default format is PAL and support switching to NTSC)
Day & Night
Electronic


SNR
42 dB

Interface

Video Output
TVI
Built-in Microphone
No
Built-in Speaker
No
Interface style
1 Vpp Composite Output (aviation plug);
1: video, 2: empty, 3: power, 4: ground

Supplement Light Unit

Power Supply
9 to 16 V DC
Power Consumption
Max. 2.5 W

General

Camera material
Metal
Camera Dimension
83.2 mm × 46 mm × 41.6 mm (3.28" × 1.81" × 1.64")
Startup and Operating Conditions
-40 °C to 75 °C (-40 °F to 167 °F), 90%
