Product code: #ALL-001630

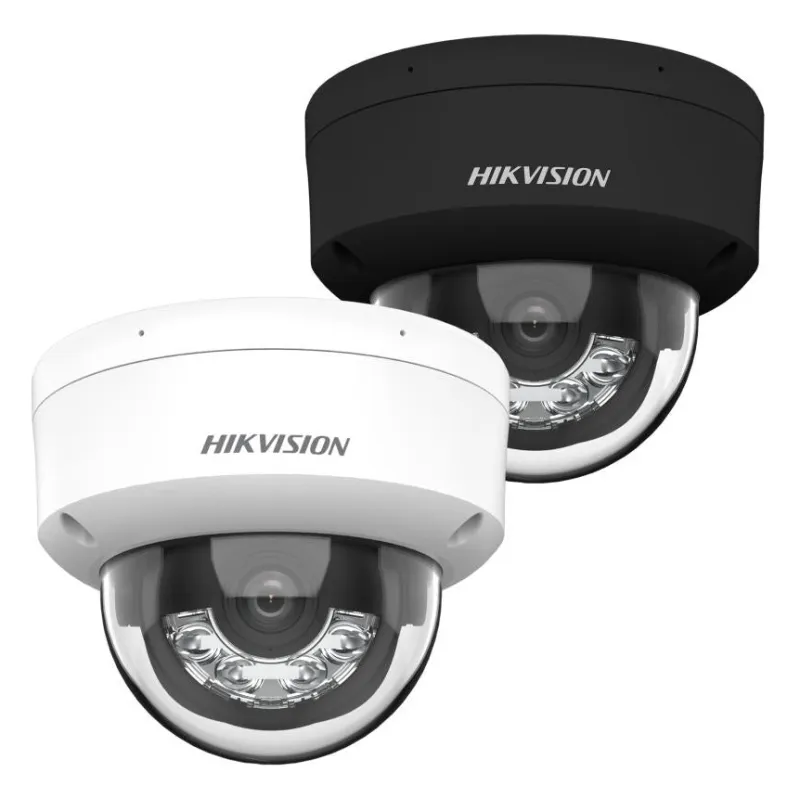

Camera, IP, Hikvision, DS-2CD2143G2-LI(2.8mm)4 MP Acusense Smart Hybrid Light Fixed Dome Network Camera

Hikvision

Camera, IP, Hikvision, DS-2CD2143G2-LI(2.8mm)4 MP Acusense Smart Hybrid Light Fixed Dome Network Camera

379 ₾

VAT included

  • In stock
379 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 11.2 TB

8 cameras, with margin: 81.2 W

Calculate exactly

Compare with similar

Full comparison

Description

The Hikvision DS-2CD2143G2-LI (2.8mm) is a 4 MP fixed dome network camera with a 1/3" CMOS sensor and a metal housing. It records at a maximum resolution of 2688 × 1520 and supports AcuSense, Smart Hybrid Light and line crossing detection.

The camera has a built-in microphone and a microSD slot for cards up to 512 GB. It connects through 1 RJ-45 port (10/100 Mbps), is powered by PoE or 12V DC, and works with Hik-Connect and iVMS-4200.

Key features:

  • Fixed 2.8 mm lens with F1.6 aperture, M12 lens mount and 104° field of view
  • Dual lighting with IR and white light, 30 m (98.4 ft) IR range and 0.005 lux minimum illumination
  • Day/night mode with auto IR-cut filter, 120 dB WDR and 25/30 fps frame rate
  • H.265+, H.265, H.264+, H.264 and MJPEG compression
  • IP67 and IK10 protection, operating temperature from -30 to +60 °C (-22 to 140 °F)
  • ONVIF (Profile S, Profile G), ISAPI, SDK and ISUP support
  • Power consumption of 7.2 W, dimensions of Ø121.5 × 97.6 mm and weight of 600 g (21.16 oz)

Features in action

3 demos

  • AcuSense

    AcuSense: Smart Detection

    Smart detection distinguishes people and vehicles from animals and shadows, cutting false alarms and sending instant alerts.

  • Line Crossing

    Line Crossing Detection

    The camera detects when a person or vehicle crosses a virtual line in the set direction and triggers an instant alert.

  • Before
    then
    Smart Hybrid Light

    Smart Hybrid Light

    Two lights in one: infrared by default, switching to white light when a person appears for full-color footage.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 1 accessory

Kit · 488 ₾514 ₾

Kit −26 ₾

Specifications 75

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/3" CMOS
Max Resolution
2688 × 1520
Megapixels
4 MP
Form Factor
Dome
Housing Material
Metal
Characteristics
Microphone, microSD

Lens

Zoom type
Fixed
Focal Length
2.8 mm
Lens
2.8 mm
Aperture
F1.6
Field of View
104°
Lens Mount
M12

Image & Video

Supplement light
Infrared (IR), White light, Dual light
Min. Illumination
0.005 lux
IR Range
30 m (98.4 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Frame Rate
25/30 fps
Compression
H.265+, H.265, H.264+, H.264, MJPEG

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ-45, 10/100 Mbps
Storage
microSD up to 512 GB

Power & Protection

Power Supply
PoE, 12V DC
IP / IK Rating
IP67, IK10
Power Consumption
7.2 W

Smart & Features

Features
AcuSense, Smart Hybrid Light, Line Crossing

Connectivity

Compatible software
Hik-Connect, iVMS-4200

Compliance

Certifications
CE

Physical

Operating humidity
≤ 95 %
Operating Temperature
-30 … +60 °C (-22 … 140 °F)
Dimensions
Ø121.5 × 97.6 mm (Ø4.78 × 3.84 in)
Weight
600 g (21.16 oz)

Full specification

Manufacturer data, 43 parameters

Camera

Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

Iris Type
Fixed
Depth of Field
2.8 mm: 1.4 m to ∞;
4 mm: 1.5 m to ∞
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m;
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

Smart Supplement Light
Yes
IR Wavelength
850 nm

Video

Sub-stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);
*Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Target Cropping
Yes

Audio

Audio Compression
-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160;
Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-2U: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering
-2U: Yes

Network

Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,;
SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,;
WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
Security
Password protection, complicated password, HTTPS encryption, IP address filter,;
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3,;
WSSE and digest authentication for Open Network Video Interface
User/Host
Up to 32 users;
3 user levels: administrator, operator, and user
Web Browser
Plug-in required live view: IE 11,;
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,;
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+


Image Parameters Switch
Yes
Image Settings
Rotate mode
Day/Night Switch
Day,Night,Auto,Schedule
SNR
≥ 52 dB
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
8 programmable polygon privacy masks

Interface

Alarm
-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key
Yes

Event

Basic Event
Motion detection (support alarm triggering by specified target types (human and; vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger;
recording,trigger capture,-S: trigger alarm output

General

Package Dimension
150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,;
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,;
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,;
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti -banding

Approval

CE-RoHS
2011/65/EU,
WEEE
2012/19/EU,
REACH
Regulation (EC) No 1907/2006
