Product code: #ALL-001537

კამერა, IP, Hikvision DS-2CD2783G2-LIZS2U, 8mp, (2.8-12mm)Dome, IR40m, MVFL, AcuSense, Smart Hybrid, Micro SD

Hikvision

კამერა, IP, Hikvision DS-2CD2783G2-LIZS2U, 8mp, (2.8-12mm)Dome, IR40m, MVFL, AcuSense, Smart Hybrid, Micro SD

1 177 ₾

VAT included

  • In stock
1 177 ₾

VAT included

  • In stock
Quantity
1

1 in stock

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

8 cameras like this, 30 days: 22.4 TB

8 cameras, with margin: 105.2 W

Calculate exactly

Compare with similar

Full comparison

Description

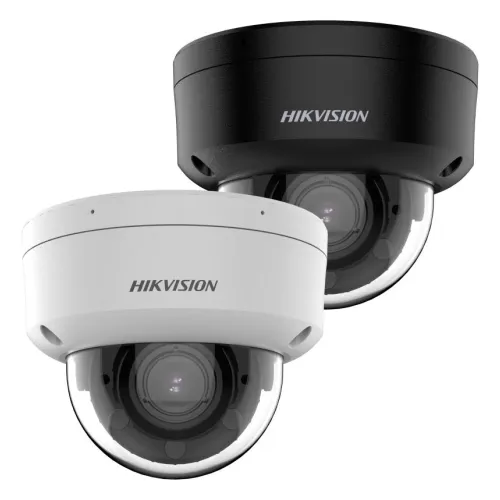

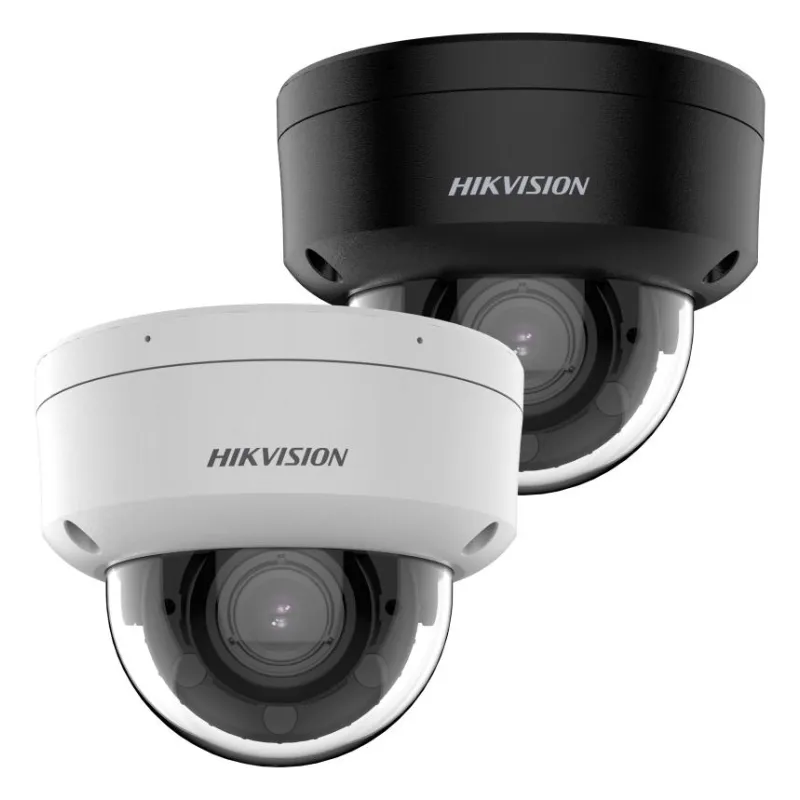

The Hikvision DS-2CD2783G2-LIZS2U is an 8 MP IP dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 3840 × 2160. It has a metal housing and a varifocal lens with a 2.8–12 mm focal length and an F1.6 aperture.

The camera supports AcuSense, line crossing and motion detection, with alarm triggering by specified target types (human and vehicle). For low light it has infrared and white light supplement lighting, with IR range up to 40 m. A built-in microphone records audio, and a microSD card slot takes cards up to 512 GB.

Key features:

  • 8 MP resolution (3840 × 2160), 25/30 fps, with H.265+, H.265, H.264+, H.264 and MJPEG compression
  • Varifocal 2.8–12 mm lens, with pan 0° to 355°, tilt 0° to 75° and rotate 0° to 355° adjustment
  • Day/night mode with auto IR-cut, 0.005 lux minimum illumination, 120 dB WDR, and IR, white light and dual light supplement lighting
  • IP67 and IK10 protection, with an operating temperature of -30 … +60 °C (-22 … 140 °F)
  • 1 × RJ-45 10/100 Mbps port, ONVIF (Profile S, Profile G), ISAPI, SDK and ISUP, and compatibility with Hik-Connect and iVMS-4200
  • Power through PoE, 12V DC or 24V AC, with 12.5 W power consumption
  • 1 alarm input and 1 alarm output, 8 programmable polygon privacy masks, and BLC, HLC and 3D DNR image enhancement

Features in action

2 demos

  • AcuSense

    AcuSense: Smart Detection

    Smart detection distinguishes people and vehicles from animals and shadows, cutting false alarms and sending instant alerts.

  • Line Crossing

    Line Crossing Detection

    The camera detects when a person or vehicle crosses a virtual line in the set direction and triggers an instant alert.

Bought together

−5%

The kit is ready, adjust it as you need

Camera + 1 accessory

Kit · 1 246 ₾1 312 ₾

Kit −66 ₾

Specifications 75

Open the spec sheet PDF(opens in a new tab)

Camera

Image Sensor
1/2.8" CMOS
Max Resolution
3840 × 2160
Megapixels
8 MP
Form Factor
Dome
Housing Material
Metal
Characteristics
Microphone, microSD

Lens

Zoom type
Varifocal
Focal Length
2.8–12 mm
Lens
2.8–12 mm
Aperture
F1.6
Field of View
355°

Image & Video

Supplement light
Infrared (IR), White light, Dual light
Min. Illumination
0.005 lux
IR Range
40 m (131.2 ft)
Day / Night
Day/Night (auto IR-cut)
WDR
120 dB
Frame Rate
25/30 fps
Compression
H.265+, H.265, H.264+, H.264, MJPEG

Audio

Audio
Built-in mic

Network

Network Interface
1 × RJ-45, 10/100 Mbps
Storage
microSD up to 512 GB

Power & Protection

Power Supply
PoE, 12V DC, 24V AC
IP / IK Rating
IP67, IK10
Power Consumption
12.5 W

Smart & Features

Features
AcuSense, Line Crossing, ONVIF

Connectivity

Compatible software
Hik-Connect, iVMS-4200

Compliance

Certifications
CE

Physical

Operating humidity
≤ 95 %
Operating Temperature
-30 … +60 °C (-22 … 140 °F)
Dimensions
Ø121.5 × 97.6 mm (Ø4.78 × 3.84 in)
Weight
620 g (21.87 oz)

Full specification

Manufacturer data, 44 parameters

Camera

Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

Lens Mount
Ø 14
Iris Type
Fixed
DORI
2.8 to 12 mm: D: 88.3 m to 289.7 m, O: 35 m to 114.9 m, R: 17.7 m to 57.9 m, I: 8.8 m to 29.0 m

Illuminator

Smart Supplement Light
Yes
IR Wavelength
850 nm

Video

Sub-stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);
*Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profi le
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Target Cropping
Yes

Audio

Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering
Yes

Network

Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
User/Host
Up to 32 users;
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentica tion for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Web Browser
Plug-in required live view: IE 11,;
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,;
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+


Image Parameters Switch
Yes
Image Settings
Rotate mode
Day/Night Switch
Day,Night,Auto,Schedule
SNR
≥ 52 dB
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
8 programmable polygon privacy masks

Interface

Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes

Event

Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Perimeter Protection
Support alarm triggering by specified target types (human and vehicle)

General

Package Dimension
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.5")
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti -banding

Approval

CE-RoHS
2011/65/EU,
WEEE
2012/19/EU,
REACH
Regulation (EC) No 1907/2006
