Product code: #ALL-000264
Dahua
Network video intercom call panel Dahua VTO6000CM
- IP / IK RatingIP54
- Intercom TechnologyIP (SIP)
308.64 ₾
VAT included
- In stock
308.64 ₾
VAT included
- In stock
Quantity
1
12-month warranty
Official warranty
Delivery: 1-5 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Compare with similar
Full comparison- VTH5421E-H network video intercom monitor with handset SIP2.0 DC12V PoE(802.3af) blackSpeaker 1 built-in speaker and 1 handset speaker492.78 ₾184.14 ₾ more expensive
- VTH5421EW-H network video intercom monitor with handset SIP2.0 DC12V PoE(802.3af) whiteSpeaker 1 built-in speaker and 1 handset speaker492.78 ₾184.14 ₾ more expensive
Specification | This product VTO6000CM | ||
|---|---|---|---|
308.64 ₾ Best price | 492.78 ₾ | 492.78 ₾ | |
| SpeakerSpeaker | Built-in Speaker | 1 built-in speaker and 1 handset speaker | 1 built-in speaker and 1 handset speaker |
| Power SupplyPower Supply | 12 VDC | 12V DC 1A, standard PoE | 12V DC 1A, standard PoE |
| SD CardSD Card | - | SD card is supported and the maximum capacity is 32GB | SD card is supported and the maximum capacity is 32GB |
| ProtocolProtocol | TCP/ | IPv4, DNS, RTSP, RTP, TCP, UDP, SIP | IPv4, DNS, RTSP, RTP, TCP, UDP, SIP |
Description

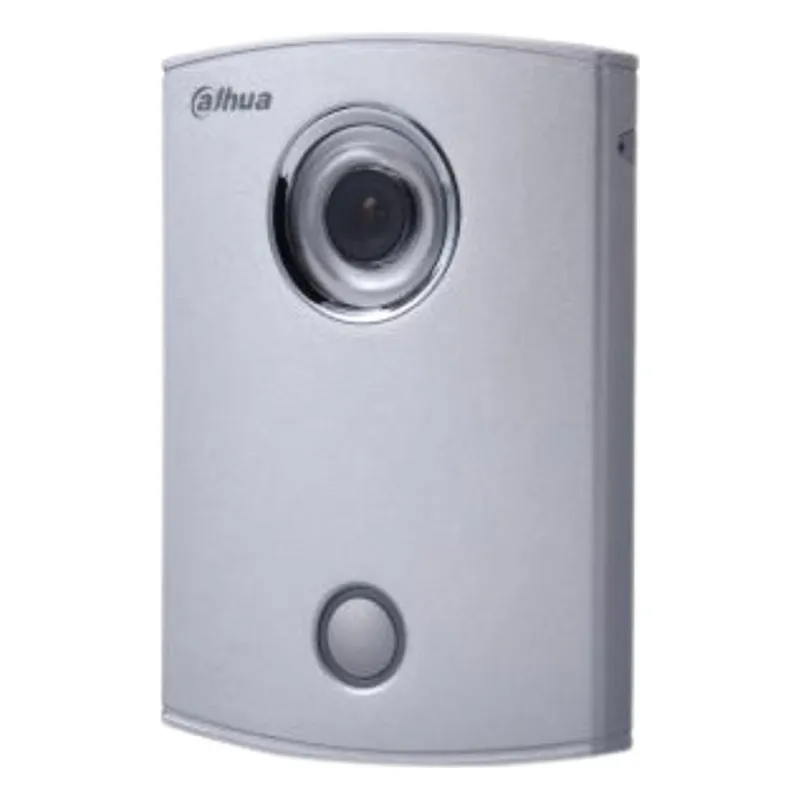

The Dahua VTO6000CM is an IP video door station that works as the outdoor unit of a network video intercom system. It has a 1.3MP camera and a built-in speaker and microphone, so a visitor can be seen and spoken to through a single flush-mounted panel.
The unit connects over Ethernet using TCP/IP and works with the DMSS and SmartPSS Lite applications. It runs on 12 VDC and is housed in aluminum and plastic with a single mechanical call button.
Key features:
- Camera: 1/3" 1.3MP CMOS sensor with a 3.6mm lens, 75° horizontal and 95° diagonal field of view, color image, H.264 video compression
- Audio: built-in speaker, omnidirectional microphone, dual-way bidirectional talk, G.711 audio compression
- Door control: 1 unlock relay, plus 2 alarm inputs (1ch unlock button, 1ch feedback)
- Network: IP (SIP) system technology, 10M/100Mbps self-adaptive Ethernet, TCP/IP protocol
- Compatible applications: DMSS and SmartPSS Lite
- Protection and operating range: IP54, 1 tamper switch, operating temperature -30 … +60 °C (-22 … 140 °F), relative humidity 10%~90%RH
- Physical: flush mounting, 100.0mm×141.0mm×42.0mm, 0.4Kg, 12 VDC power supply with 10 W power consumption
Specifications 35
Open the spec sheet PDF(opens in a new tab)Camera
- Camera Resolution
- 1.3MP
- Camera Sensor
- 1/3" 1.3MP CMOS
Audio
- Speaker
- Built-in Speaker
- Microphone
- Omnidirectional Mic
Power & Protection
- Power Supply
- 12 VDC
- IP / IK Rating
- IP54
Connectivity
- Compatible software
- DMSS, SmartPSS Lite
- Intercom Technology
- IP (SIP)
- Protocol
- TCP/
IP
Door Control & I/O
- Unlock Relays
- 1
- Alarm Input
- 2 (1ch unlock button, 1ch feedback)
Physical
- Operating Temperature
- -30 … +60 °C (-22 … 140 °F)
- OS
- Embedded Linux
Full specification
Manufacturer data, 20 parameters
System
- Main Processor
- Embedded Micro Processor
Video
- Video Compression
- H.264
- Image Sensor
- 1/3” 1.3MP CMOS
- Lens
- 3.6mm
- Angle of View
- D:
95° H: 75° - Day/
Night - Color Image
Audio
- Audio Compression
- G.711
- Audio Input
- Omnidirectional Mic
- Audio Output
- Built-in Speaker
- Bidirectional Talk
- Support Dual-way Bidirectional talk
Operation Mode
- Keypad
- Single Mechanical Button
Interface
- Door Control
- 1
Network
- Ethernet
- 10M/100Mbps Self-adaptive
- Network Protocol
- TCP/
IP
General
- TAMPER switch
- 1
- Installation
- Flush
- Material
- Aluminum & Plastic
- Relative Humidity
- 10%~90%RH
- Dimensions
- 100.0mm×141.0mm×42.0mm
- Weight
- 0.4Kg
