Product code: #ALL-002966

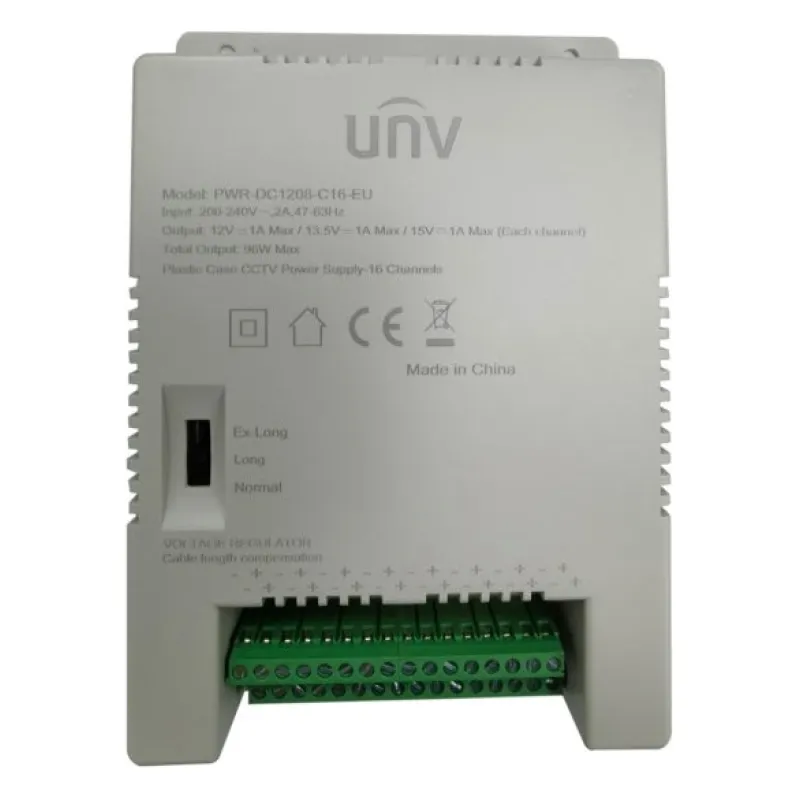

Power supply for analog camera with 16 channel support

Uniview · PWR-DC1208-C16-EU

Power supply for analog camera with 16 channel support

74.36 ₾

VAT included

  • In stock
74.36 ₾

VAT included

  • In stock
Quantity
1

1 in stock

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Specifications 19

Open the spec sheet PDF(opens in a new tab)

Output

Output Voltage
12 V
PSU Type
Multi-Output CCTV Box
Output Power
96 W
Voltage Adjust
Normal: 12 VDC, Long: 13.5 VDC, Ex-Long: 15 VDC
Current per Channel
1 A

Input

Input Voltage Range
200 to 240 VAC
Input Connection
C8
Input Frequency
47 to 63 Hz

Regulation & Ripple

Ripple & Noise
0.15 Vp-p (150 mV)

Full specification

Manufacturer data, 10 parameters

Specifications

Model
PWR-DC1208-C16-EU

Power

Appearance
White
Input
200 to 240 VAC, 47 to 63 Hz
Cable Length Compensation
Normal: 12 VDC;
Long: 13.5 VDC;
Ex-Long: 15 VDC
AC Input Connector
C8
DC Output Connector
DC Plug: grid terminal
LED Indicator
Green
Certification
CE
Operating Environment
0°C to 40°C (32°F to 104°F), ≤90% (non-condensing)
Storage Environment
-20°C to 70°C (-4°F to 158°F), ≤95% (non-condensing)
