Product code: #ALL-002979

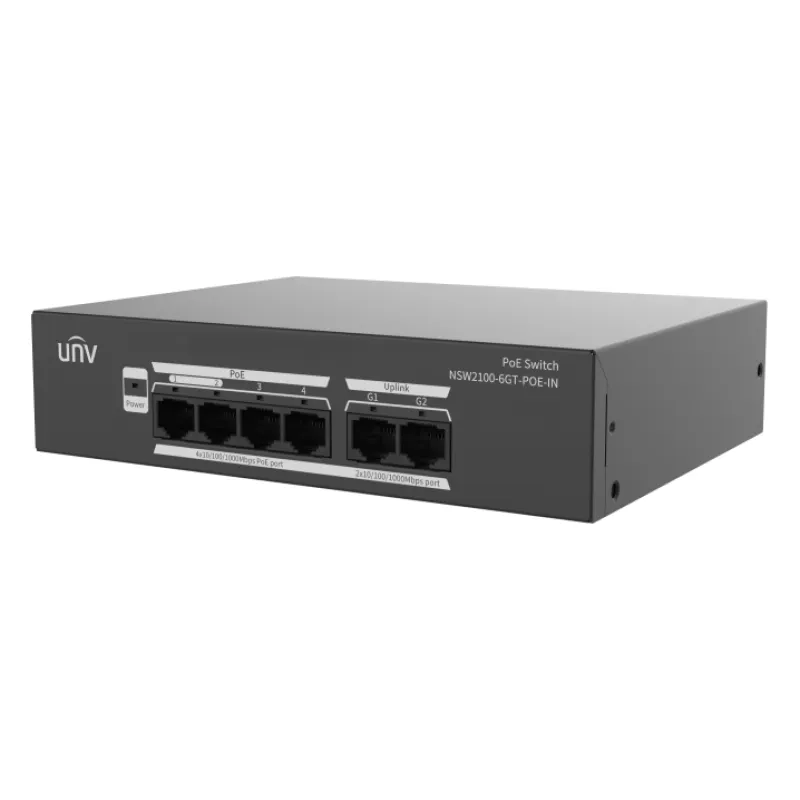

Managed PoE switch - 4P af/at, 2G, Uniview

Uniview · NSW2100-6GT-POE-IN

Managed PoE switch - 4P af/at, 2G, Uniview

  • Total Ports6
  • Port SpeedGigabit (10/100/1000 Mbps)
  • PoE Budget65 W
123.93 ₾

VAT included

  • In stock
123.93 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

PoE budget

Powers 4 cameras at 6.5 W each

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview NSW2100-6GT-POE-IN is a managed Layer 2 PoE switch with 6 Gigabit Ethernet ports (10/100/1000 Mbps, RJ45). 4 of the ports supply PoE, and the other 2 are standard ports. The total PoE budget is 65 W, with a maximum of 30 W on a single port.

The switch has a desktop housing, measures 16913240mm, weighs 0.65KG and has no cooling fans. It supports VLANs, link aggregation, port isolation and port mirroring. PoE status can be viewed, and PoE power supply enabled or disabled, in the APP.

Key features:

  • 6 ports of 10/100/1000 Mbps (RJ45), 4 of them PoE, with 802.3af and 802.3at listed among the supported standards (IEEE802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3af, 802.3at)
  • PoE budget of 65 W, up to 30 W per port, with ModeA (1236) and ModeB (4578)
  • Switching capacity of 12 Gbps, forwarding rate of 8.92 Mpps, 1 M bit packet buffer and 32K MAC table
  • Up to 6 VLANs with IDs from 1 to 4094, static MAC entries (up to 32), port isolation and N:1 port mirroring
  • 2 link aggregation groups (up to 4 ports), port flow statistics, port priority flow control and auto-negotiation of port rate and duplex mode
  • Device upgrade, factory settings restoration, configuration import and export, and device restart in the software, plus editing of the IP address and device name
  • AC 100-240 input, fanless design, operating temperature 0 … +45 °C (32 … 113 °F), operating humidity 10% to 90% (noncondensing), rack mounting, NDAA compliant

Specifications 36

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Input
AC 100-240
Fanless
Yes

Ports & PoE

PoE Ports
4
Total Ports
6
Port Speed
Gigabit (10/100/1000 Mbps)
PoE Standard
802.3af (PoE)
PoE Budget
65 W

Performance

Management
Managed
Layer
L2
Switching Capacity
12 Gbps
Forwarding Rate
8.92 Mpps
MAC Table
32K

Physical

Form Factor / Chassis
Desktop
Operating Temperature
0 … +45 °C (32 … 113 °F)
Mounting
Rack

Full specification

Manufacturer data, 21 parameters

Hardware Specification

Ports Type
4x 10/100/1000Mbps PoE port (RJ45);
2 x 10/100/1000Mbps port (RJ45)
Packet Buffer
1 M bit
MAC
2K
Priority Ports
1 to 2
Standards
IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,
Dimensions (W × D × H)
169*132*40mm
PoE Mode
ModeA (1236),ModeB (4578)
Max. PoE Power
Max capacity:65W;
Maximum PoE power for single port: 30W
Max. Power
70W
Cooling Fans
0
Weight
0.65KG
Operating Humidity
10% to 90% (noncondensing)
Indicator
Power:;
Off: Abnormal power input.;
Green: Normal power input.;
Yellow: The total PoE power is higher than 85% of the total power of the device.;
Link/Act:;
Off: Disconnected to the port;
On: Connected to the port;
Blinking: Transmitting data

Software Specification

Ethernet
Supports full duplex, half duplex, and auto-negotiation working modes.;
Supports enabling/disabling ports.;
Supports port auto-negotiation rate.;
Supports port priority flow control.;
Supports port flow statistics.;
Supports two link aggregation groups (up to four ports).
VLAN
allows up to 6 VLANs with IDs from 1 to 4094
MAC
Support static MAC, up to 32.
PoE
Allows to view PoE status and enable/disable PoE power supply in the APP
Security
Supports port isolation
Maintenance
Supports N:1 port mirroring.;
Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software.
System
Allows to view the device name, current version, IP address, MAC address, DNS, etc.;
Allows to edit and manage the IP address and device name.

Compliance

NDAA Compliant
