Product code: #ALL-002395

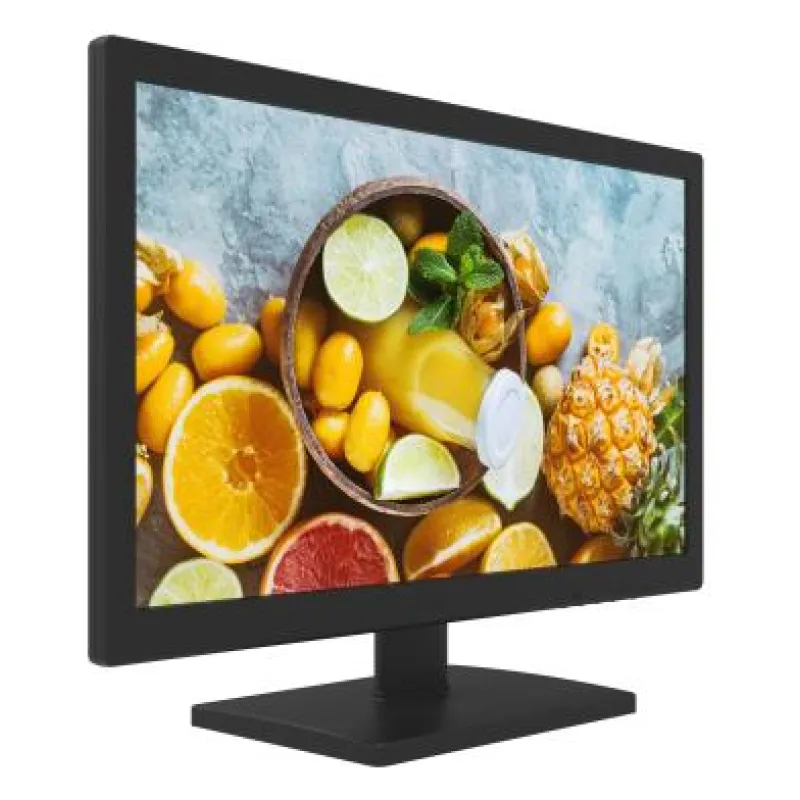

Monitor DS-D5019QE-B, 18.5 Inch

Hikvision

Monitor DS-D5019QE-B, 18.5 Inch

  • Screen Size18.5"
  • Display Resolution1366 × 768
292 ₾

VAT included

  • In stock
292 ₾

VAT included

  • In stock
Quantity
1

1 in stock

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Hikvision DS-D5019QE-B is an 18.5" monitor with a resolution of 1366 × 768. It uses an LED backlight and shows 16.7M colors, with a brightness of 200 cd/m², a contrast ratio of 600:1 and a response time of 5 ms.

The monitor has 1 HDMI input and 1 VGA input. It is rated for 24/7 operation and has a black housing. It has no built-in speakers. A VGA cable, a power cable, a stand bracket and a user manual are included.

Key features:

  • 18.5" display with 1366 × 768 resolution, 0.300 mm × 0.300 mm pixel pitch and an active area of 409.8 mm × 230.4 mm
  • LED backlight, 200 cd/m² brightness, 600:1 contrast, 5 ms response time and 16.7M colors
  • Viewing angles of 90° horizontal and 60° vertical
  • 1 HDMI input and 1 VGA input
  • 24/7 operating mode, with an operating temperature of 0 to +40 °C and operating humidity of 10 to 85 % (no condensation)
  • Power input of AC 100-240V, 50/60Hz, with 20 W power consumption and ≤ 0.5W in standby
  • VESA mount of 75 × 75 mm (4-M4); the DS-DM1940W wall mount is optional

Specifications 37

Open the spec sheet PDF(opens in a new tab)

Audio

Built-in Speakers
None

Power & Protection

Power Input
AC 100-240V, 50/60Hz
Power Consumption
20 W

Connectivity

HDMI
HDMI input × 1
VGA
VGA input × 1

Display

Screen Size
18.5"
Display Resolution
1366 × 768
Brightness
200 cd/m²
Contrast
600:1
Response Time
5 ms

Use Case

Duty Cycle
24/7

Physical

Operating Temperature
0 … +40 °C (32 … 104 °F)
Dimensions
446 × 335 × 148 mm (17.56 × 13.19 × 5.83 in)
Weight
2.8 kg (6.17 lb)
VESA Mount
75 × 75 mm (4-M4)

Full specification

Manufacturer data, 22 parameters

General

Model
DS-D5019QE-B
Packing dimensions (W*H*D)
492mm × 337mm × 100mm
Gross Weight
3.5Kg
Storage Temperature
-20 to 55 º C (-4 to 131 º F)
Working Humidity
10 to 85 % (No Condensation)
Storage Humidity
5 to 95% (No Condensation)
Standby Power Consumption
≤ 0.5W
Color of casing
Black

Interfaces

HDMI input
1
VGA input
1

Accessories

Power cord
1
User manual
1
VGA Cable
1
Base bracket
1

Monitor

Backlight
LED Backlight
Pixel Pitch
0.300 mm (H) × 0.300 mm (V)
Max. Resolution
1366×768
Color
16.7M
Active area
409.8mm × 230.4mm
Viewing Angle
Horizantal 90°, vertical 60°

Bracket

Wall Mounted
Optional;
DS-DM1940W
Base bracket
Contain 1
