Product code: #ALL-001904

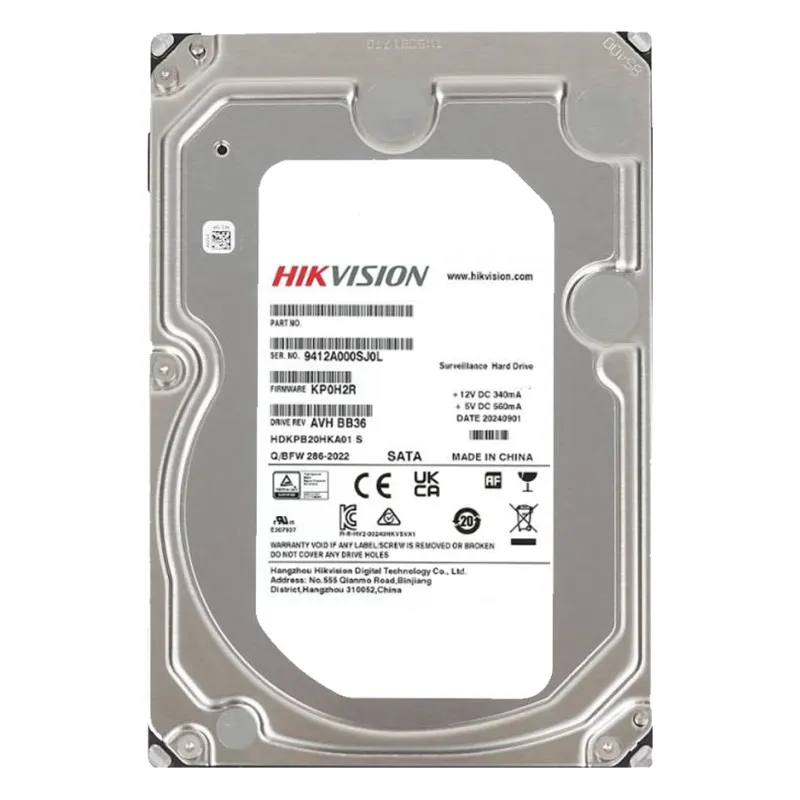

Hard drive - 6TB, SATA HDD Hikvision

Hikvision · DS60HKVS-VX1

Hard drive - 6TB, SATA HDD Hikvision

  • Form Factor3.5"
  • PurposeSurveillance
  • Spindle Speed5400 RPM
1 419.12 ₾

VAT included

  • In stock
1 419.12 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Hikvision DS60HKVS-VX1 is a 6 TB hard disk drive with a SATA interface and a 3.5" form factor. It is designed for video surveillance and supports up to 64 cameras.

The drive spins at 5400 RPM and has a 256 MB cache. It has a workload rating of 180 TB/yr and is rated for availability 24 hours/day, 7 days/week.

Key features:

  • Capacity of 6 TB, with 6 TB formatted capacity
  • SATA interface with speeds of 6.0 Gb/s, 3.0 Gb/s and 1.5 Gb/s, in a 3.5" form factor
  • 5400 RPM spindle speed, 256 MB cache and a maximum sustained data transfer rate of 176.4 MB/s (typ.)
  • Workload rating of 180 TB/yr, MTBF of 1 000 000 hours and AFR of 0.88 %
  • Power consumption (typ.) of 4.84 W in operation, 2.81 W in active idle and 0.36 W in standby, with 24 dB acoustics in low power idle
  • Operating ambient temperature of 0 °C to 60 °C (no condensation), and operating altitude of -305 m to 3048 m
  • Dimensions of 101.6 mm ± 0.25 mm in width, up to 147.0 mm in length and up to 26.1 mm in height, with a weight of up to 680 g

Specifications 37

Open the spec sheet PDF(opens in a new tab)

Capacity

Capacity
6 TB

Interface & Form Factor

Interface
SATA
Form Factor
3.5"

Use Case

Purpose
Surveillance

Drive Performance

Spindle Speed
5400 RPM
Cache
256 MB

Endurance

Workload Rating
180 TB/yr
Cameras Supported
64
MTBF
1 000 000 h

Full specification

Manufacturer data, 28 parameters

Specification

Formatted Capacity
6 TB
Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
Buffer Size
256 MB [7]
Maximum Data Transfer Speed [8] (Sustained) (Typ.)
176.4 MB/s
Logical Data Block Length
HOST: 512 B, DISK: 4096 B
Supply Voltage Allowable Voltage
12 V ± 10 % / 5 V ± 5 %
Power Consumption Operating (Typ.)
4.84 W
Power Consumption Active idle (Typ.)
2.81 W
Power Consumption Standby (Typ.)
0.36 W
Acoustics (Sound Power) Low Power Idle (Typ.)
24 dB

Environmental Limits

Ambient temperature Operating
0 °C to 60 °C (No condensation)
Ambient temperature Non-Operating
- 40 °C to 70 °C (No condensation)
Enclosure surface temperature Operating
0 °C to 70 °C (No condensation)
Altitude Operating
- 305 m to 3048 m
Altitude Non-Operating
- 305 m to 12192 m
Shock Operating
686 m/s2 { 70 G } ( 2 ms duration )
Shock Non-Operating
6TB: 2940 m/s2 { 300 G } / 4 TB: 3430 m/s2 { 350 G };
( 2 ms duration )
Vibration Operating
4.90 m/s2 { 0.50 G } ( 5 to 350 Hz );
2.45 m/s2 { 0.25 G } ( 350 to 500 Hz )
Vibration Non-Operating
29.4 m/s2 { 3.0 G } ( 5 to 500 Hz )

Reliability

MTTF / AFR
1 000 000 hours / 0.88 %
Non-recoverable Error Rate
1 error per 1014 bits read
Load / Unload
600 000 times
Availability
24 hours/day, 7 days/week
Rated Annual Workload (Total TB Transferred per Year, R/W)
180 TB/year

Mechanical Specifications

Width
101.6 mm ± 0.25 mm
Height (Max)
26.1 mm
Length (Max)
147.0 mm
Weight (Max)
680 g
