მზის ენერგიის ინვერტორი - 5კვტ ჰიბრიდული ერთი ფაზა

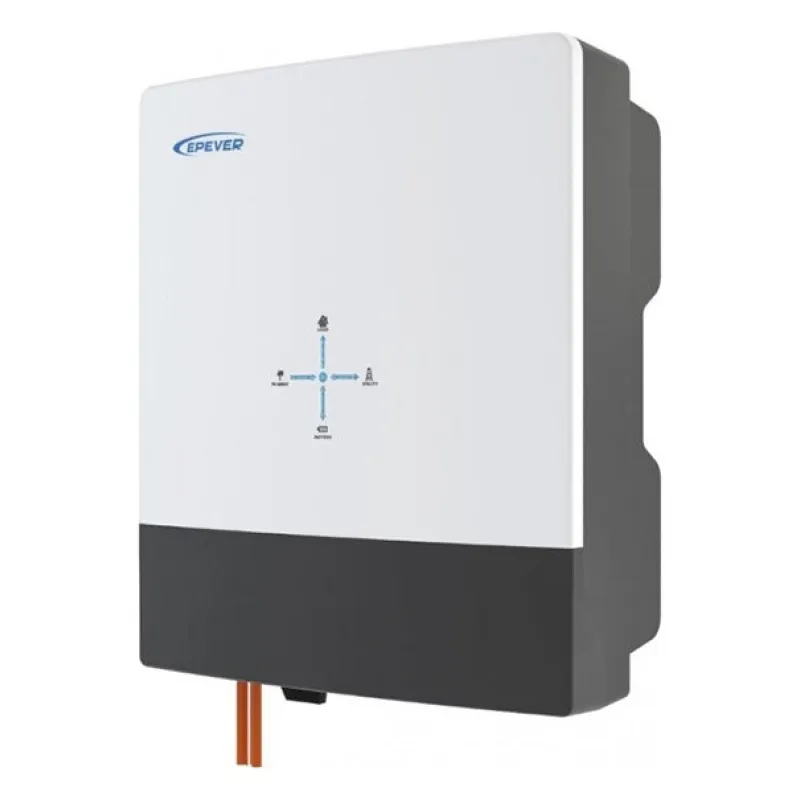

The EPEVER EP-HY-5.0-G3 is a single-phase hybrid solar inverter and charger with a rated output of 5000 W and 5200 VA. It delivers 230 V AC at 50 Hz and has a maximum efficiency of 97.6 %.

It accepts a PV input of 150-550 V DC (MPPT), with a maximum PV voltage (Voc) of 580 V. It works with a 51.2 V nominal battery, either LiFePO4 or lead acid, and has a charging current of 65 A. The unit is rated IP65, is cooled by convection without a fan, and is controlled through an LED display and an app.

Key features:

• Output: 5000 W / 5200 VA, 230 V AC, 50 Hz, 22.8 A output current
• Maximum efficiency of 97.6 % with a transfer time of 10 ms
• PV input range of 150-550 V DC (MPPT), maximum PV voltage (Voc) 580 V
• 51.2 V nominal battery voltage, LiFePO4 or lead acid, 65 A charging current
• IP65 protection and surge protection, with fanless convection cooling
• LED display and app control, with an RS485 serial port
• Operating temperature of -20 … +60 °C (-4 … 140 °F), dimensions of 480 × 214 × 588 mm (18.9 × 8.43 × 23.15 in), weight of 32 kg (70.55 lb)
