Product code: #ALL-002265

Four-door controller DS-K2604T

Hikvision

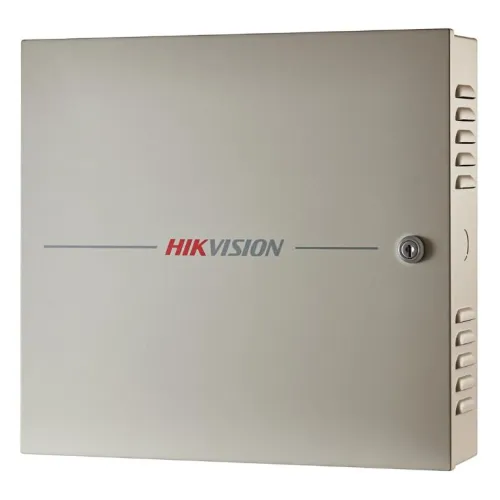

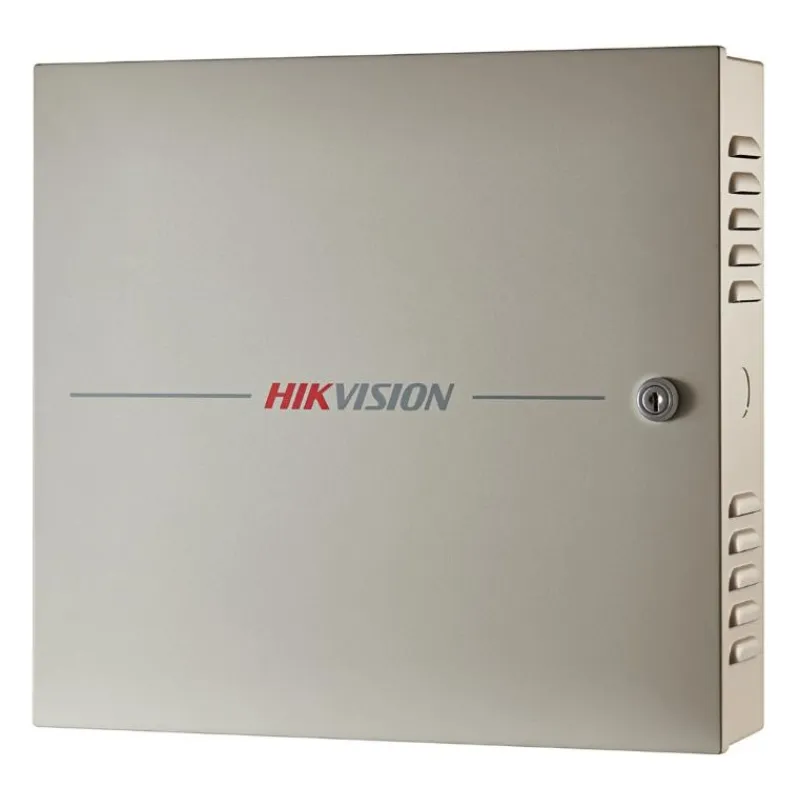

Four-door controller DS-K2604T

  • Doors Supported4
  • Access Device TypeController
1 201 ₾

VAT included

  • In stock
1 201 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Hikvision DS-K2604T is a 4-door access controller that manages entry points through TCP/IP, RS-485 and Wiegand connections. It stores up to 100 000 cards and keeps a log of up to 300 000 events.

Each of the 4 doors has its own lock relay and alarm relay, with support for exit buttons and door sensors. The controller runs on 12VDC and includes tamper protection.

Key features:

  • Controls 4 doors, with 4 lock relay outputs and 4 alarm relay outputs
  • Card capacity of 100 000 and log capacity of 300 000
  • TCP/IP and RS-485 connections
  • Wiegand support for W26 and W34
  • Exit button and door sensor support, plus Anti-passback
  • Tamper protection and 12VDC power supply
  • Operating temperature from -20 to +65 °C (-4 to 149 °F), dimensions 373 × 345 × 98 mm (14.69 × 13.58 × 3.86 in)

Specifications 15

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Supply
12VDC

Identification

Access Device Type
Controller
Event Capacity
300 000
Card Capacity
100 000

Connectivity

TCP/IP
Yes
RS-485
Yes
Wiegand
W26/W34

Door Control & I/O

Doors Supported
4
Relay Output
Lock relay × 4, alarm relay × 4
Exit Button Input
Yes
Door Sensor Input
Yes
Anti-passback
Yes

Physical

Operating Temperature
-20 … +65 °C (-4 … 149 °F)
Dimensions
373 × 345 × 98 mm (14.69 × 13.58 × 3.86 in)
Tamper Alarm
Yes
