Product code: #ALL-002463

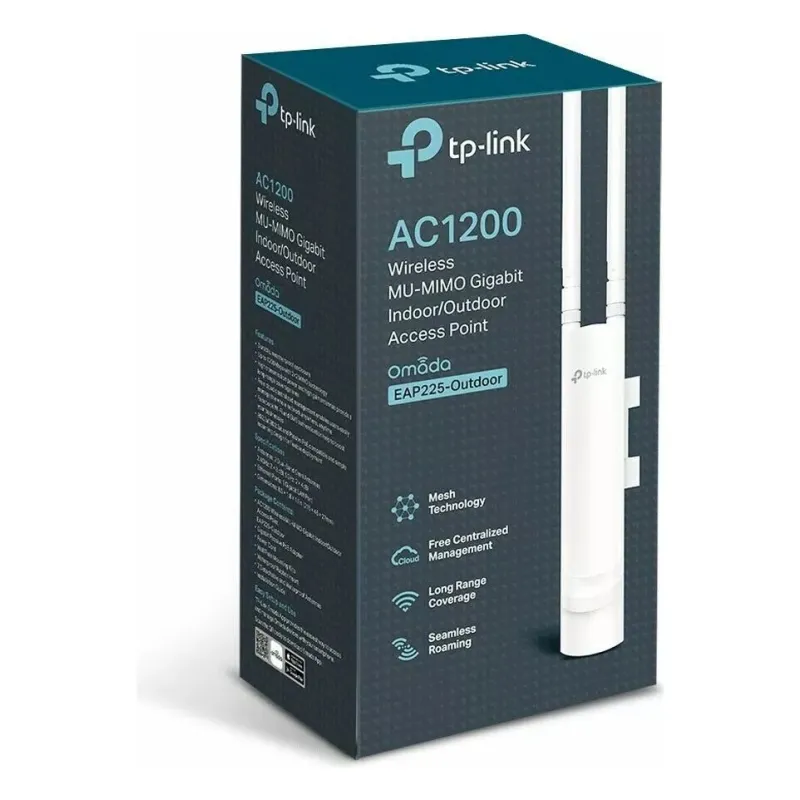

Router EAP225-Outdoor, AC1200, WiFi5, Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point, IP65

Omada

Router EAP225-Outdoor, AC1200, WiFi5, Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point, IP65

  • Wi-Fi GenerationWi-Fi 5 (802.11ac)
  • Total Ports1
  • Port SpeedGigabit (10/100/1000 Mbps)
397 ₾

VAT included

  • In stock
397 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Omada EAP225-Outdoor is an AC1200 Wi-Fi 5 (802.11ac) access point for indoor and outdoor installation. It works on the 2.4 GHz and 5 GHz bands, supports MU-MIMO, and has an IP65 weatherproof housing. Pole and wall mounting kits are included.

The access point has 1 Gigabit Ethernet (RJ-45) port that accepts 802.3af/at PoE (Alternative A) and passive PoE. It has 2 detachable dual-band omni antennas and can be managed through the Omada app, a web interface, or an Omada Cloud-Based, Hardware or Software Controller.

Key features:

  • Wi-Fi 5 (802.11ac) with 802.11a/b/g/n/ac support on 2.4 GHz and 5 GHz, with signal rates up to 867 Mbps on 802.11ac and up to 300 Mbps on 802.11n
  • 2 external detachable dual-band omni antennas: 2× 3 dBi on 2.4 GHz and 2× 5 dBi on 5 GHz
  • IP65 housing, operating temperature -30 … +70 °C (-22 … 158 °F), operating humidity 10-90% RH non-condensing
  • 1× Gigabit Ethernet (RJ-45) port (10/100/1000 Mbps) with 802.3af/at PoE (Alternative A) and passive PoE, power consumption 10.5 W
  • Up to 16 SSIDs (8 for each band), with MU-MIMO, Beamforming, Band Steering, Airtime Fairness, Load Balance and Rate Limit
  • Wireless security features: Captive Portal Authentication, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection and 802.1X support
  • Management options: SSH, SNMP v1/v2c/v3, Syslog, email alerts, management VLAN, multi-site management and Zero-Touch Provisioning with the Omada Cloud-Based Controller

Specifications 37

Open the spec sheet PDF(opens in a new tab)

Wi-Fi

Wi-Fi Generation
Wi-Fi 5 (802.11ac)
Wi-Fi Standard
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Wi-Fi Frequency Bands
2.4 GHz, 5 GHz

Power & Protection

Power Consumption
10.5 W

Ports & PoE

Total Ports
1
Port Speed
Gigabit (10/100/1000 Mbps)
PoE Standard
802.3af (PoE), Passive PoE

Features

SSH / Telnet
SSH

Physical

Operating Temperature
-30 … +70 °C (-22 … 158 °F)
Mounting
Pole/Wall Mounting (Kits included)
Dimensions
46 × 214.9 × 26.7 mm (1.81 × 8.46 × 1.05 in)

Full specification

Manufacturer data, 26 parameters

Hardware Features

Interface
1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
Button
Reset
Antenna
2 Dual-Band Omni Antennas (External Detachable);
2.4 GHz: 2× 3 dBi;
5 GHz: 2× 5 dBi
Weatherproof Enclosure
IP65

Management Features

Omada App
Yes
Centralized Management
Omada Cloud-Based Controller;
Omada Hardware Controller;
Omada Software Controller
Cloud Access
Yes. Require the use of an Omada controller.
Email Alerts
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging, Local/Remote Syslog
Yes
Web-based Management
Yes
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.

Wireless Features

Wireless Standards
IEEE 802.11a/b/g/n/ac
Frequency
2.4GHz, 5GHz
Signal Rate
802.11ac: 6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80);
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40);
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps;
802.11b: 1, 2, 5.5, 11Mbps;
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions
Multiple SSIDs（Up to 16 SSIDs, 8 for each band）;
Enable/Disable Wireless Radio;
Automatic Channel Assignment;
Transmit Power Control （Adjust Transmit Power on dBm）;
QoS(WMM);
MU-MIMO;
Seamless Roaming(802.11k/v/r)*;
Omada Mesh*;
Airtime Fairness;
Beamforming;
Band Steering;
Load Balance;
Rate Limit;
Reboot Schedule;
Wireless Schedule;
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication*;
Access Control;
Wireless Mac Address Filtering;
Wireless Isolation Between Clients;
SSID to VLAN Mapping;
Rogue AP Detection;
802.1X Support
Transmission Power
CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP);
FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

Others

Certification
CE, FCC
Storage Temperature
-40–70 ℃ (-40–158 ℉)
Operating Humidity
10–90% RH non-condensing
Storage Humidity
5–90% RH non-condensing
