Product code: #ALL-002471

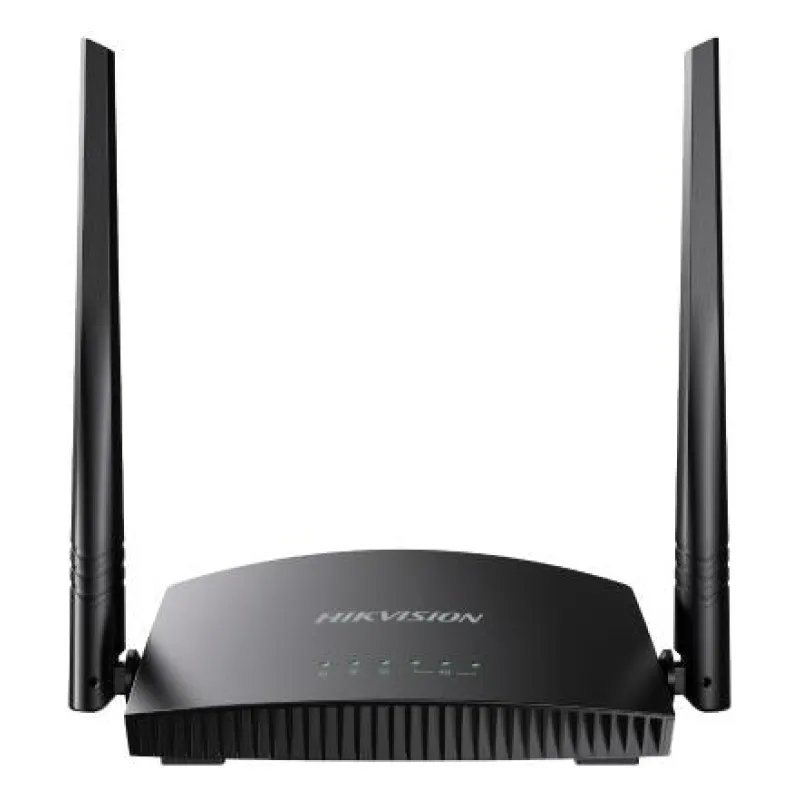

Router Hikvision, DS-3WR4G3N, 300Mbps 4G LTE Wi-Fi Router

Hikvision

Router Hikvision, DS-3WR4G3N, 300Mbps 4G LTE Wi-Fi Router

  • Total Ports2
  • Port Speed10/100 Mbps
  • Cellular CategoryLTE Cat.4
164 ₾

VAT included

  • In stock
164 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Hikvision DS-3WR4G3N is a 4G LTE Wi-Fi router that takes a Nano SIM card and shares the mobile connection over Wi-Fi and Ethernet. It uses an LTE Cat.4 modem with download speeds up to 150 Mbps and upload speeds up to 50 Mbps.

The router broadcasts a 2.4 GHz wireless network based on IEEE 802.11b/g/n, with a maximum wireless speed of 300 Mbps and 2*2 MIMO support. It has 2 RJ45 ports at 10/100 Mbps and is intended for desktop installation. It is managed and updated through a web interface.

Key features:

  • LTE Cat.4 modem with FDD-LTE bands B1/B3/B5/B7/B8/B20/B28AB, TDD-LTE bands B38/B40/B41 and WCDMA bands B1/B5/B8
  • 2.4 GHz Wi-Fi (802.11b/g/n) up to 300 Mbps with 2 internal Wi-Fi antennas and 2 external 4G/3G antennas
  • 2 × RJ45 ports, 10/100 Mbps auto-negotiation, and 1 × Nano SIM card slot
  • 3G/4G Route Mode, Wireless Router Mode and AP Mode, with DHCP server, guest network, signal adjustment and Wi-Fi schedule functions
  • WPA-PSK and WPA2-PSK security, plus Hide SSID
  • LED indicators for Internet, Wi-Fi, LAN and 3 LEDs for 4G/3G signal strength, with a WPS/Reset button
  • 9 VDC, 0.6 A power adapter, 6 W power consumption, dimensions 126 × 97 × 42 mm (4.96 × 3.82 × 1.65 in)

Specifications 46

Open the spec sheet PDF(opens in a new tab)

Wi-Fi

Wi-Fi Standard
802.11b, 802.11g, 802.11n
Wi-Fi Frequency Bands
2.4 GHz
Max Wireless Rate
2.4 GHz: 300 Mbps
Antennas
2 × external 4G/3G, 2 × internal Wi-Fi
Wireless Security
WPA, WPA2
Transmit Power
up to 20 dBm

Power & Protection

Power Input
9 VDC, 0.6 A
Power Consumption
6 W

Ports & PoE

Total Ports
2
Port Speed
10/100 Mbps

Cellular

Cellular network
4G
Cellular Category
LTE Cat.4
LTE FDD Bands
B1/B3/B5/B7/B8/B20/B28AB
LTE TDD Bands
B38/B40/B41
3G (UMTS) Bands
WCDMA: B1/B5/B8

Physical

Operating Temperature
0 … +40 °C (32 … 104 °F)
Mounting
Desktop installation
Dimensions
126 × 97 × 42 mm (4.96 × 3.82 × 1.65 in)

Full specification

Manufacturer data, 28 parameters

General

Package Dimensions (W × H × D)
231mm×203mm×51mm
Net Weight
0.365kg
Packing List
4G LTE Router × 1;
Power Adapter × 1;
Ethernet Cable × 1;
Quick Start Guide × 1;
Regulatory Compliance and Safety Information × 1
Packing Method
Single pack
Working Humidity
10% to 90% RH non-condensing
Storage Temperature
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉ )
Storage Humidity
5% to 90% RH non-condensing
Gross Weight
0.396 kg

Wireless Parameter

Max. transmission rate of air interface
2.4 GHz: 300 Mbps
Wireless Standard
IEEE 802.11b/g/n @2.4GHz
Working Frequency Band
2.4 GHz
Wireless Performance
2*2 MIMO supported
Receiving Sensitivity
-86±2dBm@N20-MCS0;
-66±2dBm@N20-MCS7;
-83±2dBm@N40-MCS0;
-64±2dBm@N40-MCS7;
-92±2dBm@B-1M;
-83±2dBm@B-11M;
-88±2dBm@G-6M;
-71±2dBm@G-54M
Antenna
2 External 4G/3G Antennas;
2 Internal Wi-Fi Antennas
Network Type
LTE CAT.4
Mobile Standards
FDD LTE, TDD-LTE,WCDMA
Mobile Bands
FDD-LTE: B1/B3/B5/B7/B8/B20/B28AB TDD-LTE: B38/B40/B41 WCDMA: B1/B5/B8
4G Speed
DL: 150 Mbps, Upload: 50 Mbps

Hardware Parameter

Network Interface
2 × RJ45, 10/100 Mbps auto-negotiation;
1 × Nano SIM Card Slot
LED Indicator
Internet LED*1;
Wi-Fi LED*1;
LAN LED*1;
4G/3G Signal strength LED*3
Reset
WPS/Reset button*1
Power Supply Method
9 VDC, 0.6 A power adapter power supply
Power Specifications
9 VDC, 0.6 A

Software Function

Application Function
3G/4G Route Mode, Wireless Router Mode, and AP Mode supported;
DHCP Server supported;
Guest Network Configuration supported;
Signal Adjustment supported;
WiFi Schedule supported
Security Mode
WPA-PSK, WPA2-PSK, WPA and WPA2 supported
Security Mechanism
Hide SSID
Management Method
Web
Upgrade
Web
