Product code: #ALL-001735

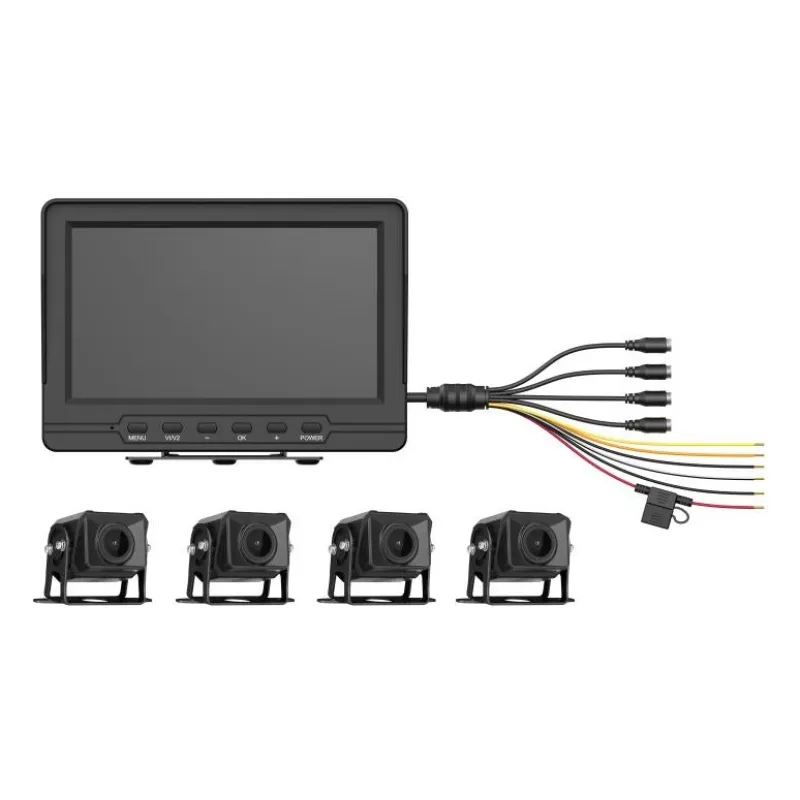

Vehicle systems camera and monitor kit AE-VD2501A-A

Hikvision

Vehicle systems camera and monitor kit AE-VD2501A-A

701 ₾

VAT included

  • In stock
701 ₾

VAT included

  • In stock
Quantity
1

1 in stock

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Hikvision AE-VD2501A-A is a vehicle camera and monitor kit that pairs a 7" LED screen with 4 square 1080P cameras. The screen shows multiple channels and display modes, plays back recorded video directly on the display, and shows the image quickly at power on.

The kit records to a TF card and supports parking monitoring after the vehicle is turned off. The 3 IO input interfaces accept left turn, right turn and reverse signals. It works with Hik-Connect and iVMS-4200, and the interface language is English.

Key features:

  • Cameras: 1920 × 1080 maximum resolution, 103° horizontal and 55° vertical viewing angle, 0.1 lux minimum illumination, color image
  • Screen: 7" LED, 1024 × 600 resolution, adjustable brightness of 250-350cd/m2, 6 buttons for menu, edit, previous, confirm, next and rest
  • Storage: supports up to 512G TF card from Hikvision, 64G TF card included, video storage with recording overwrite
  • Interfaces: 4 4-core aviation head interfaces for 4-way 1080p camera access, 3 IO inputs, 1 TF card slot
  • Power: DC 9V-36V, 12W maximum power consumption
  • Protection and operating range: IP68, -20℃~+70℃ (-4℉~158℉), 10%~80% humidity
  • Included: 1 screen mounting bracket with screws, 4 x 1080P cameras with brackets and mounting screws, 3 x 5-meter camera extension cables, 1 x 15 meter camera extension cable

Specifications 26

Open the spec sheet PDF(opens in a new tab)

Camera

Max Resolution
1920 × 1080

Lens

Field of View
Horizontal: 103°, Vertical: 55°

Image & Video

Min. Illumination
0.1 lux

Network

Storage
Up to 512G TF card (64G TF card included)

Power & Protection

Power Supply
DC 9V-36V
IP / IK Rating
IP68

Connectivity

Compatible software
Hik-Connect, iVMS-4200

Full specification

Manufacturer data, 19 parameters

Camera

Case Type
Square camera


Day/Night Switch
Color

Interface

Local Storage
Support video storage;
Support video recording overwrite
SD Card Storage
Supports up to 512G TF card from Hikvision
Communication Interface
Screen:;
4 4-core aviation head interfaces, support for 4-way 1080p camera access;
3 IO input interfaces, support access to left turn, right turn, reverse signal;
1 TF card slot, support access to a single TF card;
Camera:;
4-core aviation head interface

General

Product Dimension
Screen: 186.51mm*139.38mm*136.98mm (with bracket);
Camera: 65.00mm*43.00mm*37.86mm (with bracket)
Power Consumption
12W MAX
Language
English
Cable Length
Screen: 2700mm;
Camera: 480±50 mm (without connector)
Accessory
Standard with 1 screen mounting bracket with screws;;
Standard with 1 x 64G TF card;;
Standard with 4 x 1080P cameras comes with bracket and mounting screws;;
Standard with 3 x 5-meter camera extension cables;;
Standard with 1 x 15 meter camera extension cable;
Operating Temperature
-20℃~+70℃ (-4℉~158℉)
Operating Humidity
10%~80%

Preview

Preview
Support quick display image at power on;
Support multi-channel display;
Support multiple display modes

Playback

Playback
Support video playback directly on the screen

Parking monitoring

Parking monitoring
Support parking monitoring after the vehicle is turned off

Screen

Keys
6 buttons, support menu, edit, previous, confirm, next, and rest
Size
7",LED
Display Resolution
1024 × 600
Brightness
250-350cd/m2, adjustable
