Product code: #ALL-002002

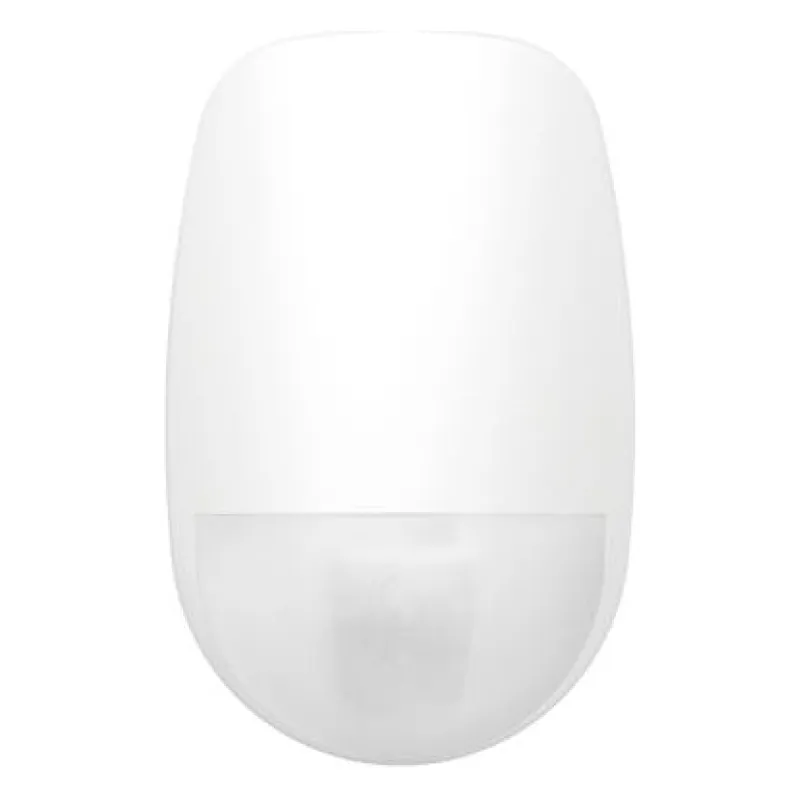

Wired PIR (Curtain) DS-PDC15-EG2(B), 868MHz AX PRO Series

Hikvision

Wired PIR (Curtain) DS-PDC15-EG2(B), 868MHz AX PRO Series

  • Alarm Device TypeCurtain detector (PIR, wired)
56 ₾

VAT included

  • In stock
56 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The Hikvision DS-PDC15-EG2(B) is a wired PIR curtain detector from the AX PRO Series, which operates at 868MHz. It uses passive infrared detection and is designed for indoor use.

The detector has a detection range of 15 m and a detection angle of 6.3°. It covers 18 detection zones and detects movement at speeds of 0.3 to 2 m/s. It mounts on a wall at a height of 2.4 to 3.6 m, and an optional wall and ceiling accessory is available for the bracket.

Key features:

  • Passive Infrared detection method with 15 m detection range and 6.3° detection angle
  • 18 detection zones and detectable movement speed of 0.3 to 2 m/s
  • White light filter rated at 6500lux, with digital temperature compensation and digital processing
  • Creep Zone protection supported
  • Tamper protection and a blue alarm LED indicator
  • Operating temperature of -10 to +55 °C (14 to 131 °F), operating humidity of 10% to 90%
  • Dimensions of 65.4 × 86.8 × 45.5 mm (2.57 × 3.42 × 1.79 in) and weight of 68 g (2.4 oz); no pet immunity

Specifications 23

Open the spec sheet PDF(opens in a new tab)

Overview

Alarm Device Type
Curtain detector (PIR, wired)
Detection Type
Passive Infrared

Detection

Detection Range
15 m
Detection Angle
6.3°
Pet Immunity
None

Physical

Operating Temperature
-10 … +55 °C (14 … 131 °F)
Mounting
Wall, mounting height 2.4 to 3.6 m
Dimensions
65.4 × 86.8 × 45.5 mm (2.57 × 3.42 × 1.79 in)
Weight
68 g (2.4 oz)
Tamper Alarm
Yes

Full specification

Manufacturer data, 13 parameters

Detection Performance

Detection Method
Passive Infrared
Detection Zones
18
Detectable Speed
0.3～2m/s
White Light Filter
6500lux
Digital Temperature Compensation
Support
Creep Zone Protection
Support

Feature

Digital Processing
Support

Interface

LED Indicator
Blue(Alarm)

General

Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operating Humidity
10% to 90%
Mounting Height
2.4 to 3.6m
Application Scenario
Indoor
Bracket
Optional Wall & Ceiling Accessory
