Product code: #ALL-003008

Fire alarm cable, fire-resistant 2x0.8+0.8 - 100 m

ETK Kablo

Fire alarm cable, fire-resistant 2x0.8+0.8 - 100 m

  • Conductor MaterialBare Copper
  • Length100 m
203.94 ₾

VAT included

  • Out of stock

This model is not in stock at any branch right now.

Similar, in stock

From the same category, closest in specs and price

  • Elan Fire cable (2X8/10TW)+SH 032801R (100 m)

    • Shield Layers Overall aluminium/polyester foil, tinned copper drain wire, 100% coverage, instead of Tinned copper earthing wire, Al/PET tape
    • Jacket Material PVC, instead of LSZH
    • Other brand
    • 8 more differences →

    1.62 ₾202.32 ₾ cheaper

    1000 in stock

  • Elan Fire alarm cable (2X1.50TW)+SH 242151R (100 m)

    • Conductor Type Stranded, instead of Solid
    • Shield Layers Overall aluminium/polyester foil, tinned copper drain wire, 100% coverage, instead of Tinned copper earthing wire, Al/PET tape
    • Other brand
    • 9 more differences →

    4.40 ₾199.54 ₾ cheaper

    100 in stock

Compare all four

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Related products

Description

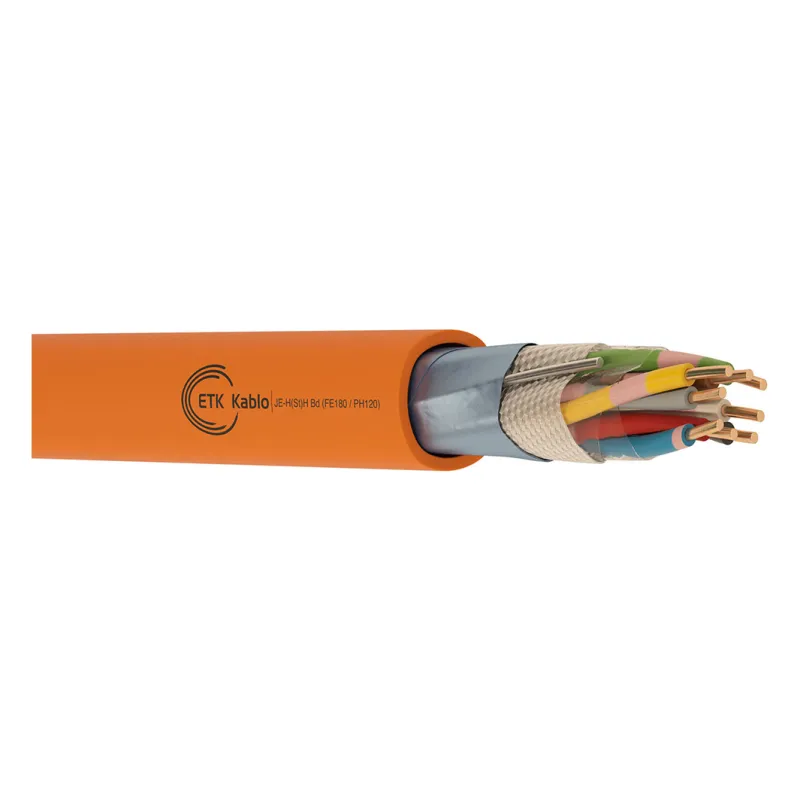

The ETK Kablo fire alarm cable is a fire-resistant cable in the 2x0.8+0.8 configuration, supplied in a length of 100 m (328.1 ft). It has solid conductors made of pure copper, arranged in 1 pair.

The cable is shielded with a tinned copper earthing wire and Al/PET tape. Its LSZH sheath is orange (RAL 2008), and the cable is rated for 300 V.

Key features:

  • Conductor: pure copper, solid (Solid), 1 pair
  • Shielding: tinned copper earthing wire and Al/PET tape
  • Sheath material: LSZH
  • Fire resistance class: FE180 / PH120
  • Voltage class: 300 V
  • Length: 100 m (328.1 ft), color RAL 2008 (Orange)
  • Operating temperature: -40 … +70 °C (-40 … 158 °F)

Specifications 10

Open the spec sheet PDF(opens in a new tab)

Conductor

Conductor Material
Bare Copper
Conductor Type
Solid
Pairs
1

Shielding

Shield Layers
Tinned copper earthing wire, Al/PET tape

Jacket & Fire Rating

Jacket Material
LSZH
Fire Rating
FE180 / PH120
Voltage Rating
300 V

Format

Length
100 m (328.1 ft)
Color
RAL 2008 (Orange)

Physical

Operating Temperature
-40 … +70 °C (-40 … 158 °F)
