Product code: #ALL-003011

Addressable I/O module (with 1 - 24V output)

Easy Detect · MAE-531-I

Addressable I/O module (with 1 - 24V output)

  • IP / IK RatingIP40
  • Fire Device TypeAddressable 1 output 24V module with isolator
184.66 ₾

VAT included

  • In stock
184.66 ₾

VAT included

  • In stock
Quantity
1

1 in stock

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

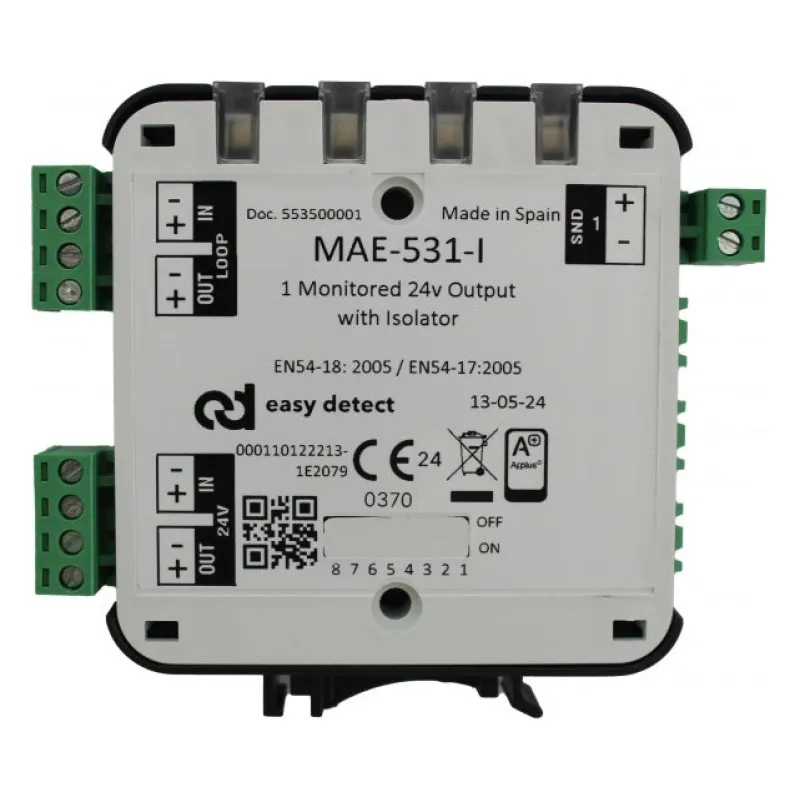

The Easy Detect MAE-531-I is an addressable I/O module with 1 output of 24V and a built-in isolator. It is part of an addressable fire alarm system and is addressed individually on the system.

The module has an IP40 rating and operates within a temperature range of -10 … +40 °C (14 … 104 °F). It measures 92 × 105 × 22 mm (3.62 × 4.13 × 0.866 in) and conforms to EN 54-18 and EN54-17.

Key features:

  • Device type: addressable 1 output 24V module with isolator
  • System type: addressable
  • Operating voltage: from 31 to 40VDC
  • Standby current: < 300 μA
  • Alarm current: < 3mA
  • Protection rating: IP40
  • Standards: EN 54-18 / EN54-17

Specifications 9

Open the spec sheet PDF(opens in a new tab)

Power & Protection

IP / IK Rating
IP40
Operating Voltage
From 31 to 40VDC
Standby Current
< 300 μA
Alarm Current
< 3mA

Overview

Fire Device Type
Addressable 1 output 24V module with isolator
System Type
Addressable

Compliance

Standards
EN 54-18 / EN54-17

Physical

Operating Temperature
-10 … +40 °C (14 … 104 °F)
Dimensions
92 × 105 × 22 mm (3.62 × 4.13 × 0.866 in)
